Toyota YARIS 后视镜 — Figure 8701

Toyota YARIS EPC diagram 8701, 后视镜, with 1 images and 10 PNC and OE references.

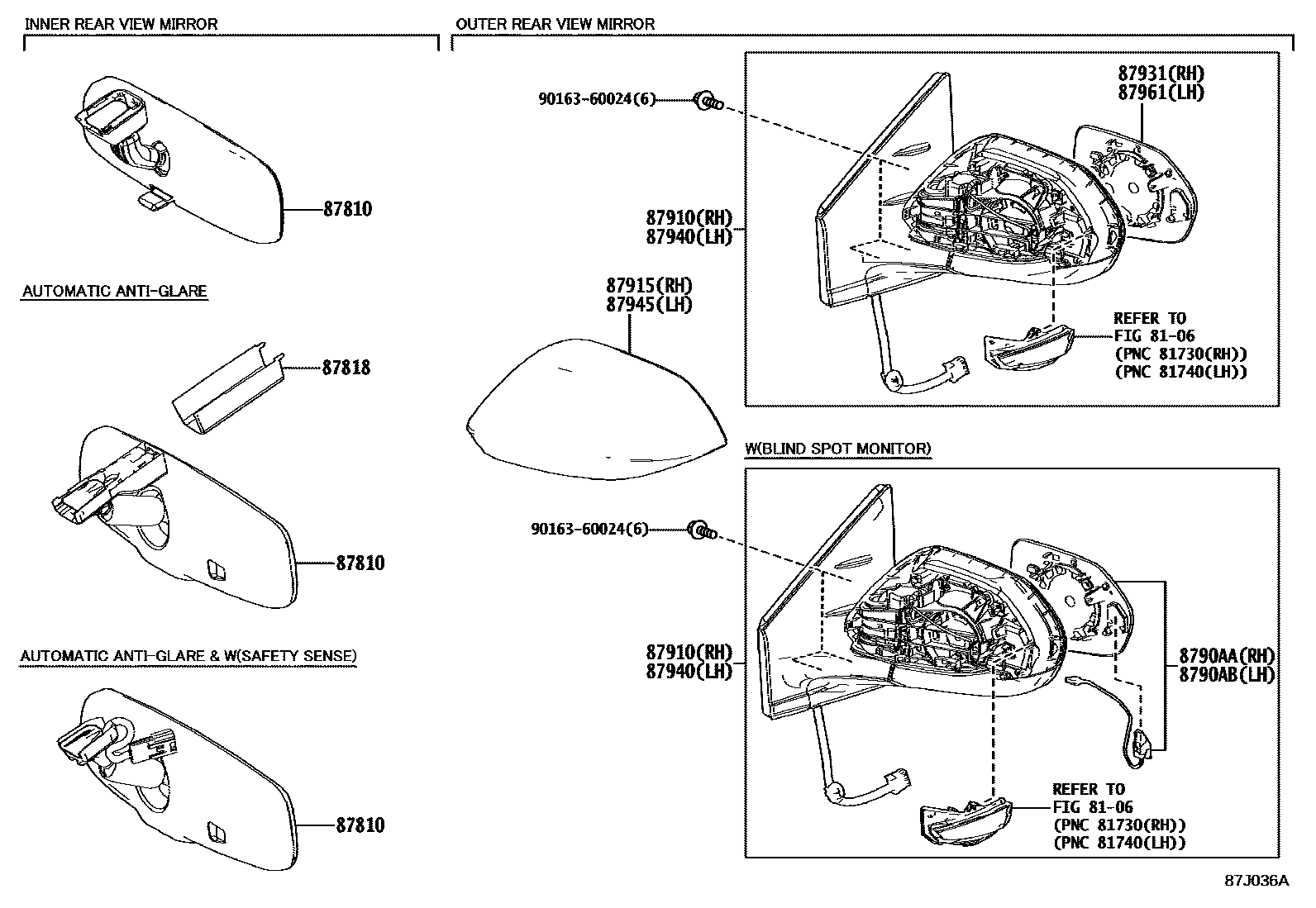

Toyota YARIS 后视镜 EPC diagram — 87J036A
后视镜 — 87J036A (202007 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-28140 · 87810-52041 · 87810-K0050 · 87810-K0060
87818Interior rearview mirror cover87818-24010
8790AARight exterior rearview mirror indicator light8790A-02010
8790ABLeft exterior rearview mirror indicator light8790A-02020
87910Right exterior rearview mirror assembly87910-K0010 · 87910-K0020 · 87910-K0030 · 87910-K0040 · 87910-K0060 · 87910-K0090
87915Right exterior rearview mirror cover87915-02380 · 87915-0D590
87931Right exterior rearview mirror87931-02L40 · 87931-02N90
87940Left exterior rearview mirror assembly87940-K0010 · 87940-K0020 · 87940-K0030 · 87940-K0040 · 87940-K0060 · 87940-K0090
87945Left exterior rearview mirror cap87945-02370 · 87945-0D590
87961Left exterior rearview mirror87961-02L30 · 87961-02N80
