Toyota YARIS 扬声器 — Figure 8602

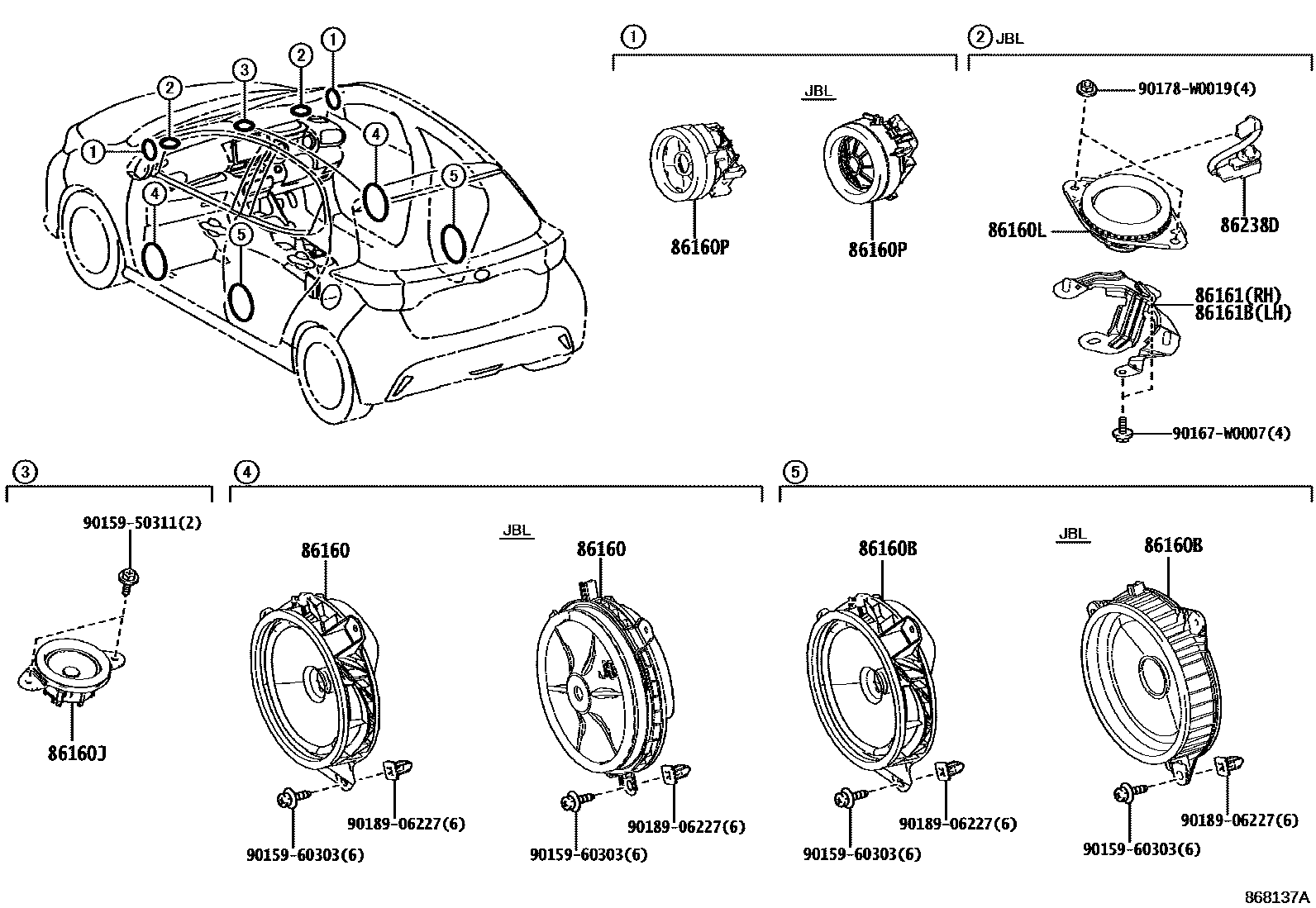

Toyota YARIS EPC diagram 8602, 扬声器, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86160 | No. 1 front speaker assembly | 86150-K0010 · 86160-02B80 · 86160-0D450 |
| 86160B | Rear speaker assembly | 86160-02B70 · 86160-02B80 · 86160-0D450 |
| 86160J | No. 3 front speaker assembly | 86150-02230 · 86150-F4090 |
| 86160L | No. 4 front speaker assembly | 86160-K0010 |
| 86160P | No. 2 front speaker assembly | 86150-K0020 · 86160-0D350 |
| 86161 | Front speaker bracket No. 1 | 86161-K0010 |
| 86161B | No. 2 front speaker bracket | 86163-K0010 |
| 86238D | speaker harness | 86238-K0010 · 86238-K0020 |
