Toyota YARIS 收音机、放大器和冷凝器 — Figure 8601

Toyota YARIS EPC diagram 8601, 收音机、放大器和冷凝器, with 2 images and 8 PNC and OE references.

Toyota YARIS 收音机、放大器和冷凝器 EPC diagram — 868135B
收音机、放大器和冷凝器 — 868135B (202007 – 999999)

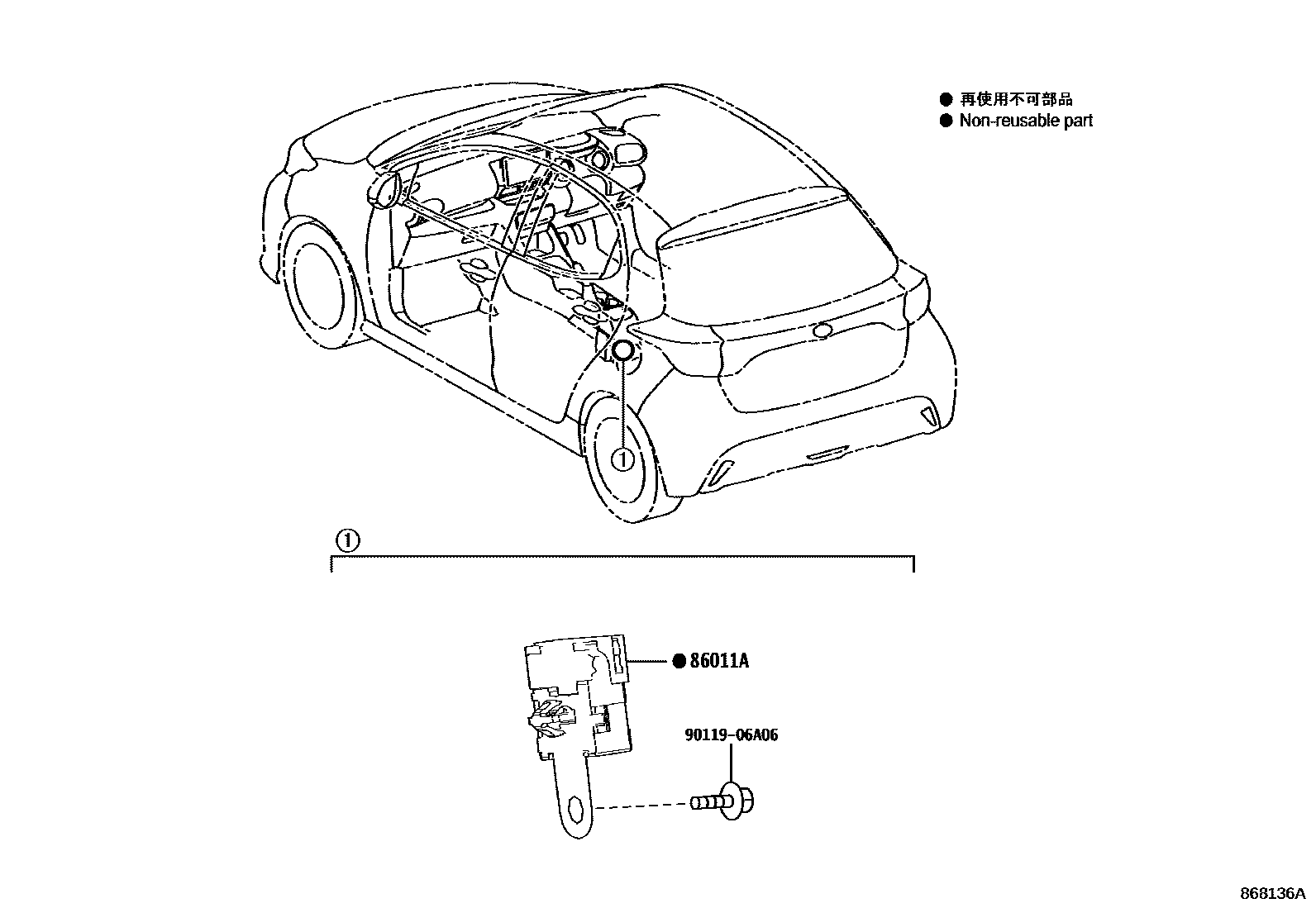

Toyota YARIS 收音机、放大器和冷凝器 EPC diagram — 868136A
收音机、放大器和冷凝器 — 868136A (202007 – 999999)

PNC and OE references

PNCPart nameOE numbers
86011Aradio settings phase modulator90980-04189 · 90980-04213
86190CStereo socket connector assembly No. 186190-12070 · 86190-46010
86280Stereo parts amplifier assembly86280-0D030 · 86280-K0010
86285Amplifier Stand No. 186285-K0010
86286Amplifier Stand No. 286286-K0010
86287Bamplifier cover86796-K0010
F1334SUPPORT, COMMANDE CONVERTISSEUR, NO.1F1334-K0010
G92C0AENS. CONVERTISSEUR, VEHICULE ECO-RUNG92C0-30020
