Toyota YARIS 挡风玻璃清洗器 — Figure 8503

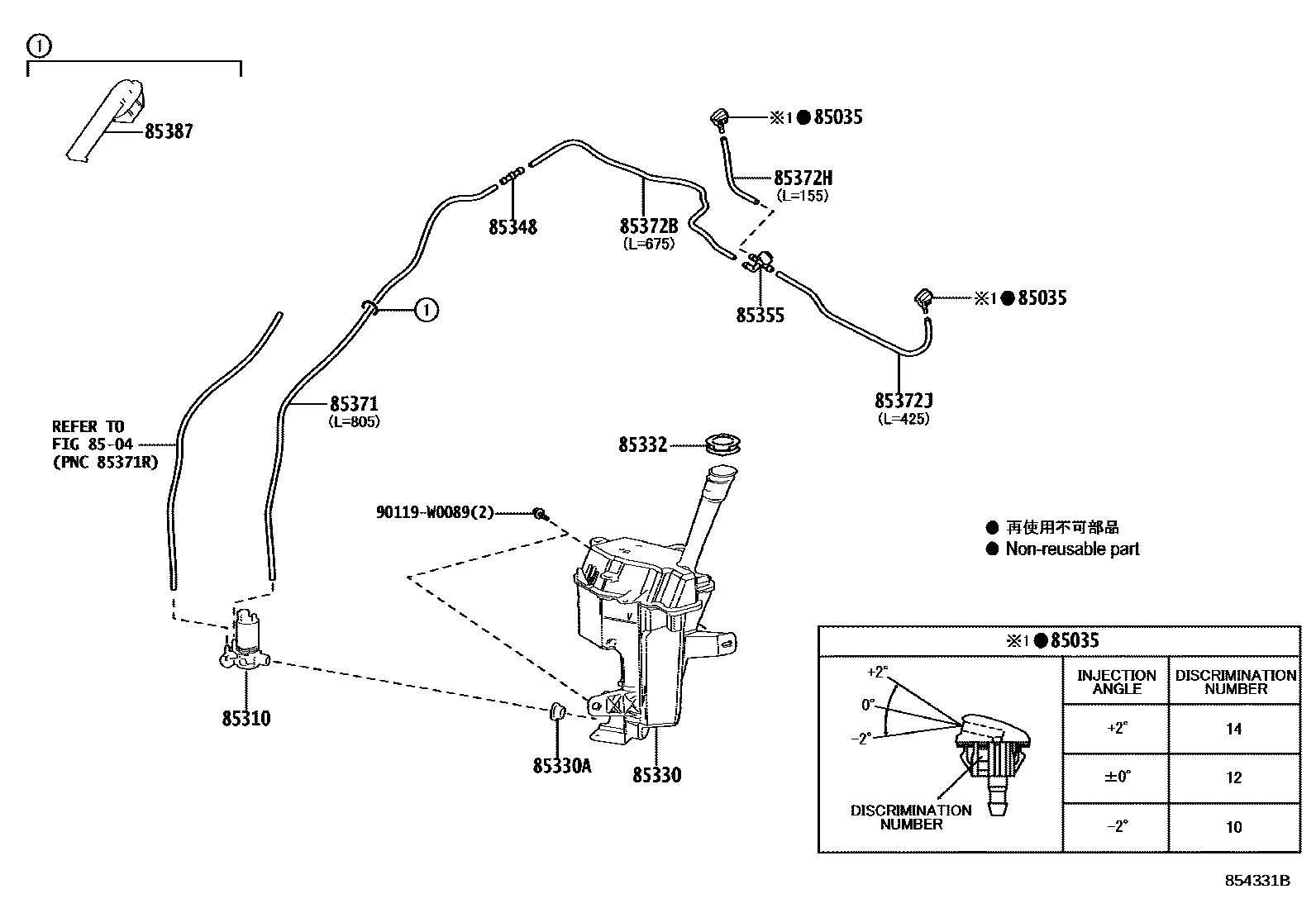

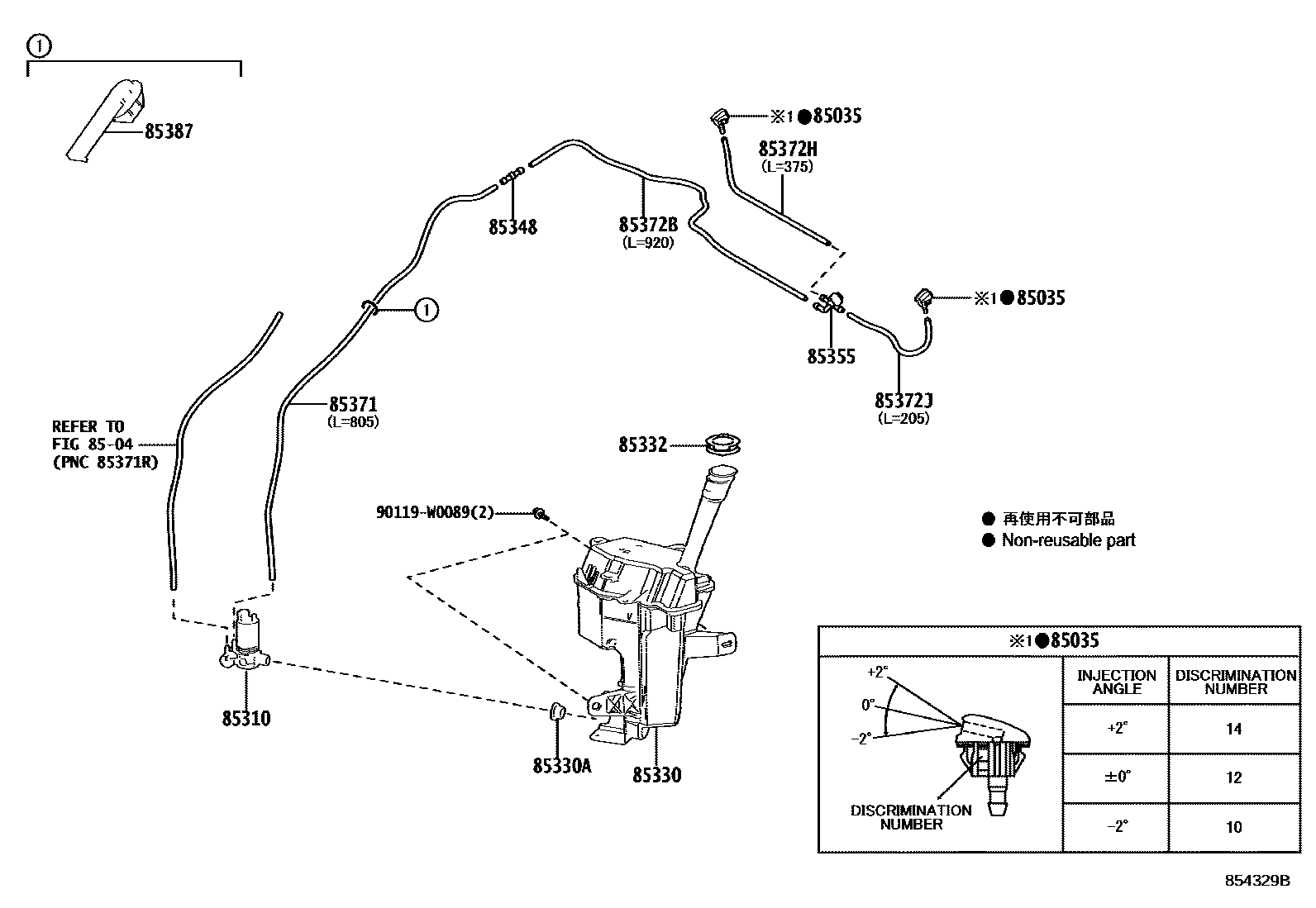

Toyota YARIS EPC diagram 8503, 挡风玻璃清洗器, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-52430 · 85381-52440 · 85381-52450 |
| 85310 | Windshield washer motor and pump assembly | 85330-02070 · 85330-0D110 |
| 85330 | Windshield washer fluid tank assembly | 85315-K0070 |
| 85330A | Windshield washer fluid tank bushing | 90069-20005 |
| 85332 | Windshield washer fluid tank cap | 85316-0D010 |
| 85348 | Windshield washer hose connector No. 1 | 85375-05050 |
| 85355 | Windshield washer hose valve | 85376-02240 |
| 85371 | Windshield washer hose (from motor to connector) | 90069-16009 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 90069-16009 |
| 85372H | No. 3 windshield washer hose (from connector to connector) | 90069-16009 |
| 85372J | No. 4 windshield washer hose (from connector to connector) | 90069-16009 |
| 85387 | Clip No. 1 (for windshield washer) | 82711-52090 |
