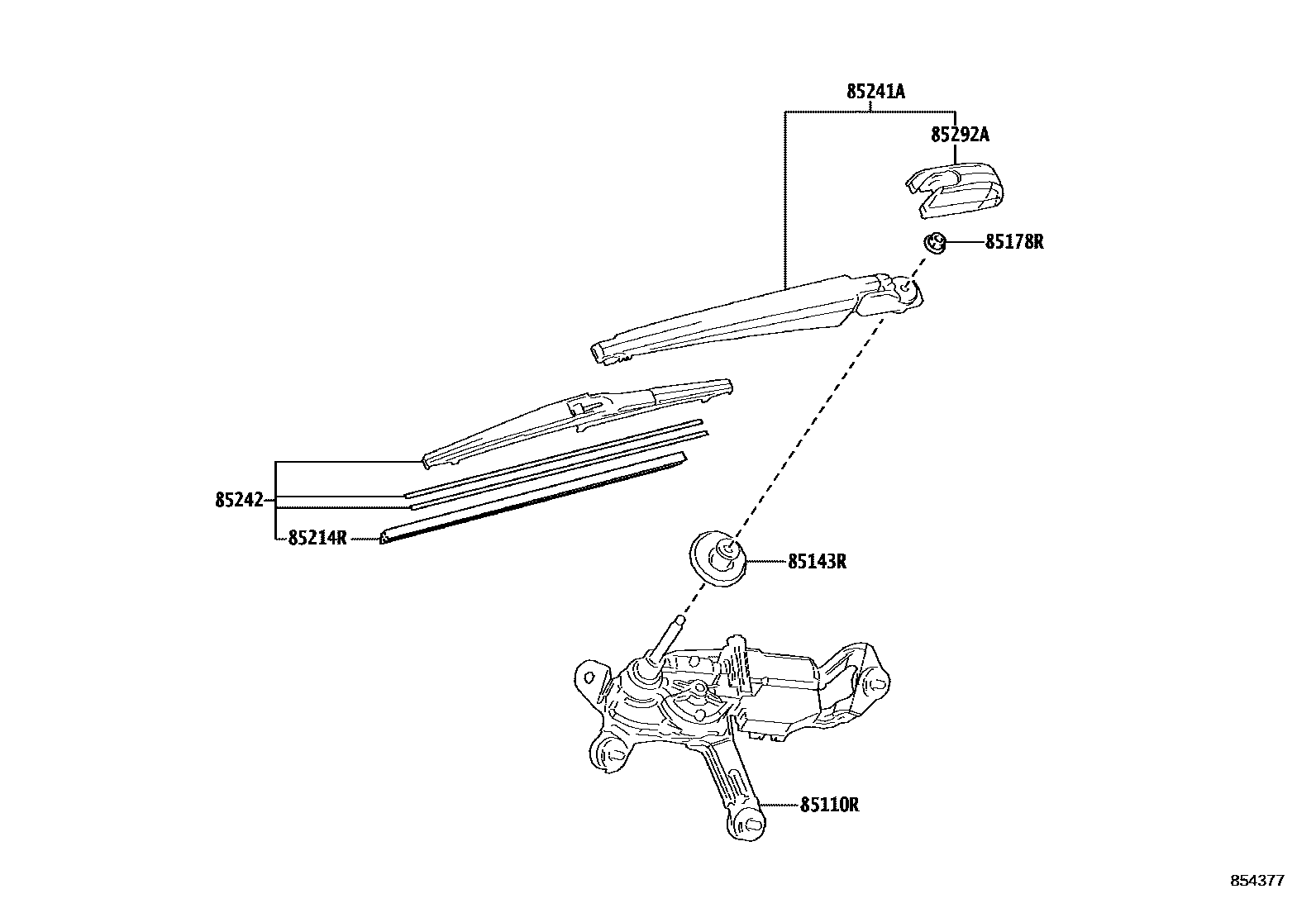

Toyota YARIS 后刮水器 — Figure 8502
Toyota YARIS EPC diagram 8502, 后刮水器, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110R | Rear wiper motor assembly | 85130-K0010 |
| 85143R | Rear wiper motor seal | 85143-05070 |
| 85178R | Nut (for securing rear wiper arm) | 90179-06158 |
| 85214R | Rear wiper rubber strip | 85214-K0010 |
| 85241A | rear wiper arm | 85241-K0010 |
| 85242 | Rear wiper blade | 85242-K0010 |
| 85292A | Rear wiper arm cap | 85292-02070 |
