Toyota YARIS HV逆变器 — Figure 8431

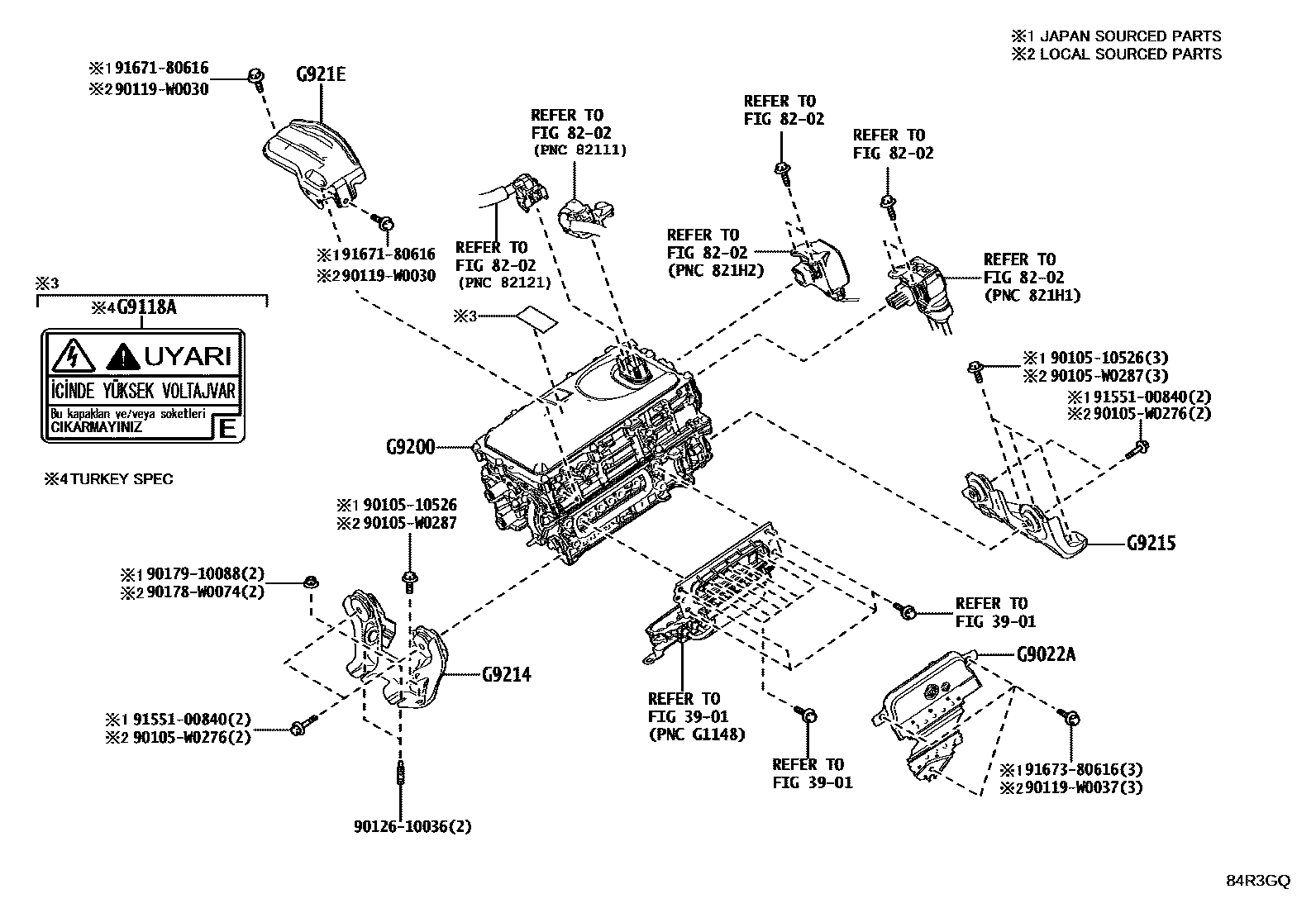

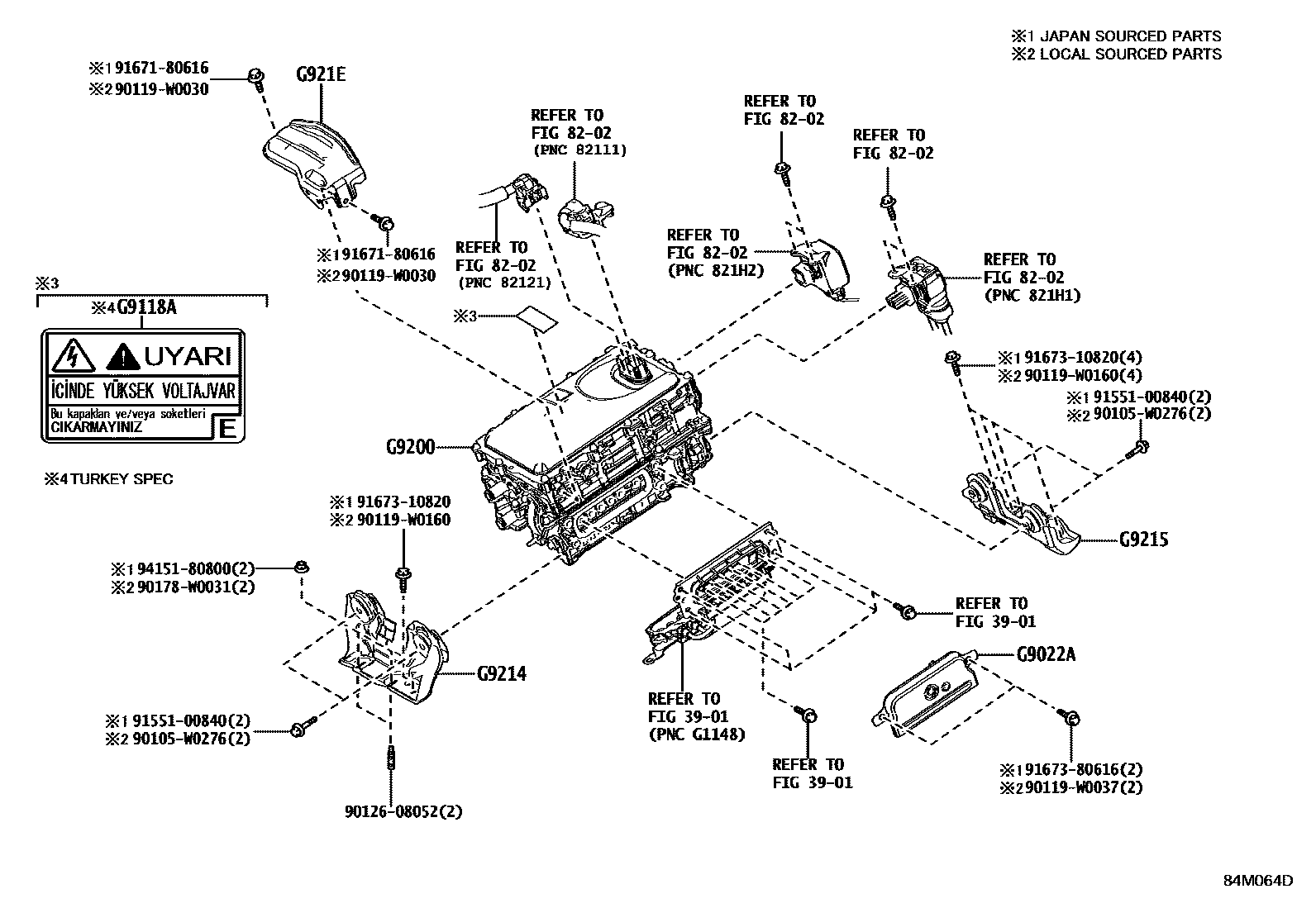

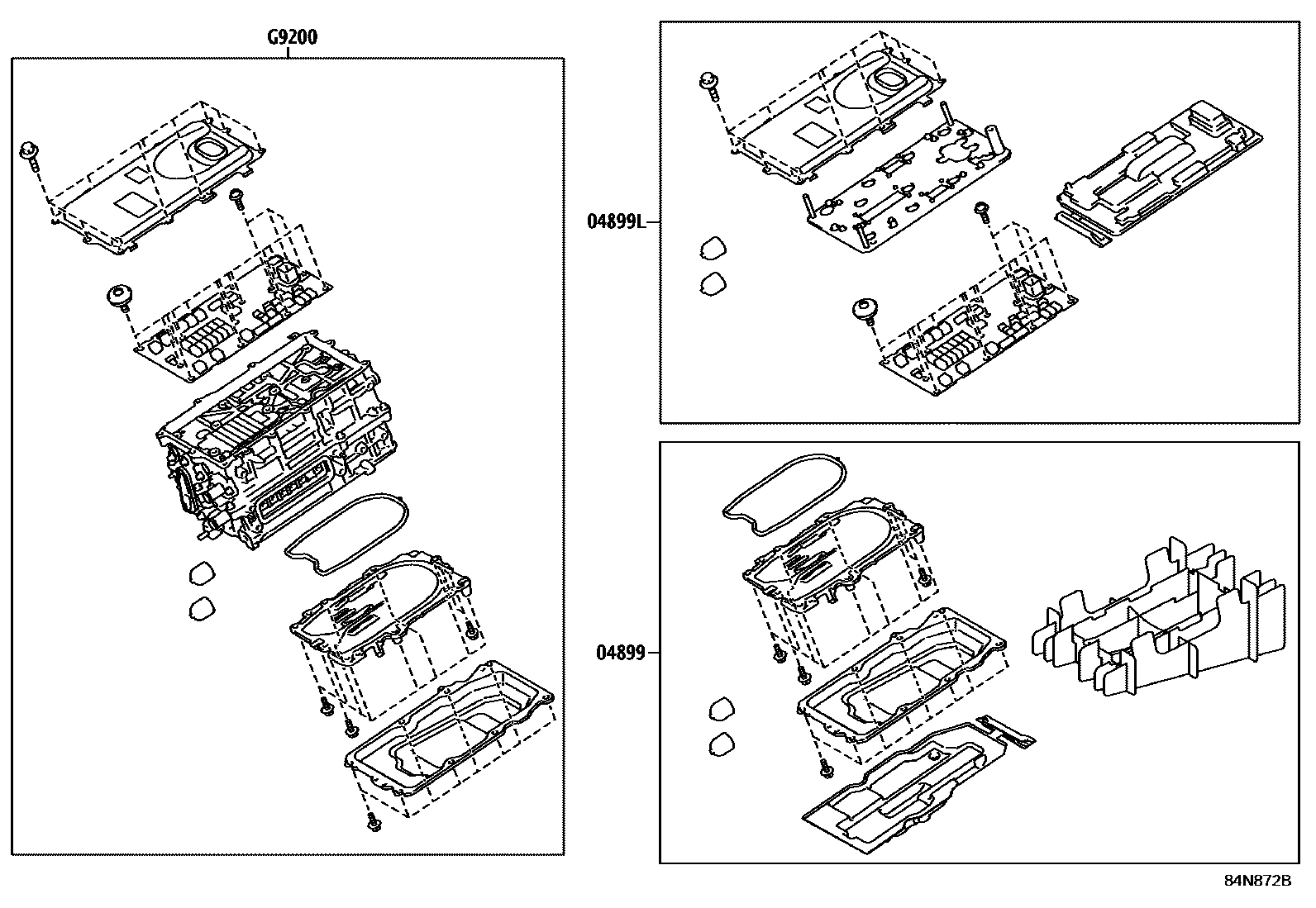

Toyota YARIS EPC diagram 8431, HV逆变器, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04899 | KIT CONVERTISSEUR, VEHICULE HYBRIDE | 04899-K0030 |
| 04899L | KIT ORDINATEUR, COMMANDE GENERATEUR MOTEUR | 04899-52070 · 04899-K0010 · 04899-K0011 |
| G9022A | SOUS-ENS. CACHE, ONDULEUR, SUP | G9022-47050 · G9022-52010 |
| G9118A | No. 1 Electric Vehicle Device Controller Warning Label | G9118-52010 |
| G9200 | Inverter assembly with converter | G9200-K9010 · G9200-K9011 · G92A0-52201 · G92A0-52240 · G92A0-52270 |
| G9214 | No. 1 inverter bracket | G9214-0D010 · G9214-52030 · G9214-K0010 |
| G9215 | No. 2 inverter bracket | G9215-0D010 · G9215-52020 · G9215-K0010 |
| G921E | Inverter protection device | G921E-0D010 · G921E-K0010 |
