Toyota YARIS 线束和卡夹 — Figure 8202

Toyota YARIS EPC diagram 8202, 线束和卡夹, with 19 images and 1 PNC and OE references.

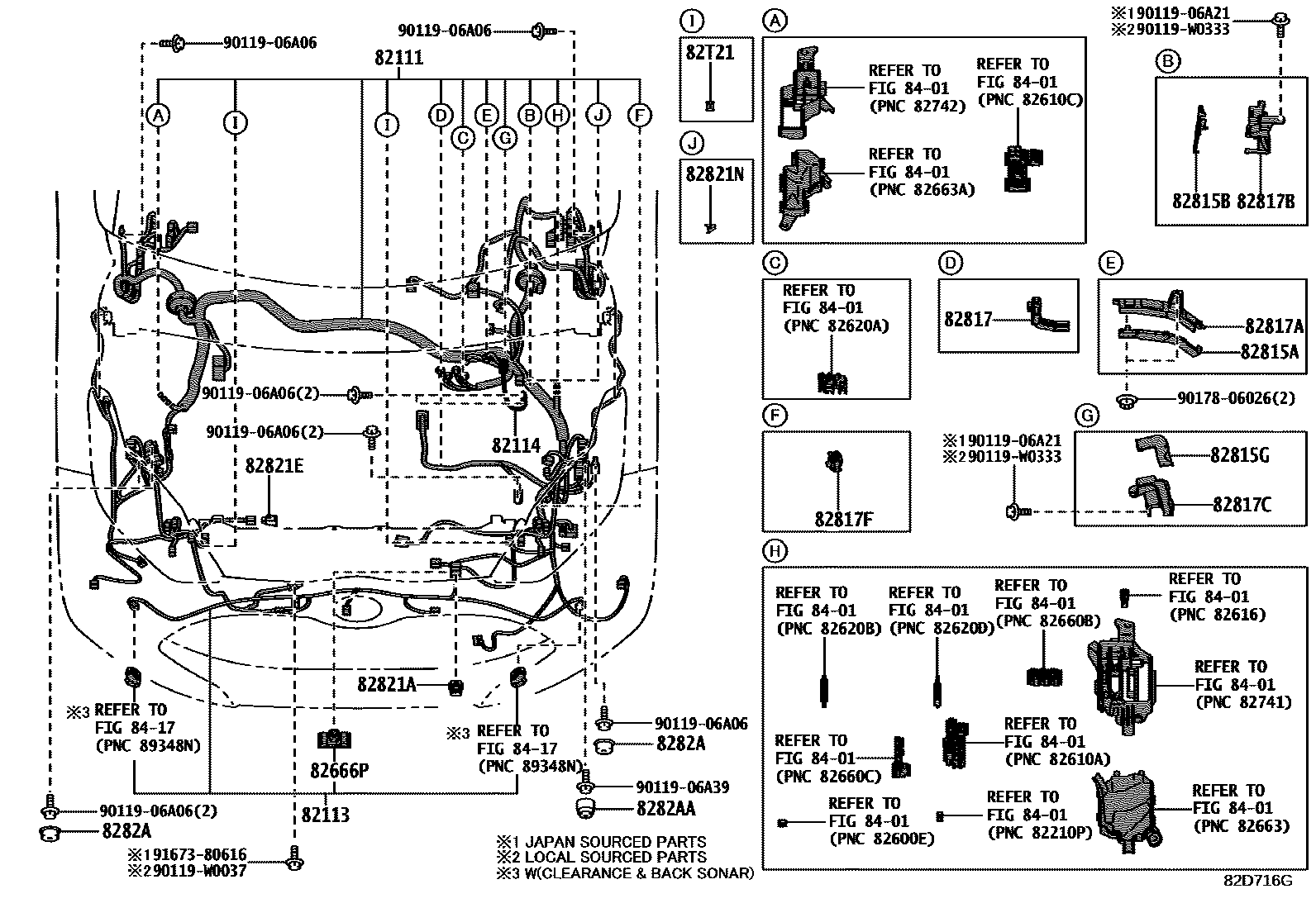

Toyota YARIS 线束和卡夹 EPC diagram — 82D716G
线束和卡夹 — 82D716G (202007 – 999999)

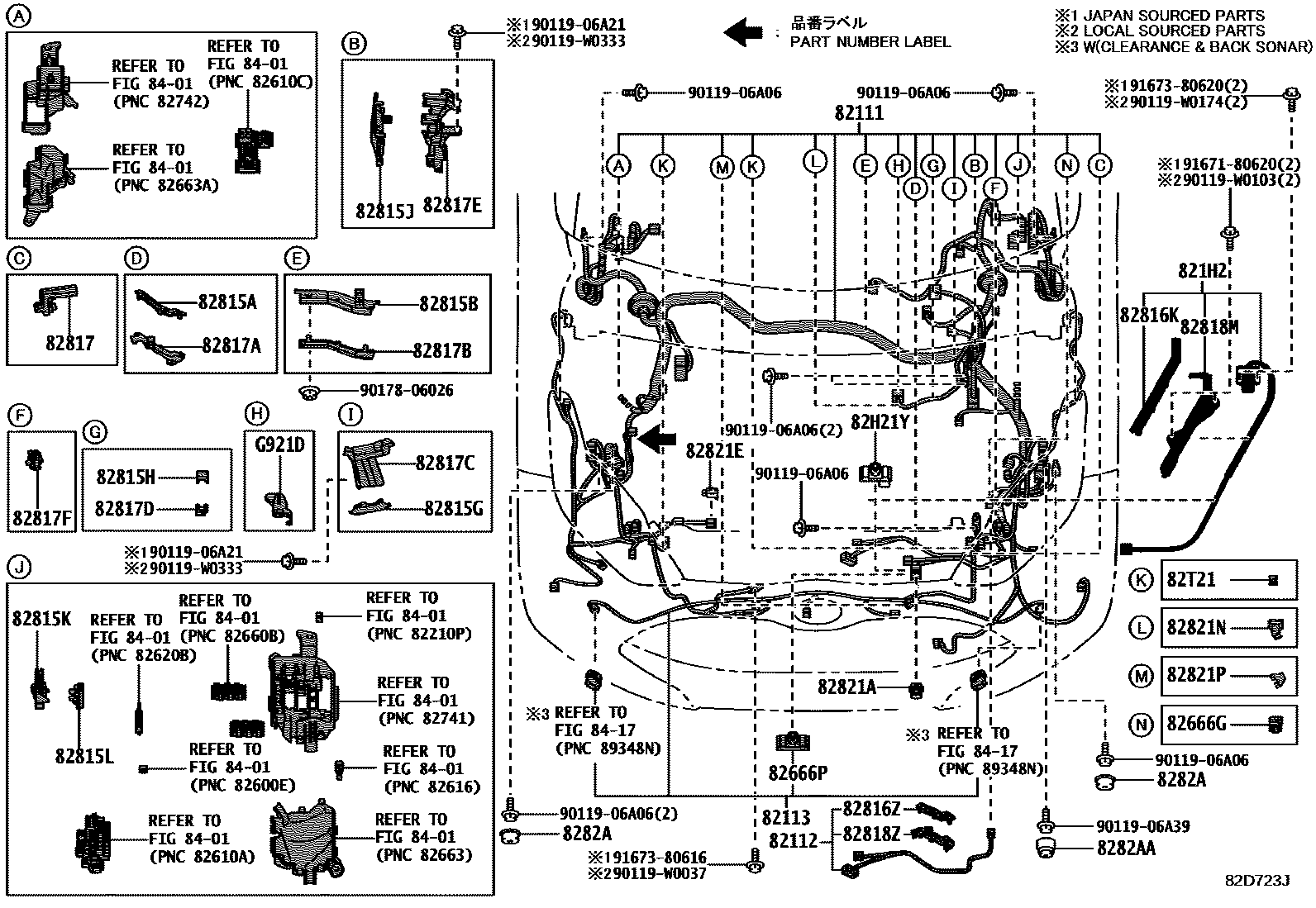

Toyota YARIS 线束和卡夹 EPC diagram — 82D723J
线束和卡夹 — 82D723J (202007 – 999999)

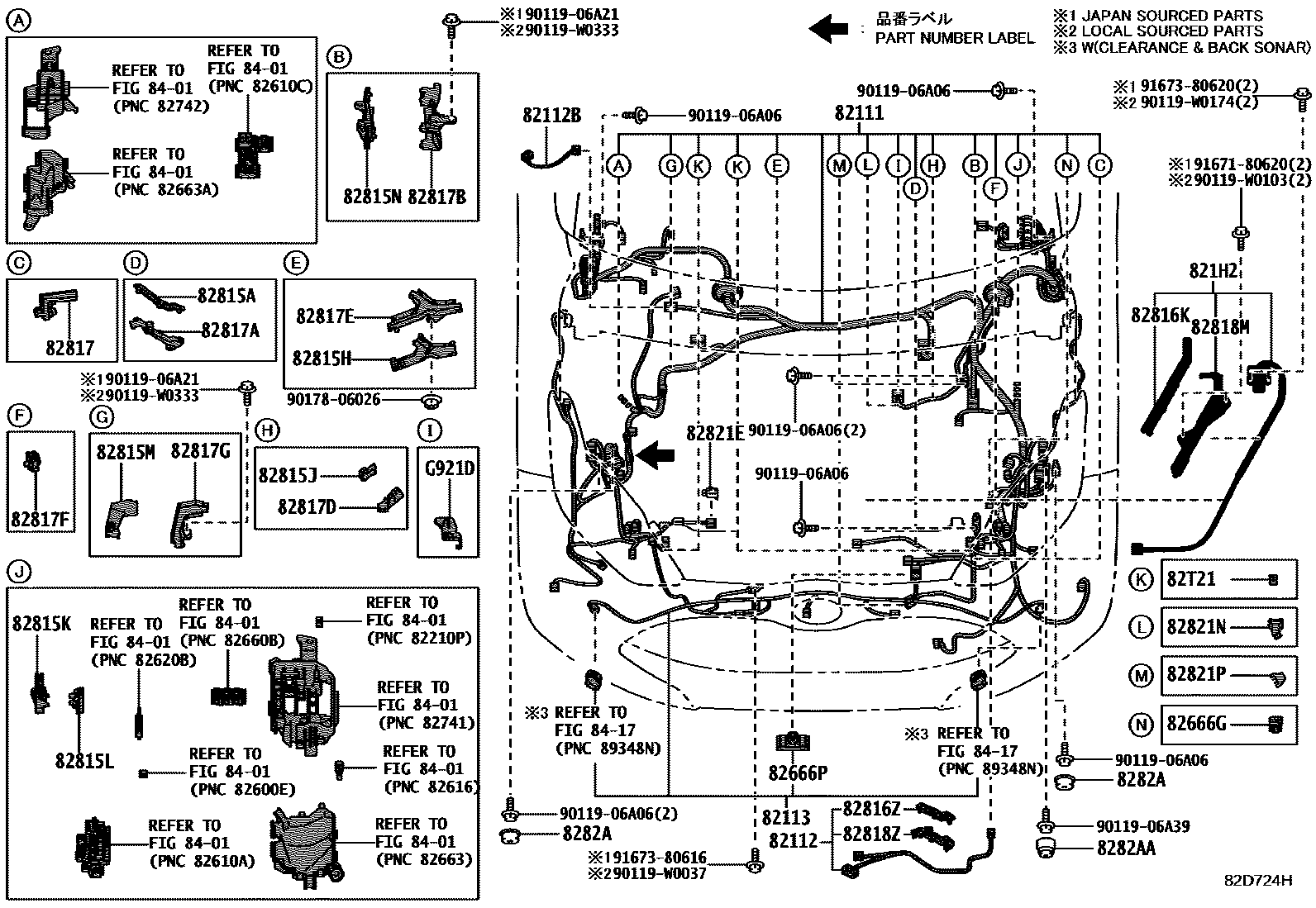

Toyota YARIS 线束和卡夹 EPC diagram — 82D724H
线束和卡夹 — 82D724H (202007 – 999999)

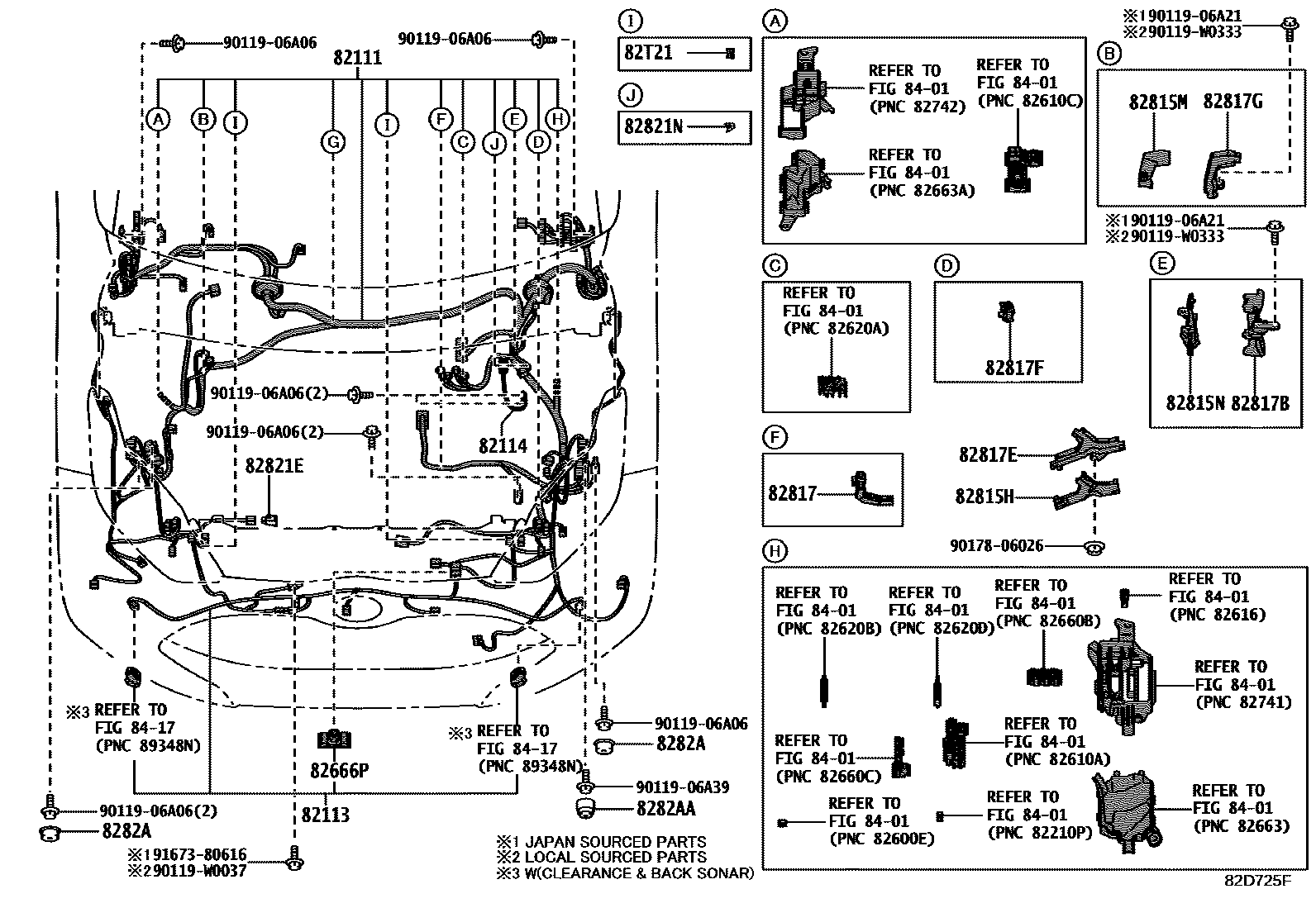

Toyota YARIS 线束和卡夹 EPC diagram — 82D725F
线束和卡夹 — 82D725F (202007 – 999999)

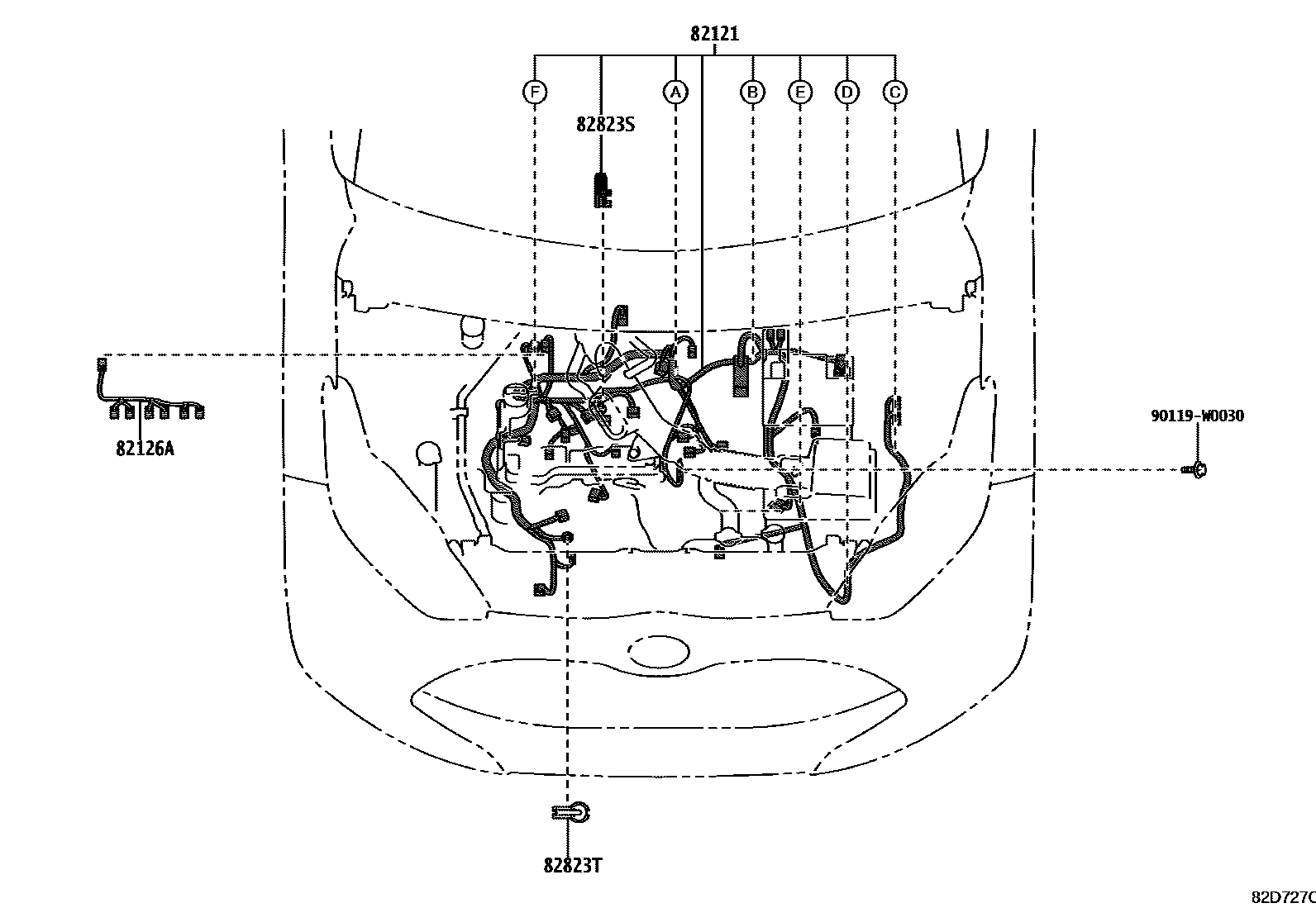

Toyota YARIS 线束和卡夹 EPC diagram — 82D727C
线束和卡夹 — 82D727C (202007 – 999999)

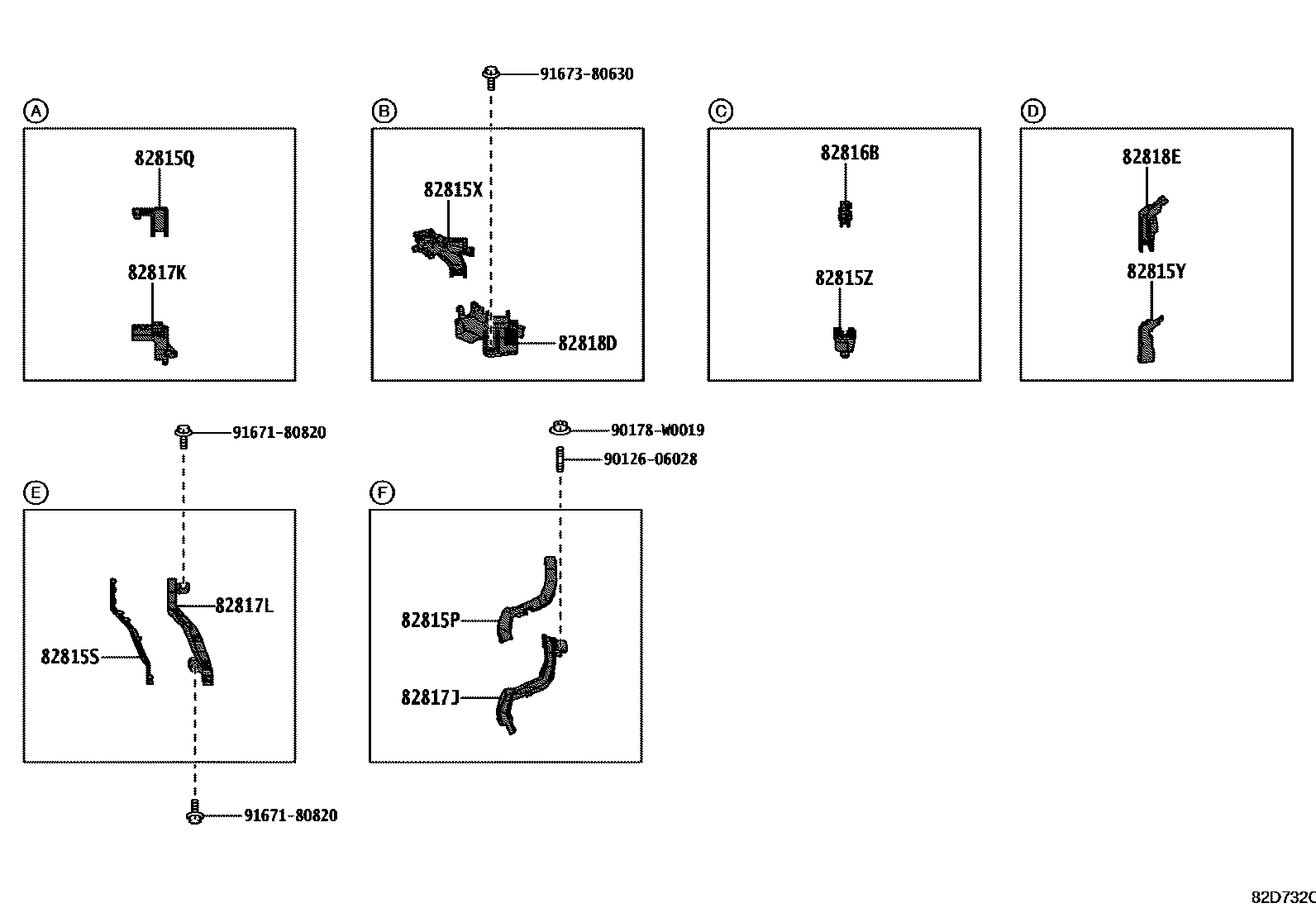

Toyota YARIS 线束和卡夹 EPC diagram — 82D732C
线束和卡夹 — 82D732C (202007 – 999999)

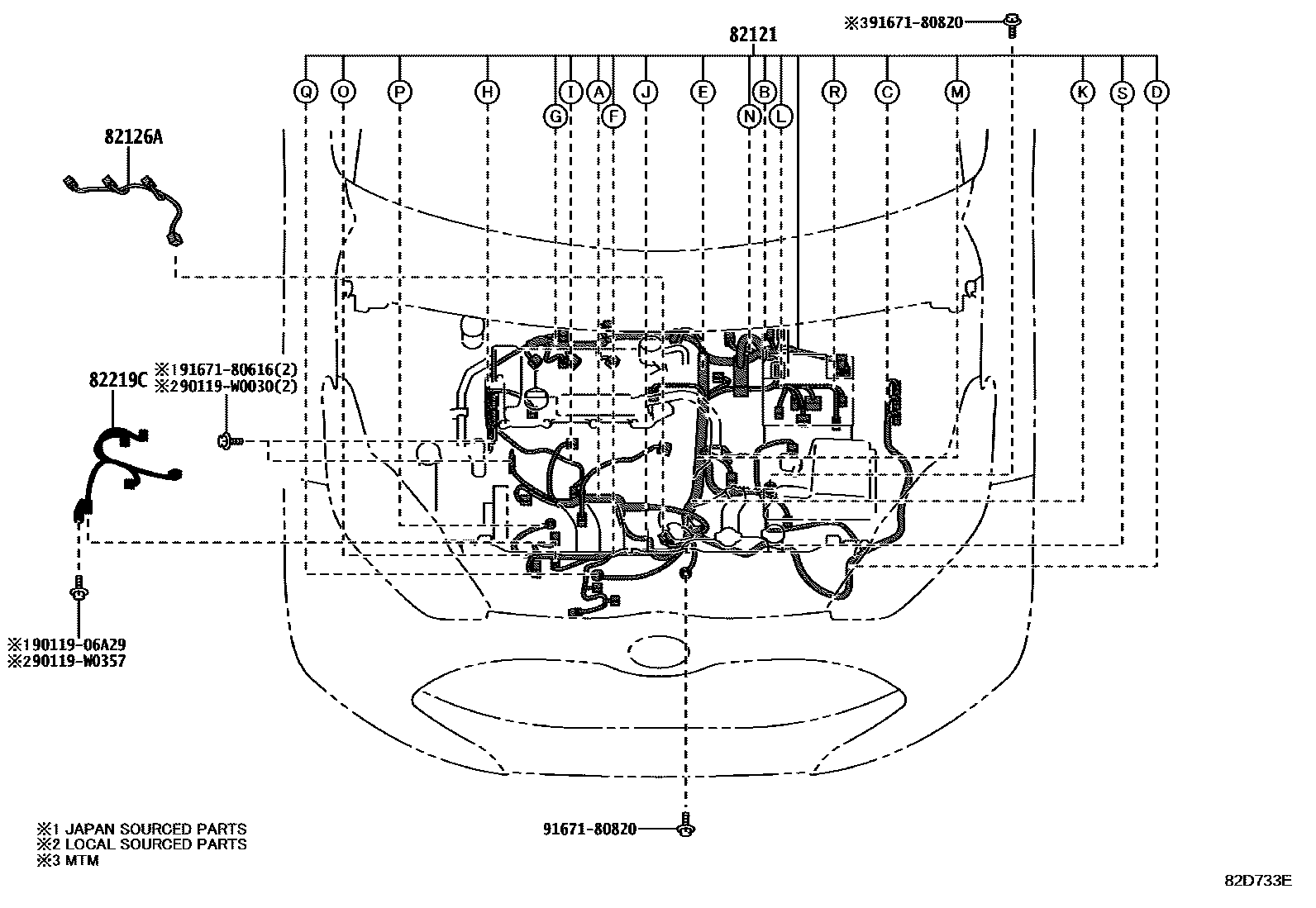

Toyota YARIS 线束和卡夹 EPC diagram — 82D733E
线束和卡夹 — 82D733E (202007 – 999999)

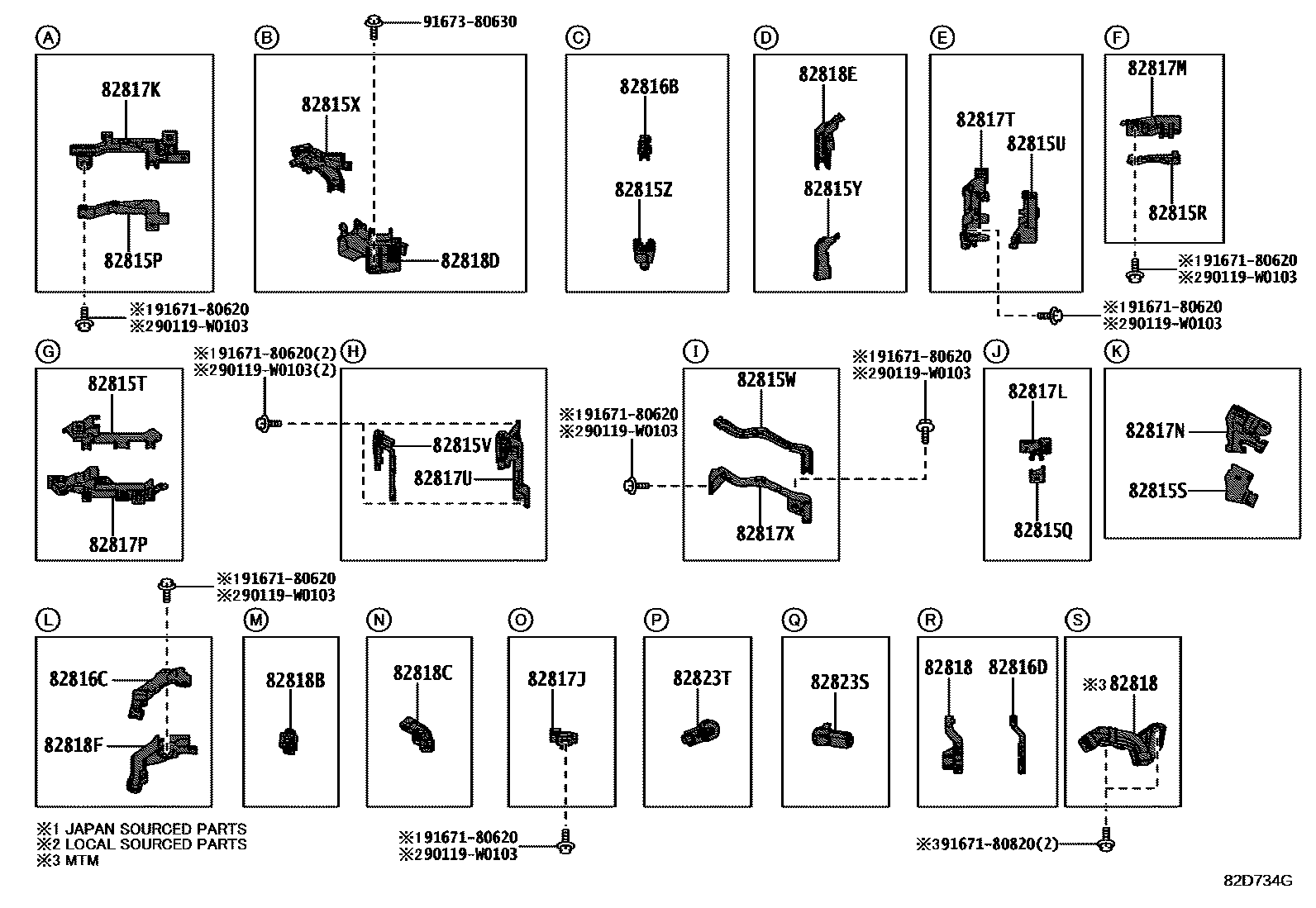

Toyota YARIS 线束和卡夹 EPC diagram — 82D734G
线束和卡夹 — 82D734G (202007 – 999999)

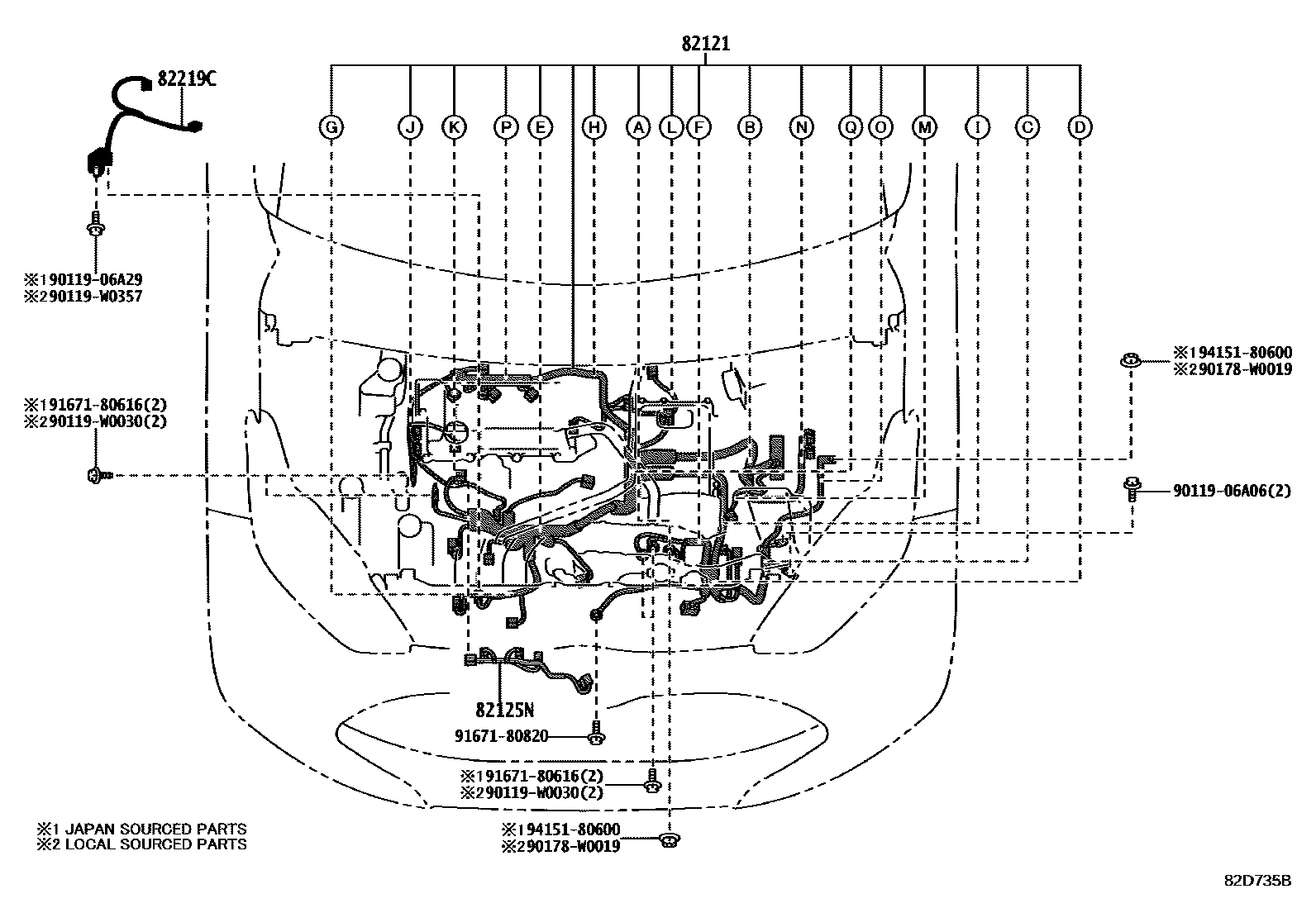

Toyota YARIS 线束和卡夹 EPC diagram — 82D735B
线束和卡夹 — 82D735B (202007 – 999999)

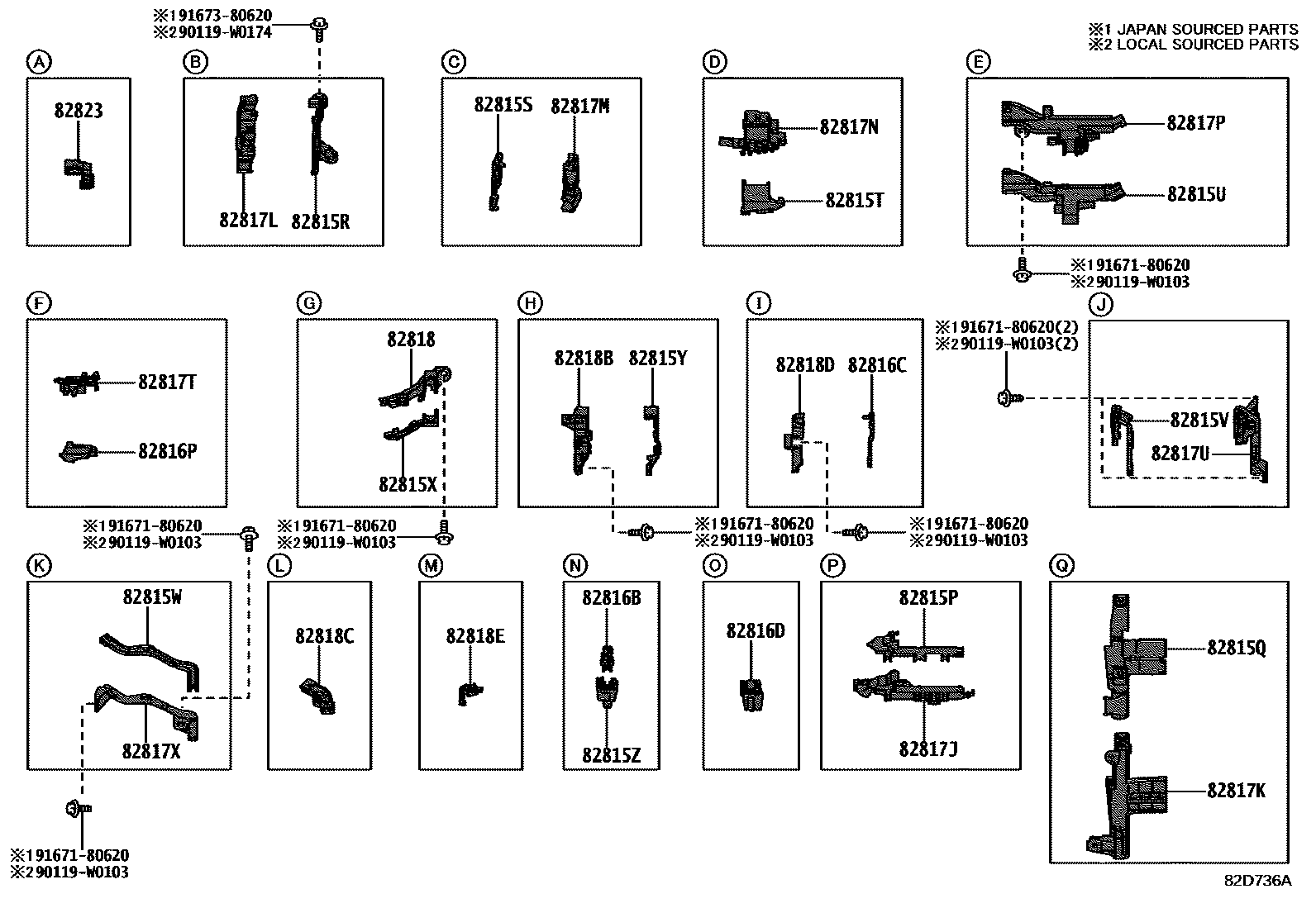

Toyota YARIS 线束和卡夹 EPC diagram — 82D736A
线束和卡夹 — 82D736A (202007 – 999999)

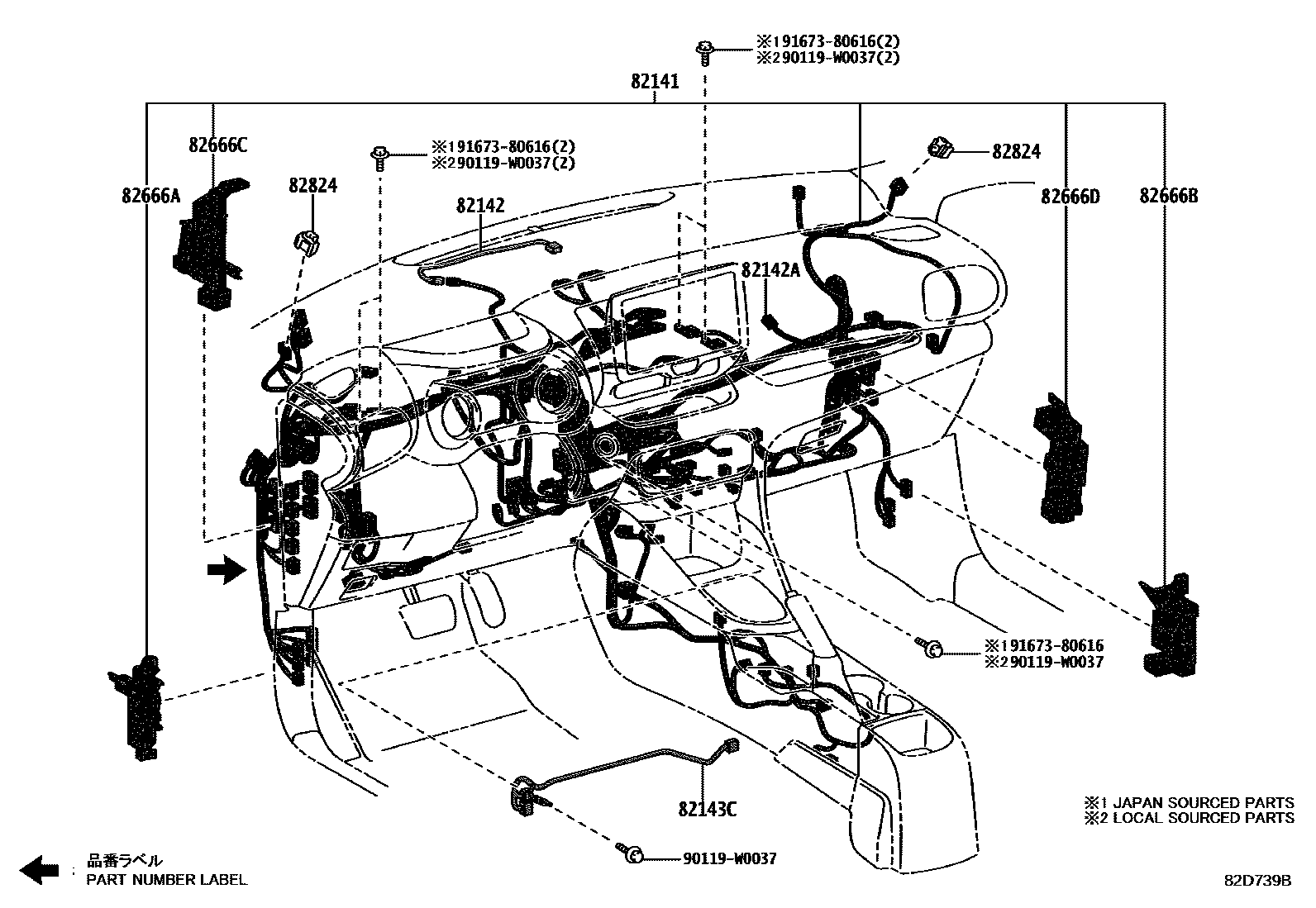

Toyota YARIS 线束和卡夹 EPC diagram — 82D739B
线束和卡夹 — 82D739B (202007 – 999999)

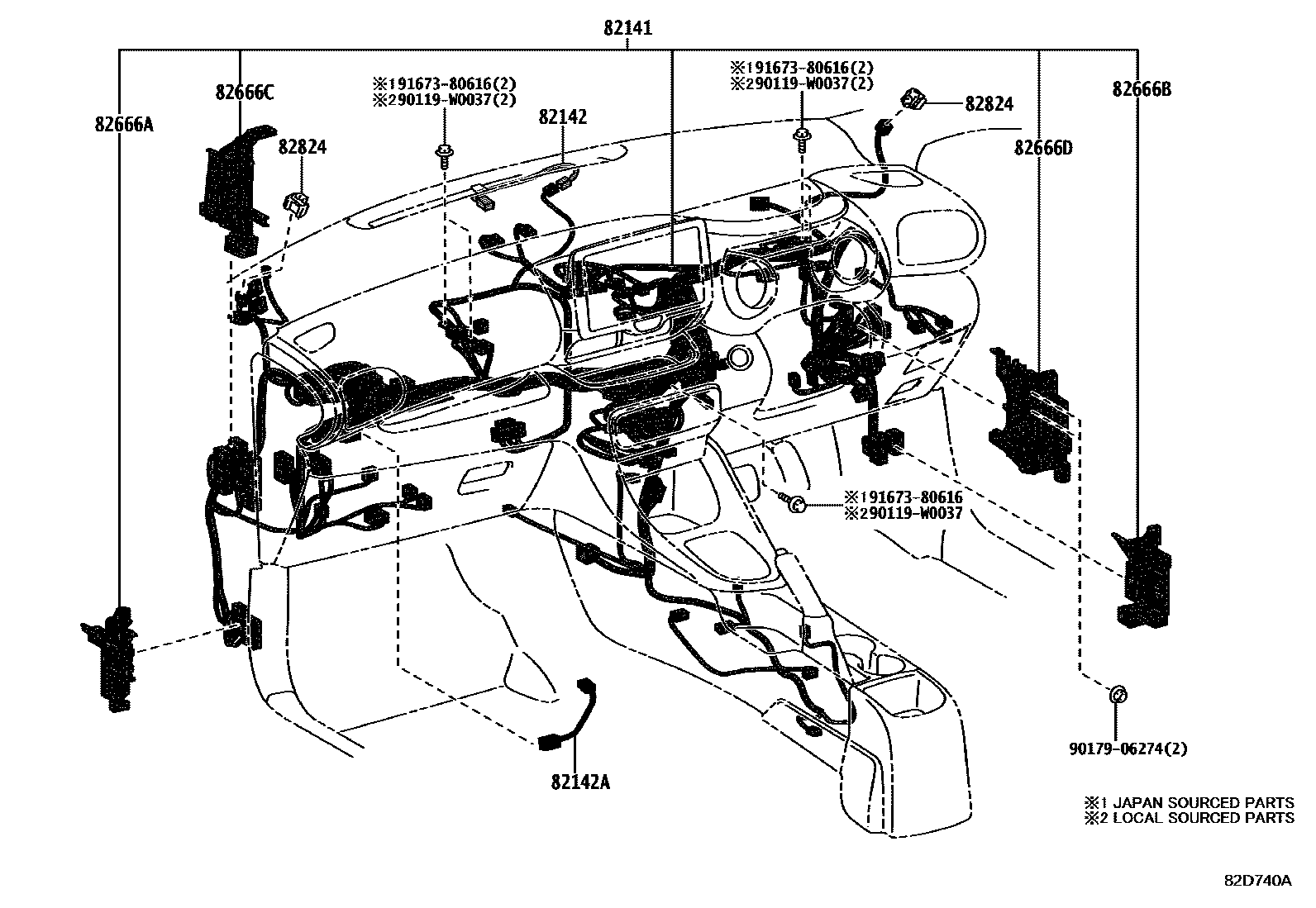

Toyota YARIS 线束和卡夹 EPC diagram — 82D740A
线束和卡夹 — 82D740A (202007 – 999999)

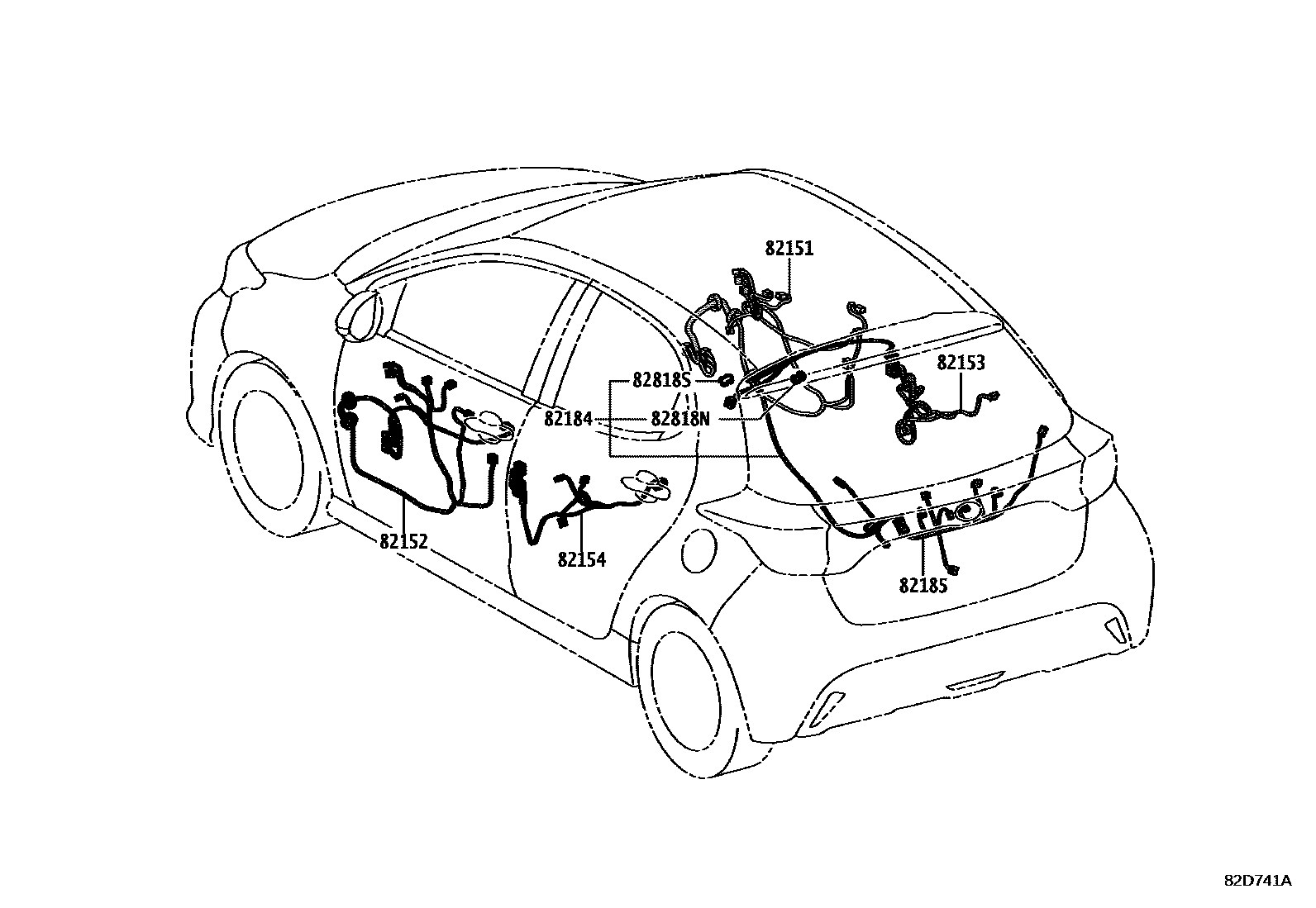

Toyota YARIS 线束和卡夹 EPC diagram — 82D741A
线束和卡夹 — 82D741A (202007 – 999999)

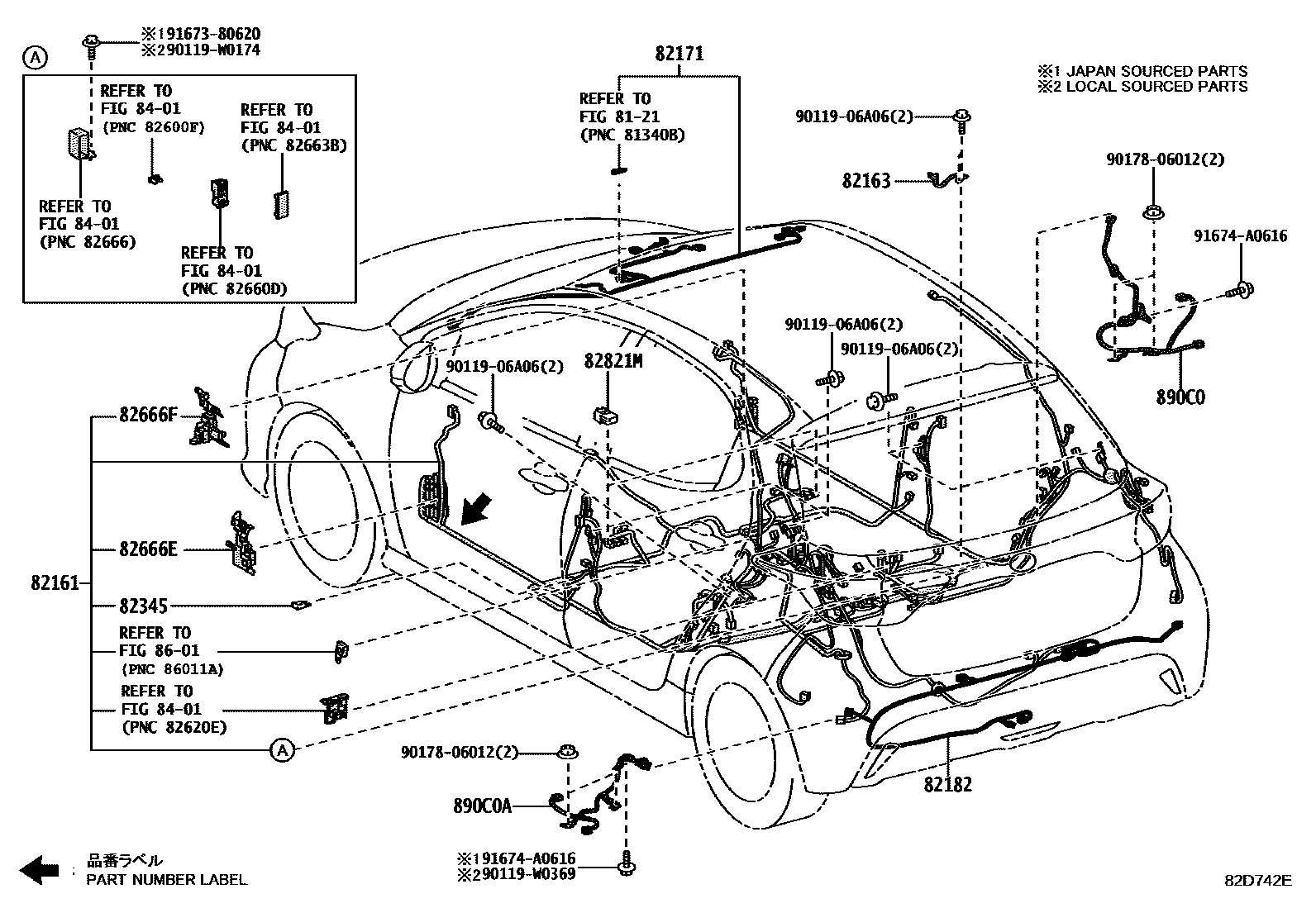

Toyota YARIS 线束和卡夹 EPC diagram — 82D742E
线束和卡夹 — 82D742E (202007 – 999999)

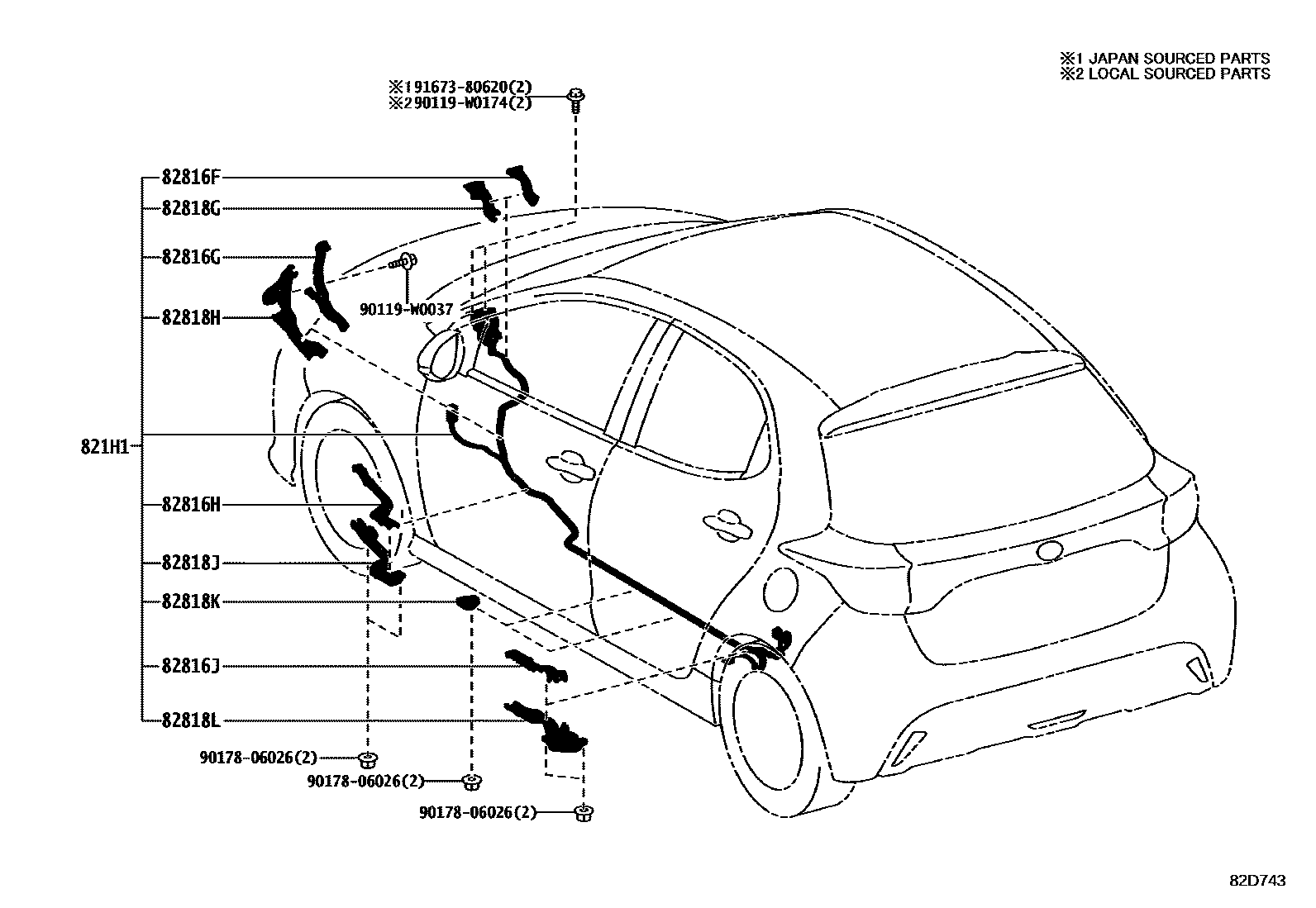

Toyota YARIS 线束和卡夹 EPC diagram — 82D743
线束和卡夹 — 82D743 (202007 – 999999)

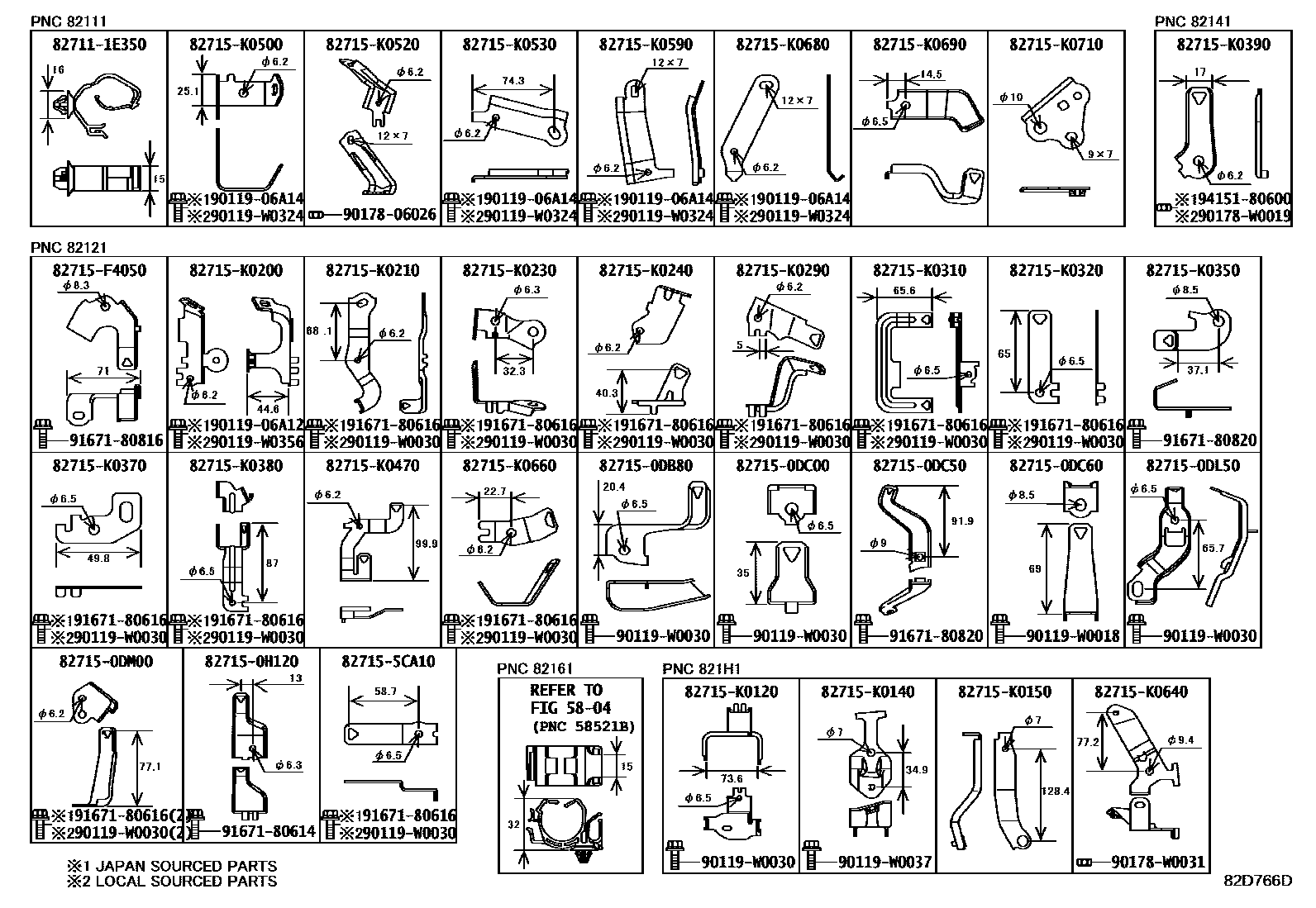

Toyota YARIS 线束和卡夹 EPC diagram — 82D766D
线束和卡夹 — 82D766D (202007 – 999999)

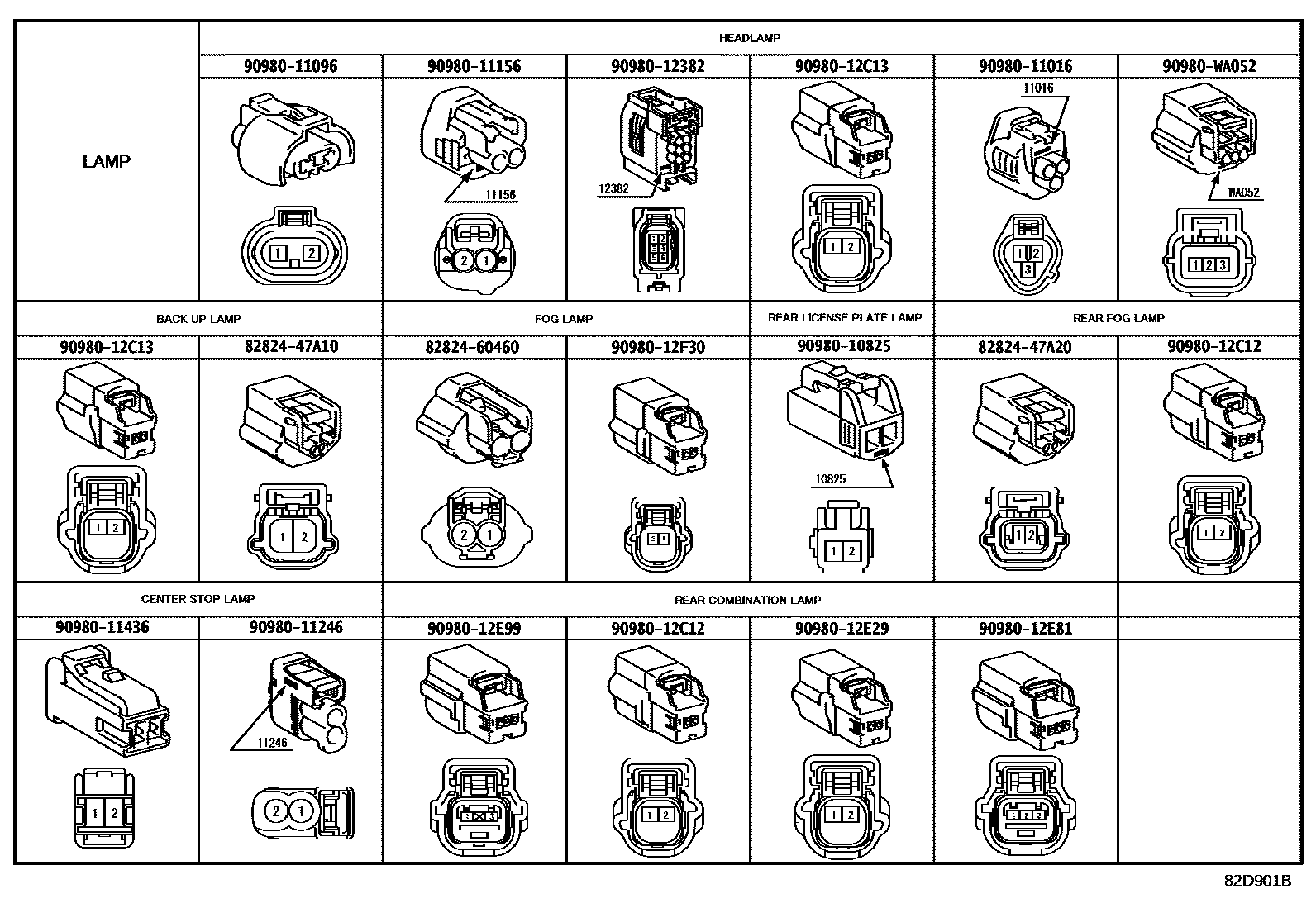

Toyota YARIS 线束和卡夹 EPC diagram — 82D901B
线束和卡夹 — 82D901B (202007 – 999999)

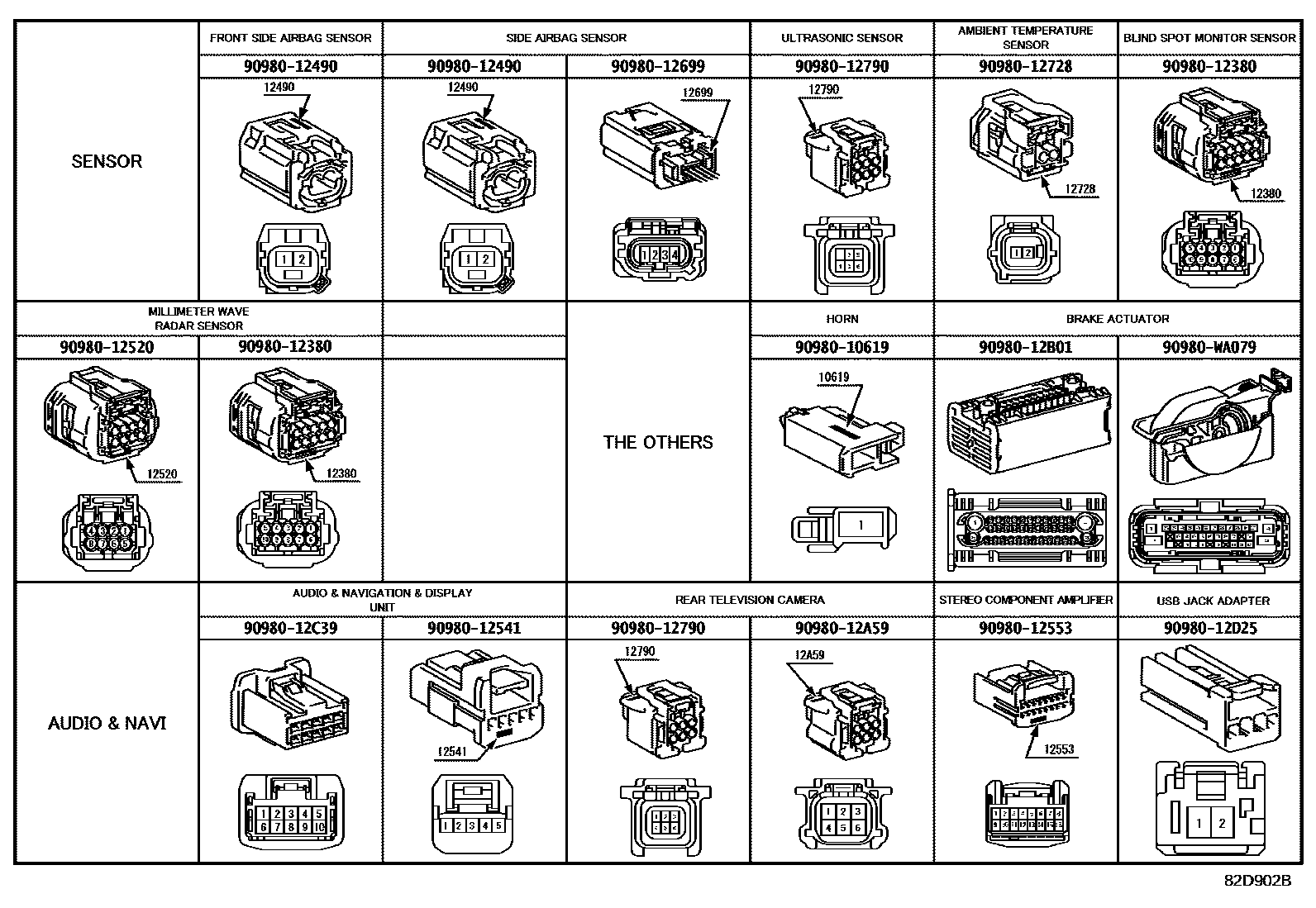

Toyota YARIS 线束和卡夹 EPC diagram — 82D902B
线束和卡夹 — 82D902B (202007 – 999999)

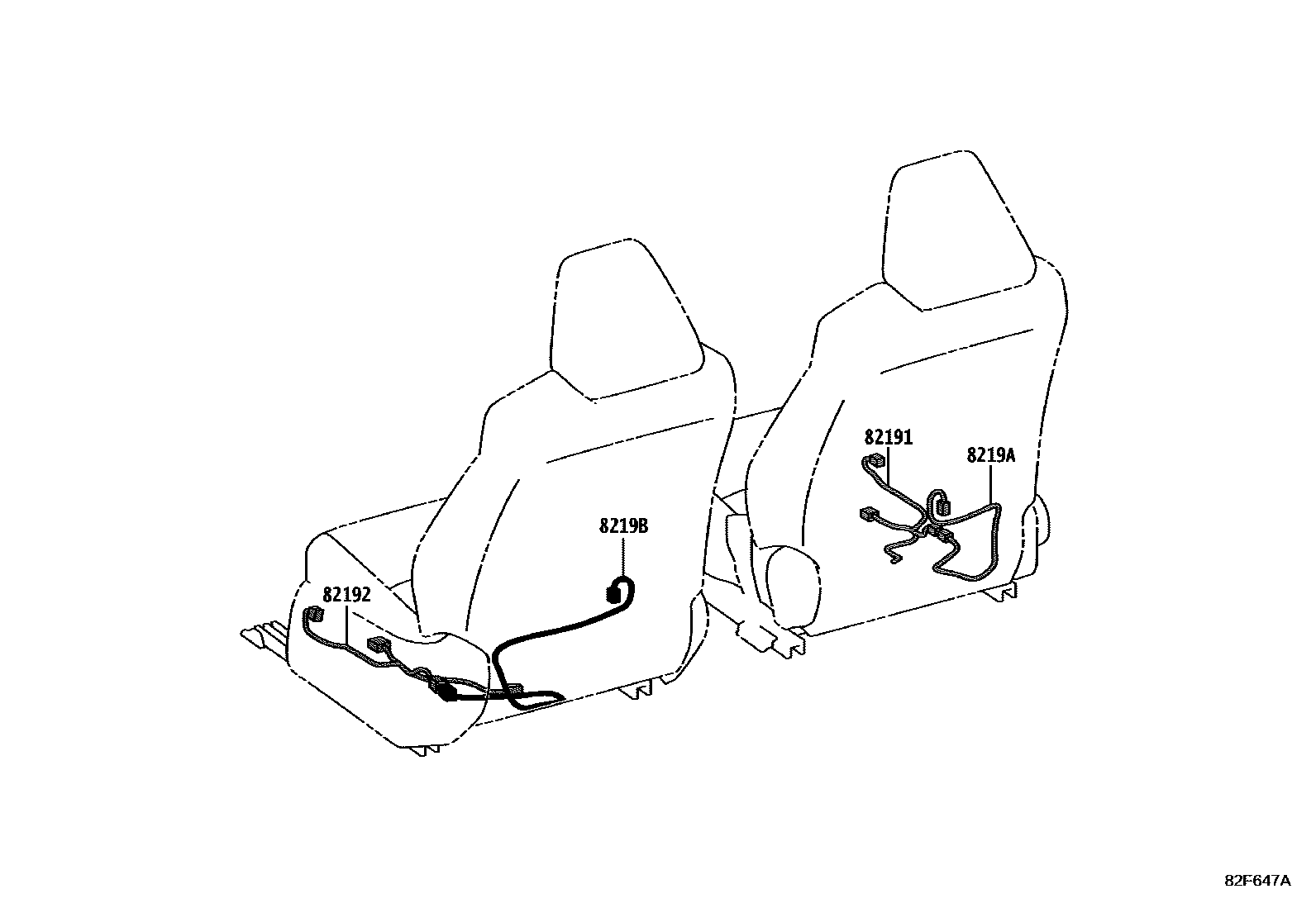

Toyota YARIS 线束和卡夹 EPC diagram — 82F647A
线束和卡夹 — 82F647A (202204 – 999999)

PNC and OE references

PNCPart nameOE numbers
82111Engine room main wiring harness82111-0UY10 · 82111-0UY30 · 82111-0UY50 · 82111-F5U40 · 82111-F5U50 · 82111-F5U70 · 82111-F5V20 · 82111-K0340 · 82111-K0350 · 82111-K0360 · 82111-K0370 · 82111-K0390 · 82111-K0391 · 82111-K0400 · 82111-K0410 · 82111-K0420 · 82111-K0430 · 82111-K0440 · 82111-K0450 · 82111-K0470 · 82111-K0480 · 82111-K0490 · 82111-K0680 · 82111-K0A40 · 82111-K0A41 · 82111-K0A50 · 82111-K0A60 · 82111-K0A61 · 82111-K0A70 · 82111-K0A80 · 82111-K0A90 · 82111-K0B00 · 82111-K0B10 · 82111-K0B20 · 82111-K0B30 · 82111-K0B40 · 82111-K0B50 · 82111-K0B70 · 82111-K0B80 · 82111-K0B90 · 82111-K0C00 · 82111-K0C10 · 82111-K0C40 · 82111-K0C50 · 82111-K0C60 · 82111-K0C70 · 82111-K0C80 · 82111-K0C90 · 82111-K0D40 · 82111-K0D41 · 82111-K0D50 · 82111-K0D60 · 82111-K0D70 · 82111-K0D90 · 82111-K0E20 · 82111-K0E30 · 82111-K0G60 · 82111-K0G70 · 82111-K0G80 · 82111-K0G90 · 82111-K0J00 · 82111-K0J10 · 82111-K0J20 · 82111-K0J30
