Toyota YARIS 车内灯 — Figure 8121

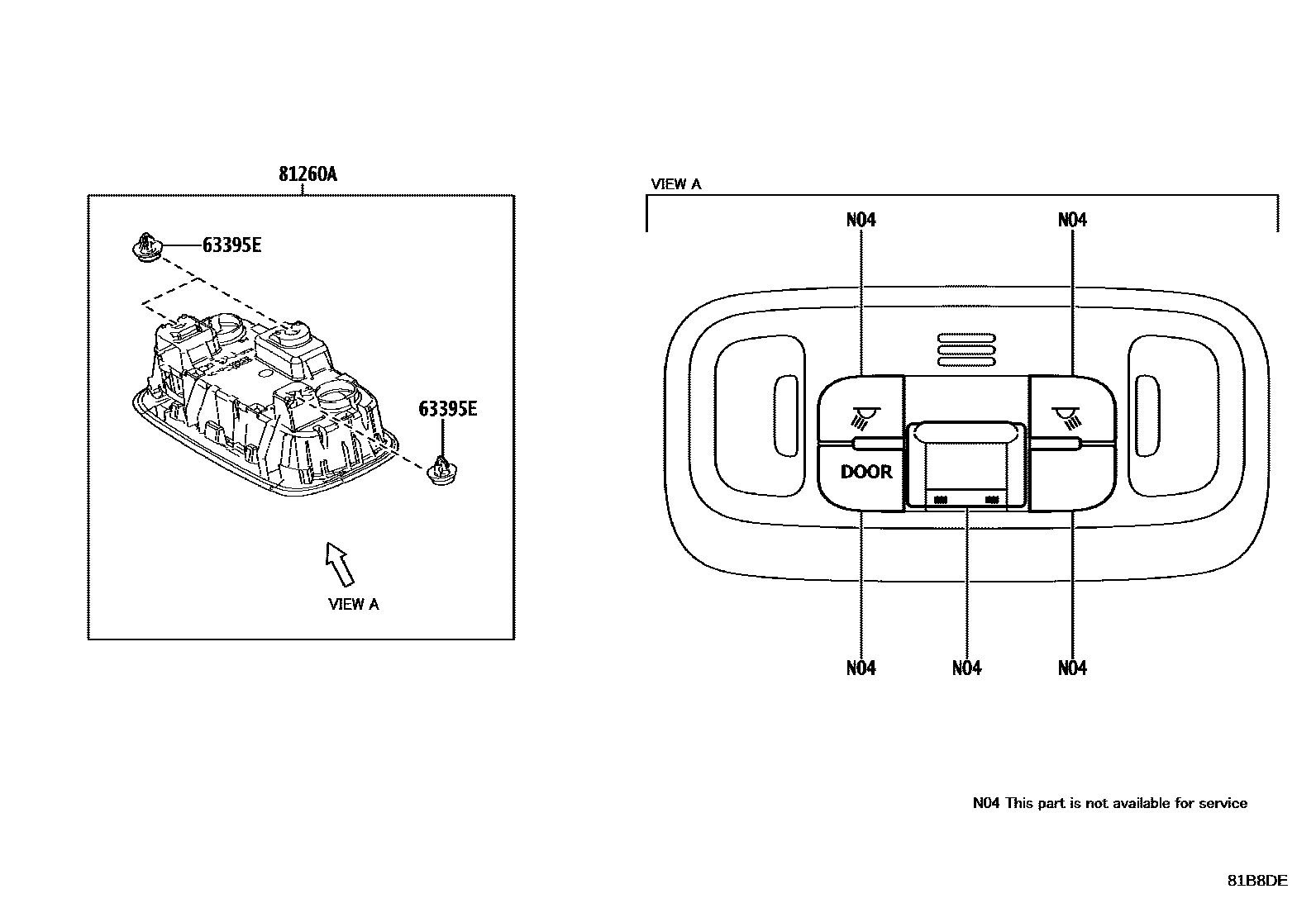

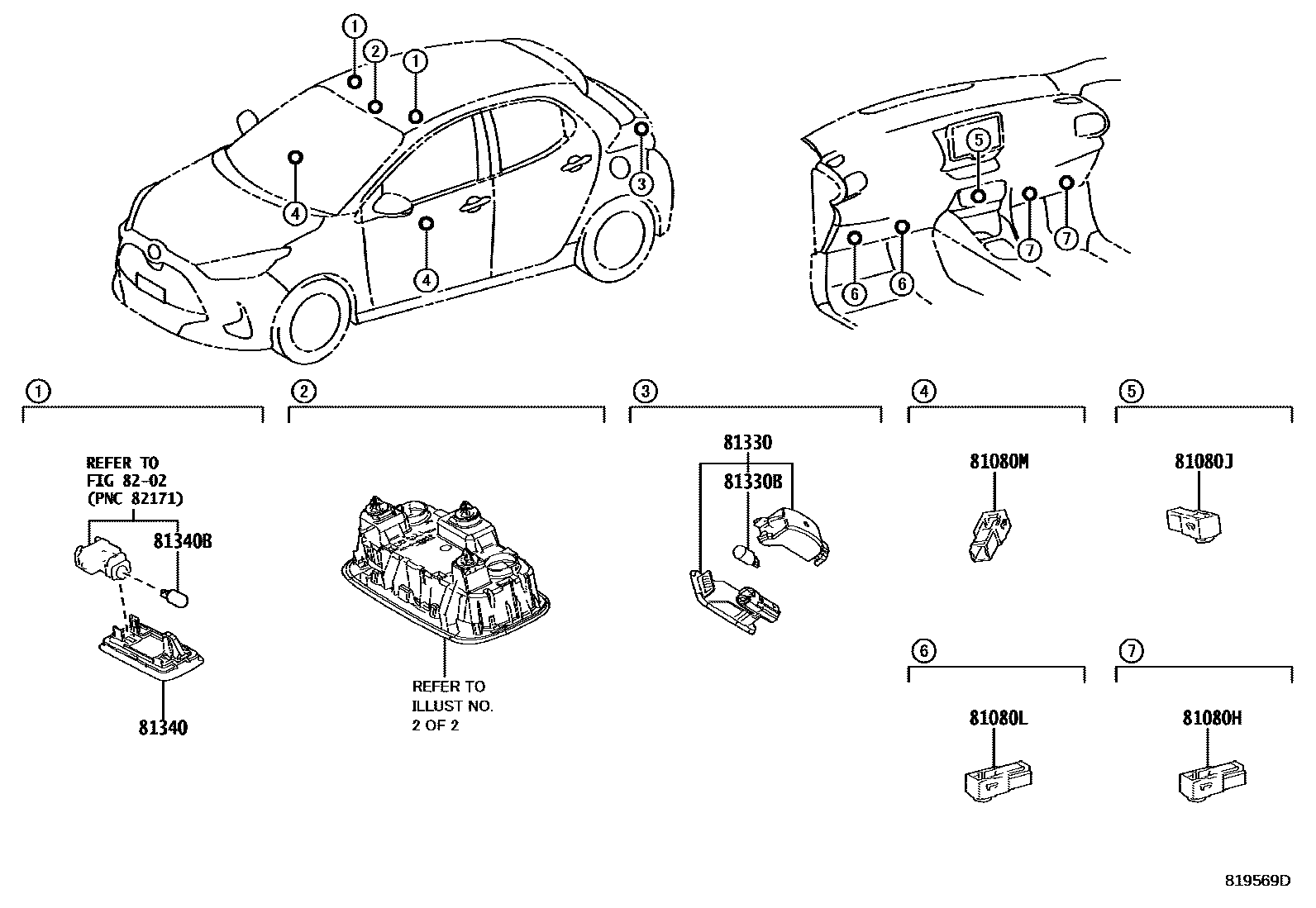

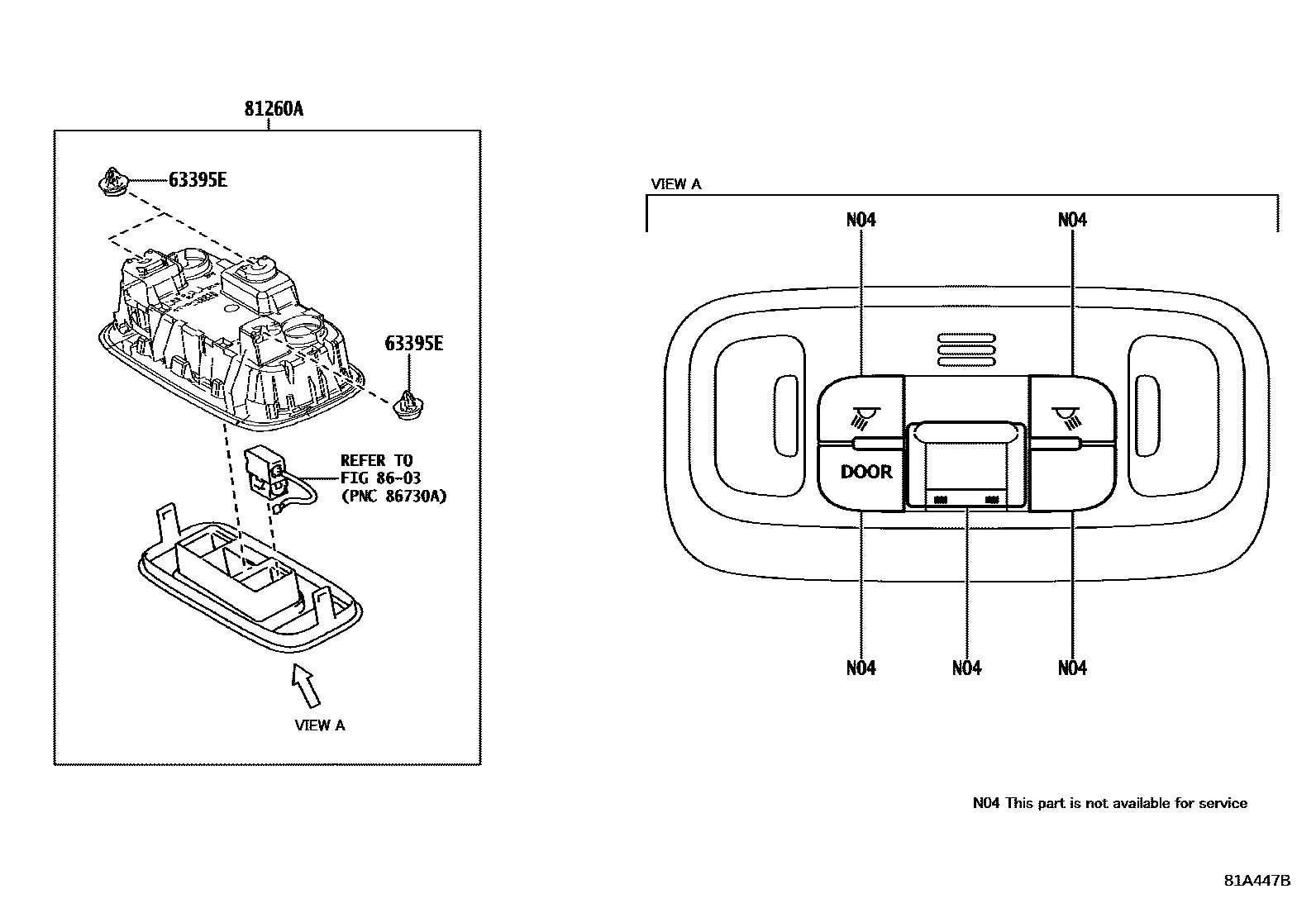

Toyota YARIS EPC diagram 8121, 车内灯, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63395E | Clip (for reading lamp) | 90467-09240 |
| 81080H | Right No. 1 interior lighting assembly | 81080-33280 · 81080-33290 |
| 81080J | No. 1 interior lighting assembly | 81080-33280 · 81080-33290 |
| 81080L | No. 1 interior lighting assembly on the left | 81080-33280 · 81080-33290 |
| 81080M | No. 1 interior lighting assembly | 81080-33280 · 81080-33290 |
| 81330 | No. 1 trunk light assembly | 81330-02060 |
| 81330B | trunk light bulb | 90981-WB021 |
| 81340 | Vanity light assembly | 81340-33170 · 81340-F4010 |
| 81340B | Bulb (for vanity lights) | 90981-11062 |
