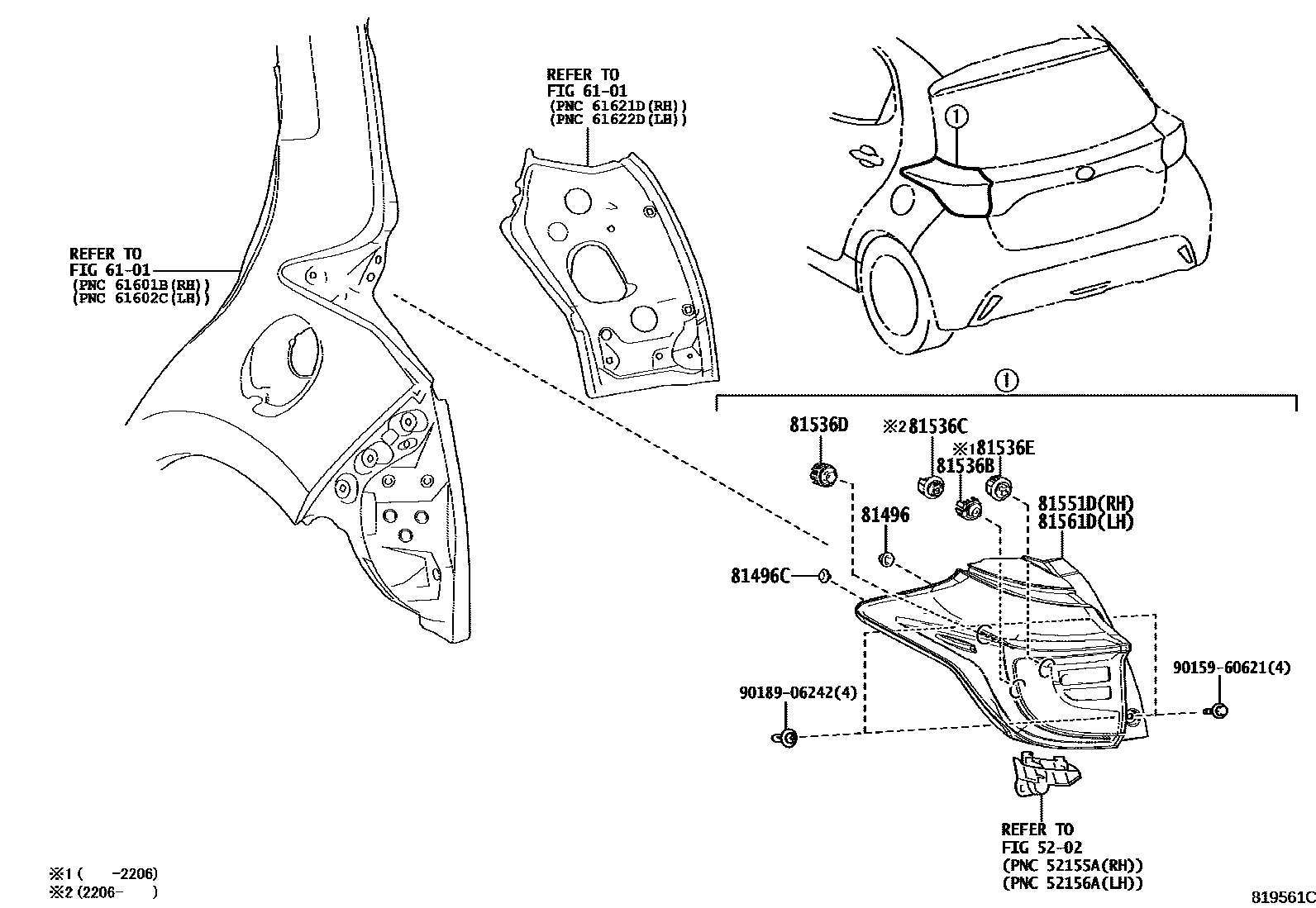

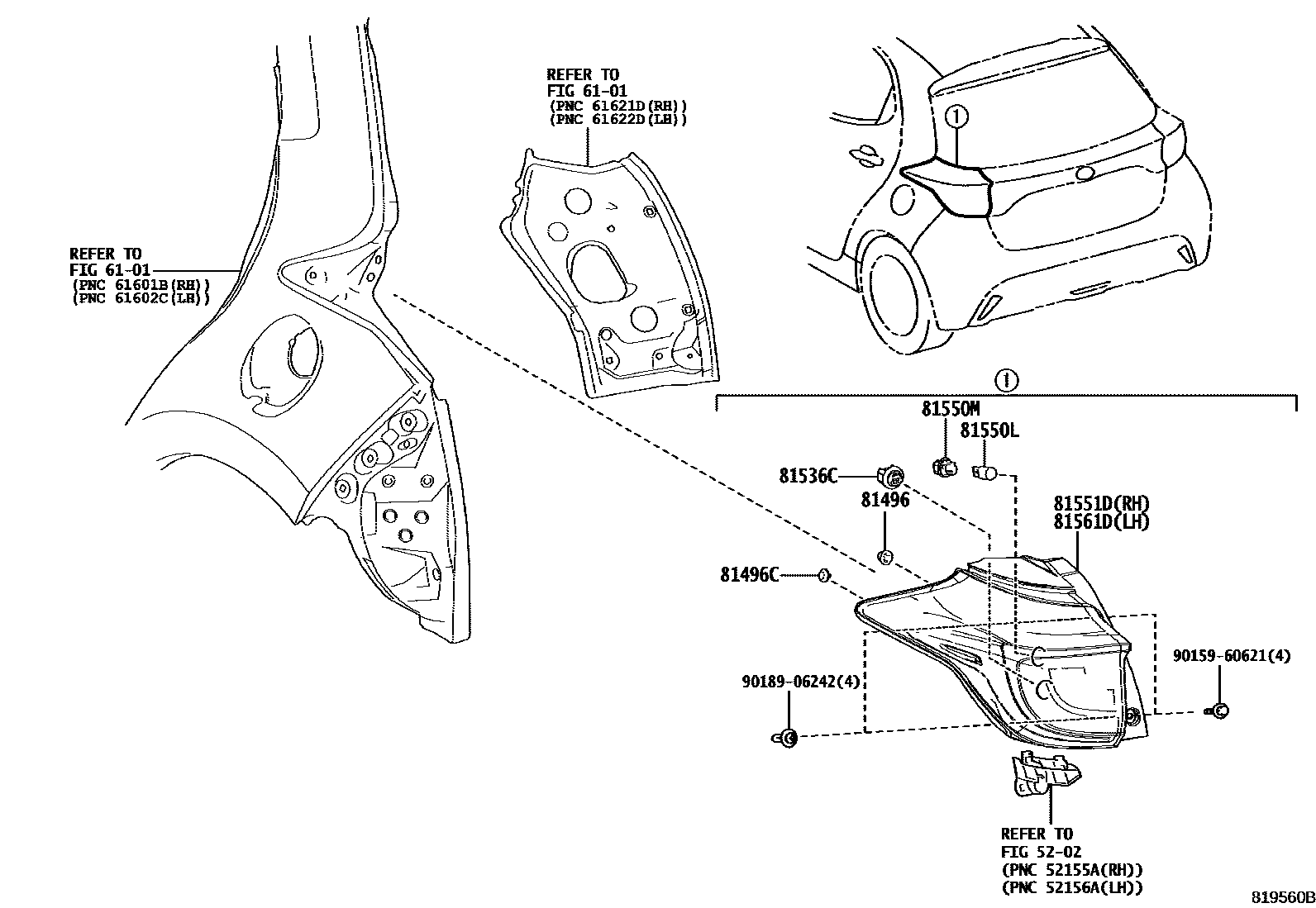

Toyota YARIS 后组合灯 — Figure 8111
Toyota YARIS EPC diagram 8111, 后组合灯, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-52020 |
| 81496C | No. 2 rear combination light guide block | 81496-60010 |
| 81536B | LED, CLIGNOTANT ARRIERE | 81536-12D30 |
| 81536C | LED, FEU ARR & STOP | 81536-15120 · 81965-70010 |
| 81536D | LED, FEU ARR | 8158A-0D610 |
| 81536E | LED, FEU STOP | 81536-15120 |
| 81550L | Rear turn signal light bulb | 90981-15021 |
| 81550M | Rear turn signal lamp holder | 90075-60028 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-K0030 · 81551-K0040 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-K0030 · 81561-K0040 |
