Toyota YARIS Headlamp — Figure 8101

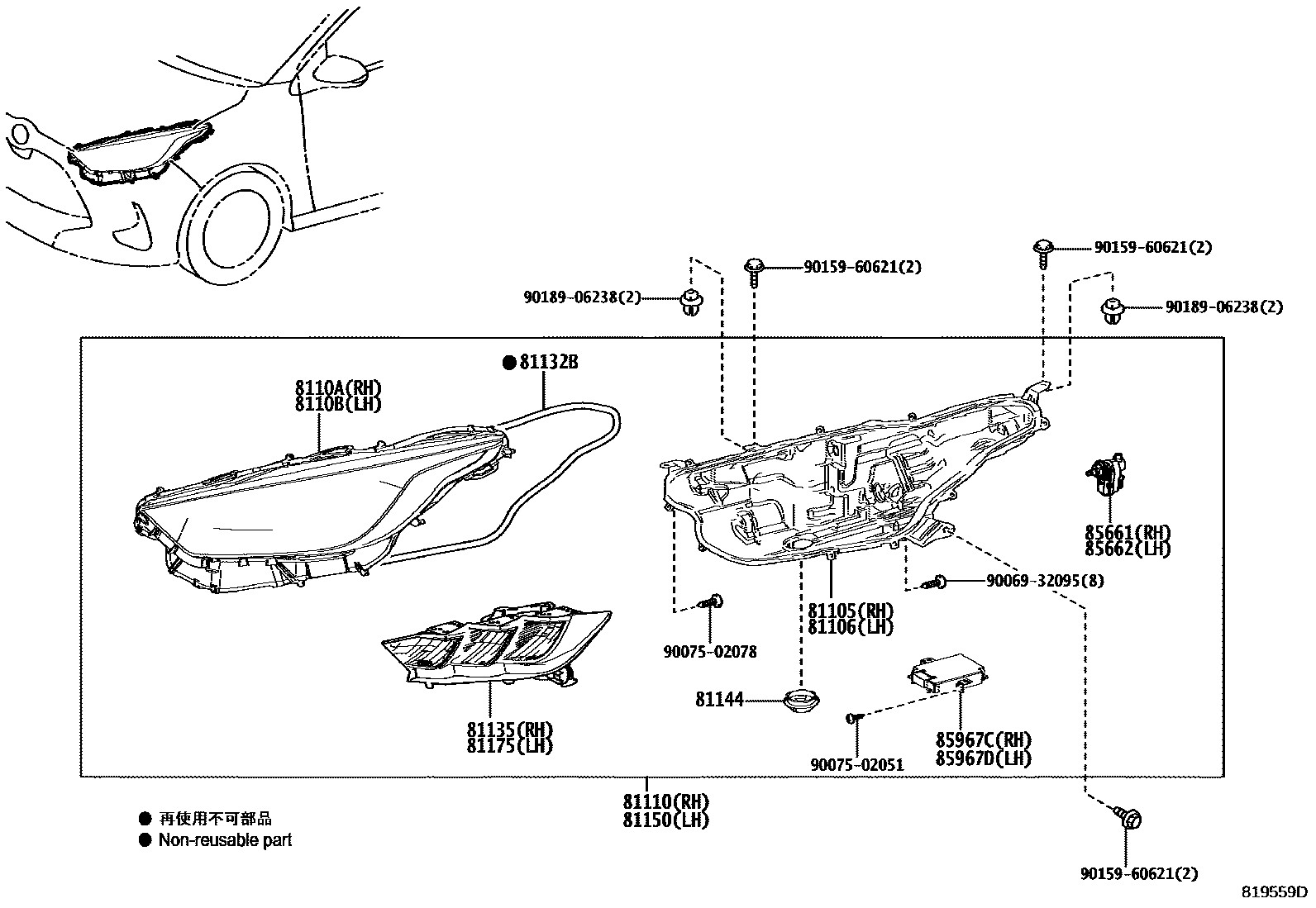

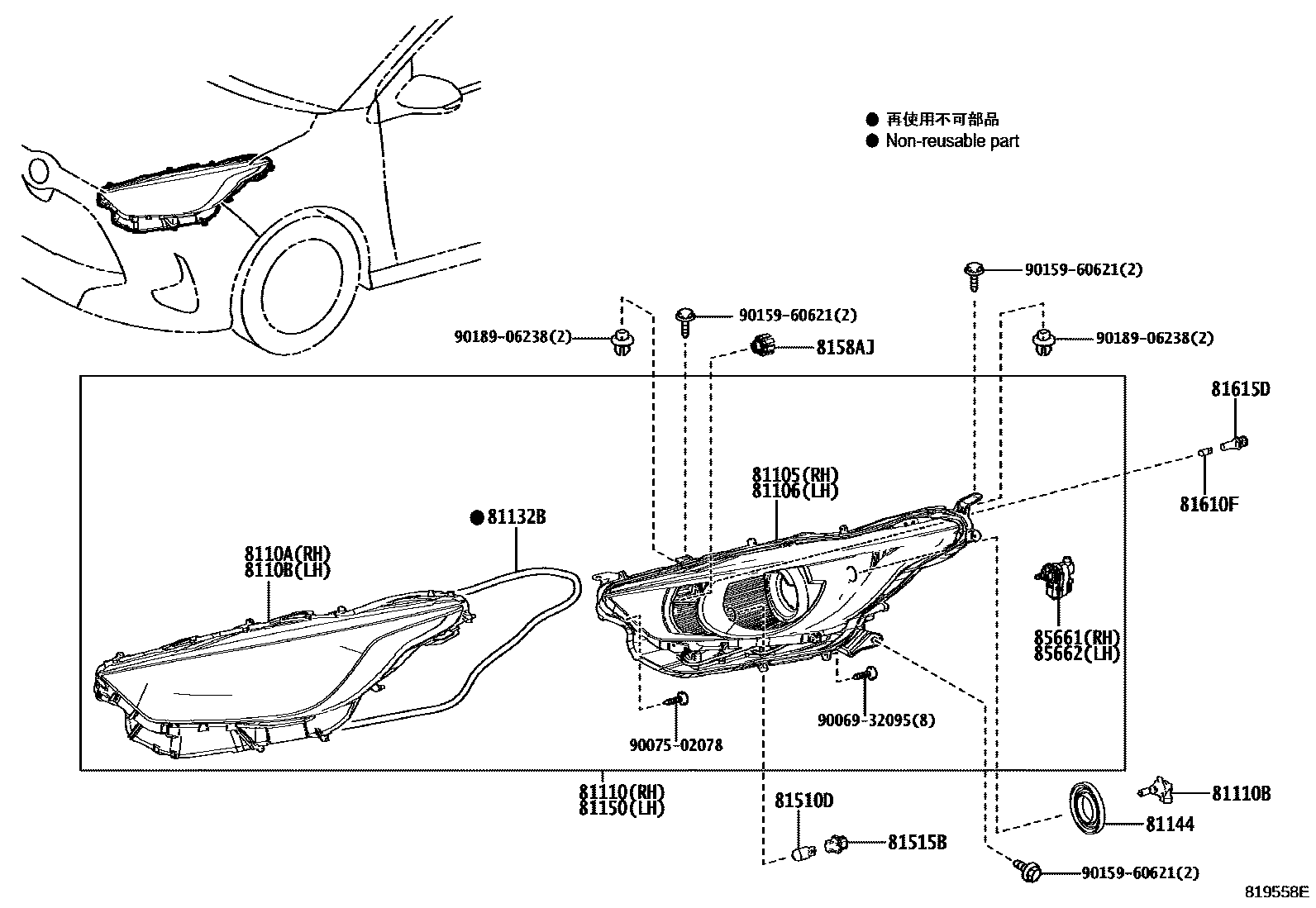

Toyota YARIS EPC diagram 8101, Headlamp, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81105 | Right headlight housing sub-assembly | 81105-K0050 · 81105-K0060 · 81105-K0070 · 81105-K0080 |
| 81106 | Left headlight housing sub-assembly | 81106-K0050 · 81106-K0060 · 81106-K0070 · 81106-K0080 |
| 8110A | SOUS-ENS. OPTIQUE, PHARE, MD | 8110A-K0060 · 8110A-K0080 |
| 8110B | SOUS-ENS. OPTIQUE, PHARE, MG | 8110B-K0060 · 8110B-K0080 |
| 81110 | Right headlight assembly | 81110-K0070 · 81110-K0071 · 81110-K0080 · 81110-K0081 · 81130-K0050 · 81130-K0060 |
| 81110B | Bulb (for headlight No. 1) | 90981-13091 |
| 81132B | Headlight cover gasket | 81132-50590 |
| 81135 | Right headlight assembly | 81130-K0070 · 81130-K0080 |
| 81144 | No. 1 headlight cover | 90075-65006 · 90075-66016 |
| 81150 | Left headlight assembly | 81150-K0070 · 81150-K0071 · 81150-K0080 · 81150-K0081 · 81170-K0050 · 81170-K0060 |
| 81175 | Left headlight assembly | 81170-K0070 · 81170-K0080 |
| 81510D | front turn signal light bulb | 90981-15021 |
| 81515B | Front turn signal lamp holder | 90075-60028 |
| 8158AJ | LED, ECLAIRAGE DE JOUR | 8158A-12260 |
| 81610F | Light bulb (for width indicator light) | 90981-11070 |
| 81615D | Width light lamp holder | 90075-60089 |
| 85661 | Right headlight beam height adjustment motor | 85661-0D050 |
| 85662 | Left headlight beam height adjustment motor | 85661-0D050 |
| 85967C | ORDINATEUR, LED COMMANDE ECLAIRAGE, MD | 8596A-K0020 · 8596A-K0021 |
| 85967D | ORDINATEUR, LED COMMANDE ECLAIRAGE, MG | 8596A-K0010 · 8596A-K0011 |
