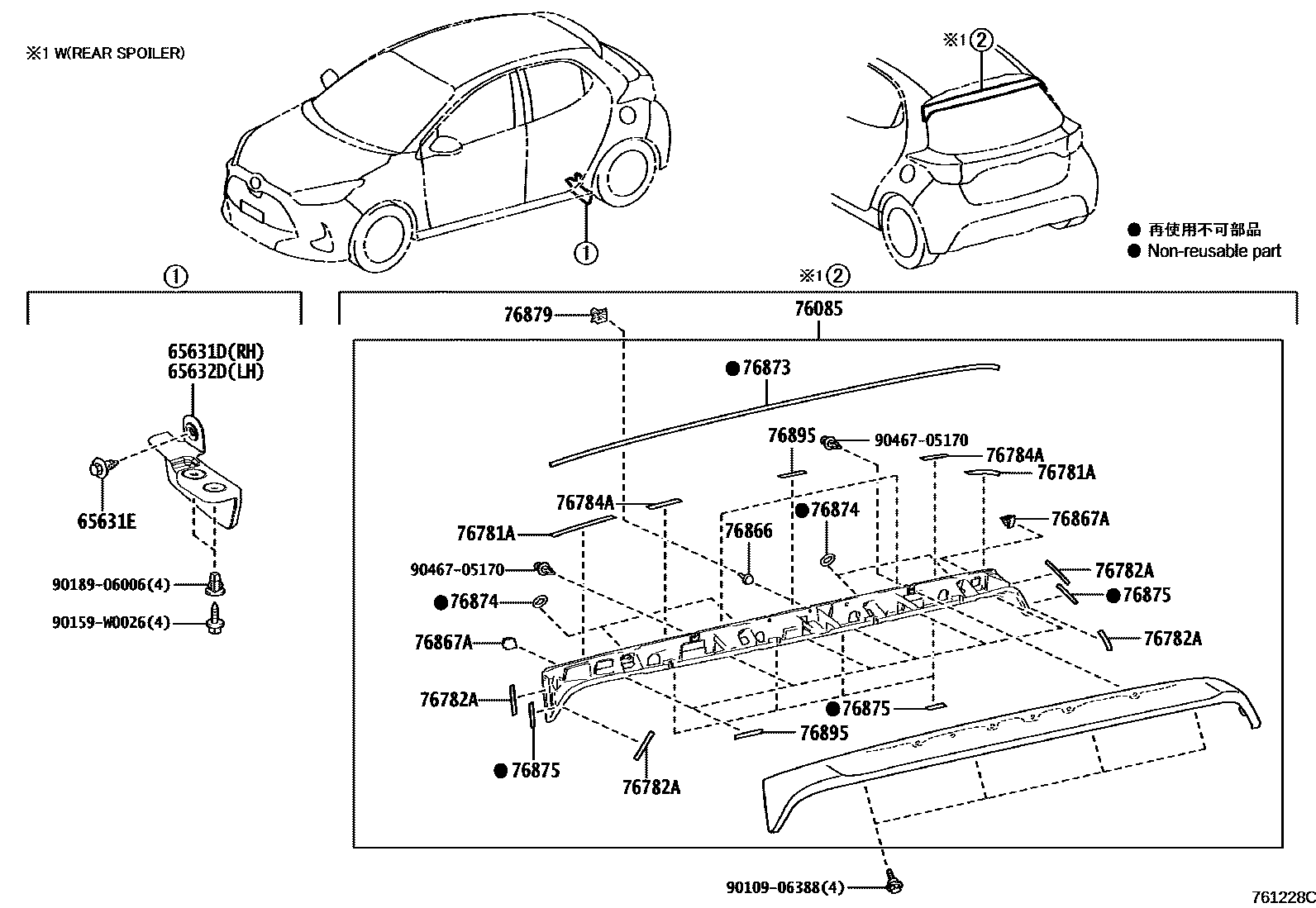

Toyota YARIS 挡泥板和扰流板 — Figure 7601
Toyota YARIS EPC diagram 7601, 挡泥板和扰流板, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65631D | Right rear wheel house front panel | 65631-K0030 |
| 65631E | ATTACHE, PLAQUE PASSAGE DE ROUE ARR | 75867-30140 · 75867-33050 |
| 65632D | Left rear wheel house front panel | 65632-K0030 |
| 76781A | No. 1 rear upper spoiler tape | 76781-K0010 |
| 76782A | No. 2 rear upper spoiler tape | 76782-K0010 |
| 76784A | No. 2 rear lower spoiler tape | 76784-K0010 |
| 76866 | No. 2 rear spoiler fixing piece | 76866-48010 |
| 76867A | No. 3 rear spoiler fixing piece | 76867-K0010 |
| 76873 | No. 2 rear spoiler protective strip | 76873-0D140 |
| 76874 | No. 3 rear spoiler protective strip | 76874-K0010 |
| 76875 | No. 4 rear spoiler protective strip | 76875-0D080 |
| 76879 | No. 1 rear spoiler clip | 76879-52030 |
| 76895 | No. 5 rear spoiler protective strip | 76895-0D020 |
