Toyota YARIS 侧防护条 — Figure 7503

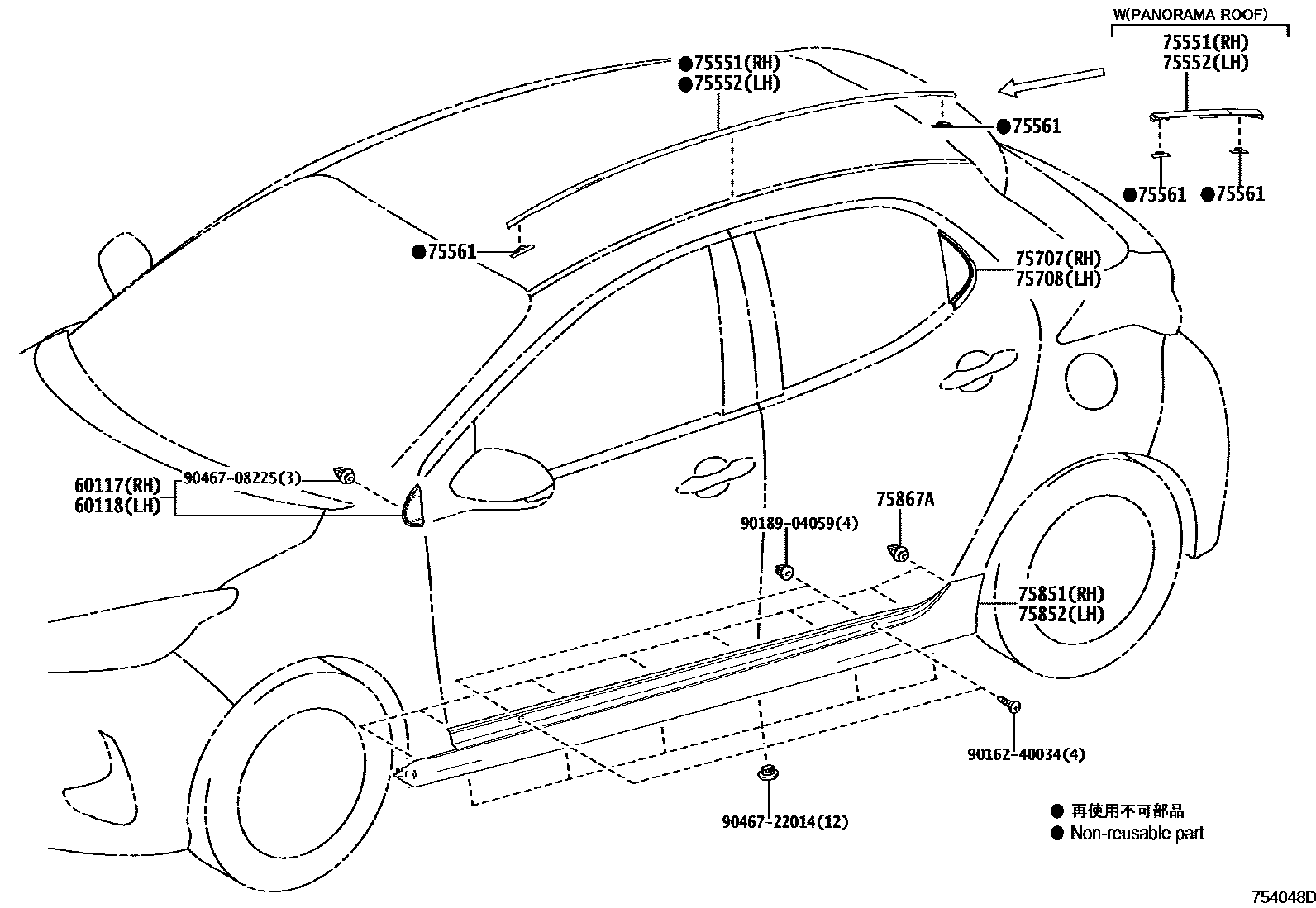

Toyota YARIS EPC diagram 7503, 侧防护条, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 60117 | Right front pillar upper cover sub-assembly | 60117-K0010 |
| 60118 | Left front pillar upper cover sub-assembly | 60118-K0010 |
| 75551 | Drainage groove side decorative strip on the right side of the roof | 75551-0D400 · 75551-K0010 · 75551-K0020 |
| 75552 | Drainage groove side decorative strip on the left side of the roof | 75552-0D230 · 75552-K0010 · 75552-K0020 |
| 75561 | No. 1 roof drain channel side decorative strip clip | 75561-0D110 |
| 75707 | Right rear door window frame protective strip sub-assembly | 75707-0D010 · 75707-0D020 · 75707-0D030 |
| 75708 | Left rear door window frame protective strip sub-assembly | 75708-0D010 · 75708-0D020 · 75708-0D030 |
| 75851 | Right side door sill panel protective strip | 75851-K0901 |
| 75852 | Left side door sill panel protective strip | 75852-K0901 |
| 75867A | Door sill panel protective strip clip | 75867-30130 · 75867-52020 |
