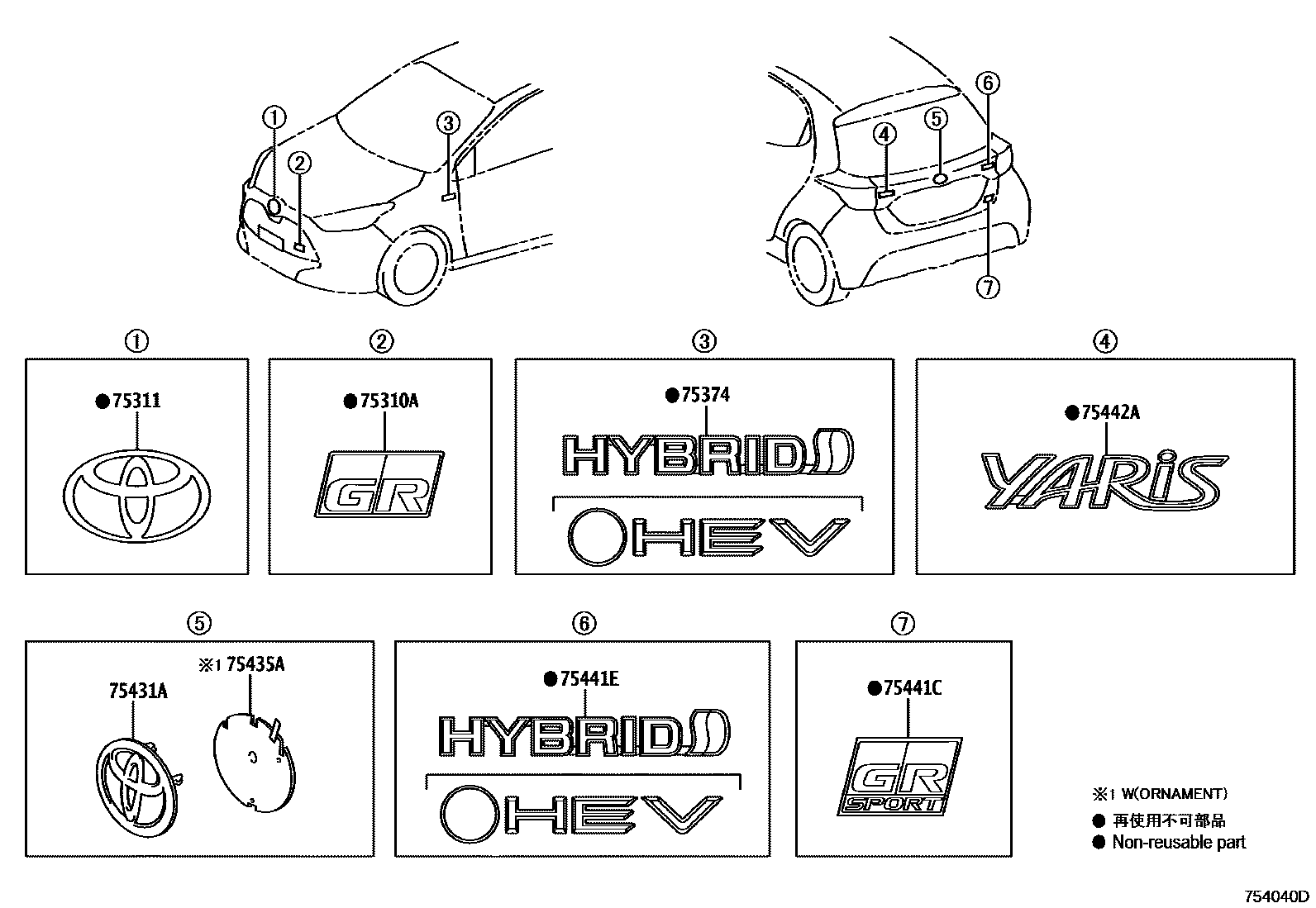

Toyota YARIS 丰田徽标和铭牌(车外和车内) — Figure 7501
Toyota YARIS EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75310A | Radiator grille plate assembly | 75310-52090 |
| 75311 | Radiator grille (or front panel) plate | 75403-02050 · 75403-02051 · 75431-0D050 · 75431-0D051 · 90975-02148 · 90975-W2021 |
| 75374 | side panel sign | 75374-K0030 · 75374-K0031 · 75374-K0040 · 75374-K0041 · 75440-F4010 |
| 75431A | No. 1 sign on back door | 90975-02187 · 90975-W2002 · 90975-W2024 · 90975-W2025 |
| 75435A | Rear door trim | 75435-K0010 |
| 75441C | Back door nameplate | 75441-71010 |
| 75441E | Back door No. 1 nameplate | 75440-F4010 · 75441-K0030 · 75441-K0031 |
| 75442A | No. 2 nameplate on back door | 75442-K0030 · 75442-K0031 |
