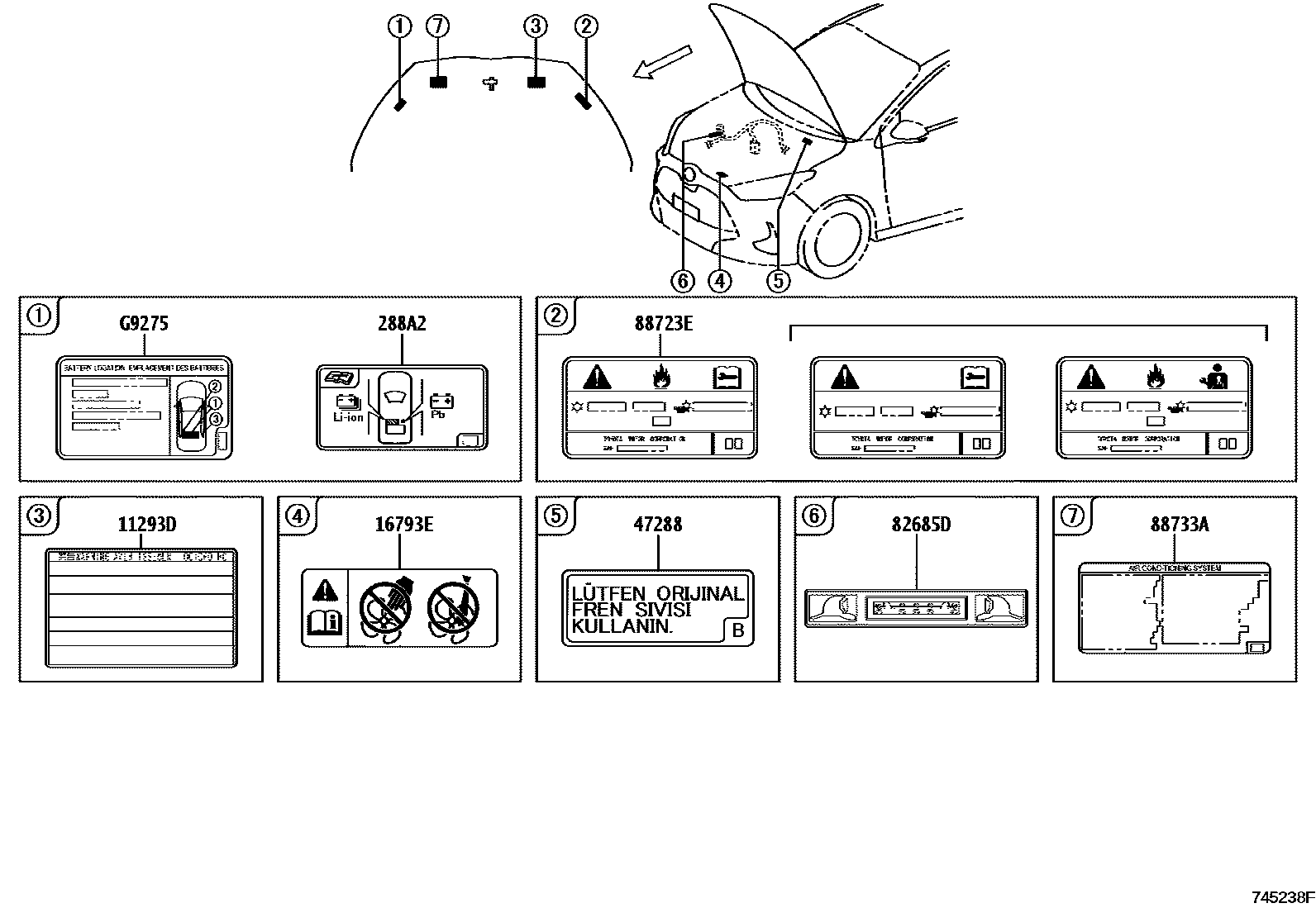

Toyota YARIS 警示铭牌(车外和车内) — Figure 7403
Toyota YARIS EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11293D | engine warning label | 11293-36070 |
| 16793E | ETIQUETTE, PRECAUTION VENT REFROIDISSEMENT | 16793-36030 |
| 288A2 | ETIQUETTE, EMPLACEMENT BATT | 288A2-15020 |
| 42661 | ETIQUETTE, INFORMATIONS PRESSION PNEUS | 42661-0DC30 · 42661-0DC50 · 42661-0DC60 · 42661-K0130 · 42661-K0140 · 42661-K0160 · 42661-K0170 · 42661-K0180 · 42661-K0190 |
| 47288 | Brake Fluid Caution Label | 47288-64010 |
| 74515B | Anti-theft warning nameplate | 74515-0D010 |
| 74515C | Anti-theft warning information label | 74515-33020 · 74515-42010 |
| 74541E | Small spare tire warning plate | 42668-0F030 |
| 74559B | fuel information label | 74559-0D060 · 74559-11030 · 74559-20140 |
| 82685D | warning nameplate | 82684-48010 |
| 88723E | Cooler maintenance warning label | 7454B-0D010 · 88723-0D270 · 88723-0D310 · 88723-K0030 · 88723-K0040 · 88723-K0050 · 88723-K0060 |
| 88733A | PLAQUETTE D'INSTRUCTIONS D'ENTRETIEN DE CLIMATISEUR | 88733-0H010 |
| 89356A | ETIQUETTE RENSEIGNEMENTS GABARIT | 89356-47020 |
| G9275 | No. 1 battery warning label | G9275-K0030 |
