Toyota YARIS 前排座椅和座椅滑轨 — Figure 7101

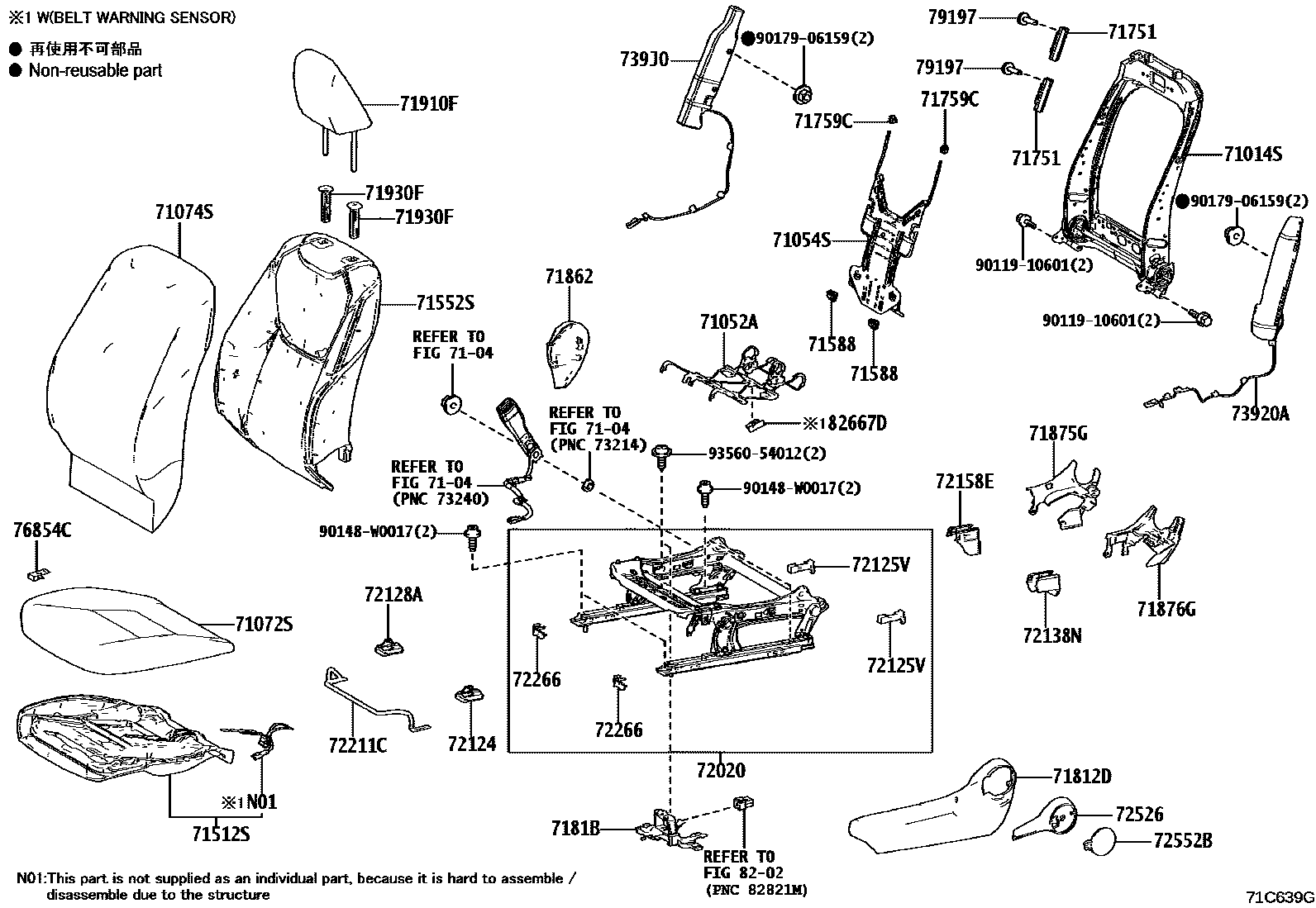

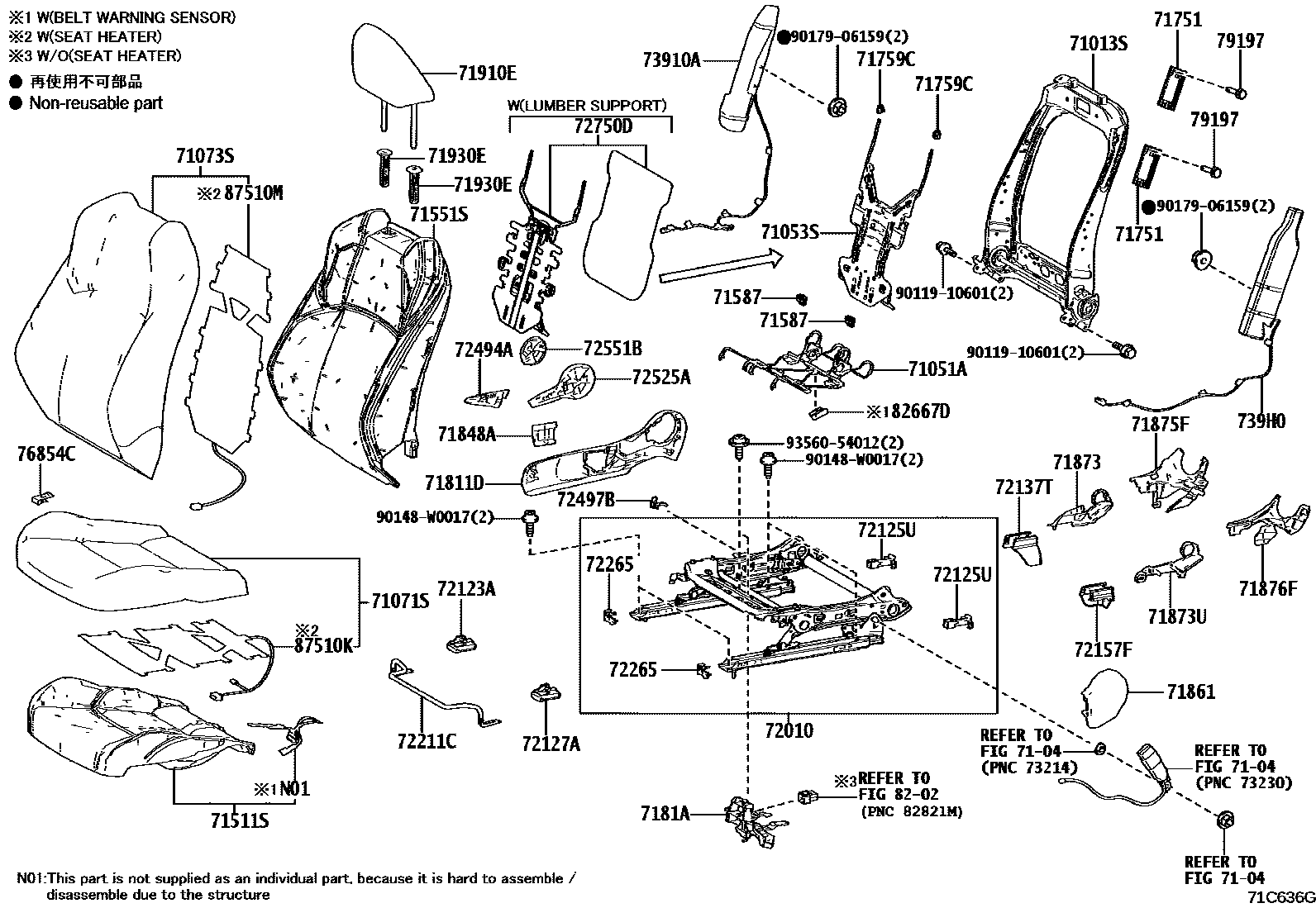

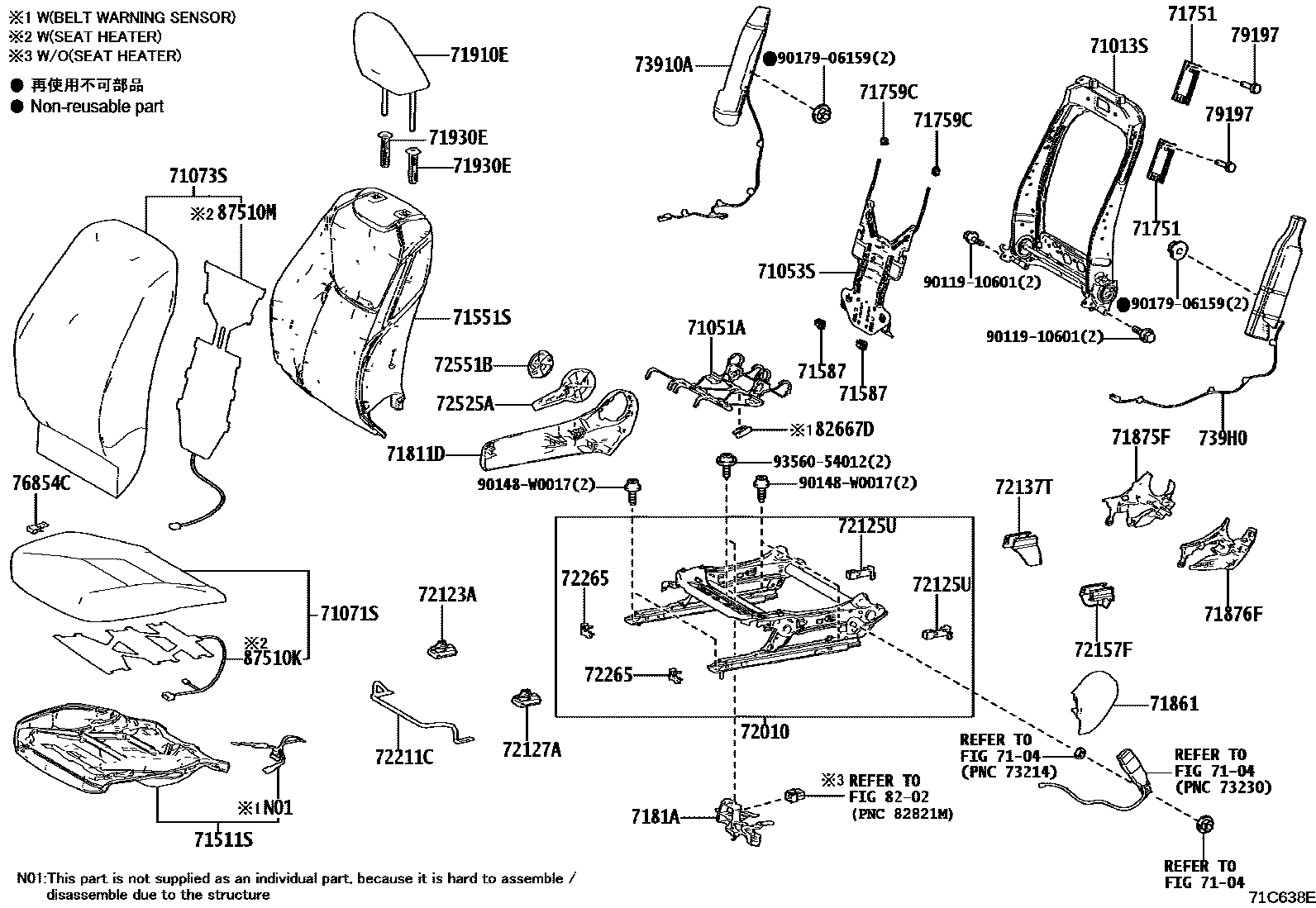

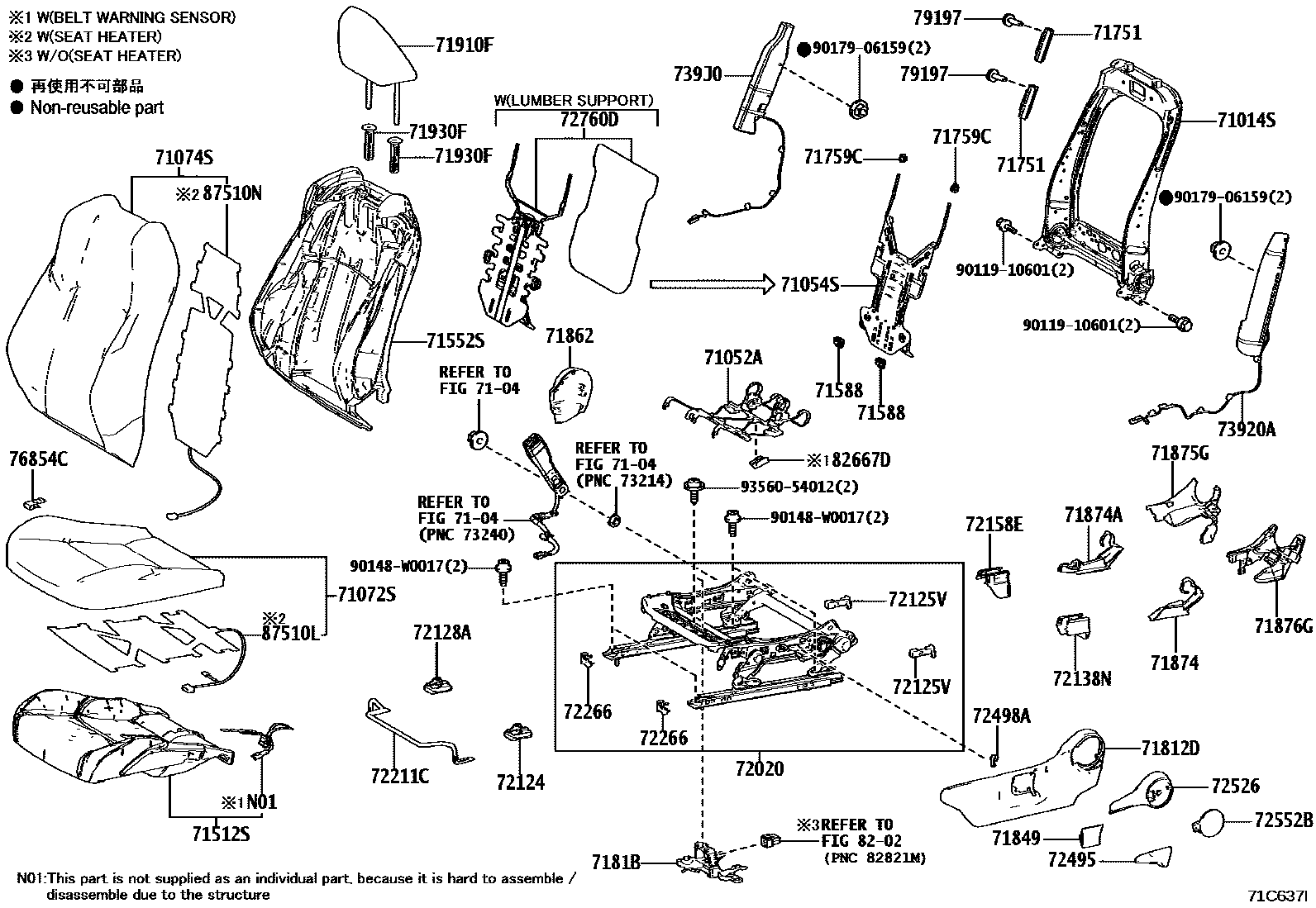

Toyota YARIS EPC diagram 7101, 前排座椅和座椅滑轨, with 4 images and 44 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-K0030 |
| 71014S | Front left seat back frame sub-assembly | 71014-K0030 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-F4011 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-F4011 |
| 71053S | Front right seat back spring sub-assembly | 71053-K0010 |
| 71054S | Front left seat back spring sub-assembly | 71053-K0010 |
| 71071S | Front right seat cushion cover (for split seats) | 71071-YY220 · 71071-YY230 |
| 71072S | Front left seat cushion cover (for split seats) | 71072-YY220 · 71072-YY230 |
| 71073S | Front right seat back cover (for split seats) | 71073-YY330 · 71073-YY340 · 71073-YY350 |
| 71074S | Front left seat back cover (for split seats) | 71074-YY280 · 71074-YY290 · 71074-YY300 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-0D150 · 71501-0D380 · 71501-K0010 · 71501-K0020 · 71511-0DA80 · 71511-0DC50 · 71511-K0010 · 71511-K0030 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-0D260 · 71502-0D270 · 71502-K0010 · 71502-K0020 · 71512-0D880 · 71512-0DB60 · 71512-K0010 · 71512-K0030 |
| 71551S | Front right seat back cushion (for split seats) | 71551-K0060 · 71551-K0070 |
| 71552S | Front left seat back cushion (for split seats) | 71552-K0060 · 71552-K0070 |
| 71587 | Front seat back edge protective cover | 71587-F4010 |
| 71588 | Front seat back edge protective cover No. 2 | 71587-F4010 |
| 71751 | CROCHET, HOUSSE DE SIEGE | 71751-0K070 |
| 71759C | Front seat back hook No. 1 | 71759-50040 |
| 7181A | SUPPORT, FAISCEAU CABLE COUSSIN SIEGE AVANT, MD | 7181A-K0010 |
| 7181B | SUPPORT, FAISCEAU CABLE COUSSIN SIEGE AVANT, MG | 7181B-K0010 |
| 71873 | Front right seat cushion lower guard panel | 71873-K0020 |
| 71873U | PROTECTION, COUSSIN SIEGE AVANT, INF MD | 71873-K0030 |
| 71874 | Front left seat cushion lower guard | 71874-K0010 |
| 71874A | Front left seat cushion lower guard | 71874-K0020 |
| 72010 | Front right seat adjuster assembly | 72010-0D860 · 72010-0D870 · 72010-K0060 · 72010-K0070 |
| 72020 | Front left seat adjuster assembly | 72020-0D860 · 72020-0D870 · 72020-K0040 · 72020-K0050 |
| 72125U | CACHE, GLISSIERE SIEGE, SUP ARR MD | 72125-K0010 |
| 72125V | CACHE, GLISSIERE SIEGE, SUP ARR MG | 72125-K0010 |
| 72211C | Seat slide adjustment handle | 72211-K0010 |
| 72265 | Right seat rail upper rail cover | 72265-K0010 |
| 72266 | Left seat rail upper rail cover | 72265-K0010 |
| 72750D | Right lumbar support adjuster assembly | 72750-0D010 |
| 72760D | Left lumbar support adjuster assembly | 72750-0D010 |
| 73910A | Front right seat airbag assembly | 73910-K0010 · 73910-K0011 |
| 73920A | Front left seat airbag assembly | 73920-K0010 · 73920-K0011 |
| 739H0 | ENS. AIRBAG, CTRL SIEGE AV, MD | 739H0-K0010 · 739H0-K0011 |
| 739J0 | ENS. AIRBAG, CTRL SIEGE AV, MG | 739J0-K0010 · 739J0-K0011 |
| 76854C | ARRETOIR, CACHE COUSSIN SIEGE AVANT | 76854-44010 |
| 79197 | CROCHET, HOUSSE DOSSIER SIEGE | 79197-0K010 |
| 82667D | Connector holder | 82666-K0160 |
| 87510K | Front right seat cushion heater assembly | 87510-K0010 · 87510-K0020 |
| 87510L | Front left seat cushion heater assembly | 87510-0D070 · 87510-0D080 · 87510-K0030 · 87510-K0040 |
| 87510M | Front right seat back heater assembly | 87530-K0010 · 87530-K0020 |
| 87510N | Front left seat back heater assembly | 87530-K0010 · 87530-K0020 |
