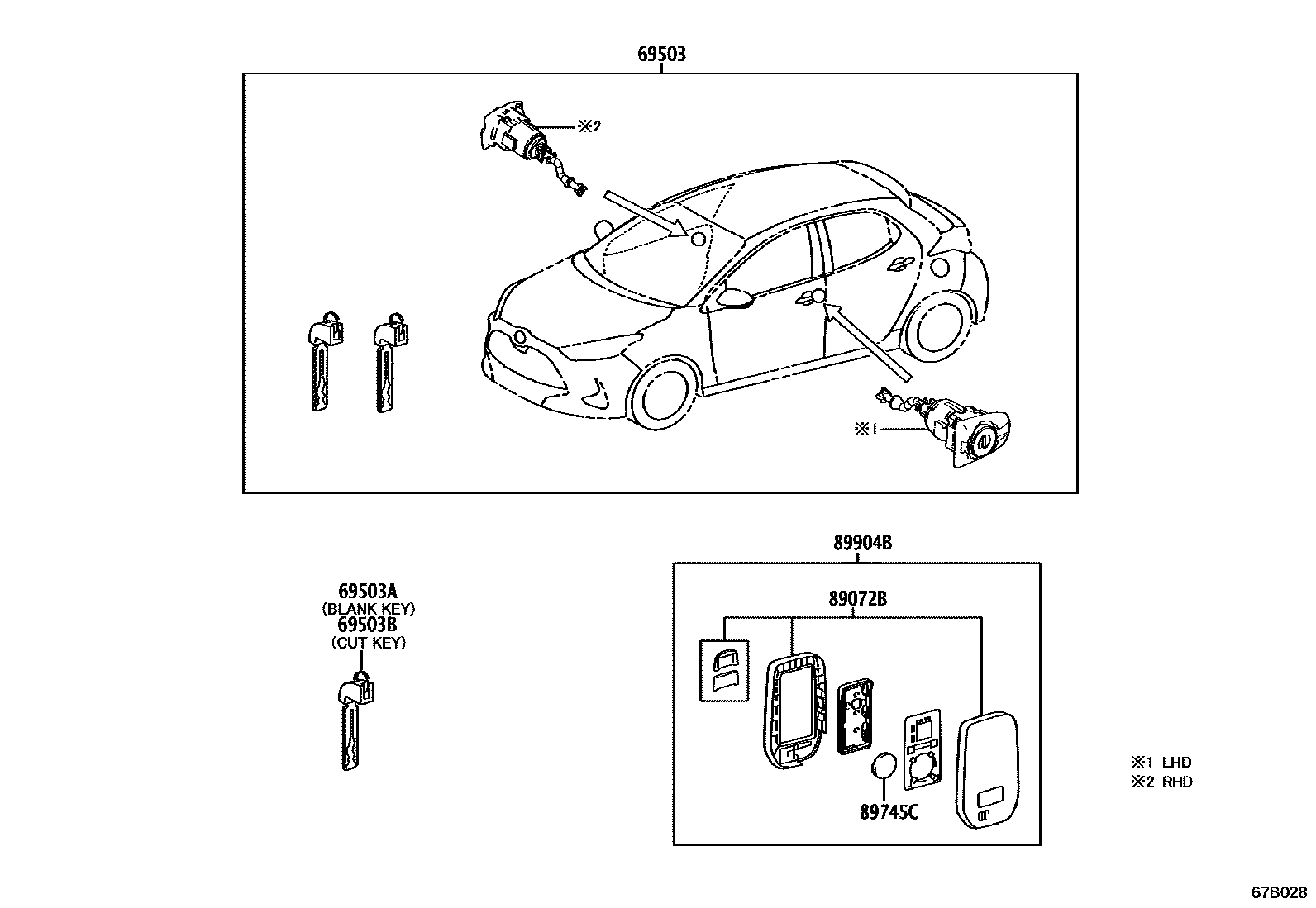

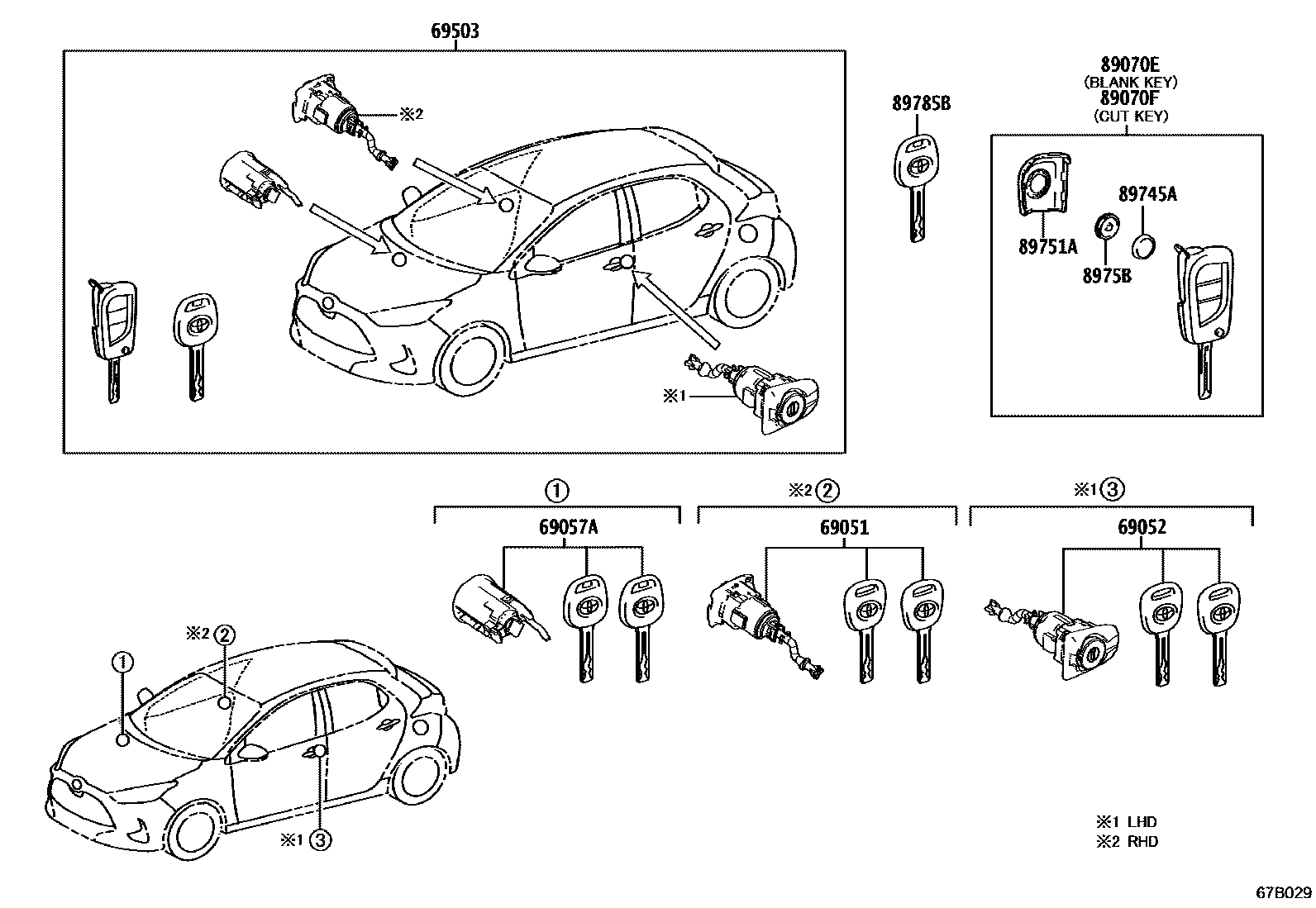

Toyota YARIS 锁芯组件 — Figure 6712
Toyota YARIS EPC diagram 6712, 锁芯组件, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-K0010 |
| 69052 | Left door lock cylinder and key assembly | 69052-K0010 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-02C20 |
| 69503 | Door lock cylinder components | 69005-K0050 · 69005-K0070 · 89704-0DN00 · 89704-0DN10 · 89704-0DP40 · 89704-0DP50 · 89704-0DP80 · 89704-0DP90 · 89704-K0030 · 89704-K0040 |
| 69503A | external tooth key | 69515-K0020 |
| 69503B | internal tooth key | 69515-K0010 |
| 89070E | Remote key assembly | 89070-K0060 |
| 89070F | Remote key assembly (internal tooth key) | 89070-F4132 · 89070-K0090 |
| 89072B | Remote key shell assembly (for smart key) | 89072-0D780 · 89072-K0030 · 89072-K0031 |
| 89745A | Transmitter battery | 89745-02080 |
| 89745C | Transmitter battery | 89745-K0020 |
| 89751A | Transmitter housing cover | 89751-02250 |
| 8975B | Remote control battery case cover | 8975B-02040 |
| 89785B | transceiver key master transmitter | 89785-K0050 |
| 89904B | Electronic key transmitter sub-assembly | 8990H-0D081 · 8990H-K0050 · 8990H-K0051 · 8990H-K0052 |
