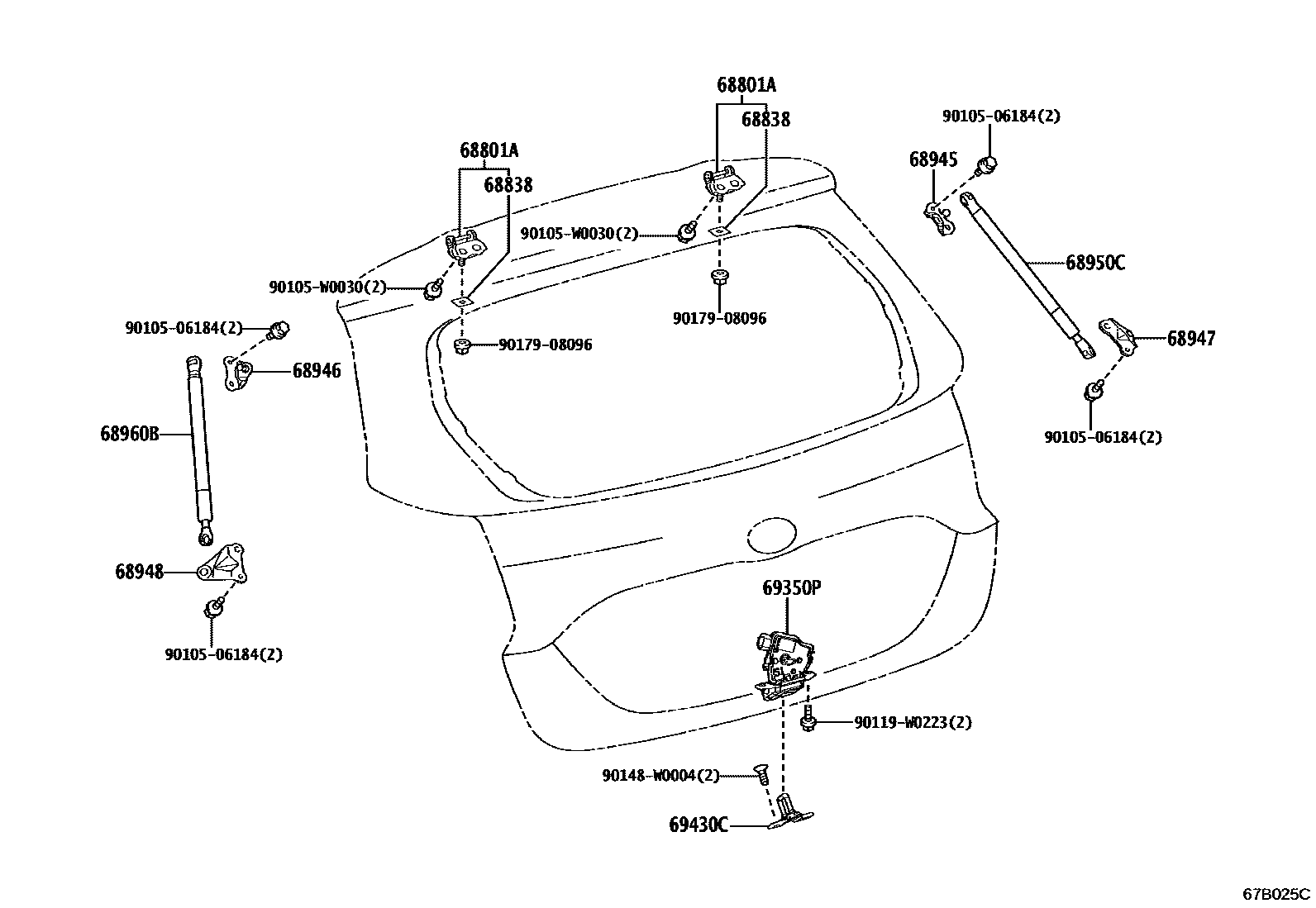

Toyota YARIS 背门锁和背门把手 — Figure 6709
Toyota YARIS EPC diagram 6709, 背门锁和背门把手, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68801A | Back door upper hinge sub-assembly | 68801-0D390 · 68801-0H100 · 68801-0H110 |
| 68838 | Back door hinge No. 1 gasket | 68838-0H020 · 68838-0H030 · 68838-K0020 |
| 68945 | Back door right damping stay upper bracket | 68945-K0020 |
| 68946 | Rear door left damping strut upper bracket | 68946-K0060 |
| 68947 | Back door right damping strut lower bracket | 68947-K0020 |
| 68948 | Rear door left damping strut lower bracket | 68948-K0020 |
| 68950C | Back door right support rod assembly | 68950-K0010 · 68950-K0020 |
| 68960B | Back door left support rod assembly | 68960-K0010 · 68960-K0020 |
| 69350P | ENS. VERR, HAYON, AV COMM PLAFONNIER | 69350-02090 · 69350-52380 |
| 69430C | Back door lock assembly | 69430-02030 |
