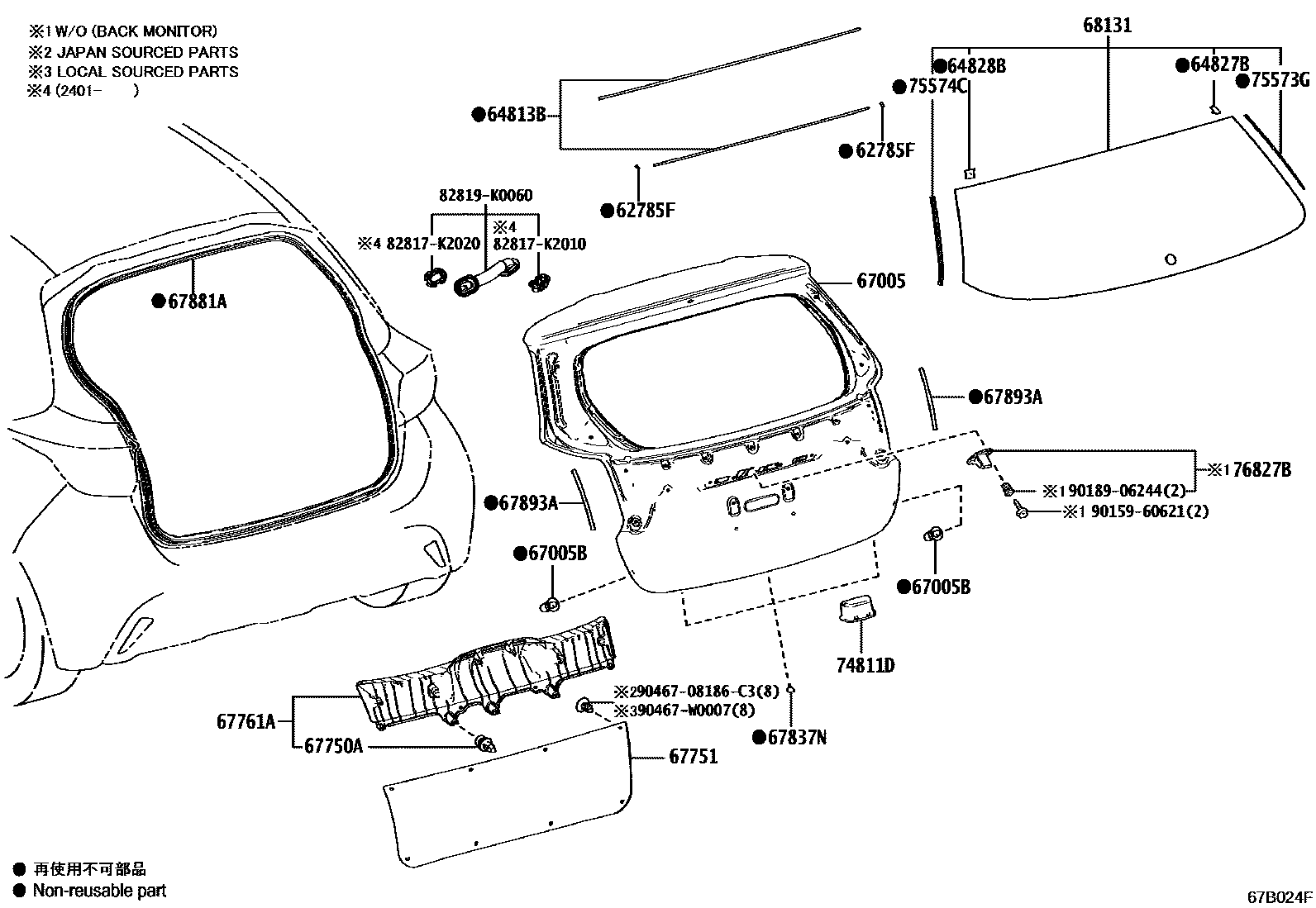

Toyota YARIS 背门板和背门玻璃 — Figure 6708
Toyota YARIS EPC diagram 6708, 背门板和背门玻璃, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62785F | Back door glass spacer | 62785-12050 |
| 64813B | Back window glass adhesive seal | 56117-50140 |
| 64827B | Catch on the right side of the back window glass | 64827-K0010 |
| 64828B | Catch on the left side of the back window glass | 64828-K0010 |
| 67005 | Rear door panel sub-assembly | 67005-K0010 · 67005-K0030 |
| 67005B | Cushion pad (for back door panel) | 90541-09142 |
| 67750A | Clip (for rear door trim panel) | 90467-W0005 |
| 67837N | JOINT D'ETANCHEITE, ANTI-POUSSIERE HAYON | 67837-K0040 · 67837-K0041 |
| 67881A | Back door seal | 67881-K0010 |
| 67893A | Back door panel No. 1 protective piece | 67893-0D040 |
| 68131 | back door glass | 68105-0D490 · 68105-0D500 · 68105-0D510 · 68105-0D520 · 68105-K0040 · 68105-K0050 · 68105-K0200 · 68105-K0220 |
| 75573G | No. 1 protective strip on the right outer side of the back window | 75573-0D080 |
| 75574C | No. 1 protective strip on the left outer side of the back window | 75574-0D030 |
| 76827B | RETENUE NO.2 DOUBLURE HAYON | 76827-K0010 |
