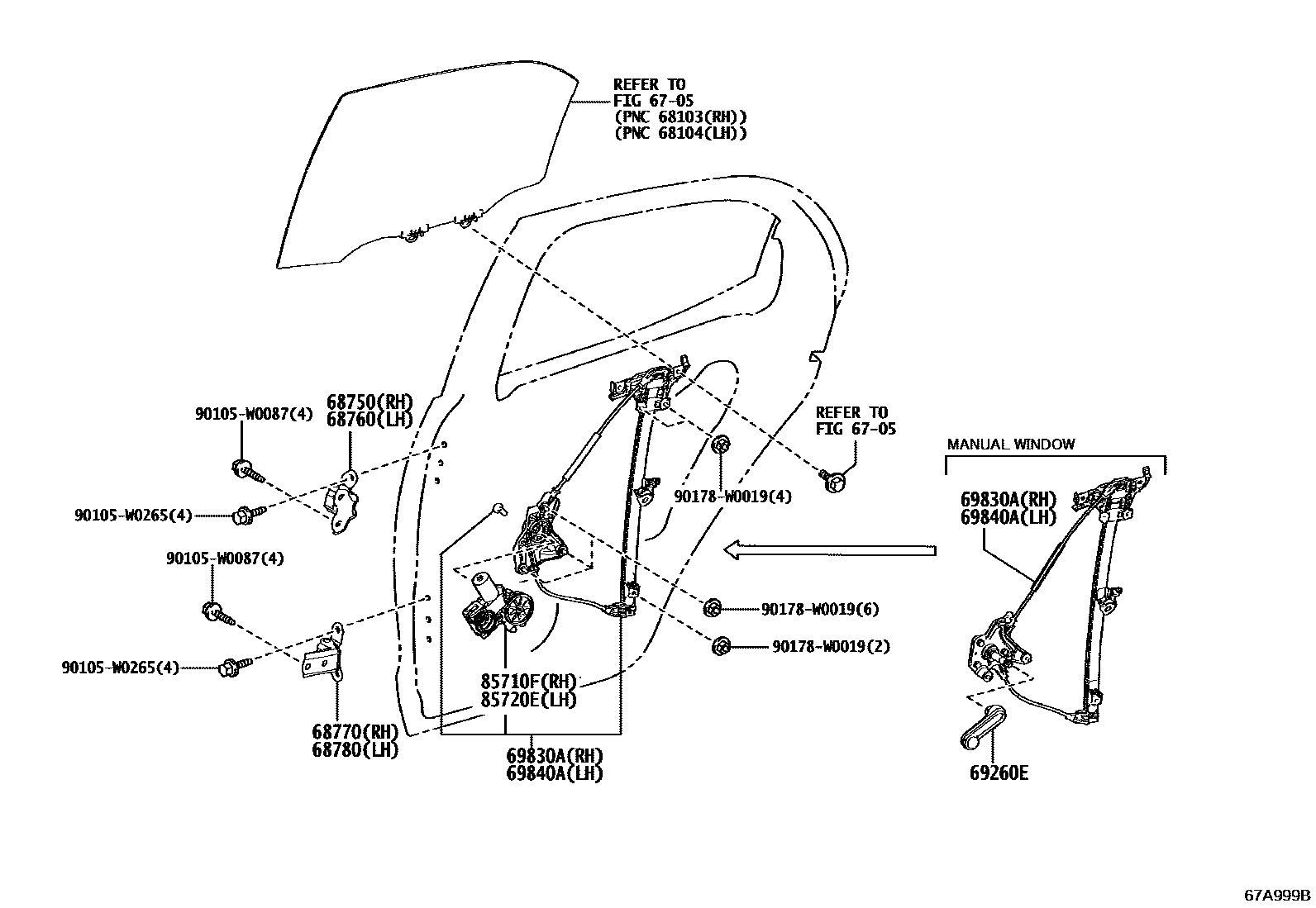

Toyota YARIS 后门车窗升降器和合页 — Figure 6707
Toyota YARIS EPC diagram 6707, 后门车窗升降器和合页, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68750 | Right rear door upper hinge assembly | 68750-0H010 |
| 68760 | Left rear door upper hinge assembly | 68760-0H010 |
| 68770 | Right rear door lower hinge assembly | 68770-0H010 |
| 68780 | Left rear door lower hinge assembly | 68780-0H010 |
| 69260E | Rear door window lift handle assembly | 69260-K0011 |
| 69830A | Right rear door window lift assembly | 69830-0D470 · 69830-K0010 · 69830-K0020 |
| 69840A | Left rear door window lift assembly | 69840-0D470 · 69840-K0010 · 69840-K0020 |
| 85710F | Right power window lift motor assembly | 85710-0D470 · 85710-K0010 |
| 85720E | Left electric window lift motor assembly | 85720-0D610 · 85720-K0010 |
