Toyota YARIS 后门锁和后门把手 — Figure 6706

Toyota YARIS EPC diagram 6706, 后门锁和后门把手, with 1 images and 20 PNC and OE references.

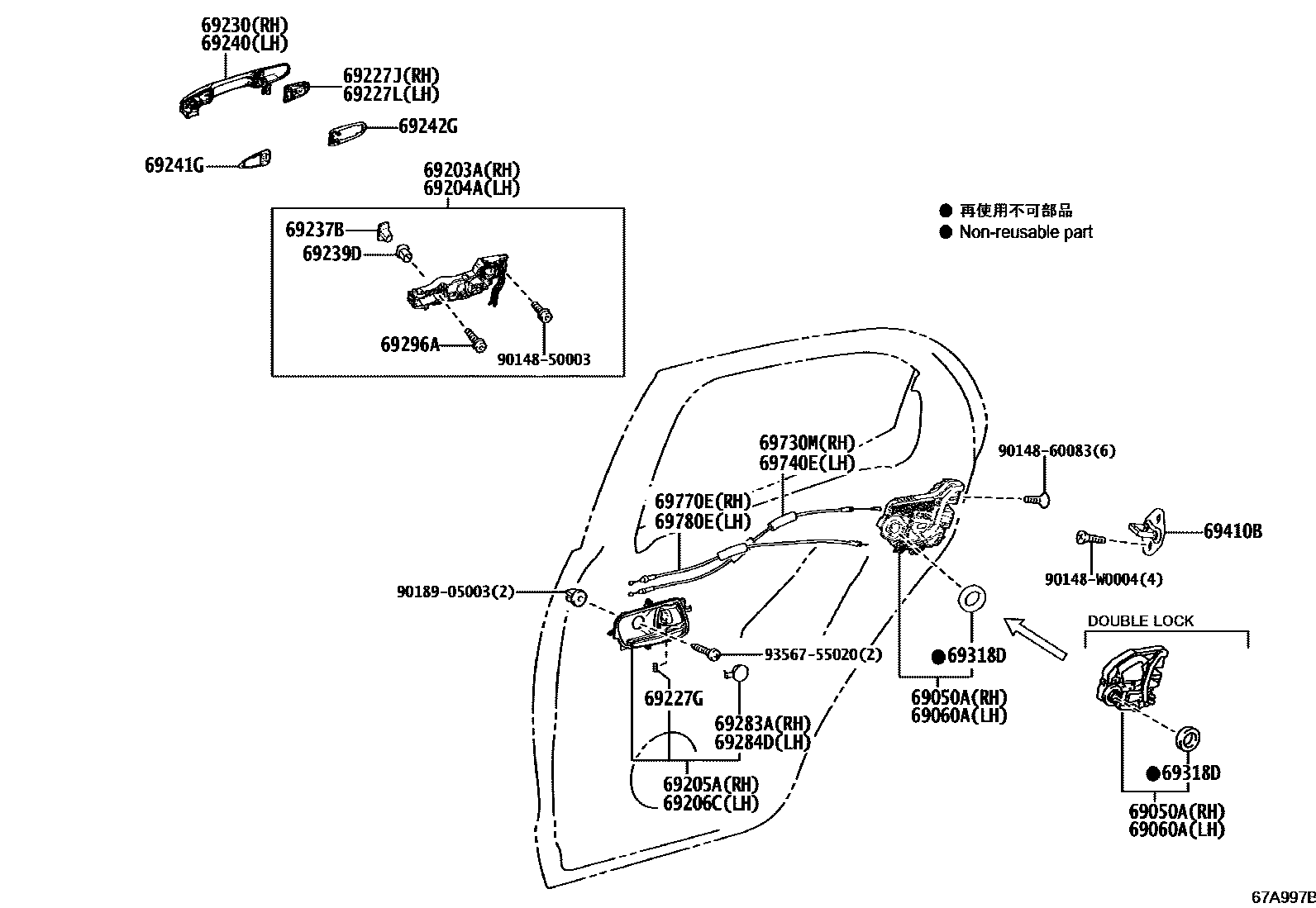

Toyota YARIS 后门锁和后门把手 EPC diagram — 67A997B
后门锁和后门把手 — 67A997B (202007 – 999999)

PNC and OE references

PNCPart nameOE numbers
69050ARight rear door lock assembly with motor69050-0D170 · 69050-K0030 · 69050-K0040
69060ALeft rear door lock assembly with motor69060-0D170 · 69060-K0030 · 69060-K0040
69203ARight rear door outer handle frame sub-assembly69203-K0020
69204ALeft rear door outer handle frame sub-assembly69204-K0020
69227GPlate (for rear door lock inner handle)74531-K0020
69227JRight rear door outer handle cover69227-02390
69227LLeft rear door outer handle cover69227-02390
69230Right rear door outer handle assembly69211-02934
69237BECROU, POIGNEE PORTE ARRIERE69237-62010
69239DBAGUE, POIGNEE PORTE ARRIERE69239-47010
69240Left rear door outer handle assembly69211-02934
69241GRear door front exterior handle pad69241-02250
69242GRear door rear outer handle pad69242-02240
69296ACar door inner handle screws69296-30010 · 90148-50006
69318Ddoor lock harness seal69318-47010
69410BRear door lock plate assembly69410-0D090
69730MCABLE,COMM VERR A DISTANCE PORTE ARR,MD(LEVIER OUVERTURE)69730-K0030 · 69730-K0031 · 69730-K0040 · 69730-K0041
69740ECABLE,COMM VERR A DISTANCE PORTE ARR,MG(LEVIER OUVERTURE)69730-K0030 · 69730-K0031 · 69730-K0040 · 69730-K0041
69770ECABLE, VERR INTERNE PORTE ARR, MD(POUR BOUTON VERR/DEVERR)69770-K0030 · 69770-K0031 · 69770-K0040 · 69770-K0041
69780ECABLE, VERR INTERNE PORTE ARR, MG(POUR BOUTON VERR/DEVERR)69770-K0030 · 69770-K0031 · 69770-K0040 · 69770-K0041
