Toyota YARIS 后门板和后门玻璃 — Figure 6705

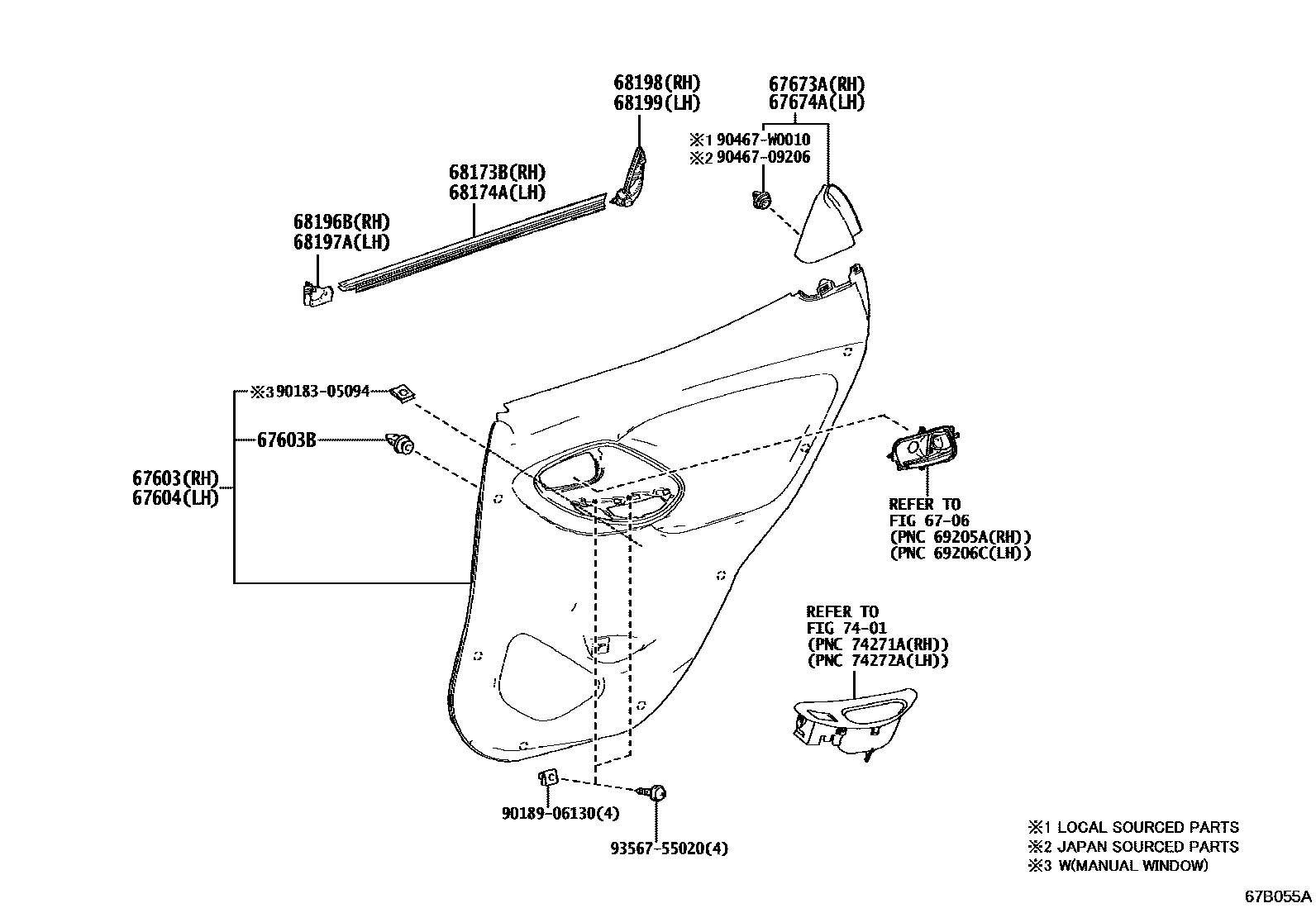

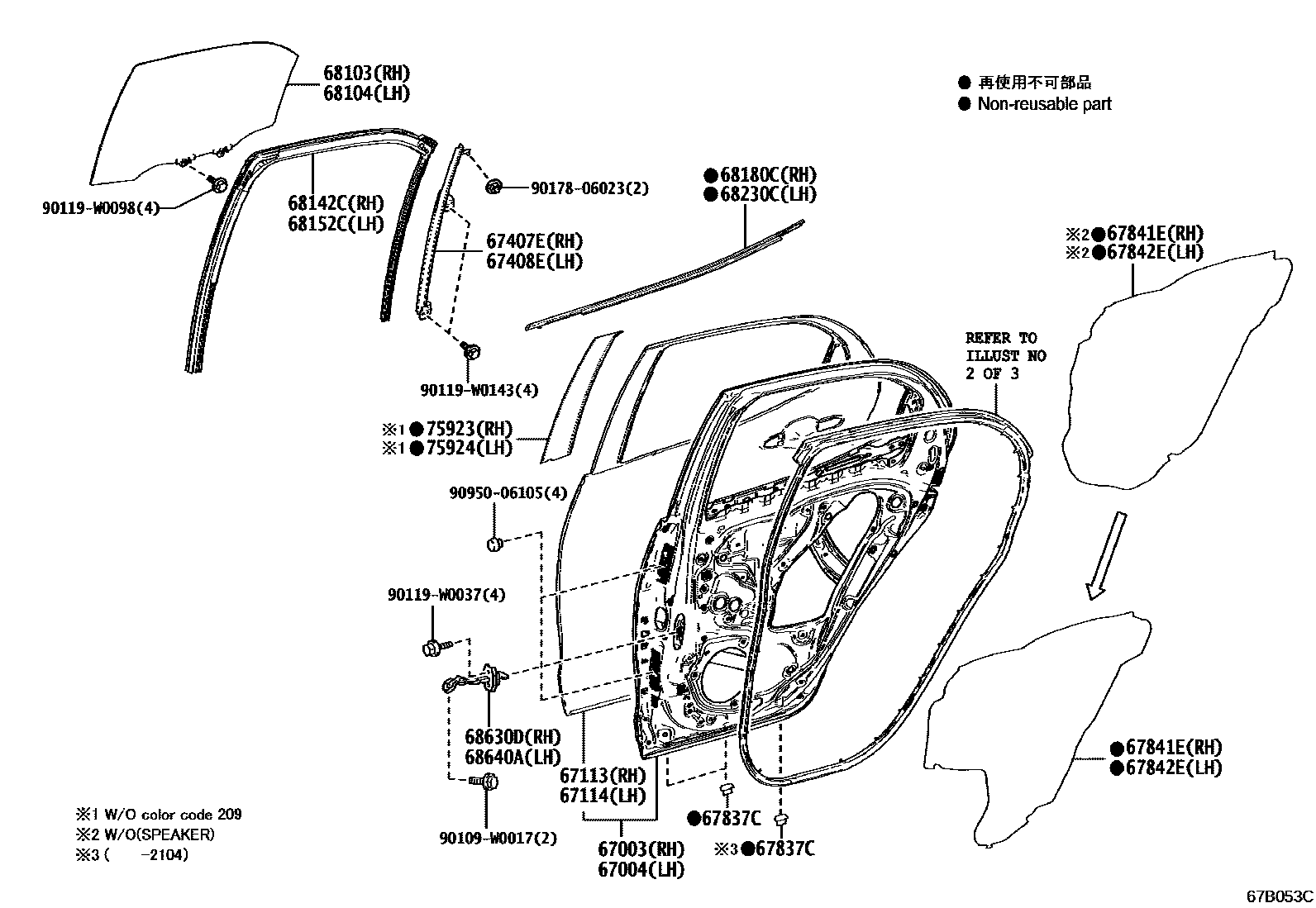

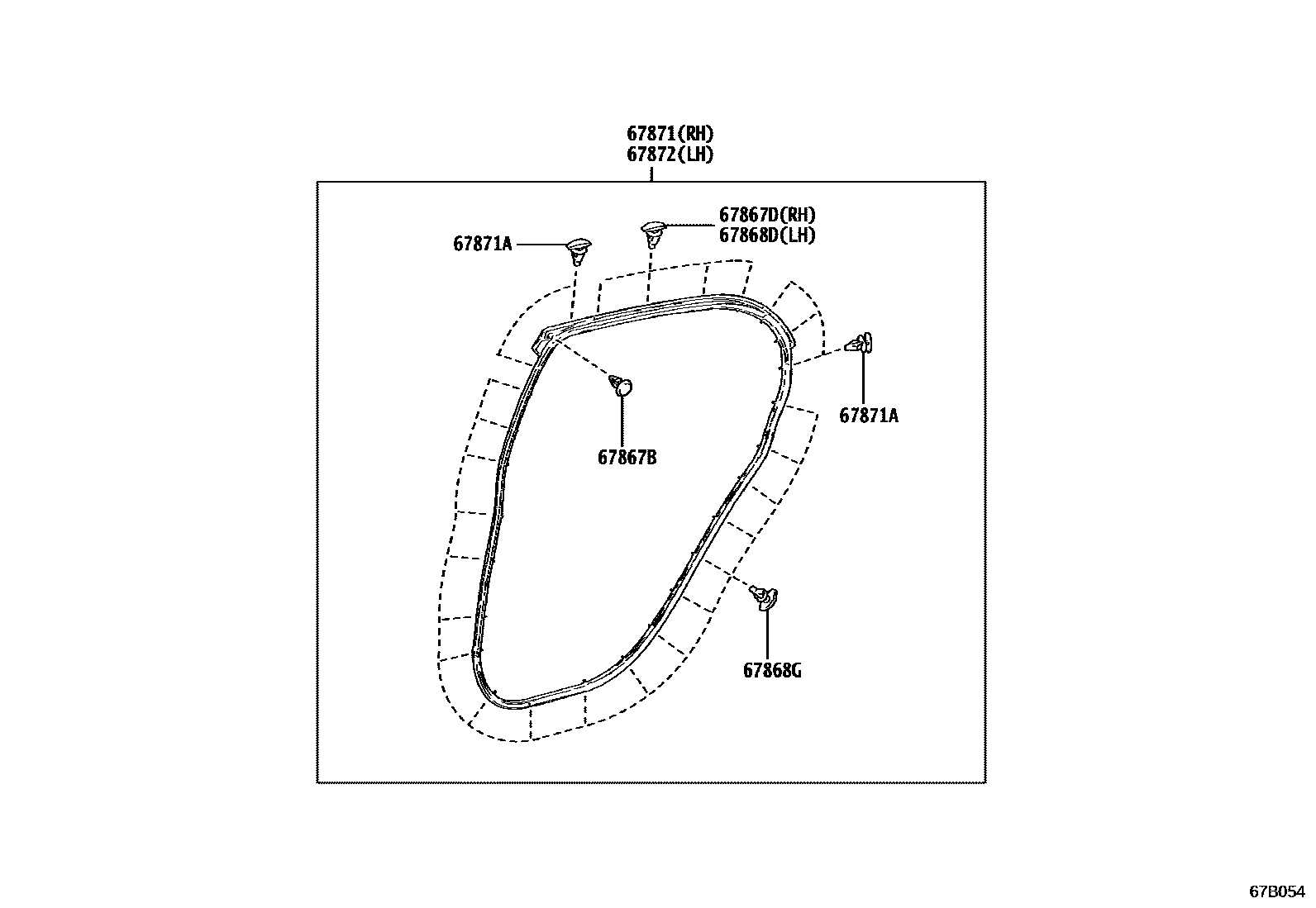

Toyota YARIS EPC diagram 6705, 后门板和后门玻璃, with 3 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-K0060 |
| 67004 | Left rear door panel sub-assembly | 67004-K0060 |
| 67113 | Right rear door outer panel | 67113-K0050 |
| 67114 | Left rear door outer panel | 67114-K0050 |
| 67407E | Right rear door window divider sub-assembly | 67407-K0010 |
| 67408E | Left rear door window divider sub-assembly | 67408-K0010 |
| 67603B | Catch (for rear door trim panel) | 90467-W0010 |
| 67673A | Right rear door frame decorative strip | 67673-K0020 |
| 67674A | Left rear door frame decorative strip | 67674-K0020 |
| 67837C | Rear door dust seal retainer | 67837-48050 |
| 67841E | Right rear door access hole cover | 67841-K0050 · 67841-K0060 |
| 67842E | Left rear door access hole cover | 67841-K0050 · 67841-K0060 |
| 67867B | Door seal strip clip (for rear door) | 90467-06084 |
| 67867D | Right rear door seal strip fixing | 67867-52040 |
| 67868D | Left rear door seal strip fixing | 67867-52010 |
| 67868G | door seal fixings | 67867-12150 |
| 67871 | Right rear door sealing strip | 67871-0D340 · 67871-K0010 |
| 67871A | Fixings (for rear door sealing strip) | 67867-30080 |
| 67872 | Left rear door sealing strip | 67872-0D340 · 67872-K0010 |
| 68103 | Right rear door glass sub-assembly | 68103-0D030 · 68103-0D040 · 68103-K0010 · 68103-K0020 |
| 68104 | Left rear door glass sub-assembly | 68104-0D030 · 68104-0D040 · 68104-K0010 · 68104-K0020 |
| 68142C | Right rear door glass lift slot | 68142-K0010 |
| 68152C | Left rear door glass lift slot | 68152-K0010 |
| 68173B | Right rear door glass inner sealing strip | 68173-0D340 |
| 68174A | Left rear door glass inner sealing strip | 68174-0D340 |
| 68180C | Right rear door glass outer sealing strip assembly | 68180-52240 · 68180-52241 · 68180-K0010 · 68180-K0011 · 68180-K0050 |
| 68196B | Right rear door beltline front seal | 68196-K0010 |
| 68197A | Left rear door beltline front seal | 68197-K0010 |
| 68198 | Right rear door beltline rear seal | 68198-K0010 |
| 68199 | Left rear door waistline rear seal | 68199-K0010 |
| 68230C | Left rear door glass outer sealing strip assembly | 68230-52240 · 68230-52241 · 68230-K0010 · 68230-K0011 · 68230-K0050 |
| 68630D | Right rear door opening limiter assembly | 68630-0D260 · 68630-K0010 · 68630-K0011 |
| 68640A | Left rear door opening limiter assembly | 68630-0D260 · 68630-K0010 · 68630-K0011 |
| 75923 | No. 2 right side light-shielding film | 75923-0D390 · 75923-K0010 |
| 75924 | No. 2 left shading film | 75924-0D390 · 75924-K0010 |
