Toyota YARIS 前门车窗升降器和合页 — Figure 6704

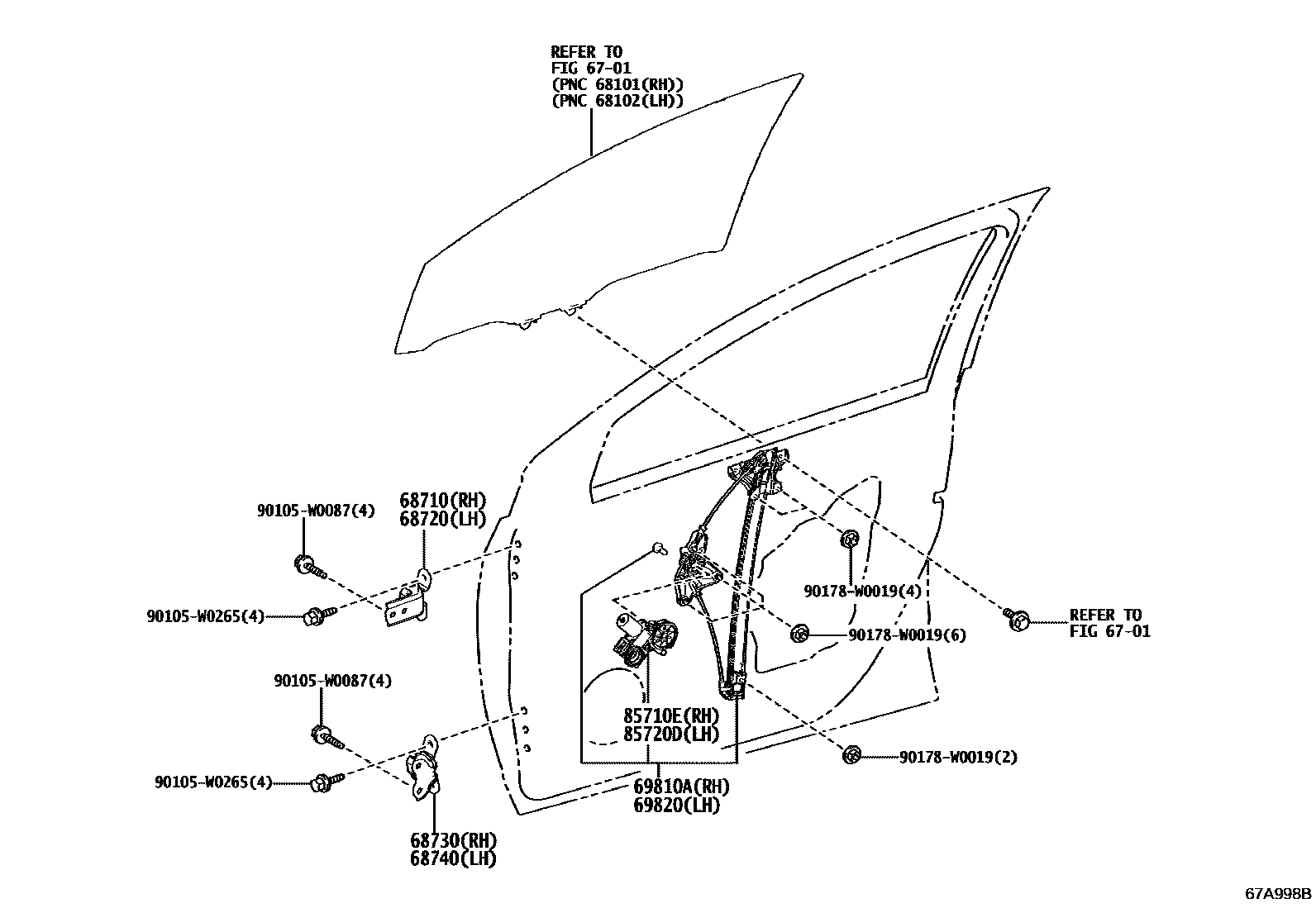

Toyota YARIS EPC diagram 6704, 前门车窗升降器和合页, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68710 | Right front door upper hinge assembly | 68710-02060 |
| 68720 | Left front door upper hinge assembly | 68720-02060 |
| 68730 | Right front door lower hinge assembly | 68730-02050 |
| 68740 | Left front door lower hinge assembly | 68740-02050 |
| 69810A | Right front door window lift assembly | 69810-0D630 · 69810-K0010 |
| 69820 | Left front door window lift assembly | 69820-0D630 · 69820-K0010 |
| 85710E | Right power window lift motor assembly | 85710-0D460 · 85710-K0020 |
| 85720D | Left electric window lift motor assembly | 85720-0D480 · 85720-K0020 |
