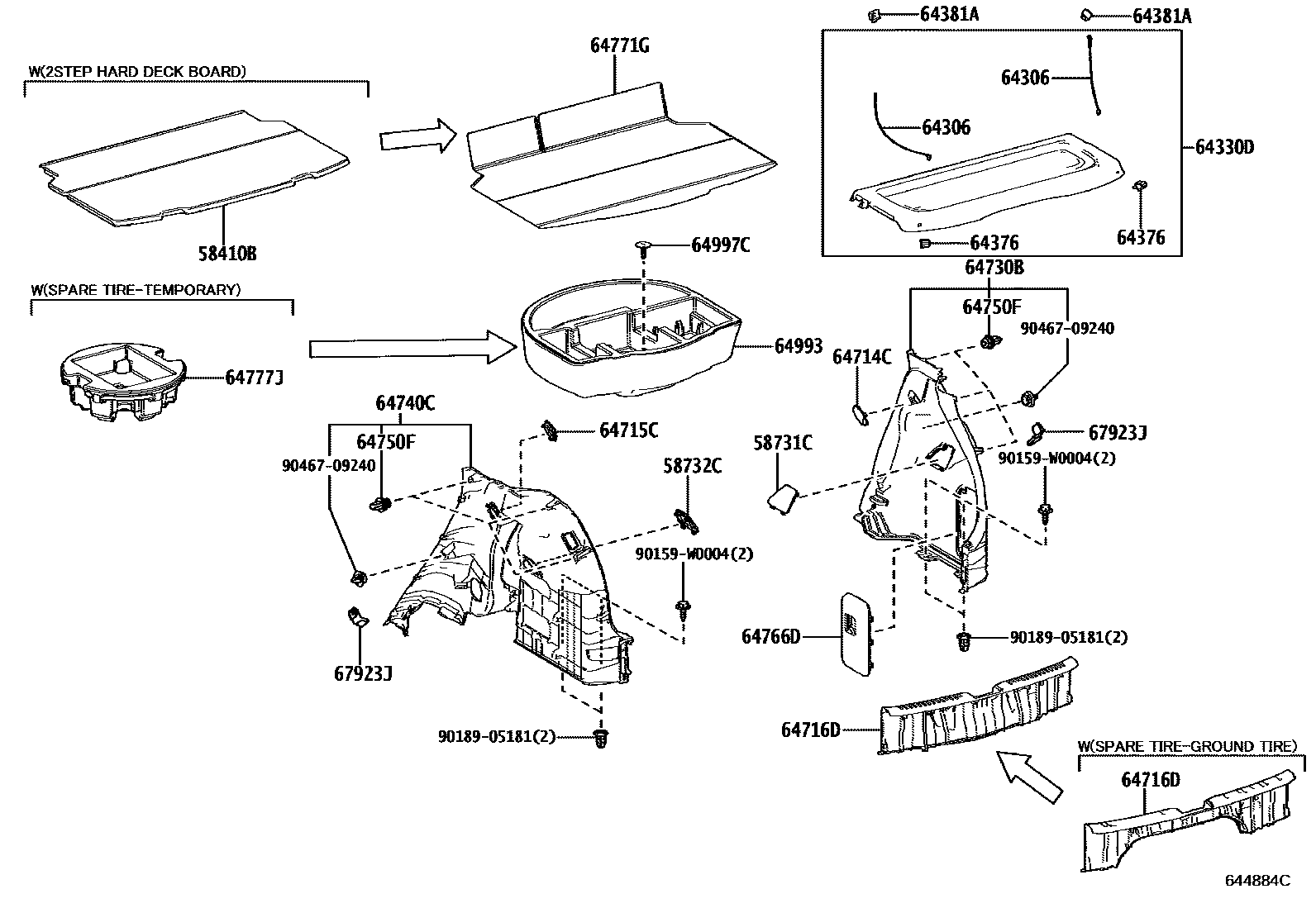

Toyota YARIS 底板和底板装饰罩 — Figure 6404
Toyota YARIS EPC diagram 6404, 底板和底板装饰罩, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64306 | Glove box decorative panel fixed rod sub-assembly | 64306-K0020 |
| 64376 | No. 2 glove box decorative panel spacer | 64376-02020 |
| 64381A | Glove box decorative panel hanger | 64381-52010 |
| 64750F | Clip (for bottom panel side decorative panel) | 90467-W0005 |
| 64777J | Spare tire cushion | 64777-K0020 |
| 64993 | Bottom floor box | 64993-0D060 · 64993-0D090 · 64993-0D100 · 64993-K0050 |
| 64997C | Clip (for base floor box) | 64778-52160 |
| 67923J | COLLIER(PANNEAU LAT GARNITURE PLANCHER) | 67923-52240 |
