Toyota YARIS 车顶内衬和消声垫 — Figure 6402

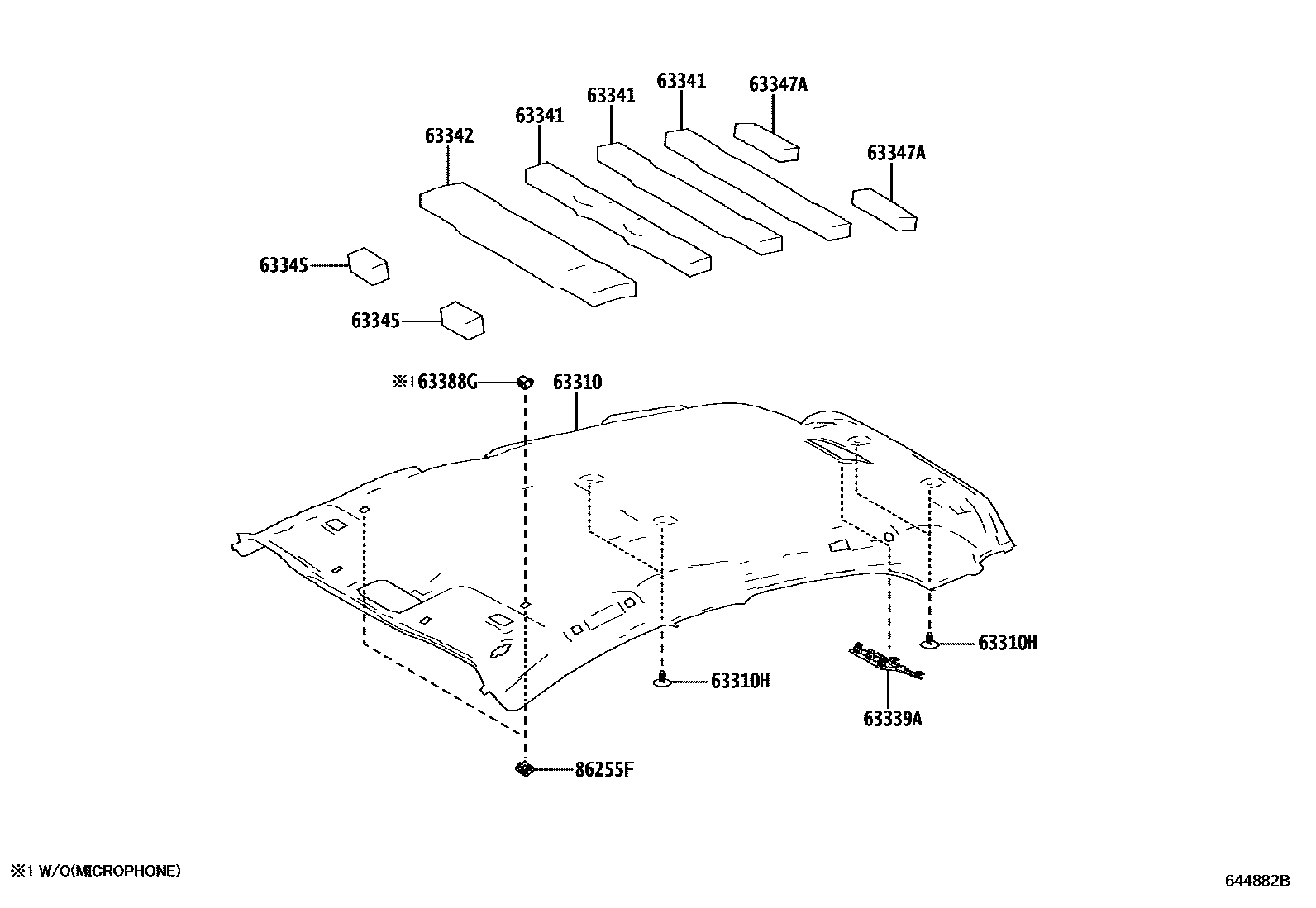

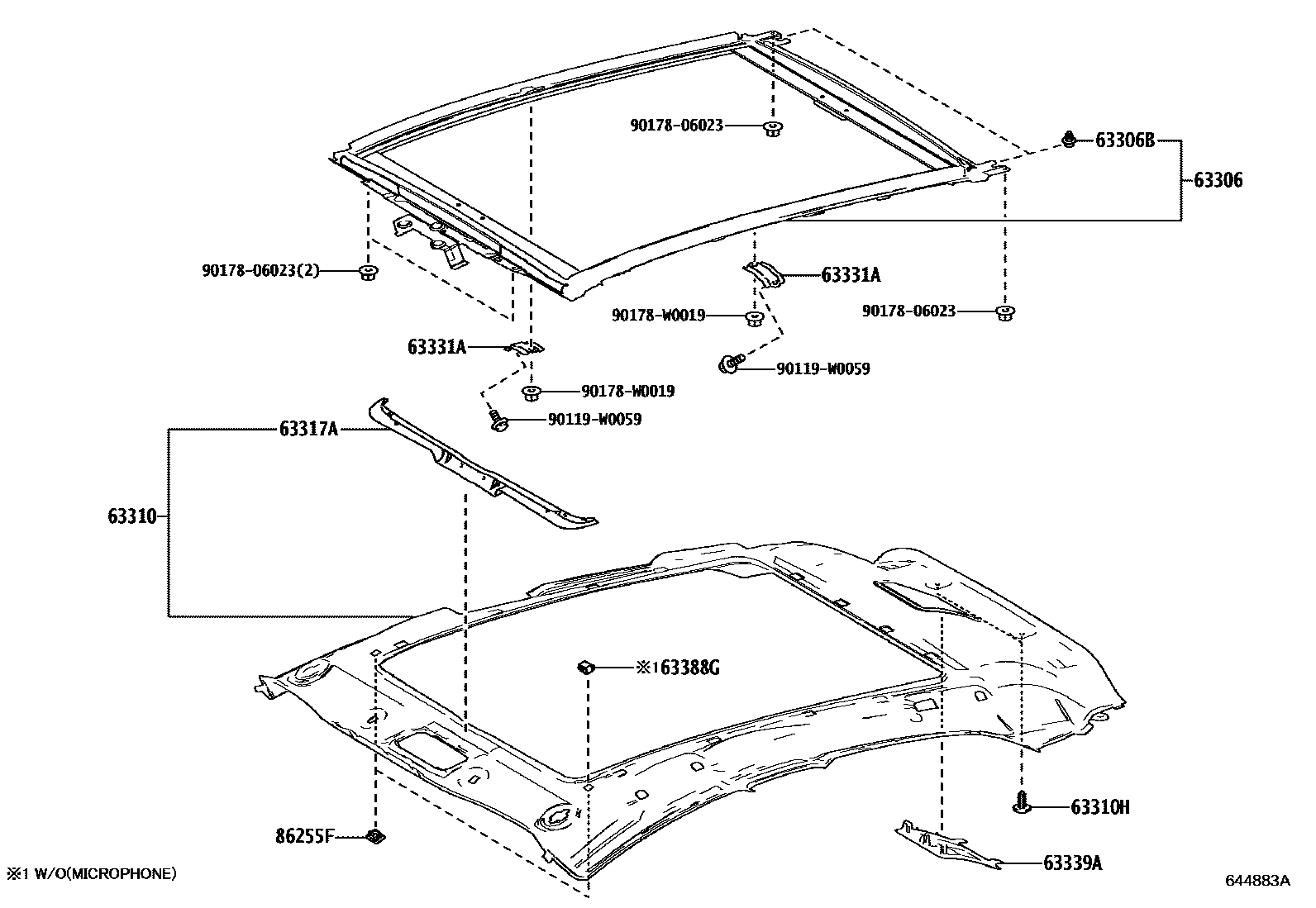

Toyota YARIS EPC diagram 6402, 车顶内衬和消声垫, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63306B | Clips (for sunshade decorative panels) | 75396-28090 |
| 63317A | headliner fixings | 63317-K0010 |
| 63331A | No. 1 sunshade decorative panel locking bracket | 63331-0D020 |
| 63341 | No. 1 roof silencer mat | 63341-K0020 |
| 63342 | No. 2 roof muffler pad | 63342-K0030 |
| 63345 | No. 5 roof silencer mat | 63345-K0020 |
| 63347A | No. 7 roof silencer mat | 63347-0D010 |
| 63388G | CACHE, SUPPORT REVETEMENT TOIT, NO.2 | 63388-02010 |
