Toyota YARIS 天窗板和背窗玻璃 — Figure 6104

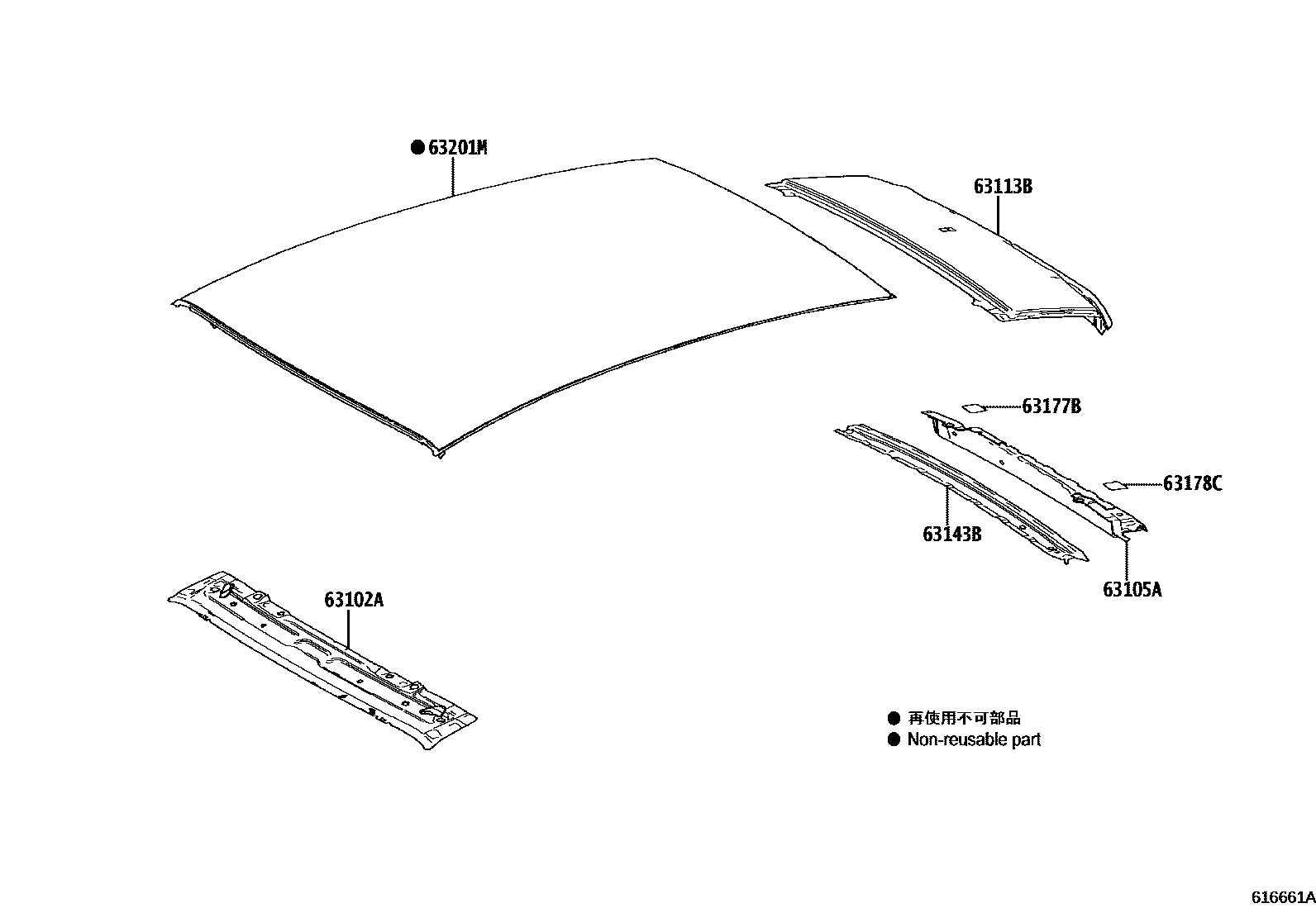

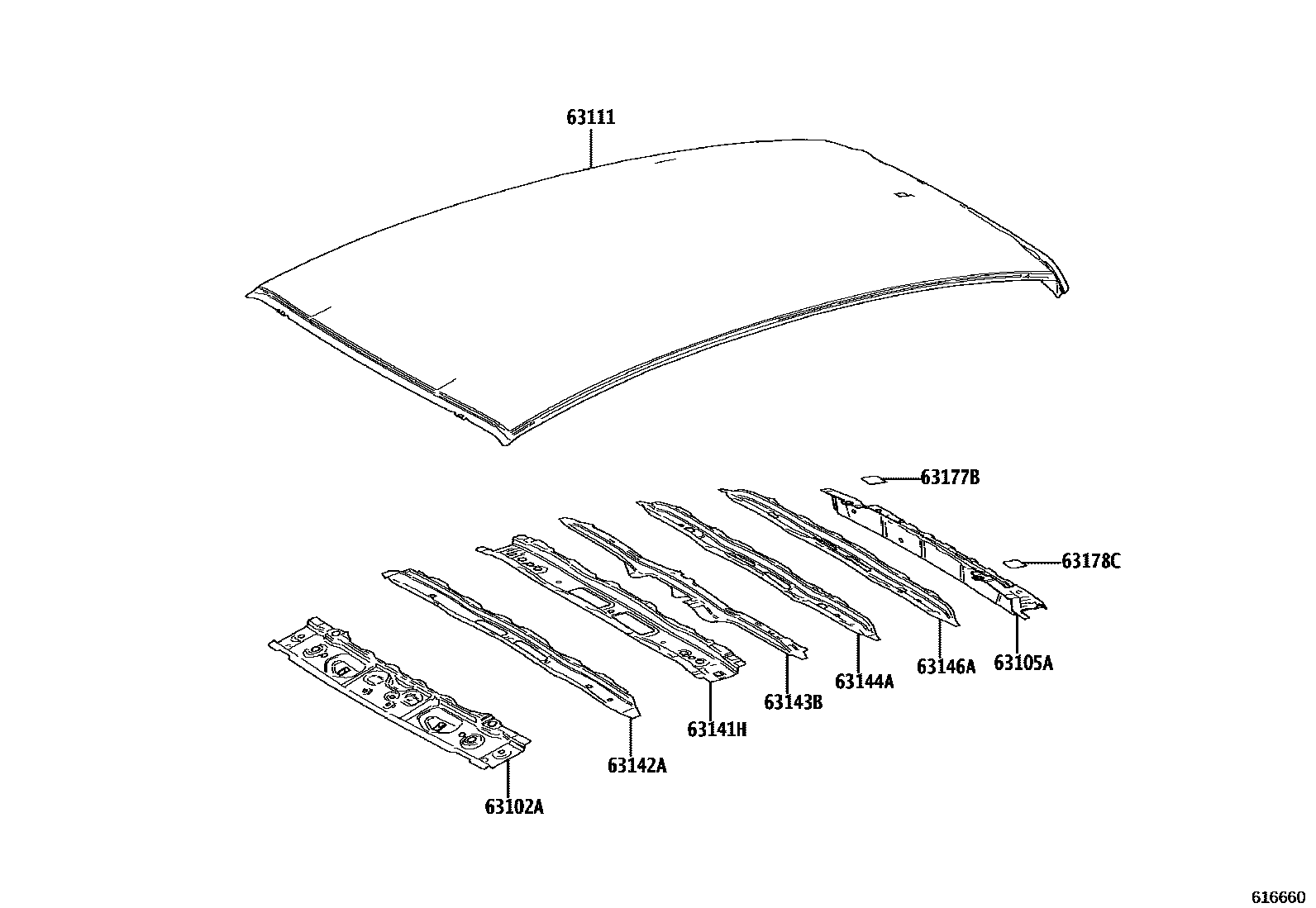

Toyota YARIS EPC diagram 6104, 天窗板和背窗玻璃, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63102A | Windshield roof sub-assembly | 63102-K0020 · 63102-K0050 |
| 63105A | Back door opening frame sub-assembly | 63105-K0010 · 63105-K0040 |
| 63111 | roof panel | 63111-K0170 |
| 63113B | rear roof panel | 63113-K0020 |
| 63141H | Center roof panel reinforcement | 63141-K0010 |
| 63142A | No. 2 roof panel reinforcement | 63142-0D030 |
| 63143B | No. 3 roof panel reinforcement | 63143-K0010 · 63143-K0020 |
| 63144A | No. 4 roof panel reinforcement | 63144-K0010 |
| 63146A | No. 1 roof panel reinforcement bracket | 63146-K0010 |
| 63177B | ARRETOIR, CHARNIERE FEMELLE DE HAYON, MD | 63177-K0010 |
| 63178C | ARRETOIR, CHARNIERE FEMELLE DE HAYON, MG | 63178-K0010 |
| 63201M | No. 1 skylight glass sub-assembly | 63201-0D060 · 63201-K0010 |
