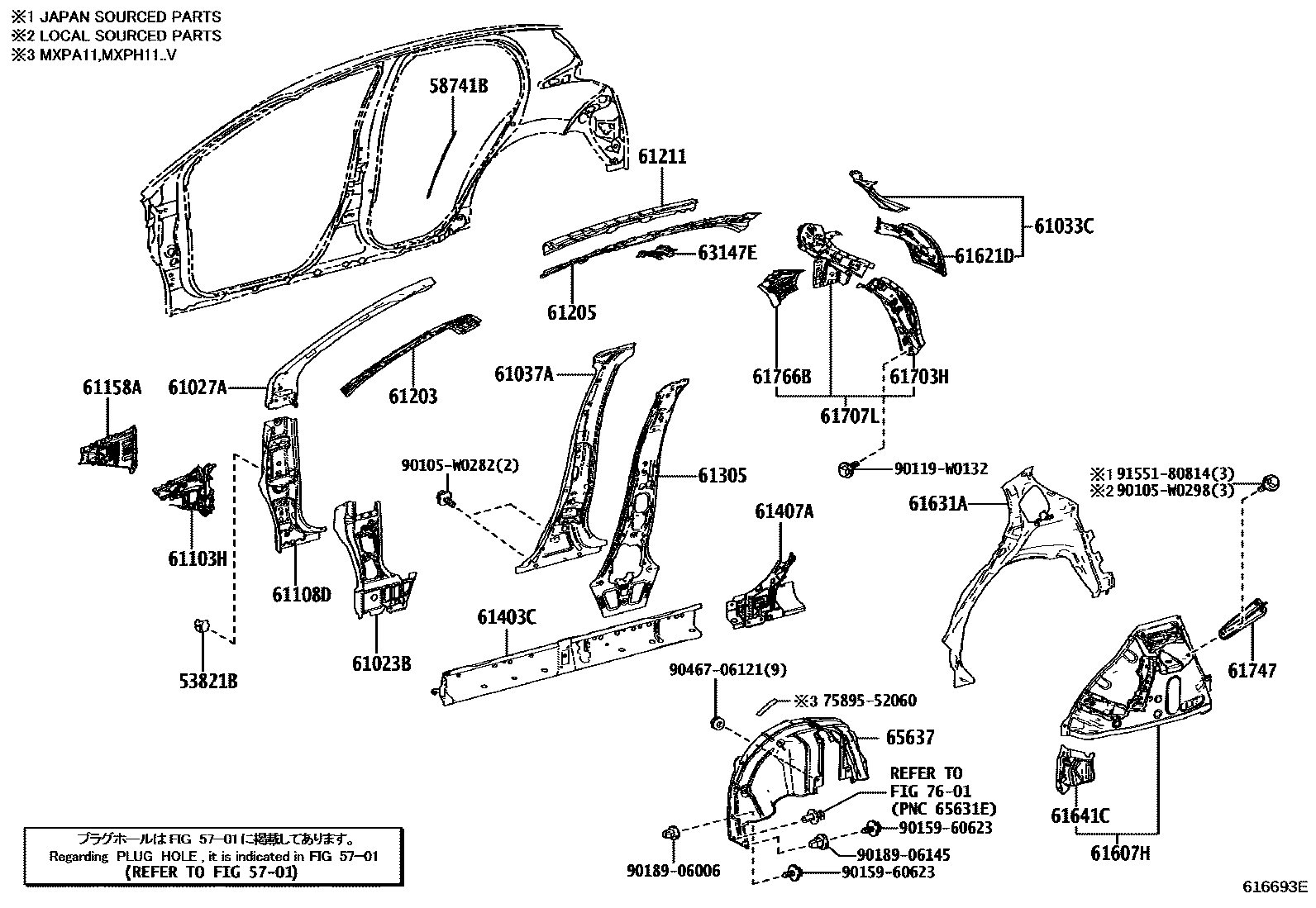

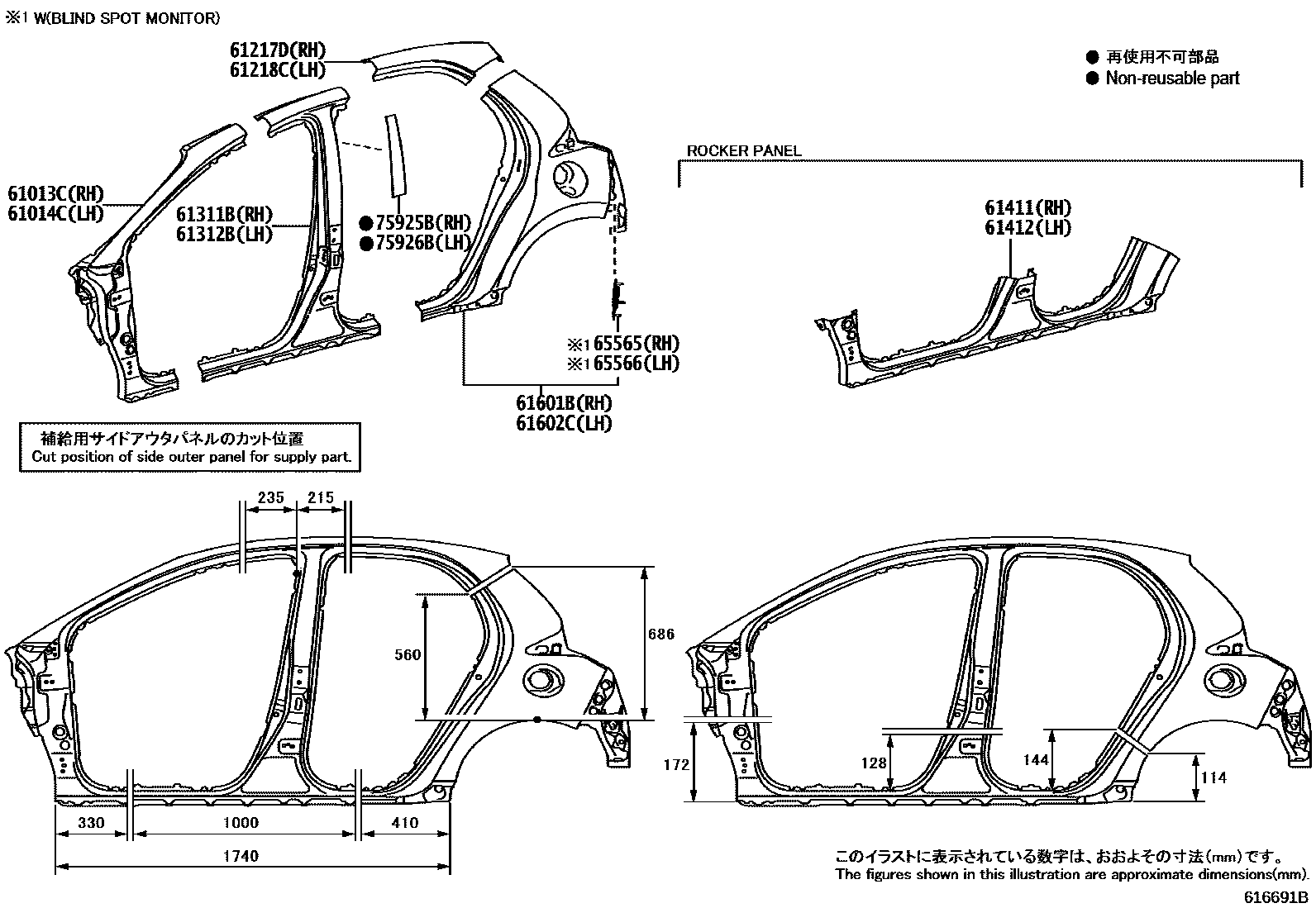

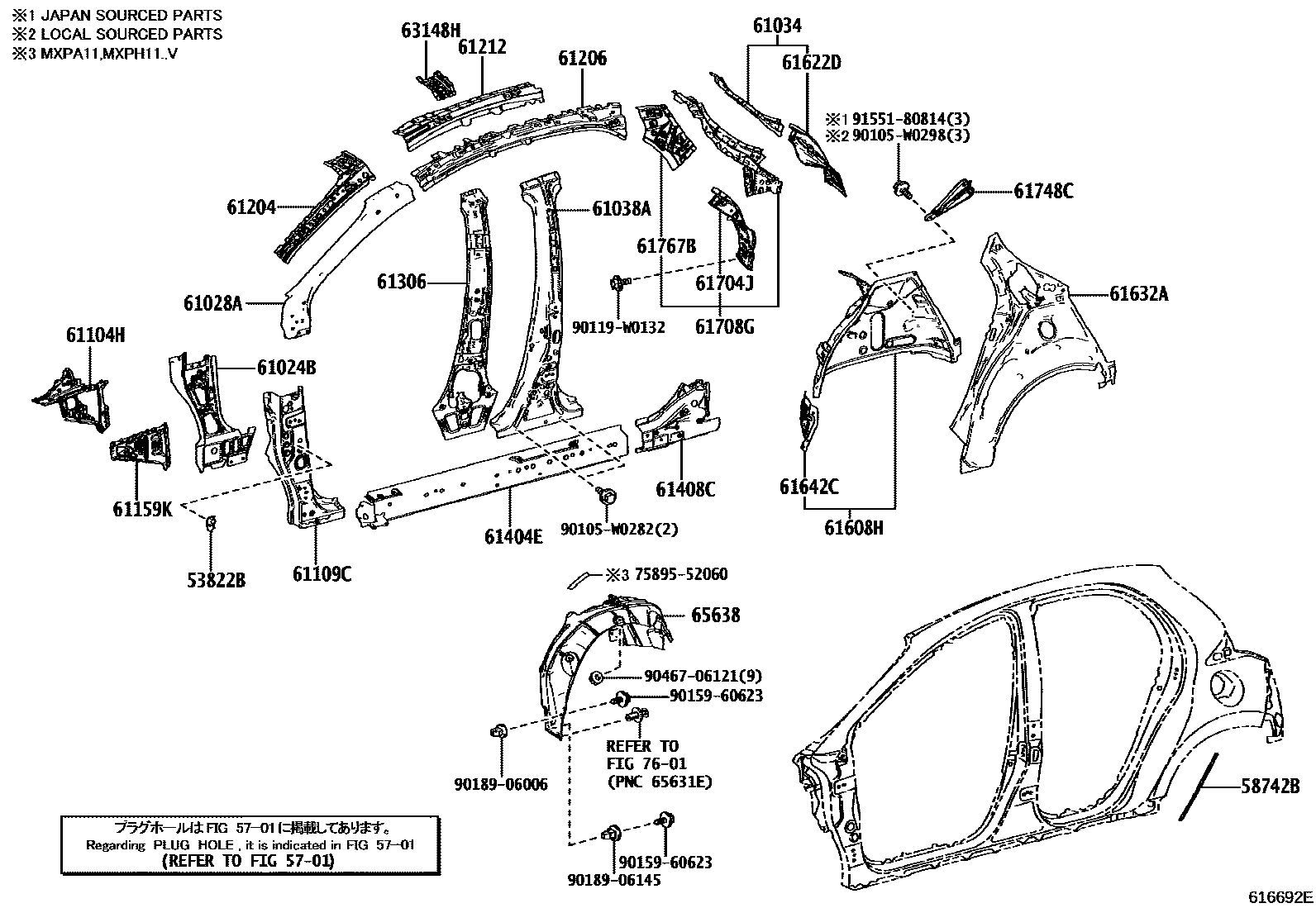

Toyota YARIS 侧梁 — Figure 6101
Toyota YARIS EPC diagram 6101, 侧梁, with 3 images and 64 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53821B | Right front fender rear support | 53821-K0010 |
| 53822B | Left front fender rear support | 53821-K0010 |
| 58741B | Right side enclosure protection panel | 58741-K0030 |
| 58742B | Left side enclosure protection panel | 58742-K0030 |
| 61013C | Right inner panel sub-assembly | 61013-0D010 |
| 61014C | Left inner panel sub-assembly | 61014-0D010 |
| 61023B | Right body inner front pillar sub-assembly | 61023-K0030 |
| 61024B | Left body inner front pillar sub-assembly | 61024-K0030 |
| 61027A | Right body outer front pillar sub-assembly | 61027-K0011 · 61027-K0900 |
| 61028A | Left body outer front pillar sub-assembly | 61028-K0011 · 61028-K0900 |
| 61033C | SOUS-ENS. RENFORT, LAT OUV HAYON, MD | 61033-0D230 |
| 61034 | Rear door opening left reinforcement sub-assembly | 61034-0D240 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-0D480 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-0D480 |
| 61103H | SOUS-ENS. PANNEAU, LATERAL, NO.2 MD | 61103-K0030 |
| 61104H | SOUS-ENS. PANNEAU, LATERAL, NO.2 MG | 61104-K0030 |
| 61108D | Front panel right lower reinforcement sub-assembly | 61108-K0010 |
| 61109C | Front panel left lower reinforcement sub-assembly | 61109-K0010 |
| 61158A | Extension section under right front pillar | 61158-K0010 |
| 61159K | Extension section under left front pillar | 61159-K0010 |
| 61203 | Roof right inner longitudinal beam sub-assembly | 61203-K0010 |
| 61204 | Roof left inner longitudinal beam sub-assembly | 61204-K0010 |
| 61205 | Right rear roof inner longitudinal beam sub-assembly | 61205-K0030 |
| 61206 | Left rear roof inner longitudinal beam sub-assembly | 61206-K0030 |
| 61211 | Roof right outer longitudinal beam | 61201-K0020 |
| 61212 | Roof left outer longitudinal beam | 61202-K0020 |
| 61217D | No. 4 longitudinal beam on the outer right side of the roof | 61217-0D010 |
| 61218C | No. 4 longitudinal beam on the left side of the roof | 61218-0D010 |
| 61305 | Right body center pillar lower reinforcement sub-assembly | 61305-K0010 |
| 61306 | Left body center pillar lower reinforcement sub-assembly | 61306-K0010 |
| 61311B | Right body outer center pillar | 61311-0D160 |
| 61312B | Left body outer center pillar | 61312-0D160 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-0D421 · 61403-0D431 · 61403-0D900 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-0D421 · 61404-0D431 · 61404-0D900 |
| 61407A | SOUS-ENS PLAQUE, MARCHEPIED, INF MD | 61407-K0020 |
| 61408C | SOUS-ENS PLAQUE, MARCHEPIED, INF MG | 61408-K0020 |
| 61411 | Right door outer sill panel | 61411-0D180 |
| 61412 | Left door outer sill panel | 61412-0D180 |
| 61601B | Right side enclosure sub-assembly | 61601-0D350 · 61601-0D360 |
| 61602C | Left side enclosure sub-assembly | 61602-0D350 · 61602-0D360 |
| 61607H | Right side wheel cover lining plate sub-assembly | 61607-K0050 |
| 61608H | Left side wheel cover lining plate sub-assembly | 61608-K0060 |
| 61621D | Back door right opening slot | 61621-0D160 |
| 61622D | Rear door left opening slot | 61622-0D170 |
| 61631A | Right wheel cover outer panel | 61631-0D905 · 61631-K0901 |
| 61632A | Left side wheel cover outer panel | 61632-0D904 · 61632-K0901 |
| 61641C | Right front side wheel housing corner panel | 61641-K0010 |
| 61642C | Left front side wheel housing corner panel | 61642-K0010 |
| 61703H | Roof inner right reinforcement sub-assembly | 61703-K0030 |
| 61704J | Roof inner left reinforcement sub-assembly | 61704-K0030 |
| 61707L | Right front roof inner panel sub-assembly | 61707-K0020 |
| 61708G | Left front roof inner panel sub-assembly | 61708-K0020 |
| 61747 | Roof right inner panel to wheel housing bracket | 61747-K0020 |
| 61748C | Roof left inner panel to wheel arch bracket | 61748-K0020 |
| 61766B | Right seat belt anchor to roof inner reinforcement | 61766-K0010 |
| 61767B | Left-hand seat belt anchor to roof inner reinforcement | 61767-K0010 |
| 63147E | Roof panel reinforcement bracket | 63147-K0010 |
| 63148H | Roof panel reinforcement bracket | 63148-K0010 |
| 65565 | Right side panel rear end lining | 65565-02070 |
| 65566 | Left side panel rear end lining | 65565-02070 |
| 65637 | Right rear wheel house lining | 65637-K0050 |
| 65638 | Left rear wheel house lining | 65638-K0050 |
| 75925B | No. 3 right side light-blocking film | 75925-K0010 |
| 75926B | No. 3 left shading film | 75926-K0010 |
