Toyota YARIS 地板垫和地毯 — Figure 5804

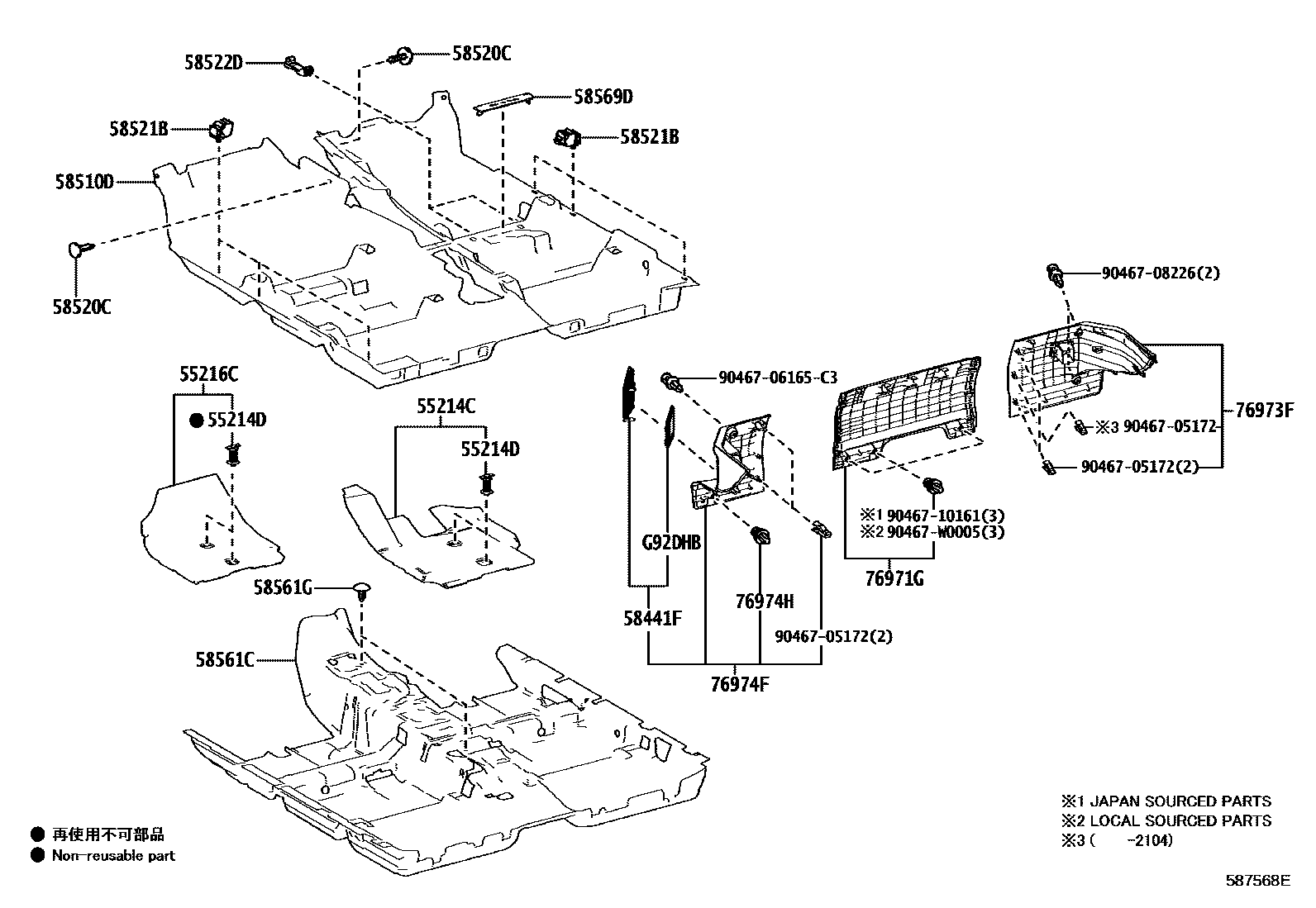

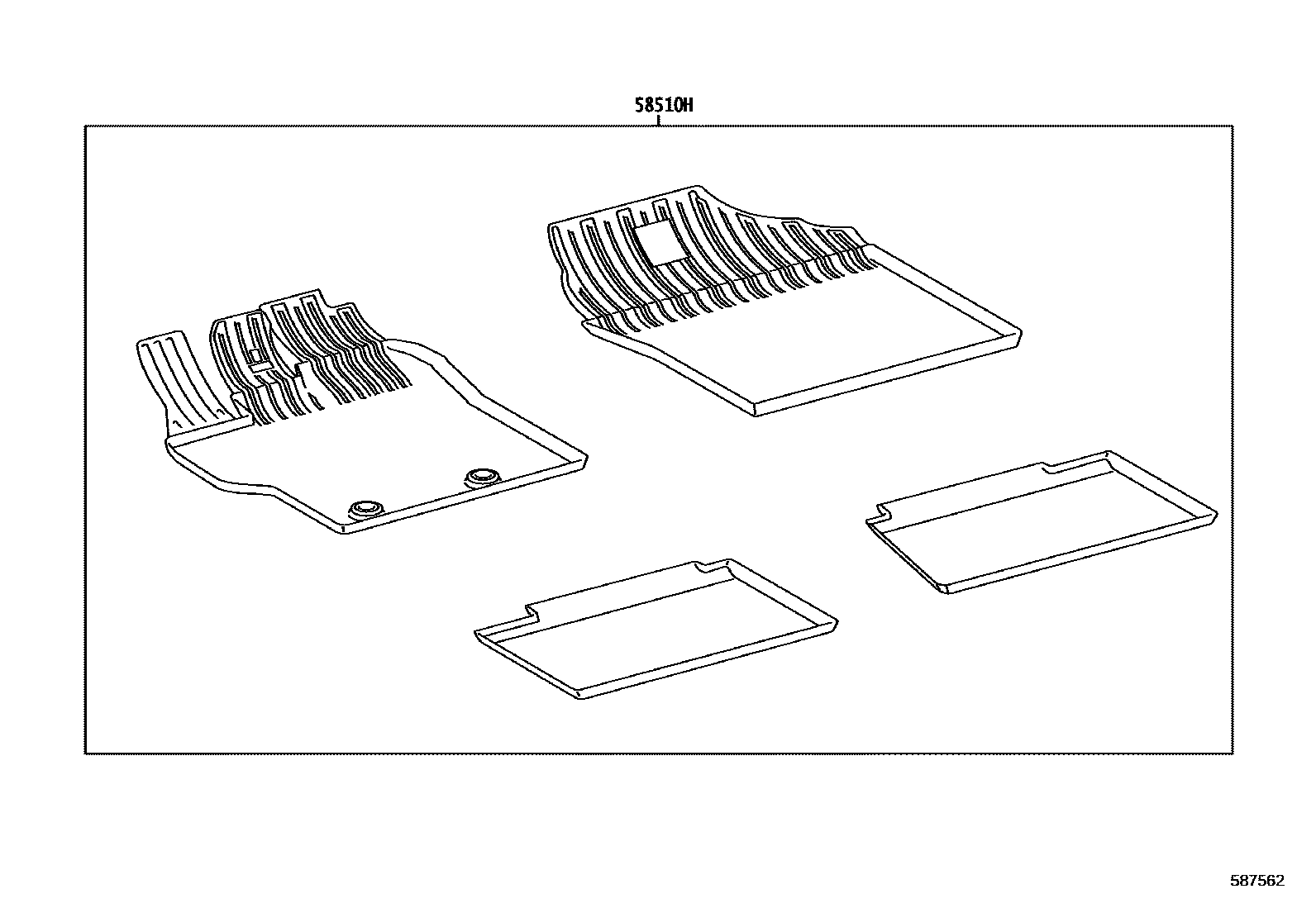

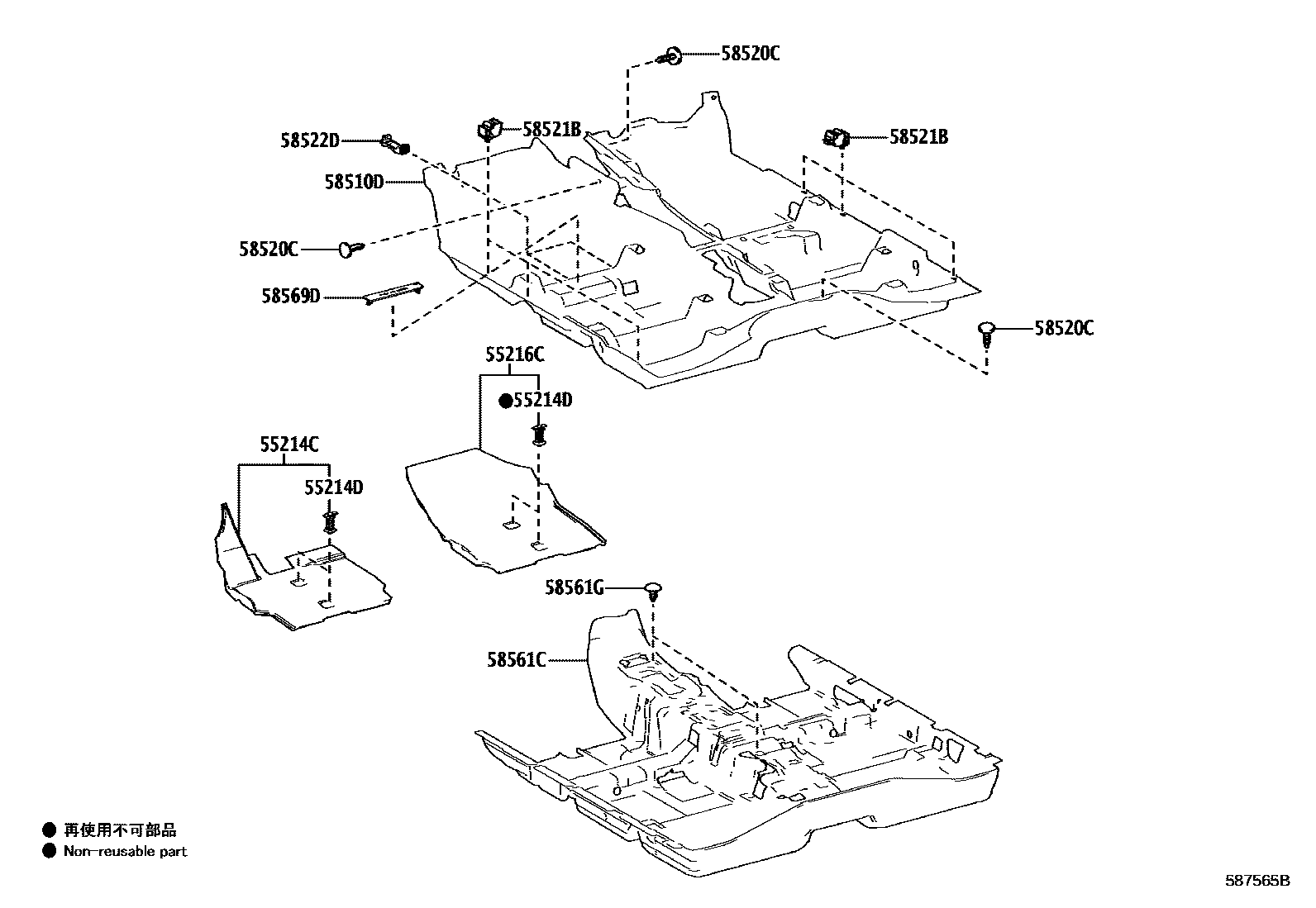

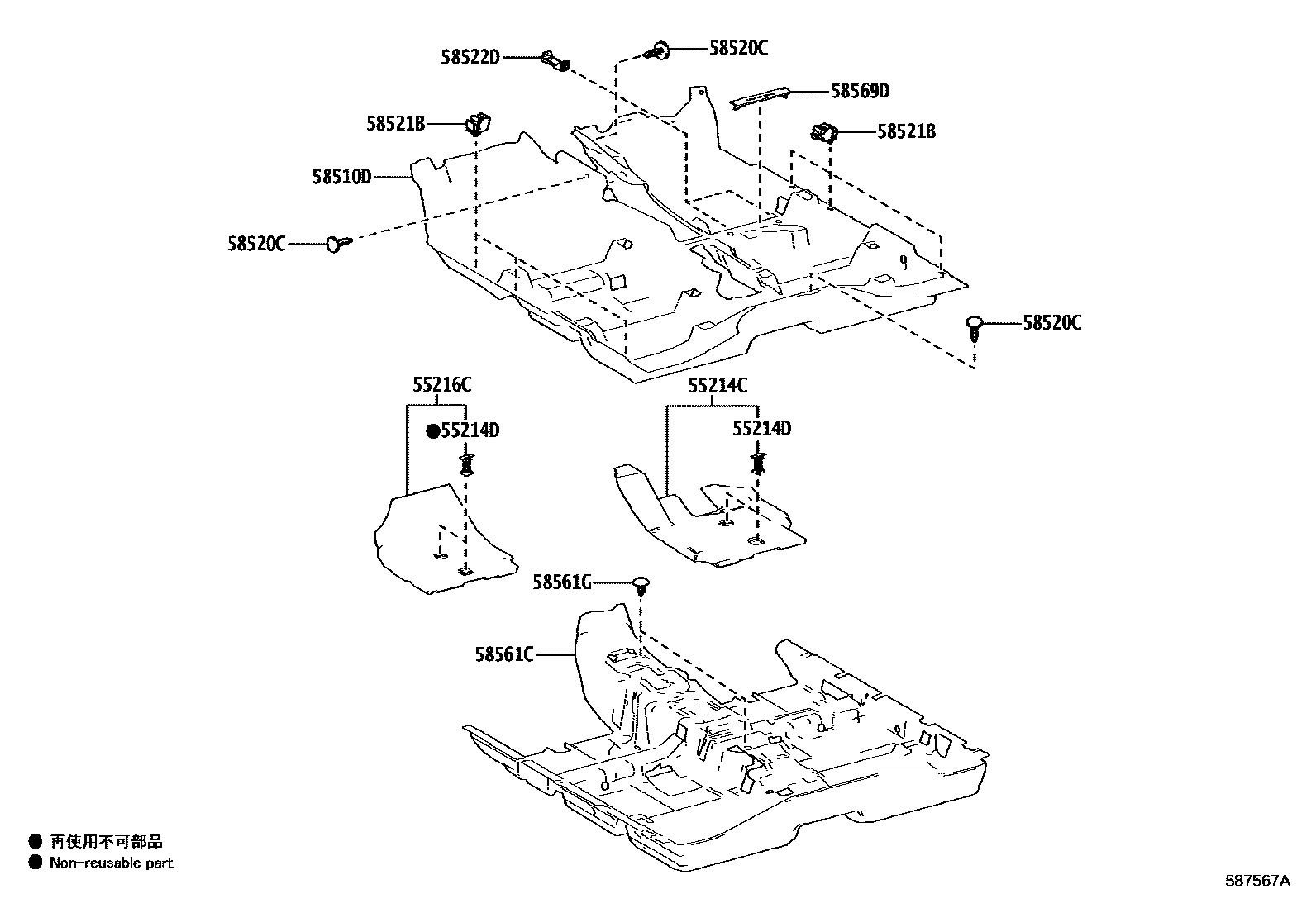

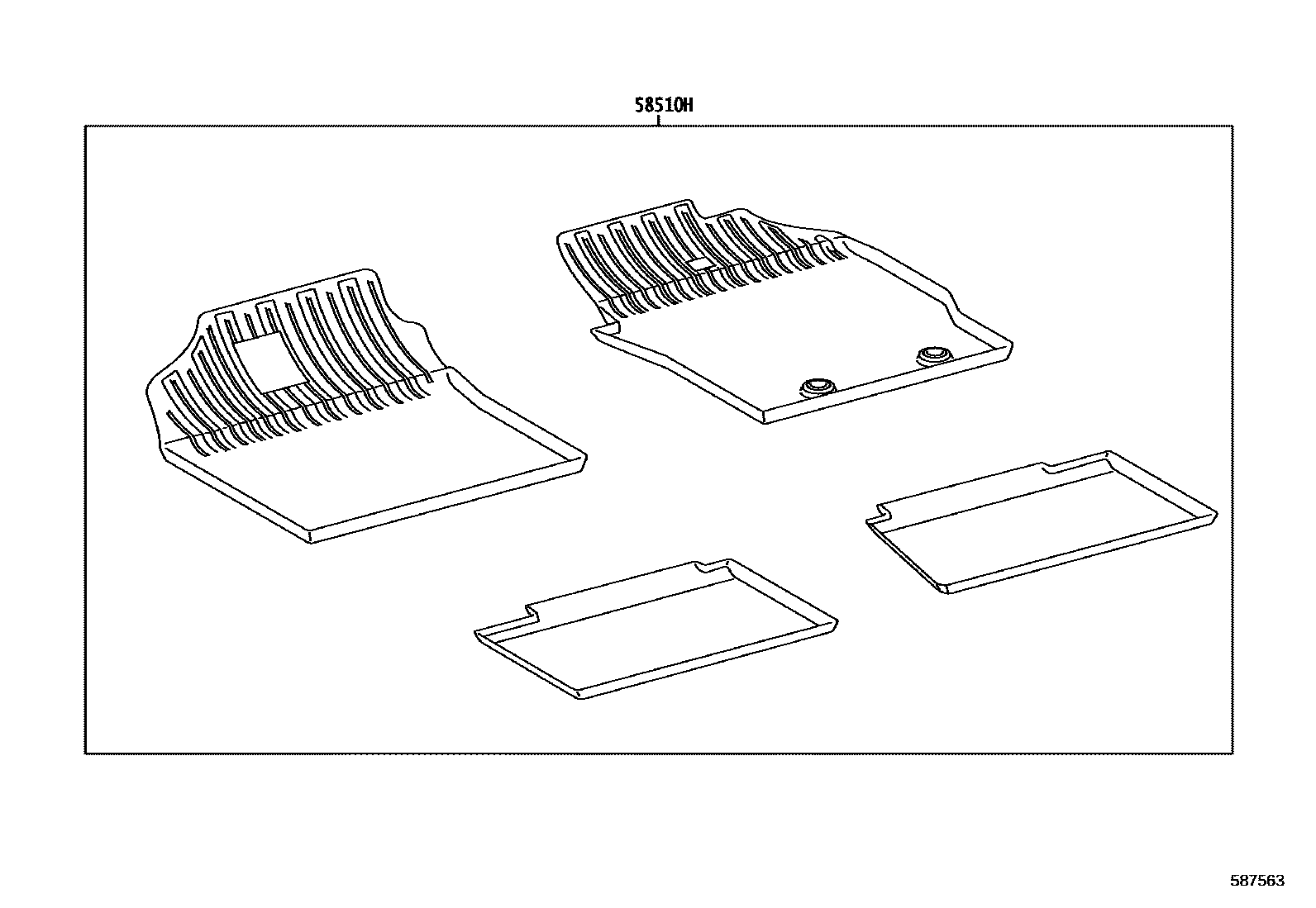

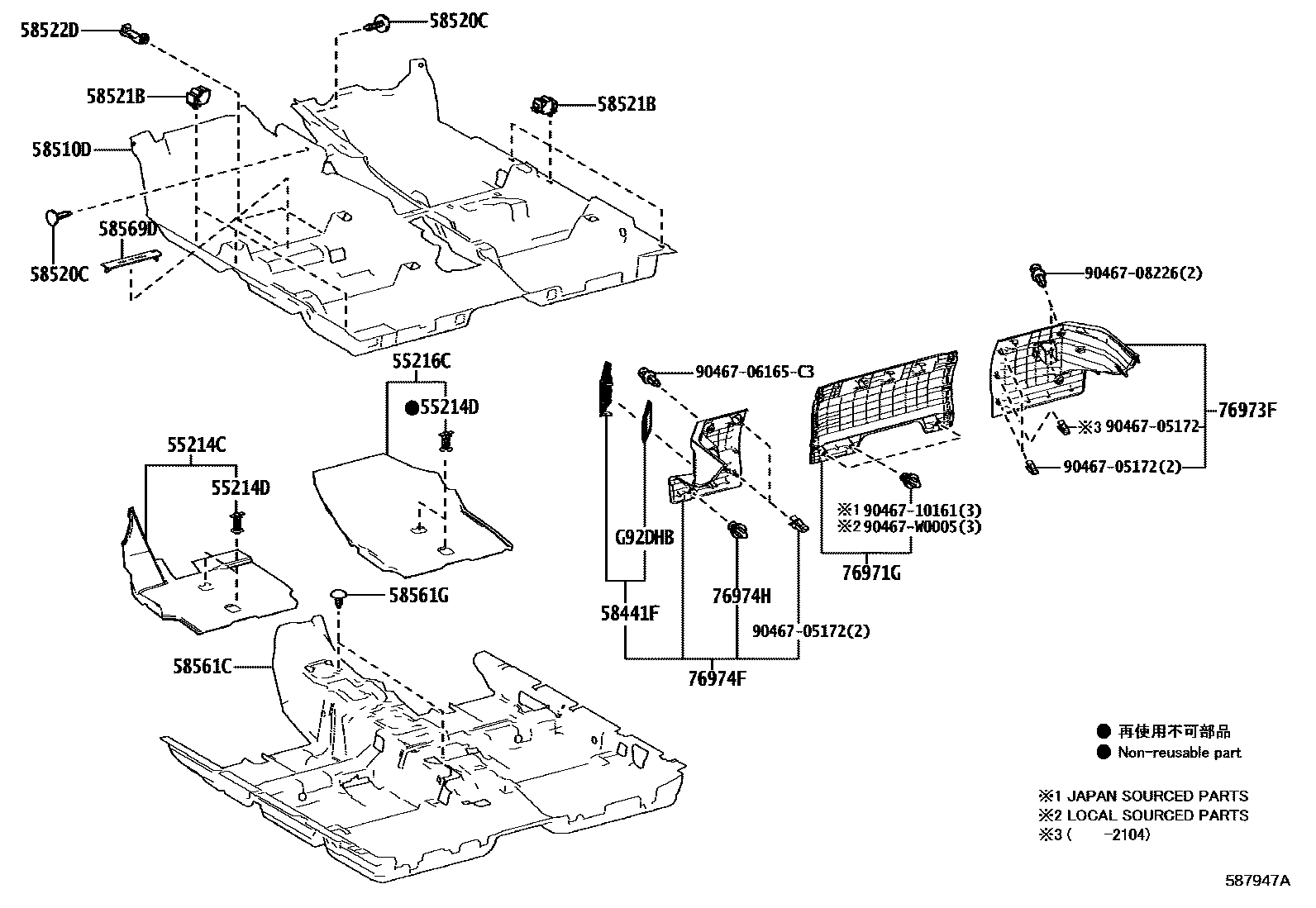

Toyota YARIS EPC diagram 5804, 地板垫和地毯, with 6 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55214C | No. 2 insulation pad for front wall panel | 55214-0H050 · 55214-0H060 · 55214-K0010 · 55214-K0020 · 55214-K0030 · 55214-K0050 |
| 55214D | ATTACHE(POUR PLAQUE ISOLANTE DE TABLEAU DE BORD) | 58198-52020 |
| 55216C | No. 4 heat insulation pad for front wall | 55216-0H050 · 55216-0H060 · 55216-K0010 · 55216-K0020 · 55216-K0040 |
| 58441F | Battery access hole cover | 58441-K0020 |
| 58521B | carpet hook | 58521-02160 |
| 58522D | Carpet hook number 2 | 58522-52030 |
| 58561C | Front floor silencer No. 1 | 58561-K0080 · 58561-K0090 · 58561-K0100 · 58561-K0130 · 58561-K0140 · 58561-K0160 |
| 76974H | CLIP, CACHE FACE INFERIEURE ARR, MG | 90467-09206 · 90467-10161 · 90467-W0005 · 90467-W0010 |
| G92DHB | FILTRE, ADMISSION BATTERIE HT, NO.1 | G92DH-K0010 |
