Toyota YARIS 浅盘形地板和车身下背板 — Figure 5801

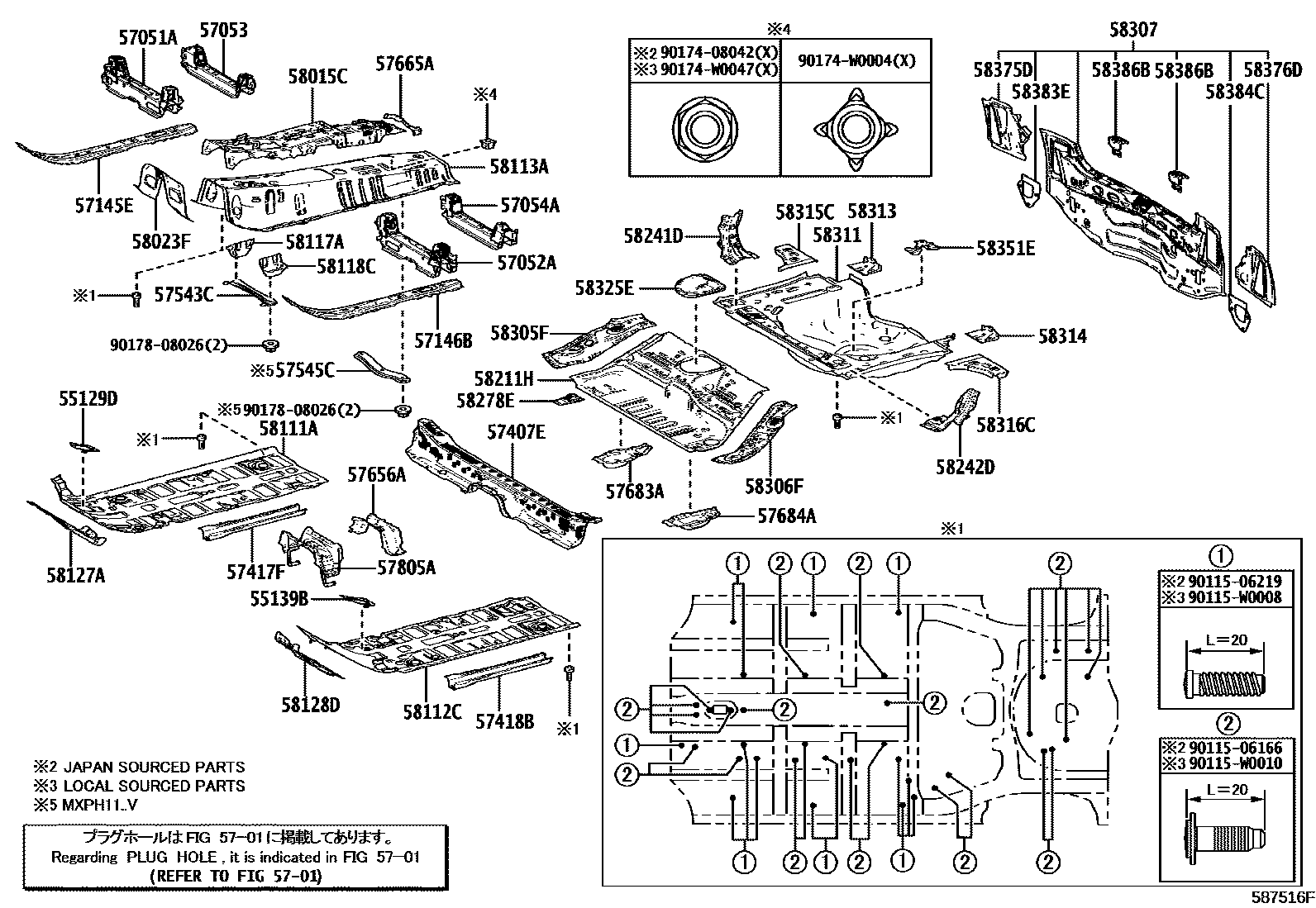

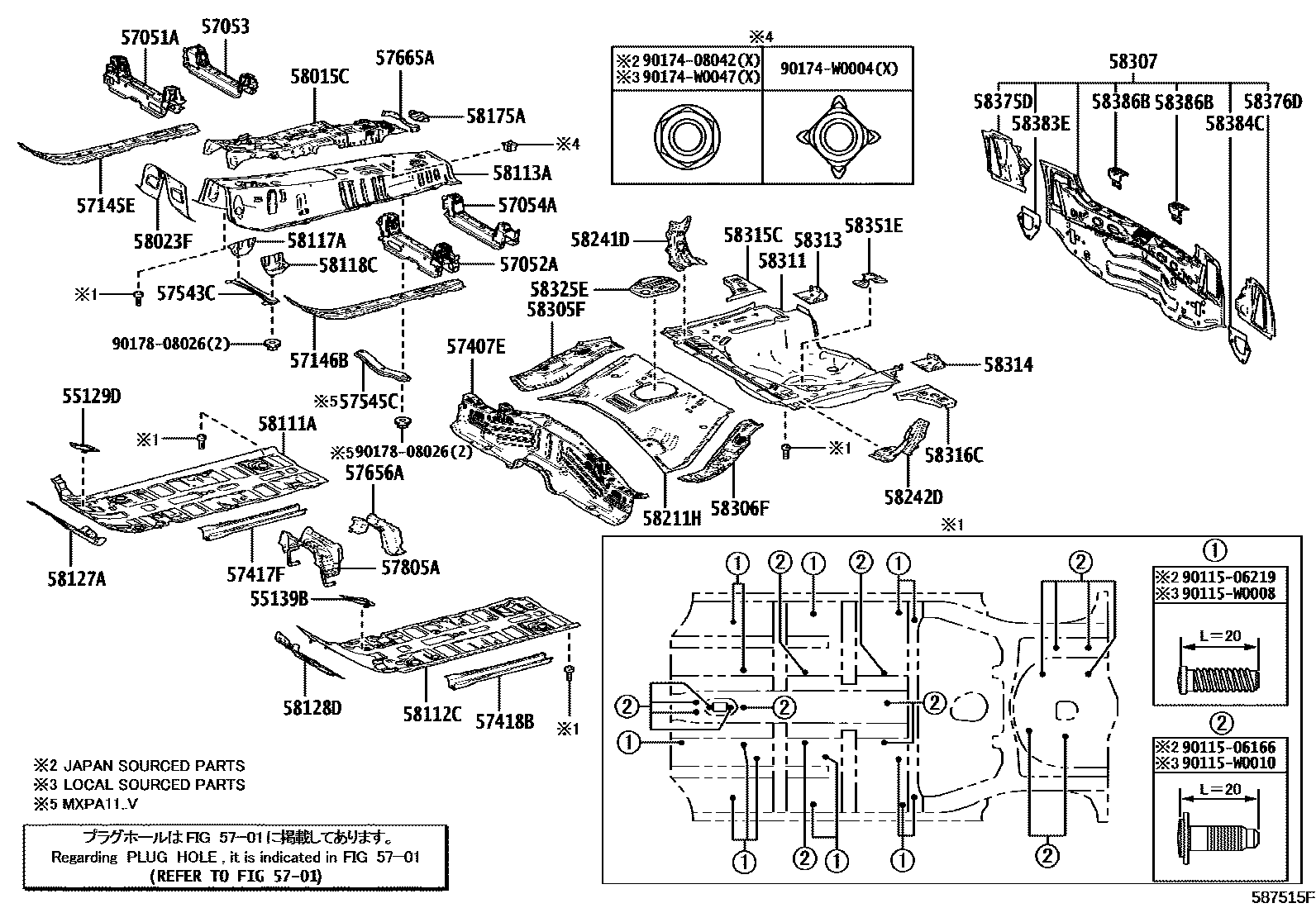

Toyota YARIS EPC diagram 5801, 浅盘形地板和车身下背板, with 2 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55129D | Right front panel hole cover | 55129-K0010 |
| 55139B | Left front panel hole cover | 55139-K0010 |
| 57051A | Front floor right cross member sub-assembly | 57051-K0010 |
| 57052A | Front floor left cross member sub-assembly | 57052-K0010 |
| 57053 | Front floor right cross member reinforcement sub-assembly | 57053-0D010 |
| 57054A | Front floor left cross member reinforcement sub-assembly | 57054-0D010 |
| 57145E | RENFORT AR. DROIT LONGERON AVANT | 57145-K0010 |
| 57146B | RENFORT AR. GAUCHE LONGERON AVANT | 57146-K0010 |
| 57407E | Center floor beam sub-assembly | 57407-K0010 · 57407-K0020 |
| 57417F | Front floor lower right reinforcement | 57417-K0010 |
| 57418B | Front floor lower left reinforcement | 57417-K0010 |
| 57543C | Center Floor Bracket No. 1 | 57543-K0010 |
| 57545C | Center floor bracket No. 2 | 57545-0D020 |
| 57656A | No. 1 exhaust pipe mounting bracket | 57656-0D150 · 57656-K0010 |
| 57665A | Rear floor No. 2 cross member reinforcement | 57665-K0010 |
| 57683A | No. 1 fuel tank mounting bracket | 57683-K0020 |
| 57684A | No. 2 fuel tank mounting bracket | 57684-K0020 |
| 57805A | Rear No. 1 seat support No. 1 reinforcement sub-assembly | 57805-0D160 · 57805-K0010 |
| 58015C | SOUS-ENS PANNEAU, LOGEMENT PLANCHER AVANT | 58015-K0030 |
| 58023F | SOUS-ENS. PLAT. FIX., CONDUITE FLEXIBLE | 58023-0D010 · 58023-K0010 |
| 58111A | Front floor right bottom panel | 58111-K0010 |
| 58112C | Front floor left bottom panel | 58112-K0010 |
| 58113A | front floor center panel | 58113-0D925 · 58113-K0903 |
| 58117A | Front floor right reinforcement | 58117-K0010 |
| 58118C | Front floor left reinforcement | 58118-K0010 |
| 58127A | Front cross member to front panel beam right reinforcement | 58127-K0010 |
| 58128D | RENFORT, TRAVERSE AVANT A ELEMENT PANNEAU AVANT, MG | 58128-K0010 |
| 58175A | No. 1 parking brake base reinforcement | 58175-0D070 |
| 58211H | central floor base | 58211-K0010 · 58211-K0020 |
| 58241D | Right front wheel housing inner corner panel | 58241-K0010 |
| 58242D | Left front wheel housing inner corner panel | 58242-K0010 |
| 58278E | Floor side reinforcement No. 2 | 58278-K0010 |
| 58305F | Rear floor right side panel sub-assembly | 58305-K0010 · 58305-K0020 |
| 58306F | Rear floor left side panel sub-assembly | 58306-K0010 · 58306-K0020 |
| 58307 | Body lower back panel sub-assembly | 58307-K0051 |
| 58311 | rear floor pan | 58311-0D310 · 58311-0D311 · 58311-K0010 |
| 58313 | Rear floor right panel | 58313-K0010 |
| 58314 | rear floor left panel | 58313-K0010 |
| 58315C | Rear floor right side panel extension | 58315-K0010 |
| 58316C | Rear floor left side panel extension | 58316-K0010 |
| 58325E | Rear floor access hole cover | 58325-K0010 · 58325-K0020 |
| 58351E | Spare tire clip bracket | 58351-02020 |
| 58375D | Right body lower back panel reinforcement | 58391-K0010 |
| 58376D | Left body lower back panel reinforcement | 58392-K0010 |
| 58383E | Right body lower back panel reinforcement No. 2 | 58383-52110 |
| 58384C | No. 2 reinforcement of left body lower back panel | 58384-52230 |
| 58386B | Rear bumper cover bracket No. 2 | 58386-02160 |
