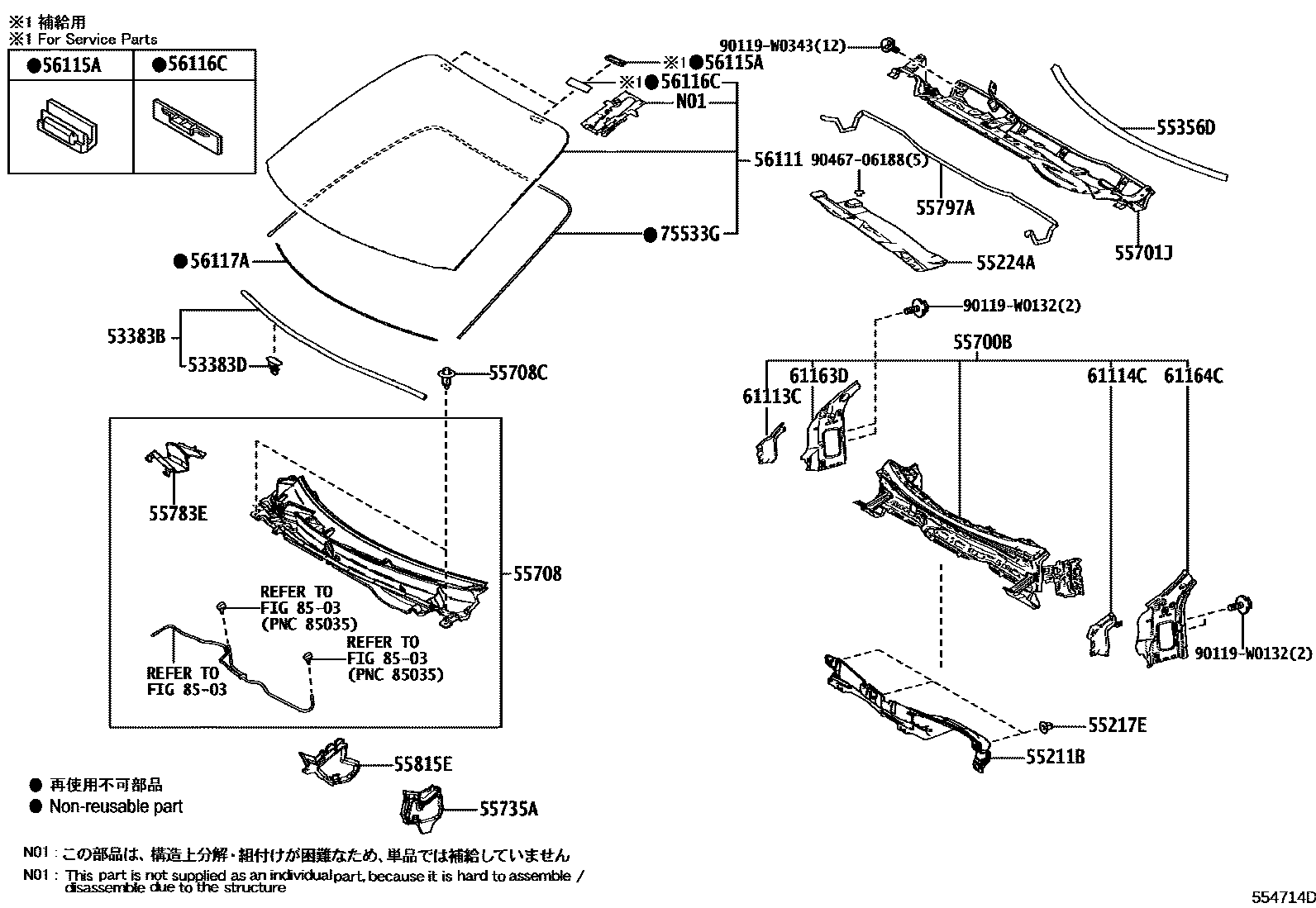

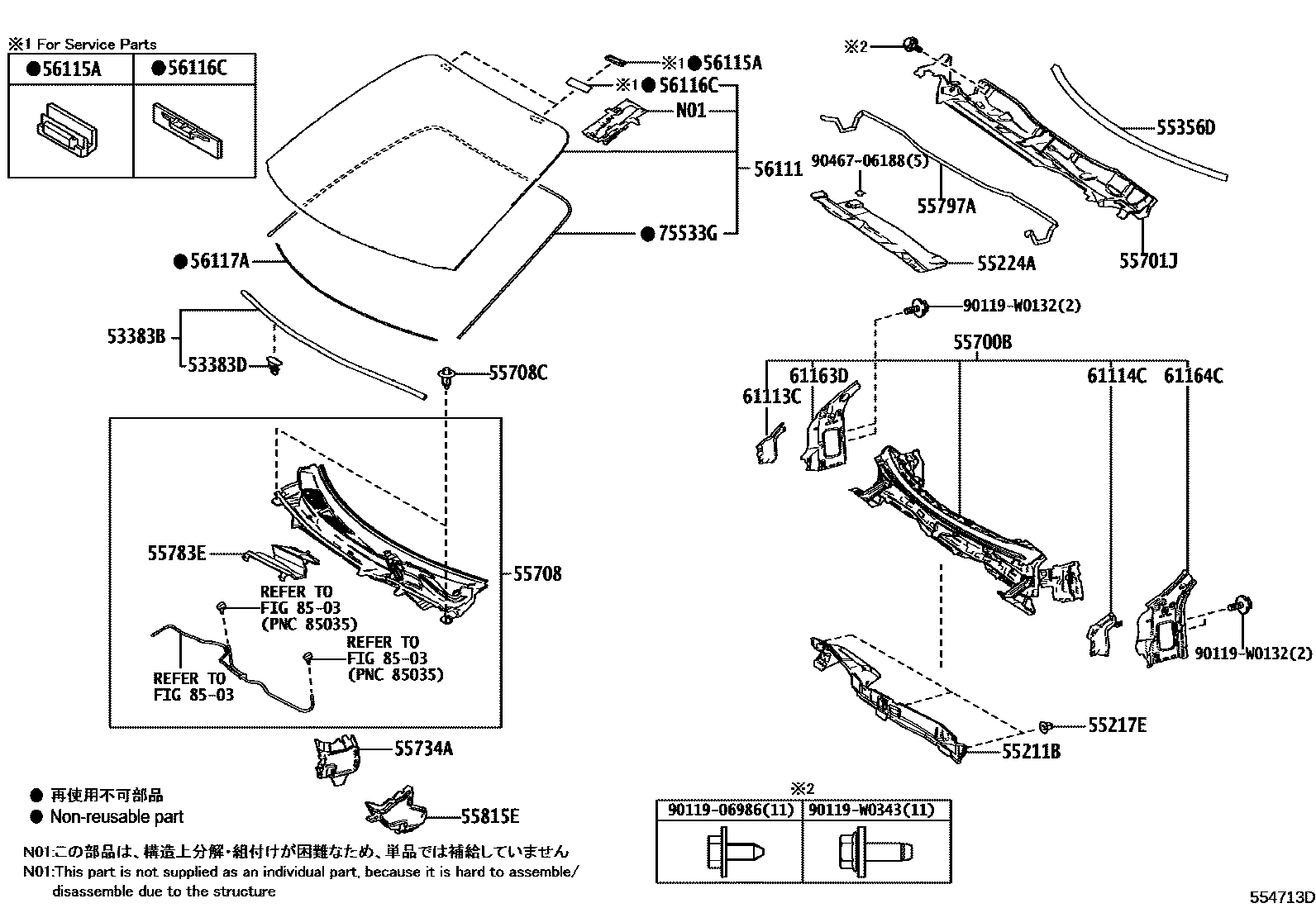

Toyota YARIS 前围板和挡风玻璃 — Figure 5503
Toyota YARIS EPC diagram 5503, 前围板和挡风玻璃, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-K0010 |
| 53383D | Clamp (for engine cover to cowl upper cover seal) | 67867-12150 |
| 55211B | Front panel silencer | 55211-0H020 · 55211-K0010 · 55211-K0020 |
| 55217E | ARRETOIR, SILENCIEUX TABLEAU DE BORD | 55217-51010 |
| 55224A | No. 2 outer insulation pad for front wall | 55224-0D040 |
| 55356D | Dashboard No. 2 Cushion Pad | 55356-K2010 |
| 55700B | ENS. AUVENT | 55700-0D470 · 55700-0D480 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-0D210 · 55701-0D240 · 55701-0D250 |
| 55708 | SOUS-ENS. AERATEUR, VENTILATEUR DESSUS DE TABLIER | 55708-K0030 · 55708-K0031 · 55708-K0040 · 55708-K0090 |
| 55734A | Right waterproof cover | 55735-K0020 |
| 55735A | Left waterproof cover panel | 55735-K0010 |
| 55783E | AERATEUR, VENT DESSUS TABLIER, CENTRAL | 55783-K0020 · 55783-K0021 · 55783-K0050 |
| 55797A | Front wall pumping device seal | 55797-K0010 |
| 55815E | No. 1 front vent seal | 55815-K0010 · 55815-K0020 |
| 56111 | windshield | 56101-0DA90 · 56101-0DA91 · 56101-0DA92 · 56101-0DB00 · 56101-0DB01 · 56101-0DE00 · 56101-0DE01 · 56101-0DE10 · 56101-0DE11 · 56101-0DE12 · 56101-0DE20 · 56101-0DE21 · 56101-0DE22 · 56101-0DE60 · 56101-0DE80 · 56101-0DE90 · 56101-0DF00 · 56101-0DF30 · 56101-0DF31 · 56101-0DF40 · 56101-0DF41 · 56101-0DF70 · 56101-0DF71 · 56101-0DF80 · 56101-0DF81 · 56101-0DF90 · 56101-0DG00 · 56101-K0120 · 56101-K0160 · 56101-K0170 · 56101-K0180 · 56101-K0190 · 56101-K0290 · 56101-K0300 · 56101-K0310 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 61113C | PANNEAU, LATERAL, INT MD | 61113-K0010 |
| 61114C | PANNEAU, LATERAL, INT MG | 61114-K0010 |
| 61163D | MONTANT, CARROSSERIE AVANT, INT INF MD | 61163-K0010 |
| 61164C | MONTANT, CARROSSERIE AVANT, INT INF MG | 61164-K0010 |
| 75533G | Windshield outer protective strip | 75533-K0010 |
