Toyota YARIS 仪表板和手套箱 — Figure 5501

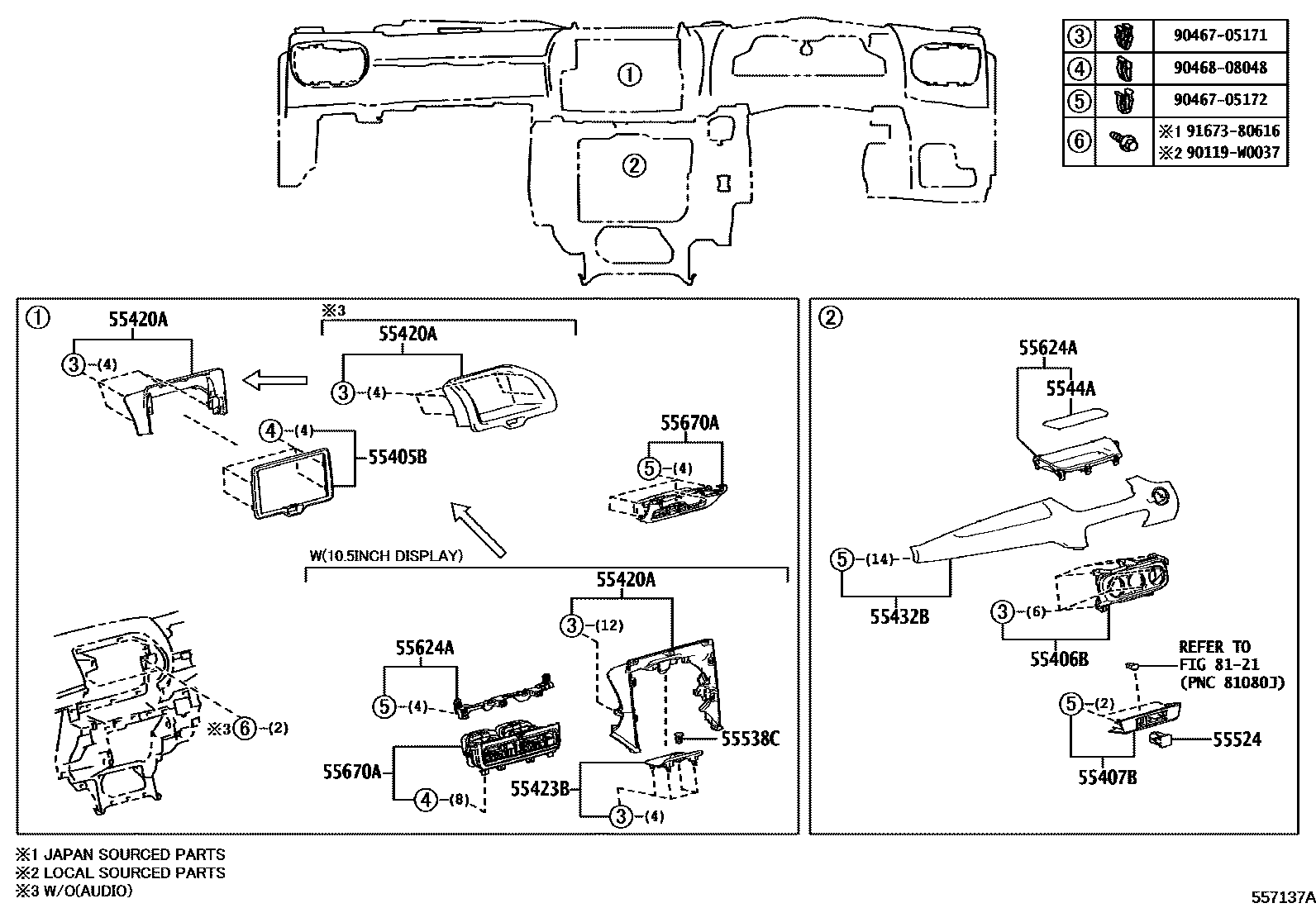

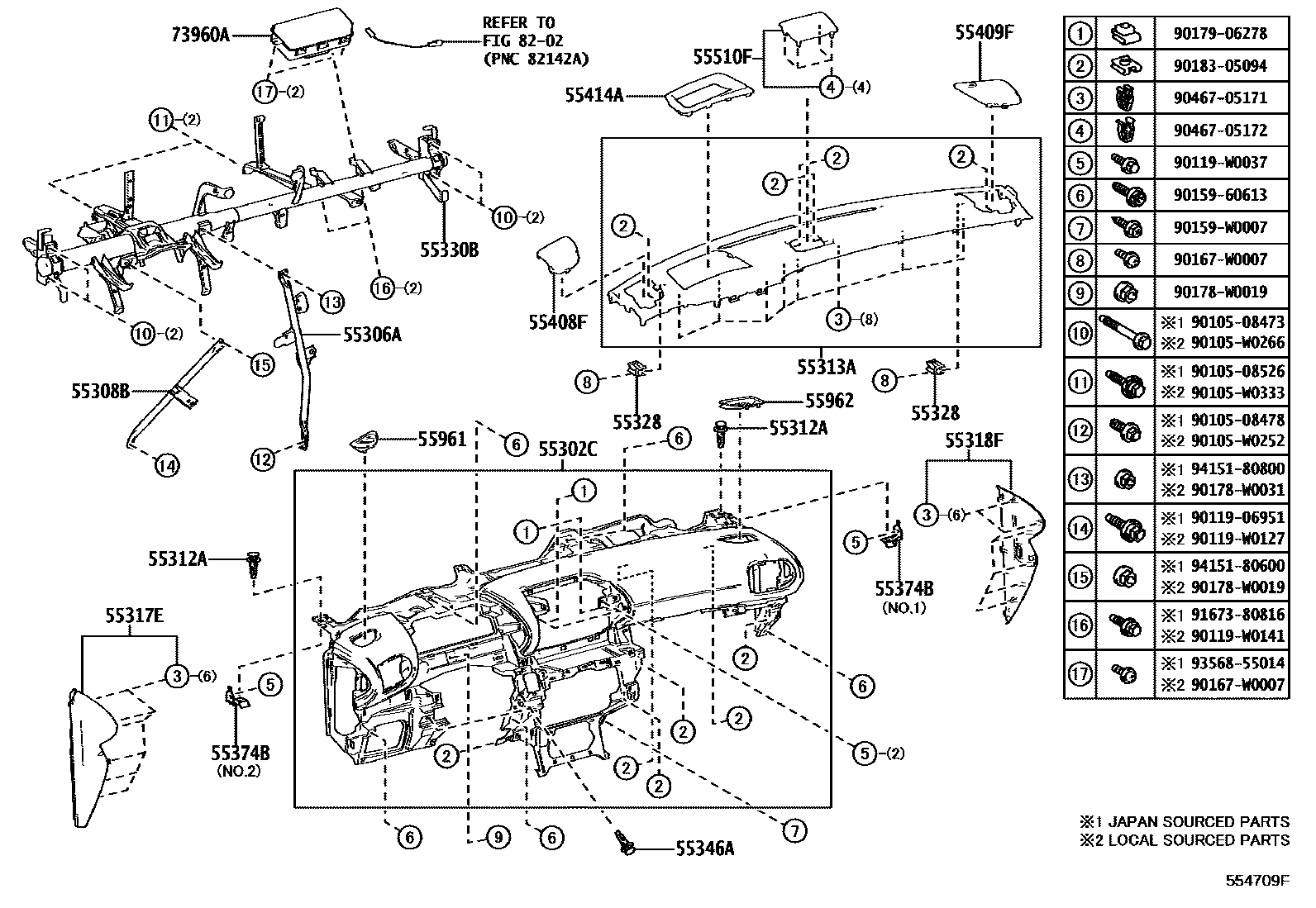

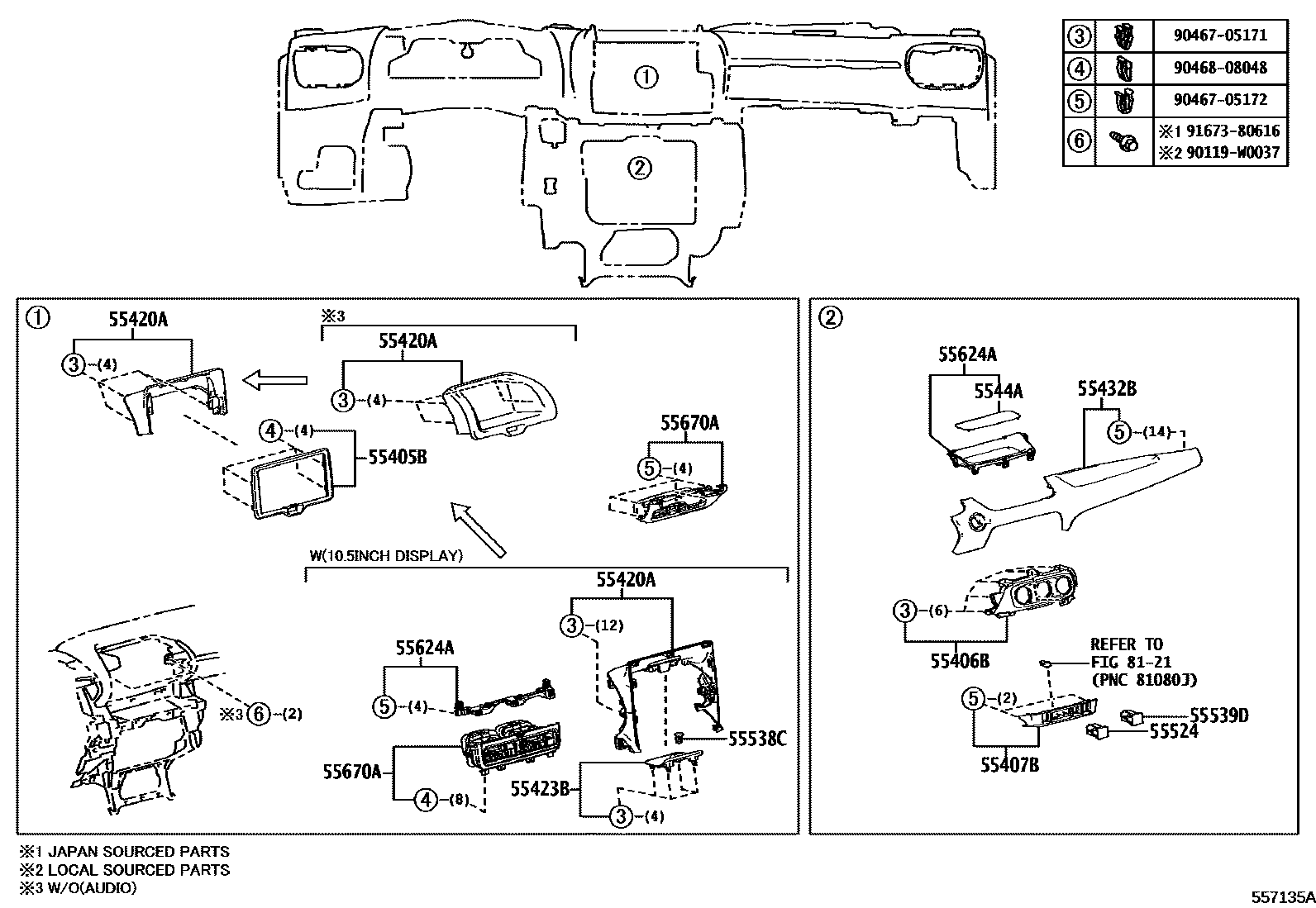

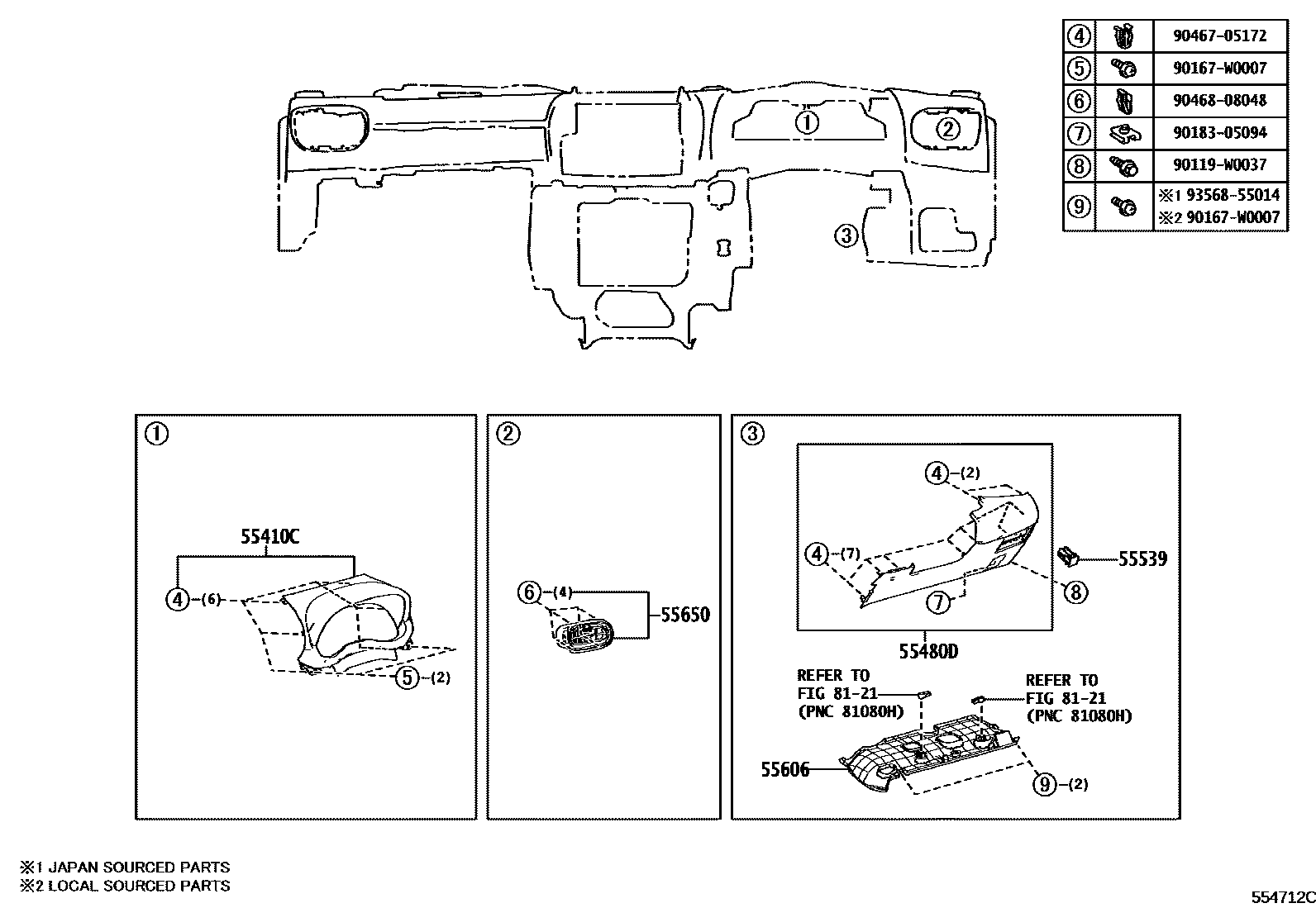

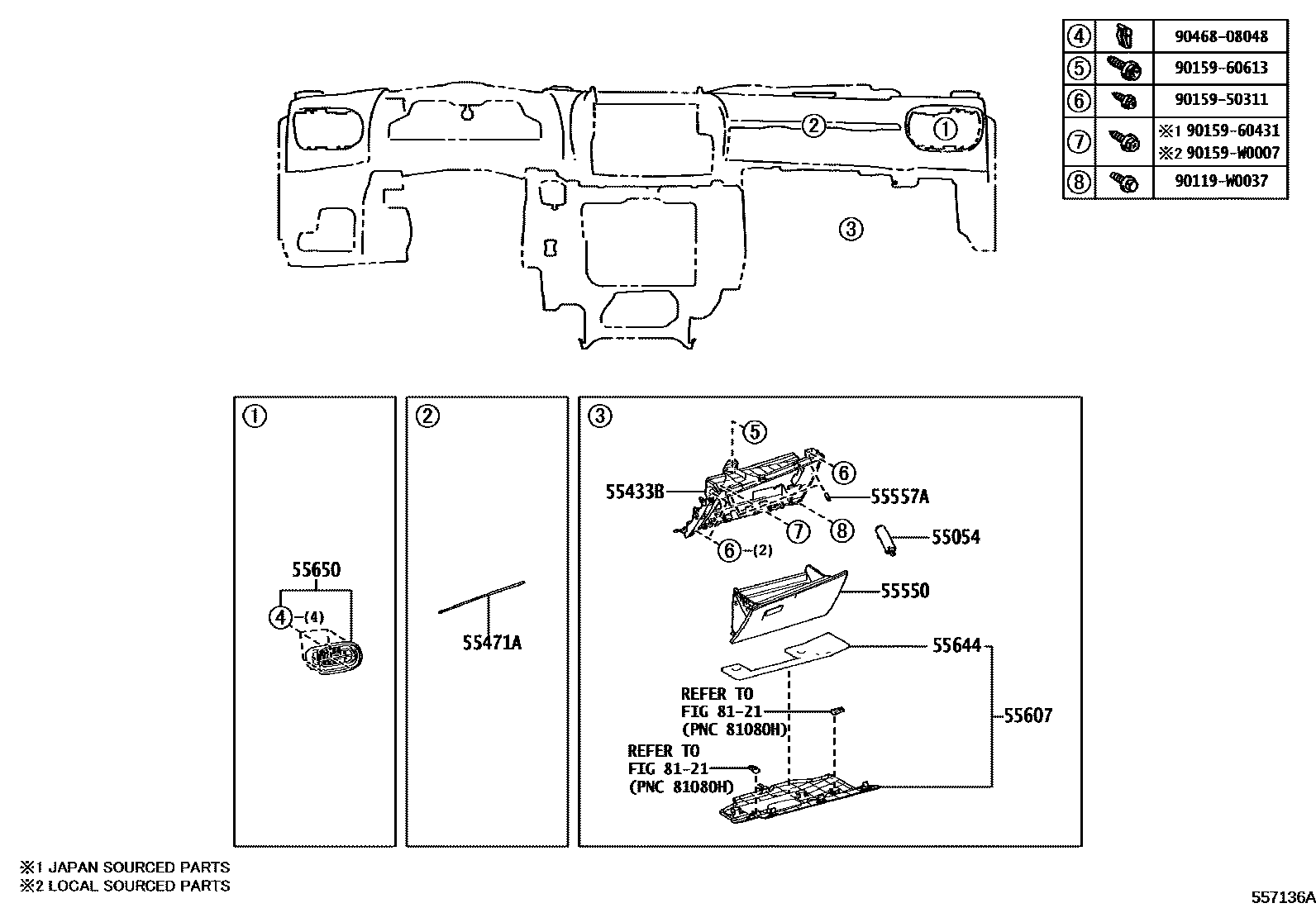

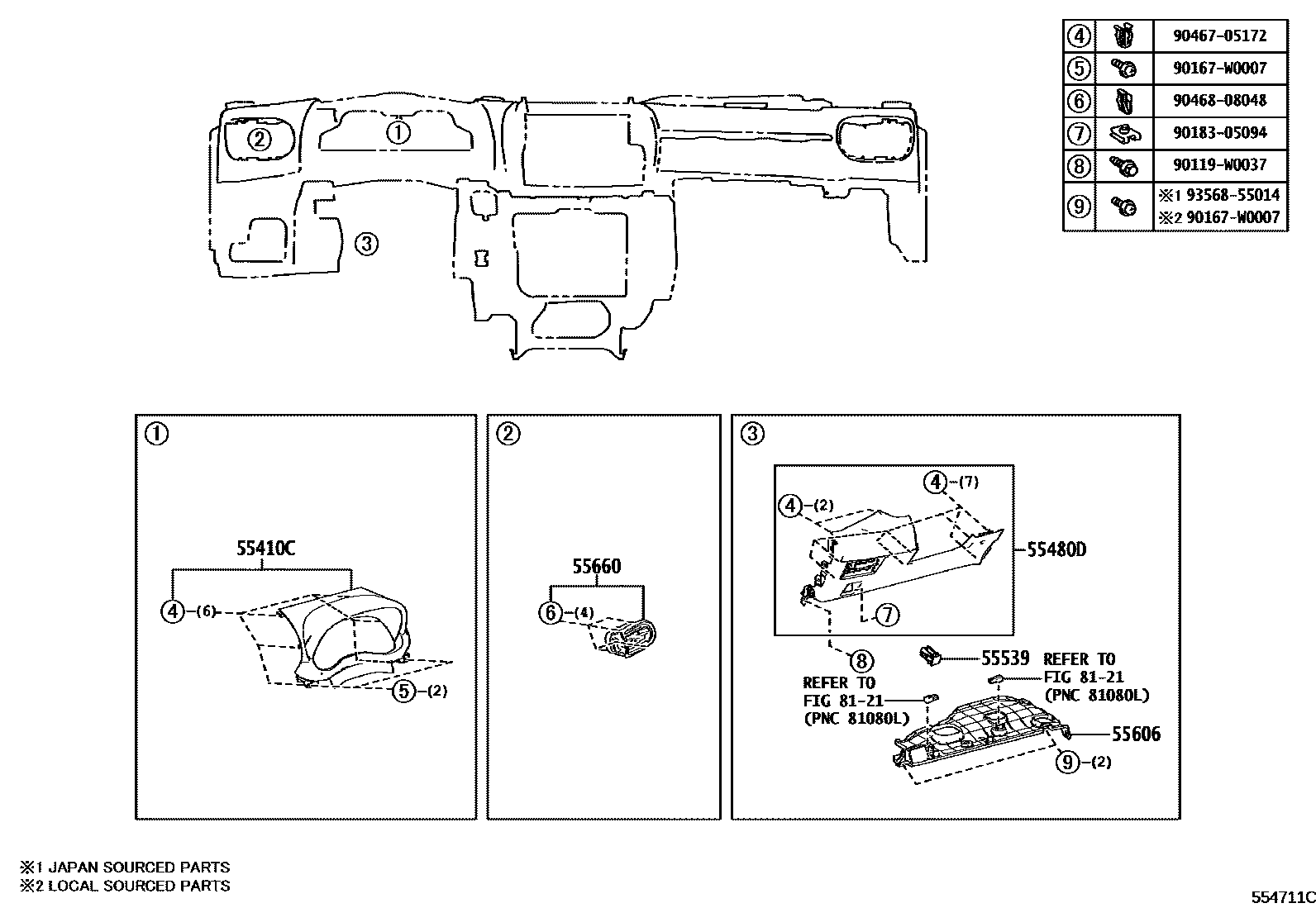

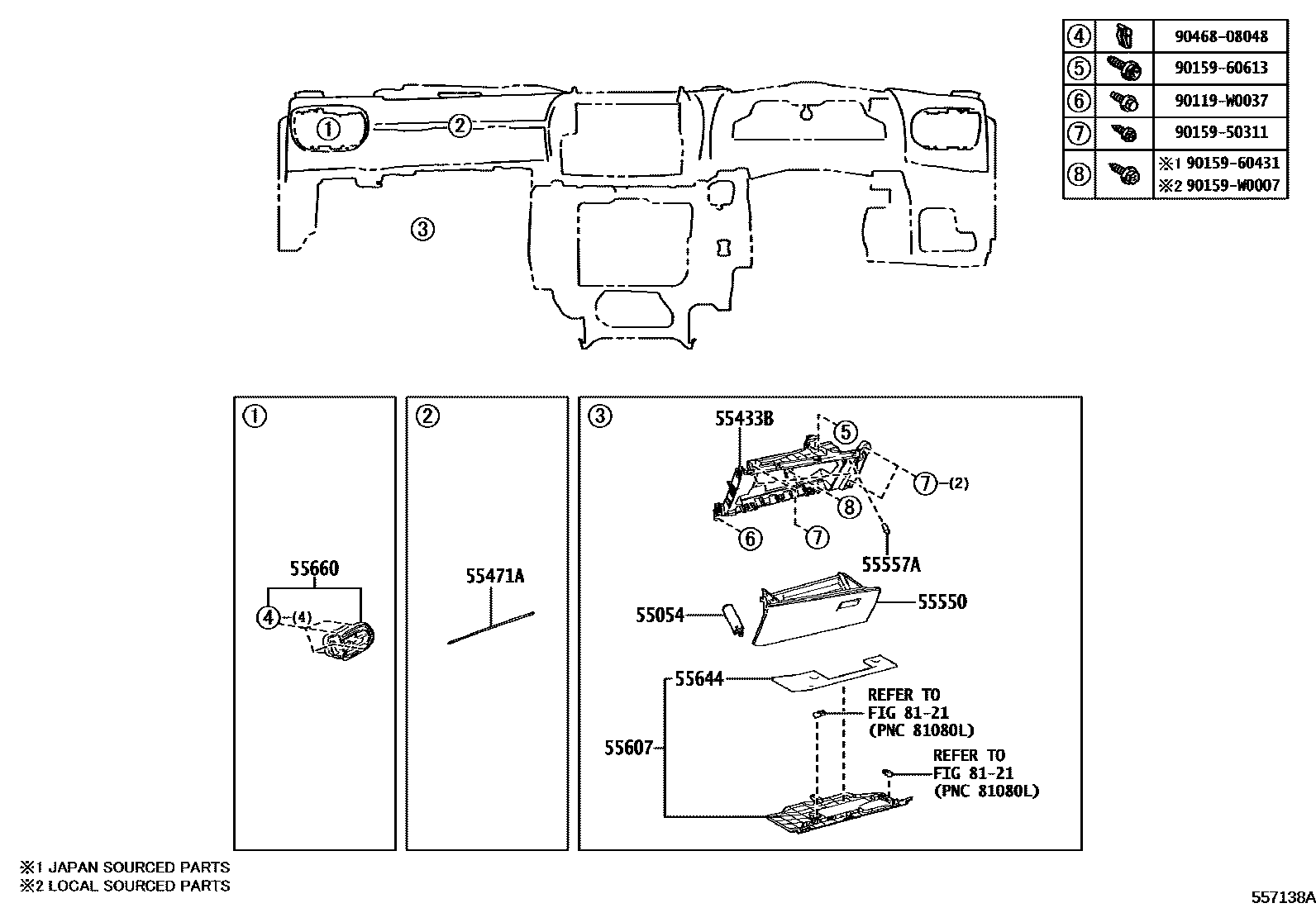

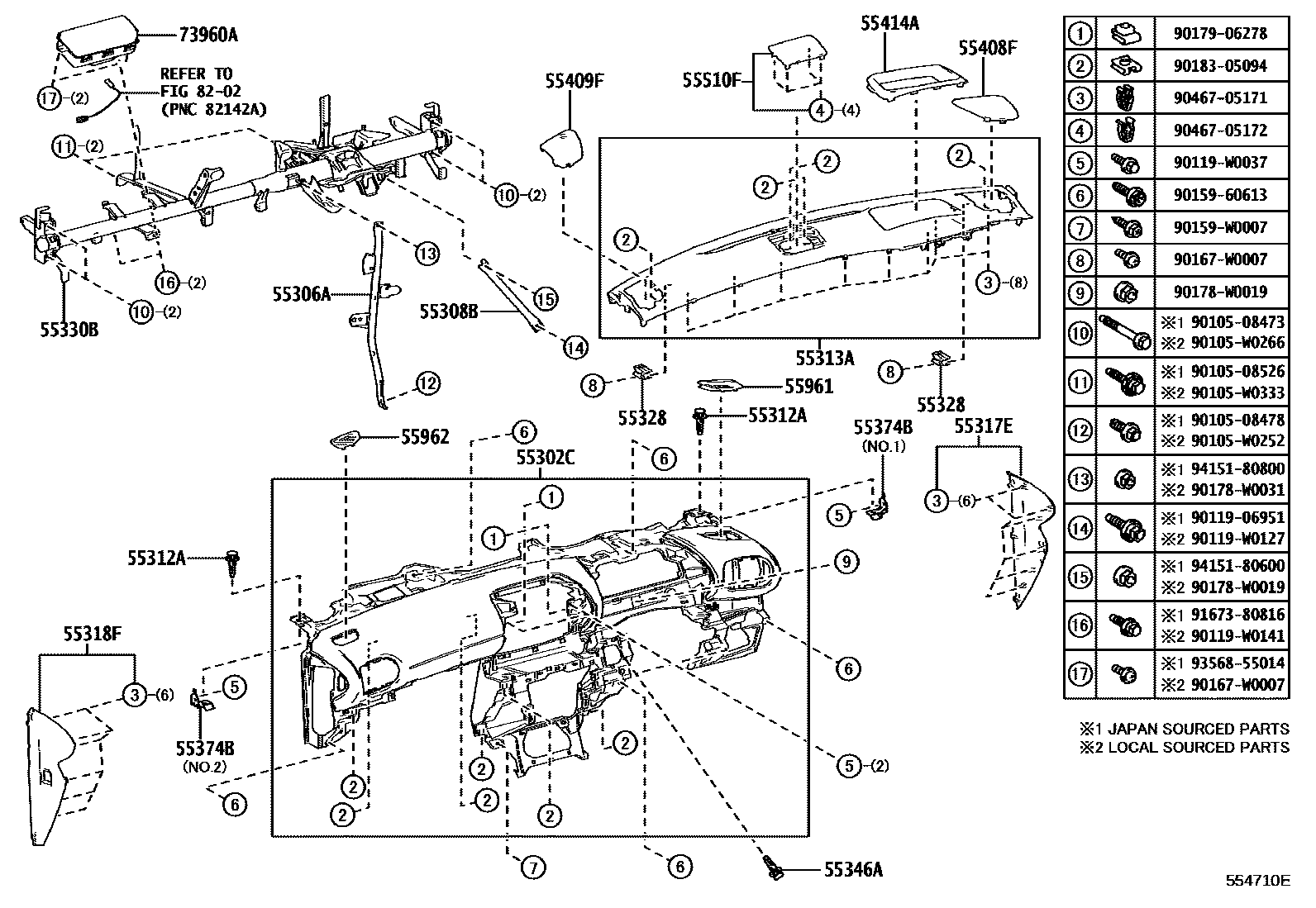

Toyota YARIS EPC diagram 5501, 仪表板和手套箱, with 8 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-47010 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-0D490 · 55306-K0030 · 55306-K0040 |
| 55308B | Dashboard to cowl No. 3 bracket sub-assembly | 55308-K0030 · 55308-K0040 |
| 55312A | Dashboard clip | 52161-02030 · 52161-16010 |
| 55317E | PANNEAU, LAT TABLEAU BORD, NO.1 | 55317-0D370 · 55317-0D380 |
| 55328 | Instrument panel pin 1 | 55328-02110 · 55328-12430 |
| 55330B | Instrument panel reinforcement assembly | 55330-0D890 · 55330-0DA31 · 55330-0DA60 · 55330-0DA70 · 55330-K0030 · 55330-K0031 · 55330-K0040 · 55330-K0041 |
| 55346A | Dashboard clip No. 2 | 52161-02030 |
| 55374B | Dashboard bracket | 55363-0D010 · 55363-0D020 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-K0030 |
| 55406B | Center instrument cluster lower decorative panel sub-assembly | 55406-K0020 · 55406-K0030 |
| 55407B | Switch hole seat sub-assembly | 55407-0D030 · 55407-0D040 · 55407-0D070 · 55407-K0020 · 55407-K0030 |
| 55410C | Instrument cluster decorative panel assembly | 55410-K0050 · 55410-K0060 |
| 55420A | Center instrument cluster decorative panel assembly | 55420-0D030 · 55420-0D031 · 55420-0D040 · 55420-0D041 · 55420-K0030 · 55420-K0040 · 55420-K0100 |
| 55423B | Instrument cluster decorative panel cover | 55423-0D080 · 55423-0D110 |
| 5544A | TAPIS, BAC TABLEAU DE BORD | 5544A-K0010 · 5544A-K0020 |
| 55557A | Glove box cover limit pad | 55557-10040 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-K0020 · 55606-K0030 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-K0020 · 55607-K0030 |
| 55624A | center instrument panel tray | 55445-0D210 · 55445-0D220 |
| 55644 | No. 2 lower instrument panel muffler pad | 55644-K0010 · 55644-K0020 |
| 55670A | Instrument panel central air register assembly | 55670-0D650 · 55670-0D660 · 55670-K0050 · 55670-K0090 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-K0020 · 73960-K0021 |
