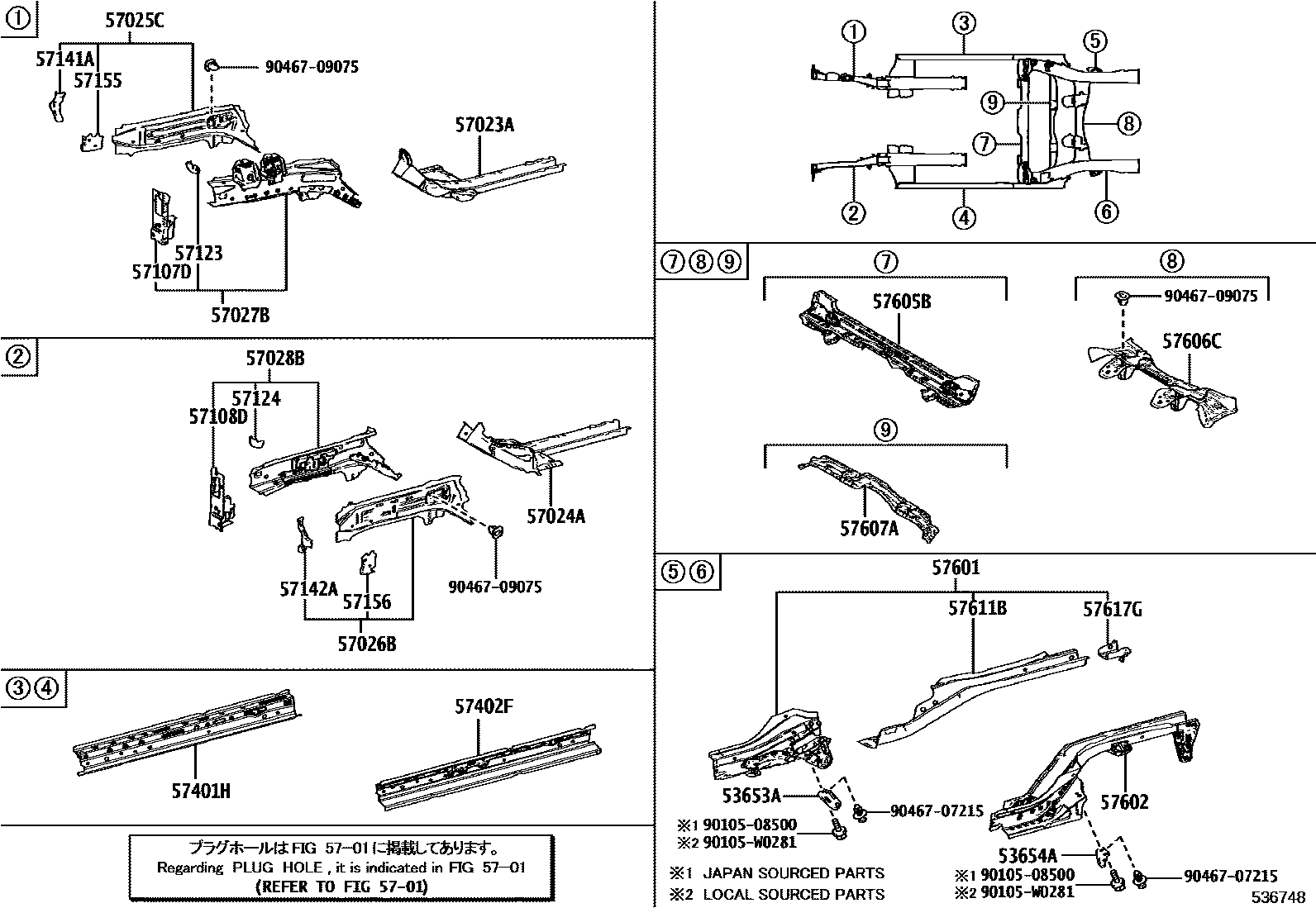

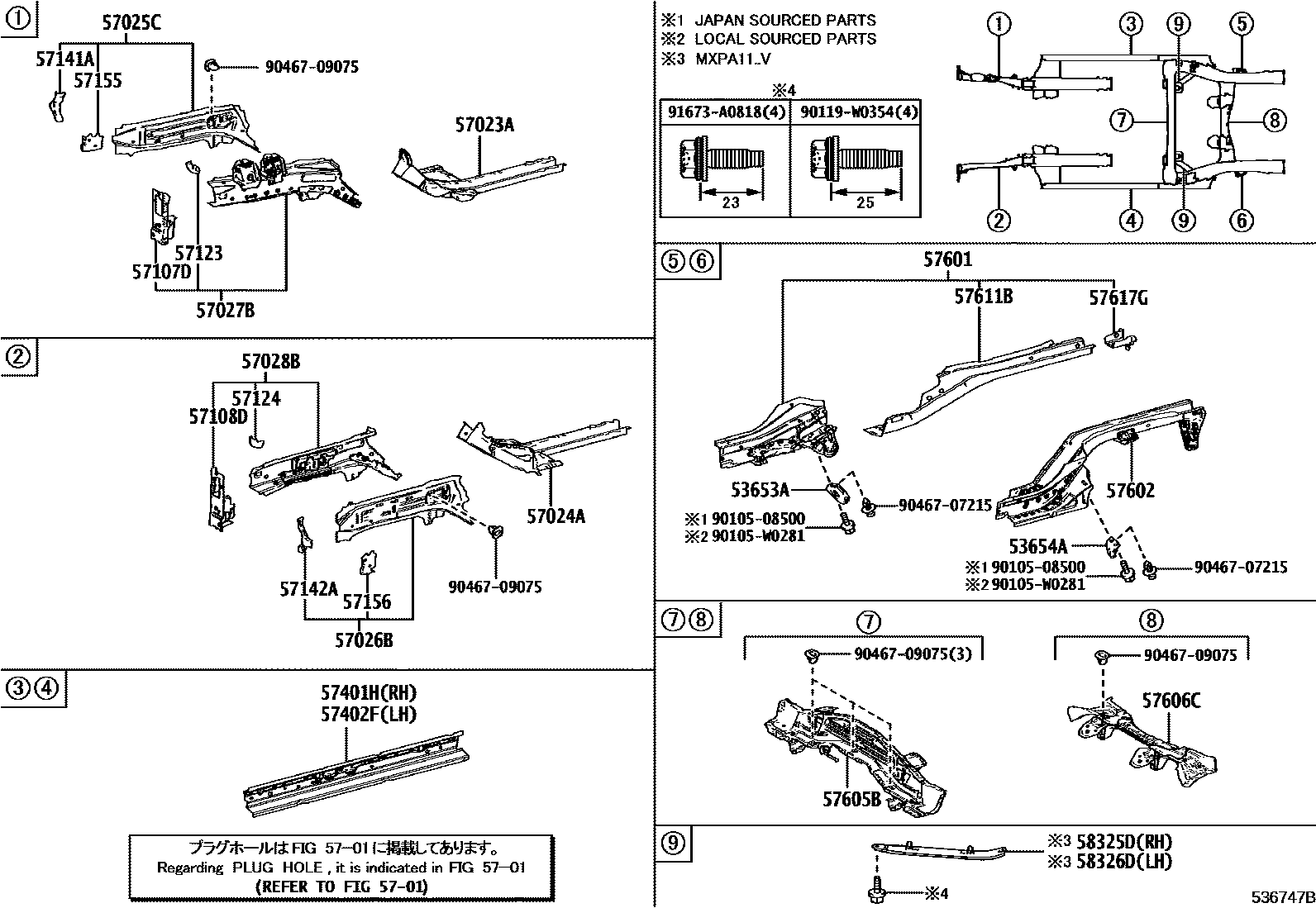

Toyota YARIS Floor stringers — Figure 5305
Toyota YARIS EPC diagram 5305, Floor stringers, with 2 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53653A | Rear suspension right lower bracket | 53653-K0010 |
| 53654A | Rear suspension left lower bracket | 53654-K0010 |
| 57023A | Right rear longitudinal beam sub-assembly | 57023-0D230 · 57023-0D240 |
| 57024A | Left rear longitudinal beam sub-assembly | 57024-0D210 · 57024-0D220 |
| 57025C | Right front outer longitudinal beam sub-assembly | 57025-0D110 · 57025-K0010 |
| 57026B | Left front outer longitudinal beam sub-assembly | 57026-0D110 · 57026-K0010 |
| 57027B | Right front inner longitudinal beam sub-assembly | 57027-0D030 · 57027-K0010 |
| 57028B | Left front inner longitudinal beam sub-assembly | 57028-0D030 · 57028-K0010 |
| 57107D | Front bumper right side installation reinforcement sub-assembly | 57107-K0010 |
| 57108D | Front bumper left side installation reinforcement sub-assembly | 57108-K0010 |
| 57123 | Right front longitudinal beam bracket | 57123-K0010 |
| 57124 | Left front longitudinal beam bracket | 57124-0D130 · 57124-K0010 |
| 57141A | Front bumper arm right bracket | 57141-0D010 · 57141-K0010 |
| 57142A | Front bumper arm left bracket | 57142-0D010 · 57142-K0010 |
| 57155 | No. 3 right front longitudinal beam reinforcement | 57155-0D120 · 57155-K0010 |
| 57156 | No. 3 left front longitudinal beam reinforcement | 57156-0D060 · 57156-K0010 |
| 57401H | Floor right inner longitudinal beam sub-assembly | 57401-0D310 · 57401-K0010 |
| 57402F | Floor left inner longitudinal beam sub-assembly | 57402-0D290 · 57402-K0030 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-0D500 · 57601-K0010 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-0D460 · 57602-K0010 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-0D250 · 57605-0D290 · 57605-K0010 · 57605-K0030 |
| 57606C | Rear floor No. 2 cross member sub-assembly | 57606-0D180 · 57606-0D190 · 57606-K0010 |
| 57607A | Rear floor No. 3 cross member sub-assembly | 57607-K0010 |
| 57611B | LONGERON, PLANCHER ARR, AV MD | 57611-K0010 |
| 57617G | DISPOSITIF RETENUE BRAS DE PARE-CHOCS ARRIERE | 57617-K0010 |
| 58325D | Rear floor right bracket | 58325-0D180 |
| 58326D | Rear floor left bracket | 58326-0D010 |
