Toyota YARIS 发动机盖和前翼子板 — Figure 5302

Toyota YARIS EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 31 PNC and OE references.

Toyota YARIS 发动机盖和前翼子板 EPC diagram — 536852F

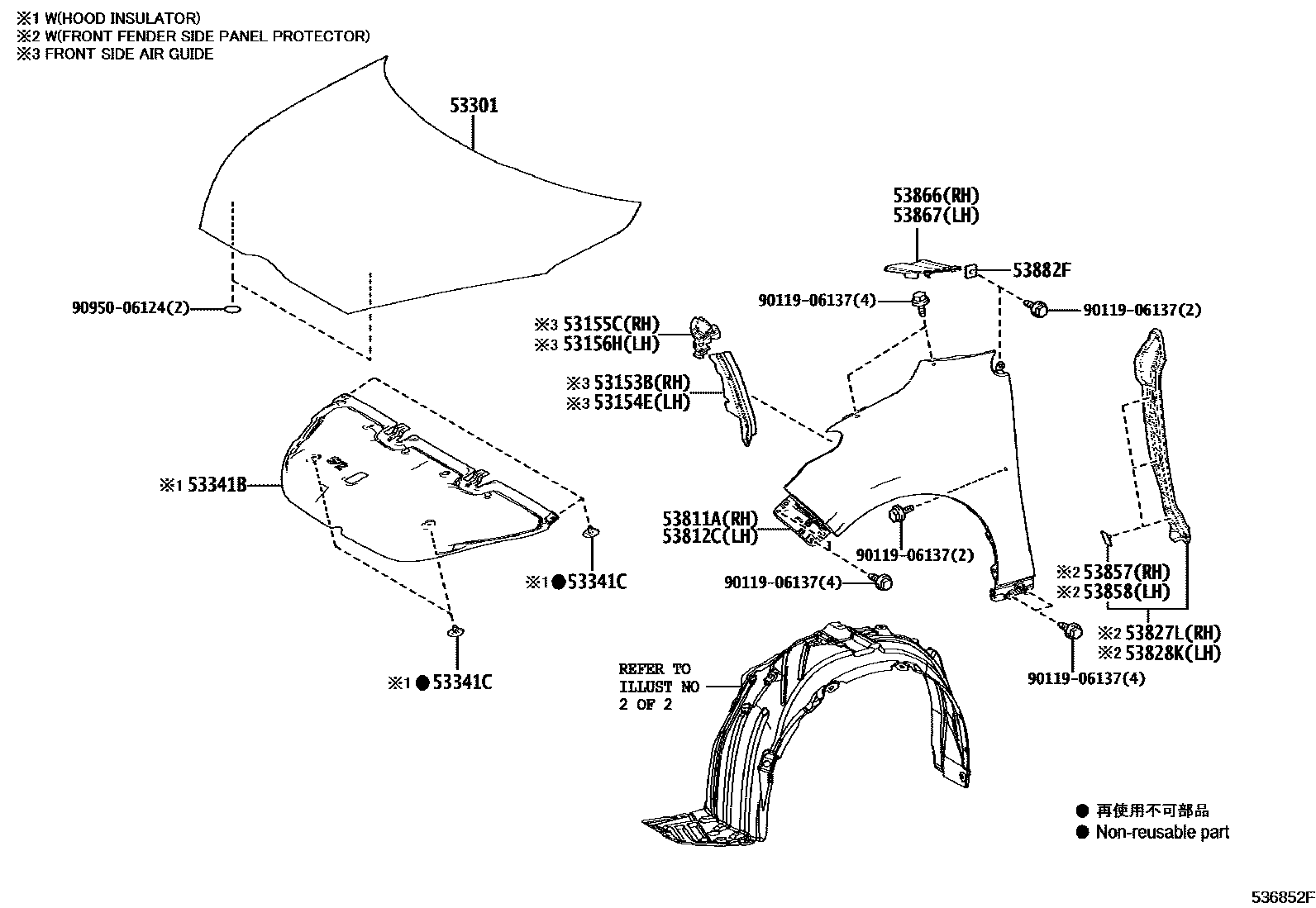

发动机盖和前翼子板 — 536852F (202007 – 999999)
Toyota YARIS 发动机盖和前翼子板 EPC diagram — 536853D

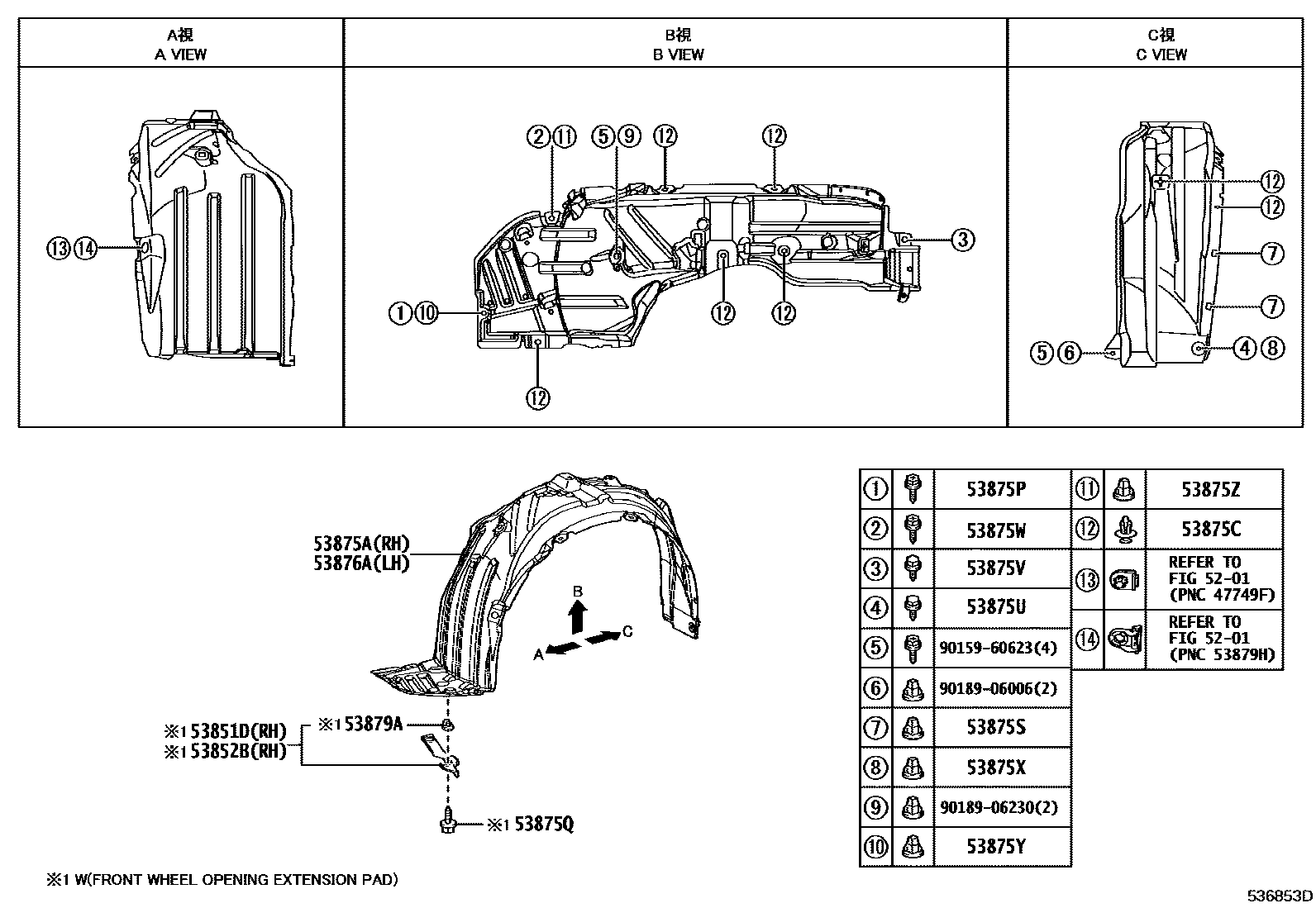

发动机盖和前翼子板 — 536853D (202007 – 999999)

PNC and OE references

PNCPart nameOE numbers
53153Bfront side deflector53153-K0020
53154EGUIDE AERATION LATERALE AVANT NO. 253154-K0020
53155CRadiator grille seal No. 153155-K0020
53156HJOINT ETANCHEITE NO.2 CALANDRE RADIATEUR53156-K0030
53301Engine cover sub-assembly53301-K0010
53341Bengine cover gasket53341-K0010
53341CClip (for engine cover gasket)90467-09050
53811Aright front fender53811-K0070
53812Cleft front fender53812-K0070
53827LRight front fender side panel protector53827-K0020
53828KLeft front fender side panel protector53828-K0020
53851DRight front fender outer panel pad53851-K0020
53852BLeft front fender exterior panel pad53852-K0020
53857Right front fender external panel fixing piece53857-12010
53858Left front fender external panel fixing piece53857-12010
53866Right front fender to cowl side seal53866-0D300
53867Left front fender to cowl side seal53867-0D300
53875ARight front fender lining53875-0D490 · 53875-K0020
53875CFront fender lining clip90467-07214
53875PVIS, NO.190159-60477 · 90159-W0026
53875QVIS, NO.290159-60477 · 90159-W0026
53875SOEILLET, NO.190189-06013 · 90189-06236
53875UVIS, NO.490159-60623
53875VVIS, NO.590159-60623
53875WVIS, NO.690159-60477 · 90159-W0026
53875XOEILLET, NO.390189-06145
53875YOEILLET, NO.490189-06237
53875ZOEILLET, NO.590189-06237
53876ALeft front fender lining53876-0D490 · 53876-K0020
53879AFront fender lining fixing parts53879-17020
53882Ffront fender seal53882-16030
