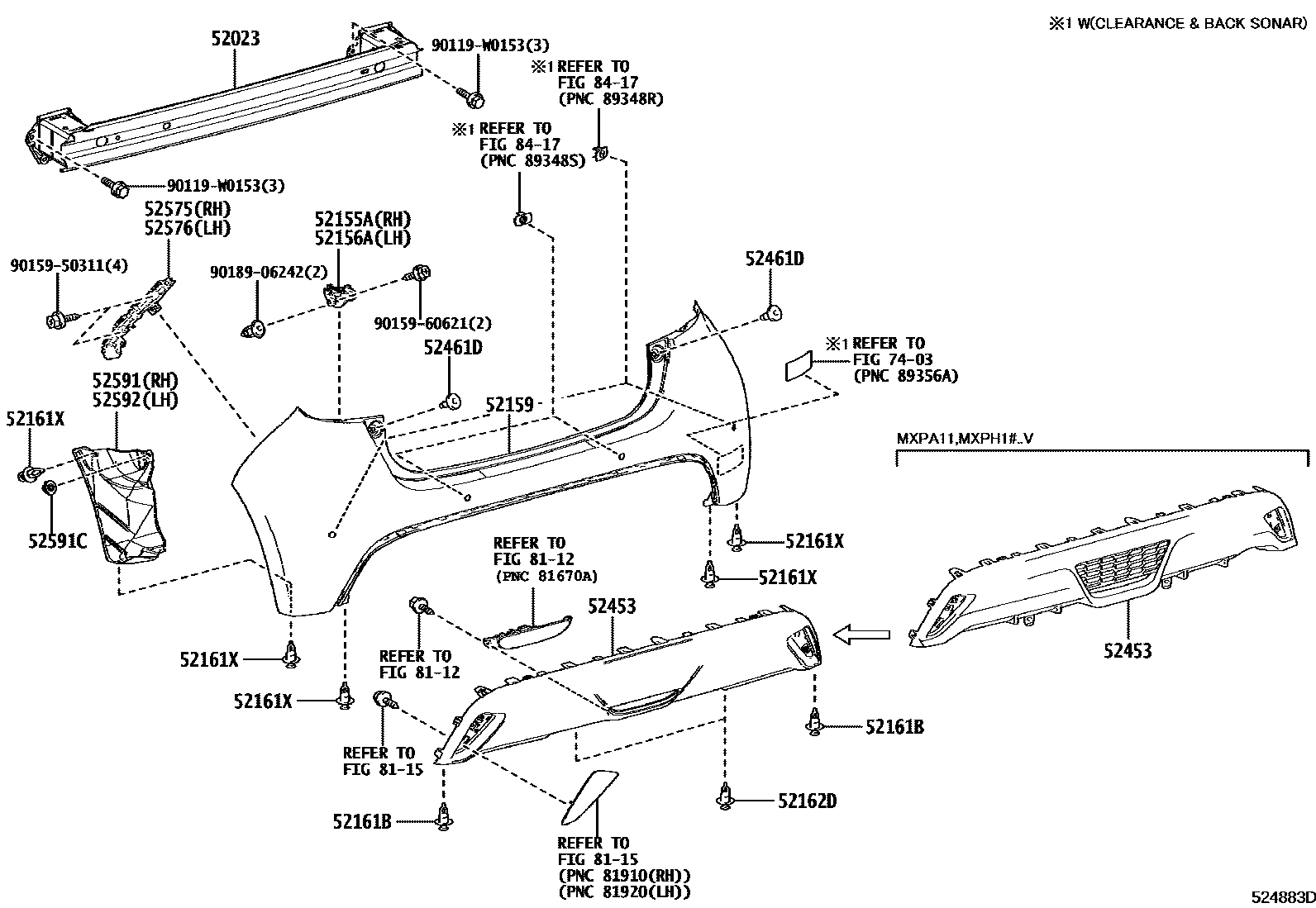

Toyota YARIS 后保险杠及附件 — Figure 5202
Toyota YARIS EPC diagram 5202, 后保险杠及附件, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-0D180 · 52023-0W020 |
| 52155A | Rear bumper right side bracket | 52155-K0010 |
| 52156A | Rear bumper left bracket | 52156-K0010 |
| 52159 | rear bumper cover | 52159-0U957 · 52159-K0906 · 52159-K0907 · 52159-K0908 |
| 52161B | Rear bumper insert | 52161-02030 · 52161-16010 |
| 52161X | PARTIE, PARE-CHOCS ARR | 52161-02030 |
| 52162D | Rear bumper insert | 52161-02030 |
| 52453 | PROTECTION, PARE-CHOCS ARRIERE, CENTRALE | 52453-0D060 · 52453-0D180 · 52453-0D190 · 52453-K0060 · 52453-K0070 |
| 52461D | rear bumper cushion | 52461-52020 |
| 52575 | Rear bumper right side fixing bracket | 52575-K0020 |
| 52576 | Rear bumper left side fixing bracket | 52576-K0020 |
| 52591 | Rear bumper right seal | 52591-0D550 |
| 52591C | ATTACHE, JOINT LAT PARE-CHOCS ARR | 90467-06121 |
| 52592 | Rear bumper left seal | 52592-0D550 |
