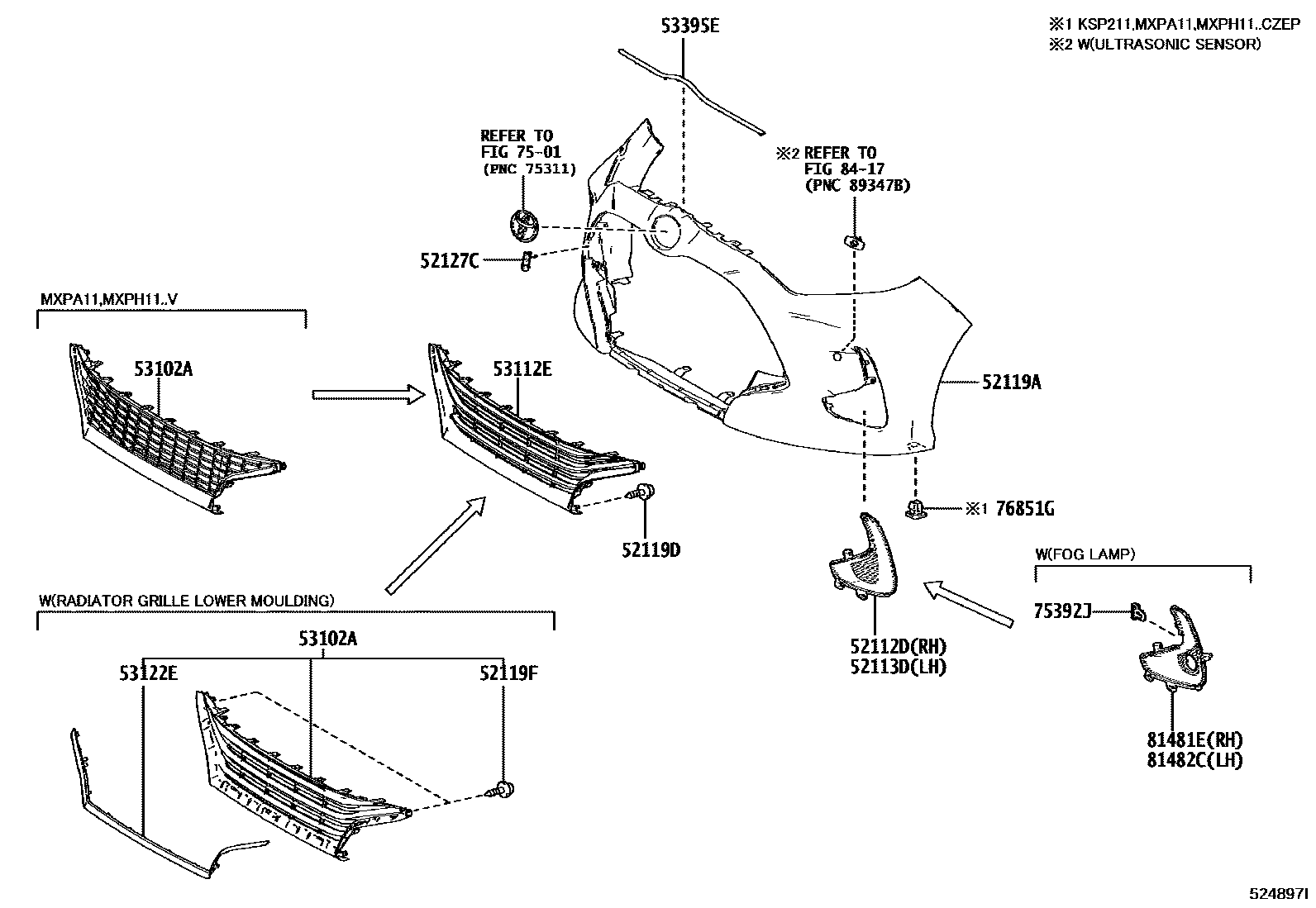

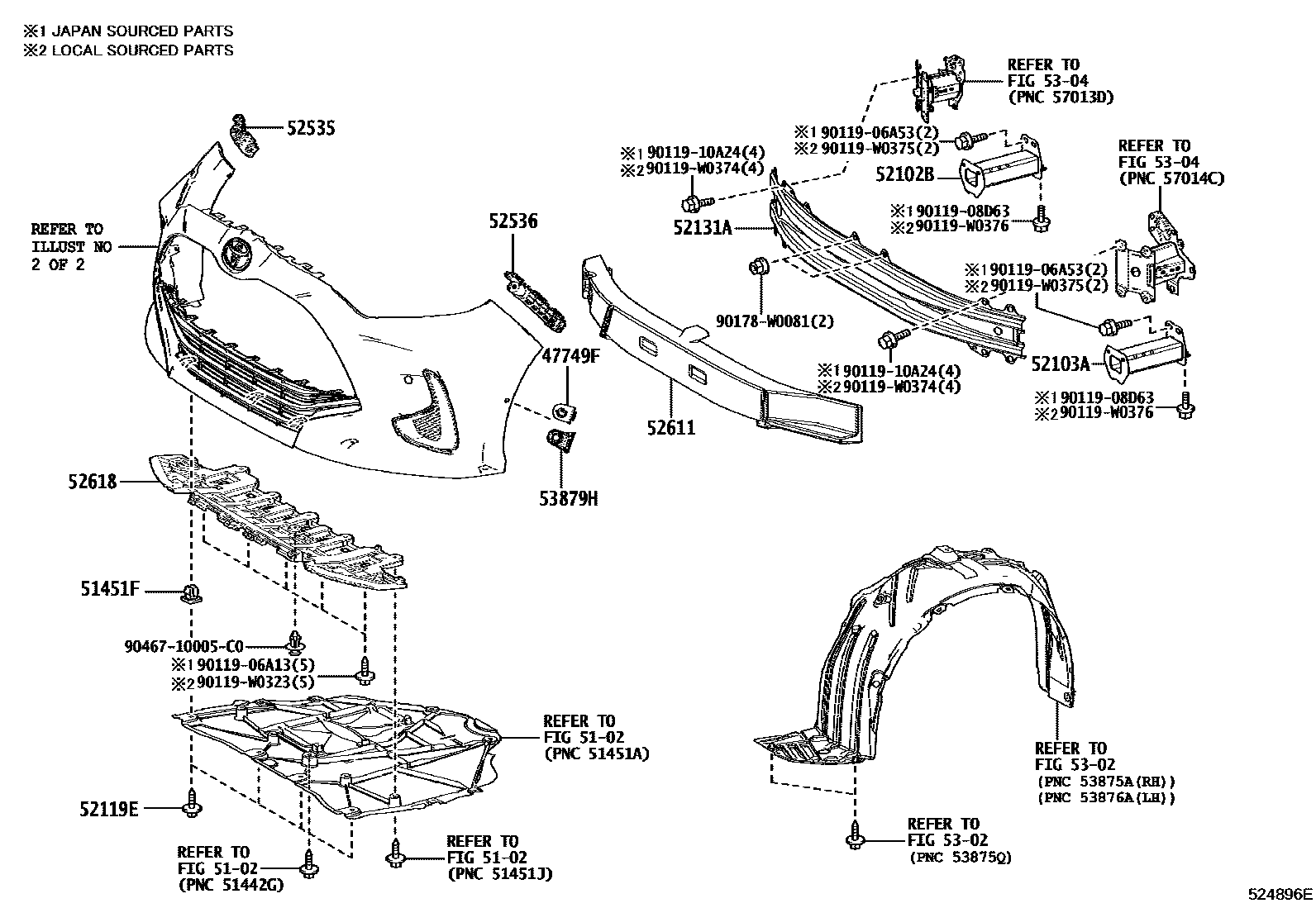

Toyota YARIS 前保险杠及附件 — Figure 5201
Toyota YARIS EPC diagram 5201, 前保险杠及附件, with 2 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749F | ATTACHE, BROCHE FIXATION | 47749-02040 · 47749-33030 |
| 51451F | OEILLET, NO.1 | 90189-06237 |
| 52102B | Front bumper right extension section sub-assembly | 52102-K0010 |
| 52103A | Front bumper left extension section sub-assembly | 52103-K0010 |
| 52112D | Front bumper right extension | 52112-0D240 · 52112-K0010 |
| 52113D | Front bumper left extension | 52113-0D240 · 52113-K0010 |
| 52119A | front bumper cover | 52119-0U945 · 52119-0U946 · 52119-0U947 · 52119-0U950 |
| 52119D | VIS, NO.1 | 90167-50063 |
| 52119E | VIS, NO.2 | 90159-60477 · 90159-W0026 |
| 52119F | VIS, NO.3 | 90167-50063 |
| 52127C | Front bumper hole cover | 52127-0D925 · 52127-0D926 |
| 52131A | Front bumper reinforcement | 52131-K0020 |
| 52535 | Front bumper right side fixing bracket | 52535-K0010 |
| 52536 | Front bumper left fixed bracket | 52536-K0010 |
| 52611 | front bumper energy absorber | 52611-0D210 · 52611-K0010 |
| 52618 | Front bumper lower shock absorber | 52618-K0010 |
| 53102A | SOUS-ENSEMBLE GRILLE, RADIATEUR, INFERIEURE | 53102-0D250 · 53102-0D260 · 53102-0D270 · 53102-0D280 · 53102-0D290 · 53102-K0020 · 53102-K0040 |
| 53112E | No. 1 radiator lower grille | 53112-0D810 · 53112-K0010 |
| 53122E | Radiator grille lower protective strip | 53122-K0010 · 53122-K0020 |
| 53395E | Engine cover to front end plate seal | 53395-K0010 |
| 53879H | Front fender lining fixing parts | 53879-02160 · 53879-33030 |
| 75392J | External protective strip fixings | 75392-35220 |
| 76851G | RONDELLE, VIS, NO.1 | 90189-06237 |
| 81481E | Right fog light cover | 52112-0D210 · 52112-0D250 · 52112-0D260 · 52112-0D270 · 52112-0D300 · 52112-0D310 · 52112-K0140 · 52112-K0150 |
| 81482C | Left fog light cover | 52113-0D160 · 52113-0D190 · 52113-0D200 · 52113-0D250 · 52113-0D260 · 52113-0D270 · 52113-K0140 · 52113-K0150 |
