Toyota YARIS 悬架横梁和发动机底罩 — Figure 5102

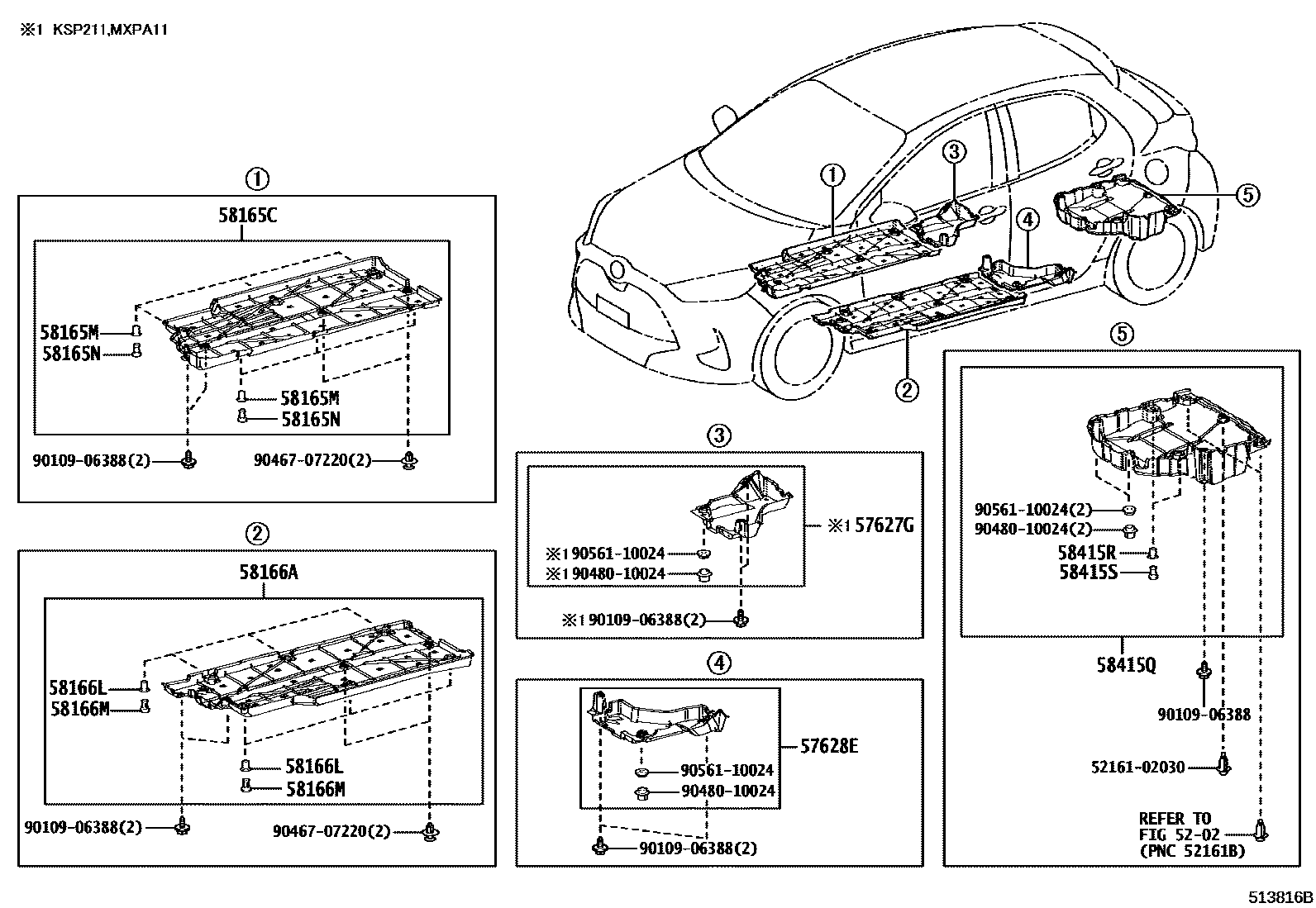

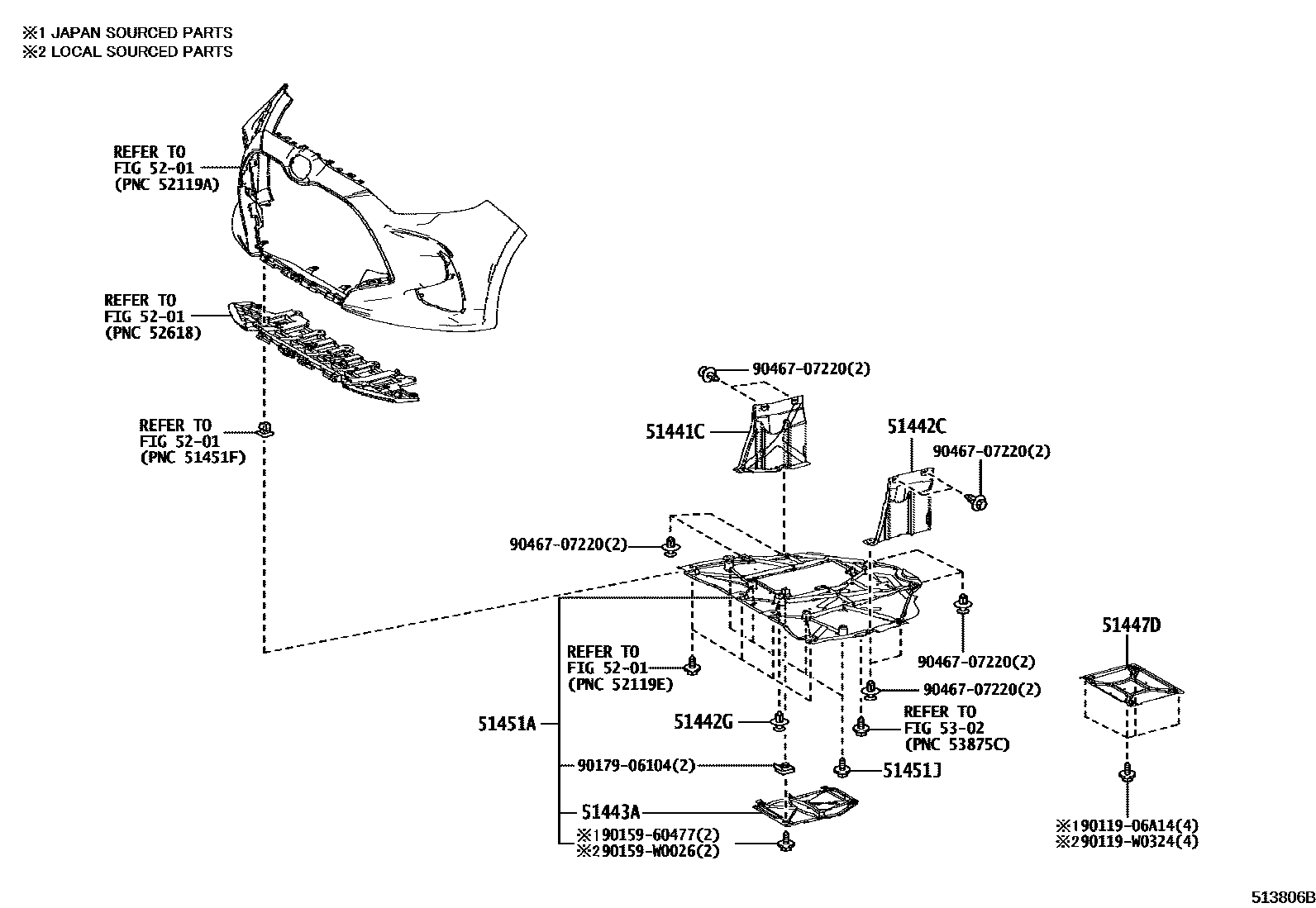

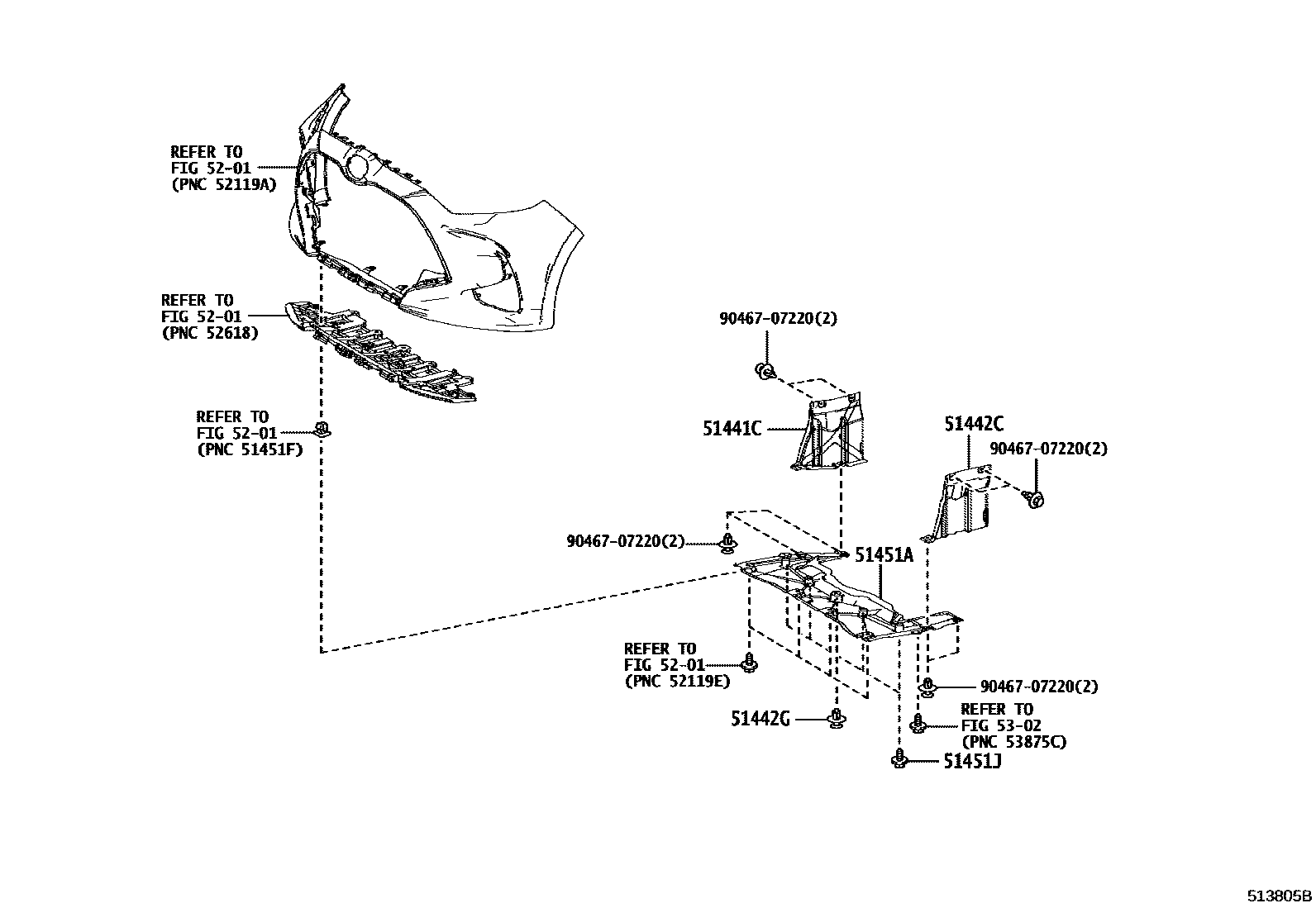

Toyota YARIS EPC diagram 5102, 悬架横梁和发动机底罩, with 4 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

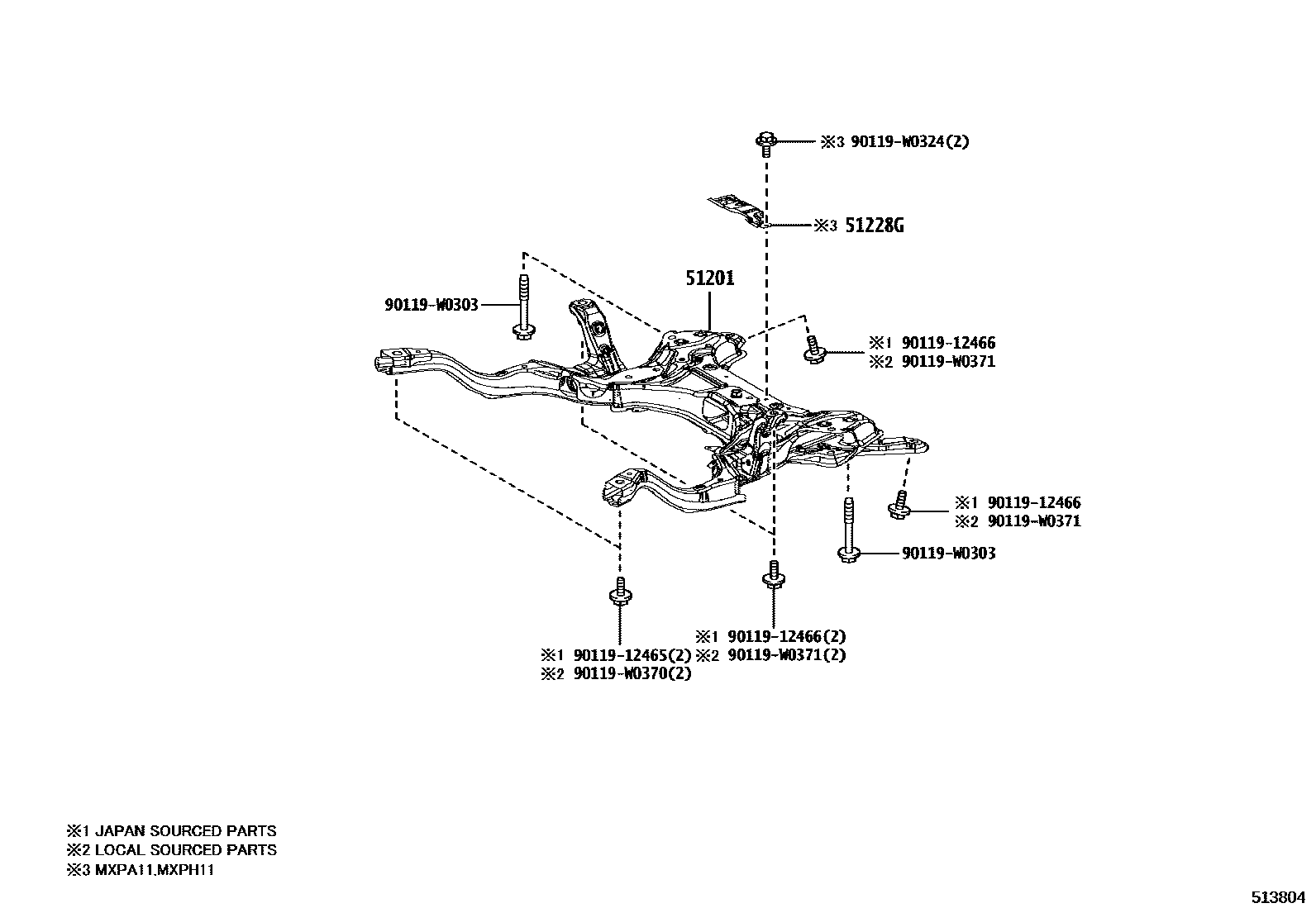

| 51201 | Front suspension cross member sub-assembly | 51201-0D280 · 51201-0D290 · 51201-K0010 · 51201-K0020 · 51201-K0021 |
| 51228G | PLAQUE LONGERON SUSPENSION AVANT | 51228-0D080 |
| 51441C | Engine right bottom cover | 51441-K0050 |
| 51442C | Engine left bottom cover | 51442-K0050 |
| 51442G | No. 1 engine bottom cover clip | 90467-07220 |
| 51443A | Engine rear bottom cover | 51443-K0050 |
| 51447D | No. 4 engine center bottom cover | 51447-K0010 |
| 51451A | Engine center cover | 51410-K0050 · 51451-K0060 |
| 51451J | BOULON, NO.1 | 90119-06A13 · 90119-W0323 |
| 57627G | COUVERCLE DE MEMBRE LATERAL DROIT DE PLANCHER AR | 57627-K0010 |
| 57628E | Rear floor left longitudinal member cover | 57628-K0010 · 57628-K0020 |
| 58165C | Front floor right cover | 58165-K0010 |
| 58166A | Front floor left cover | 58166-K0010 |
| 58415Q | PANNEAU, PLANCHER ARR., NO.1 | 58415-K0010 |
