Toyota YARIS Rear Spring & Shock Absorber — Figure 4804

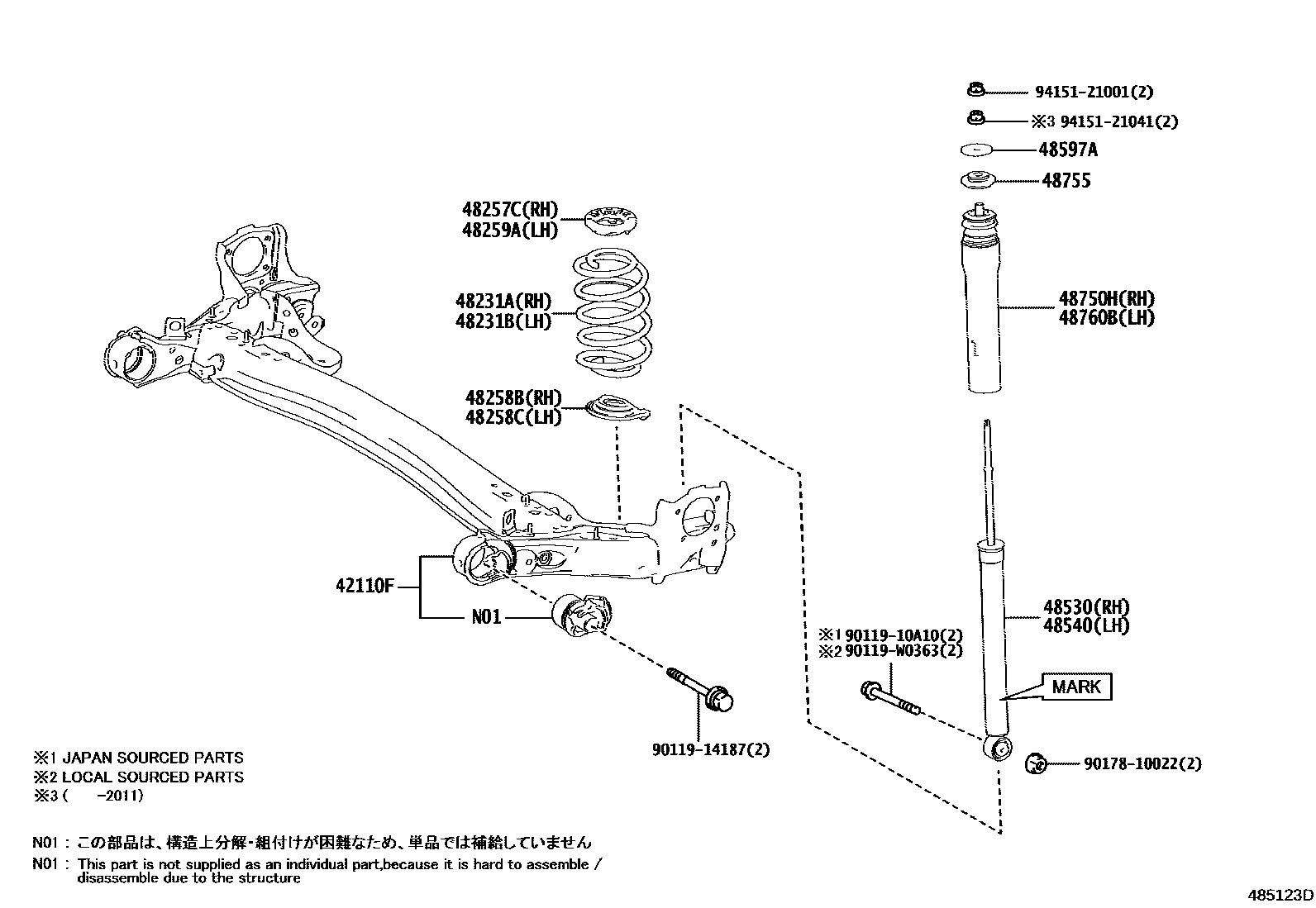

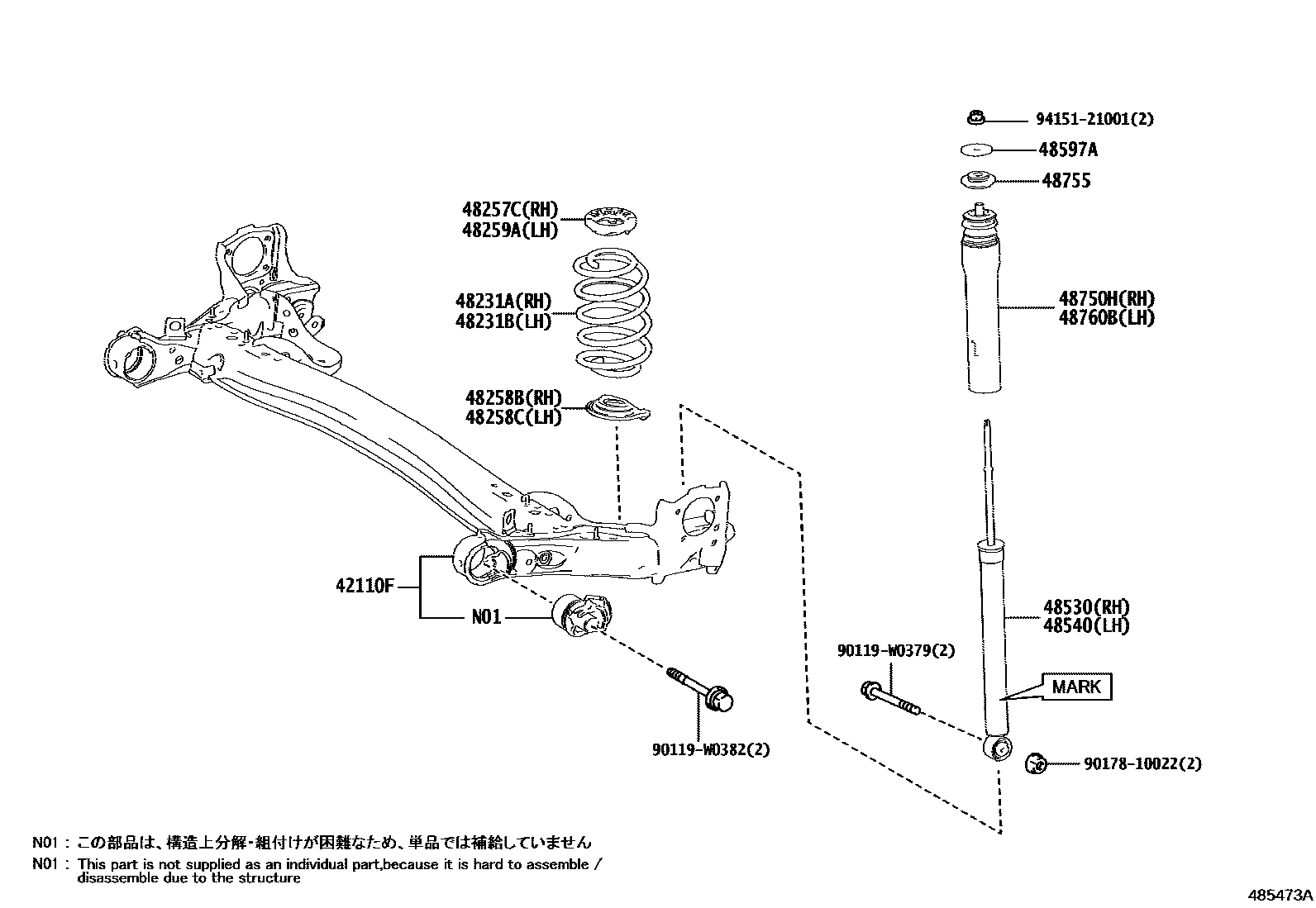

Toyota YARIS EPC diagram 4804, Rear Spring & Shock Absorber, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42110F | rear axle assembly | 42110-K0020 · 42110-K0030 |
| 48231A | Right rear coil spring | 48231-0DC00 · 48231-0DC10 · 48231-K0070 · 48231-K0080 · 48231-K0090 · 48231-K0120 · 48231-K0130 · 48231-K0140 |
| 48231B | Left rear coil spring | 48231-0DC00 · 48231-0DC10 · 48231-K0070 · 48231-K0080 · 48231-K0090 · 48231-K0120 · 48231-K0130 · 48231-K0140 |
| 48257C | Right rear coil spring upper vibration isolation pad | 48257-0D010 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-K0030 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-K0030 |
| 48259A | Left rear coil spring upper vibration isolation pad | 48257-0D010 |
| 48530 | Right rear shock absorber assembly | 48530-0DJ40 · 48530-0DJ50 · 48530-0DJ70 · 48530-0DJ90 · 48530-0DK10 · 48530-K0070 · 48530-K0080 · 48530-K0090 · 48530-K0120 |
| 48540 | Left rear shock absorber assembly | 48530-0DJ40 · 48530-0DJ50 · 48530-0DJ70 · 48530-0DJ90 · 48530-0DK10 · 48530-K0070 · 48530-K0080 · 48530-K0090 · 48530-K0120 |
| 48597A | Rear shock absorber buffer pad | 90201-10138 |
| 48750H | Right rear suspension support assembly | 48750-K0030 |
| 48755 | rear suspension mount | 48755-K0020 · 48755-K0021 |
| 48760B | Left rear suspension support assembly | 48750-K0030 |
