Toyota YARIS Front Spring & Shock Absorber — Figure 4803

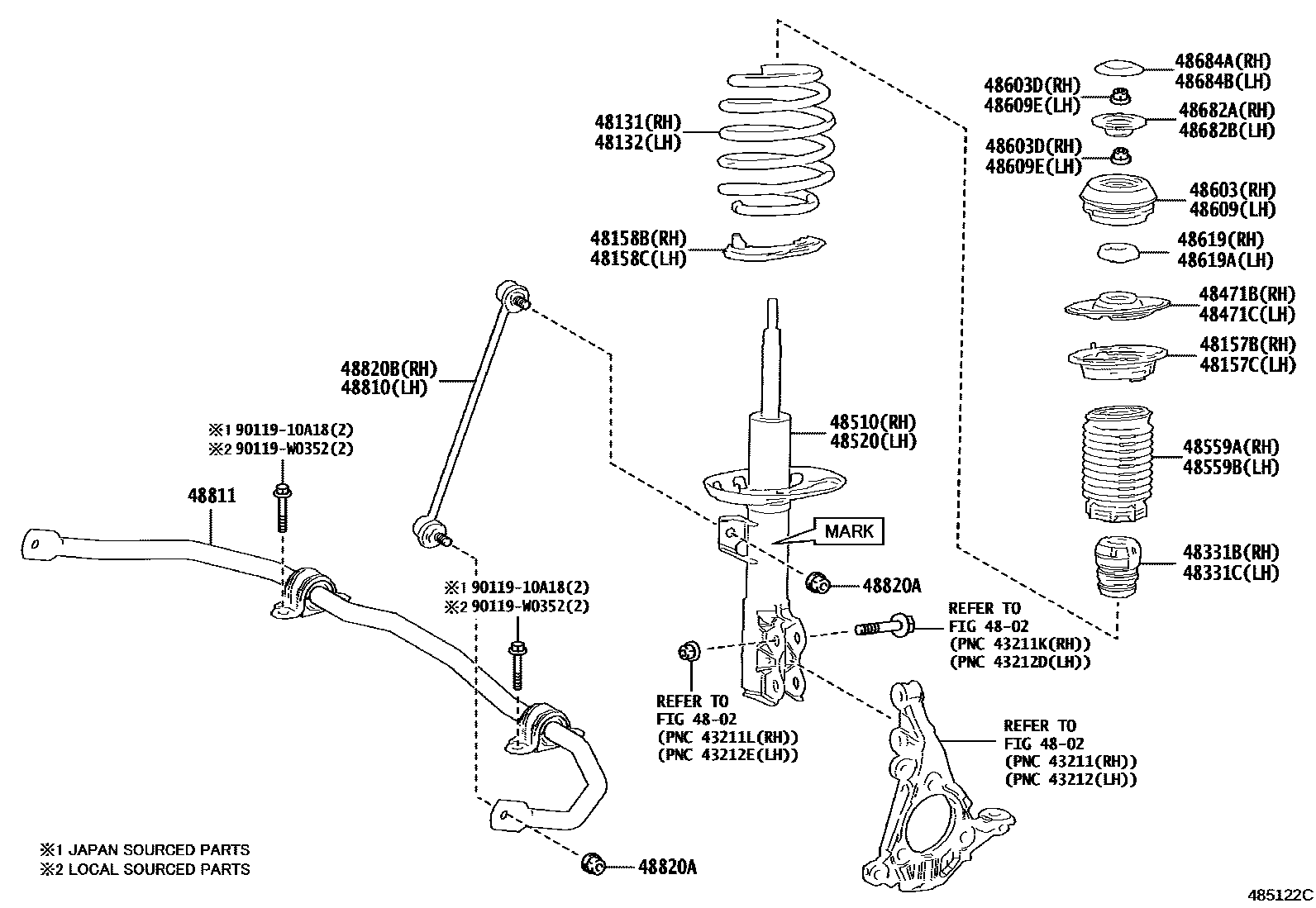

Toyota YARIS EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-0DG90 · 48131-0DJ20 · 48131-K0070 · 48131-K0080 · 48131-K0090 · 48131-K0110 · 48131-K0130 |
| 48132 | Left front coil spring | 48131-0DG90 · 48131-0DJ20 · 48131-K0070 · 48131-K0080 · 48131-K0090 · 48131-K0110 · 48131-K0130 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-K0020 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-K0020 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-K0020 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-K0020 |
| 48331B | Right front spring buffer block | 48331-0D240 · 48331-K0030 |
| 48331C | Left front spring buffer block | 48331-0D240 · 48331-K0030 |
| 48471B | Front coil spring upper right seat | 48471-K0020 |
| 48471C | Front coil spring upper left seat | 48471-K0020 |
| 48510 | Right front shock absorber assembly | 48510-0DF30 · 48510-0DG90 · 48510-0DJ40 · 48510-0DJ60 · 48510-K0070 · 48510-K0080 · 48510-K0090 · 48510-K0120 |
| 48520 | Left front shock absorber assembly | 48520-0D480 · 48520-0D640 · 48520-0D660 · 48520-0D680 · 48520-K0070 · 48520-K0080 · 48520-K0090 · 48520-K0120 |
| 48559A | Right front shock absorber No. 1 dust cover | 48559-K0020 |
| 48559B | Left front shock absorber No. 1 dust cover | 48559-K0020 |
| 48603 | Right front suspension bearing sub-assembly | 48609-K0021 |
| 48603D | Nut (for front mount to right front shock absorber) | 90178-W0015 · 90179-12145 |
| 48609 | Left front suspension bearing sub-assembly | 48609-K0021 |
| 48609E | Nut (for front mount to left front shock absorber) | 90178-W0015 · 90179-12145 |
| 48619 | Bearing installed on the right sliding column | 48619-K0010 |
| 48619A | Bearing installed on the left sliding column | 48619-K0010 |
| 48682A | No. 2 right front suspension support | 48682-K0020 |
| 48682B | No. 2 left front suspension support | 48682-K0020 |
| 48684A | Right front suspension support dust cover | 48684-K0010 |
| 48684B | Left front suspension support dust cover | 48684-K0010 |
| 48810 | Left front stabilizer bar link assembly | 48820-K0010 |
| 48811 | front stabilizer bar | 48804-K0030 |
| 48820A | Nut (for front stabilizer bar link) | 90178-W0051 |
| 48820B | Right front stabilizer bar link assembly | 48820-K0010 |
