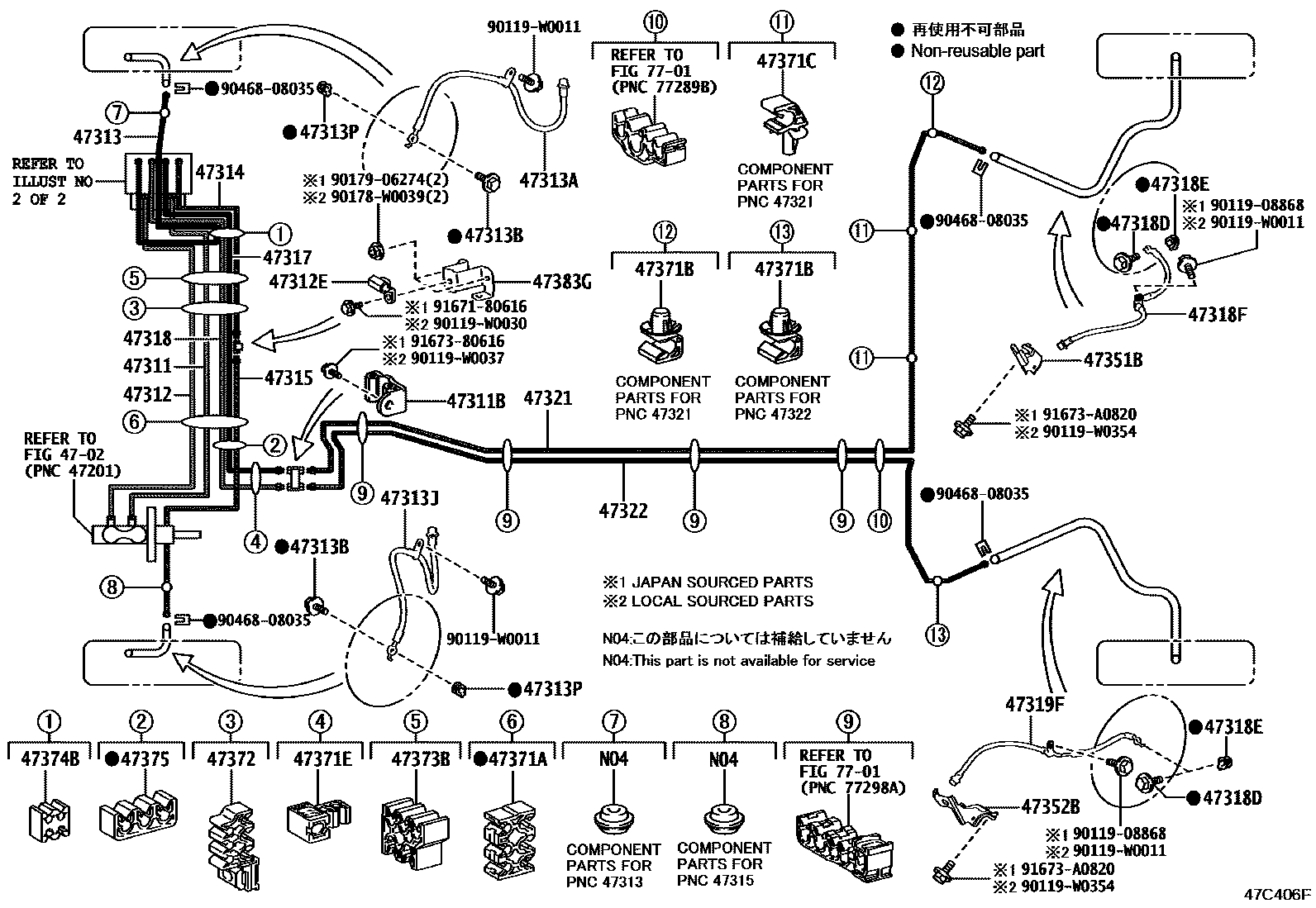

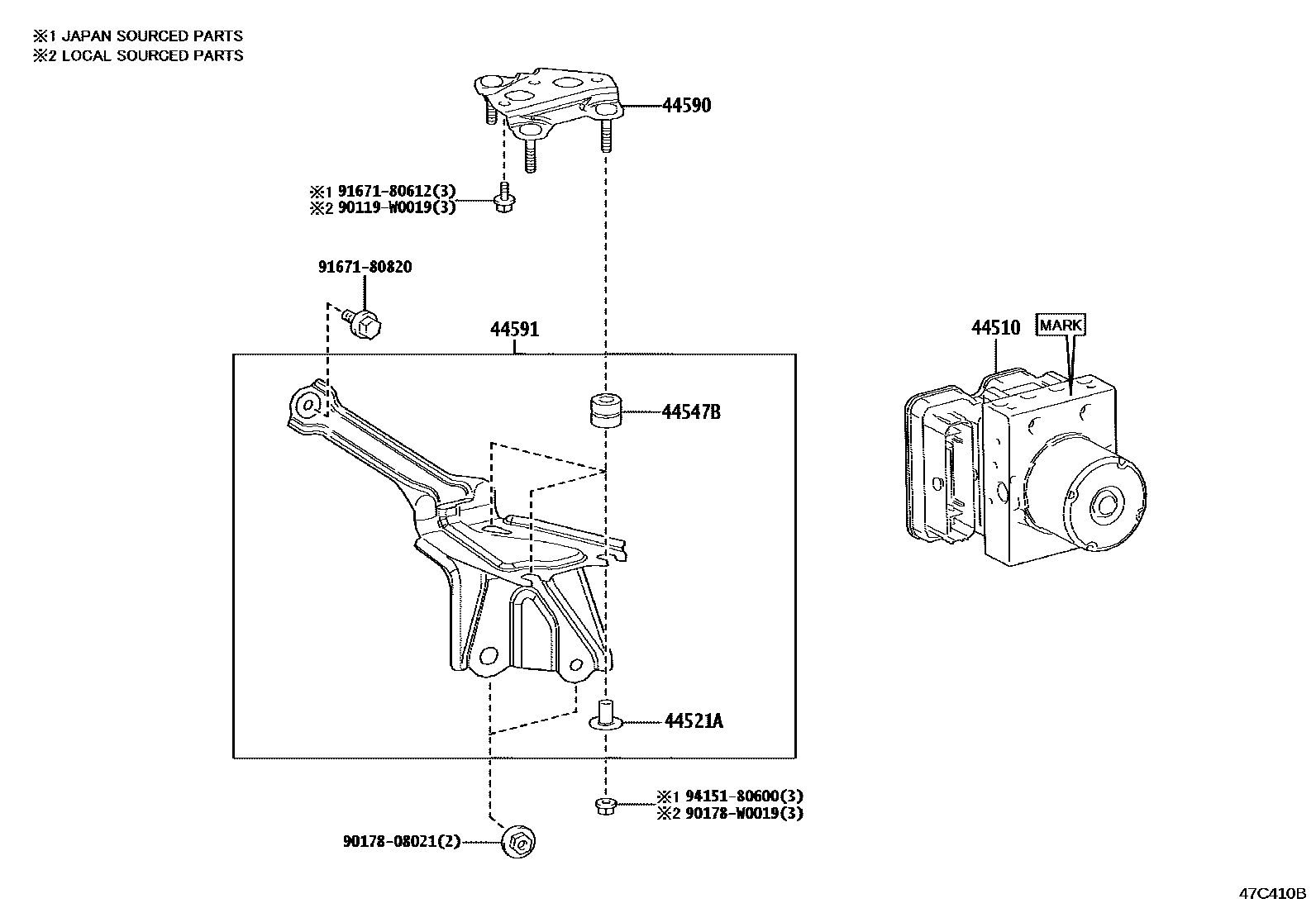

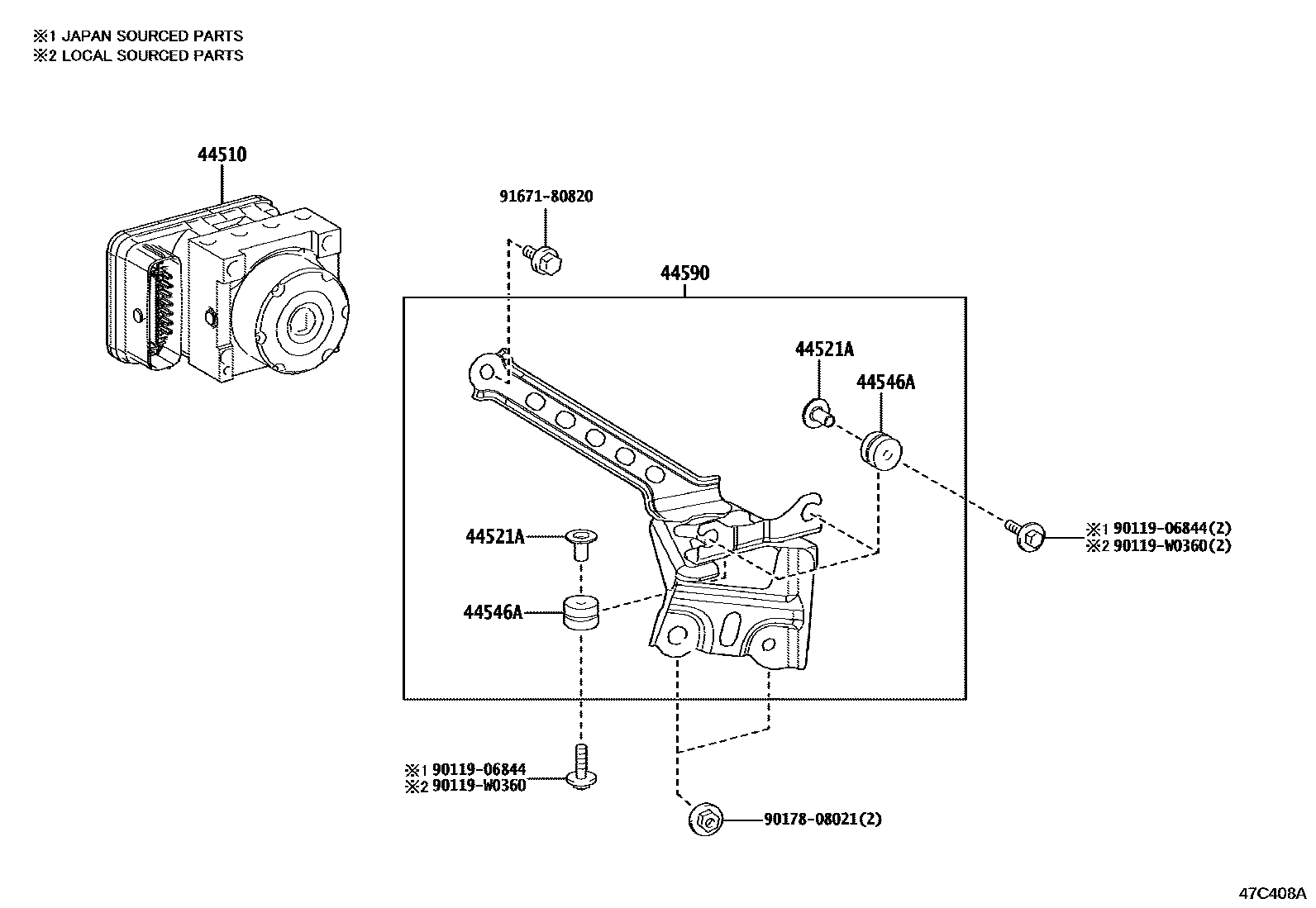

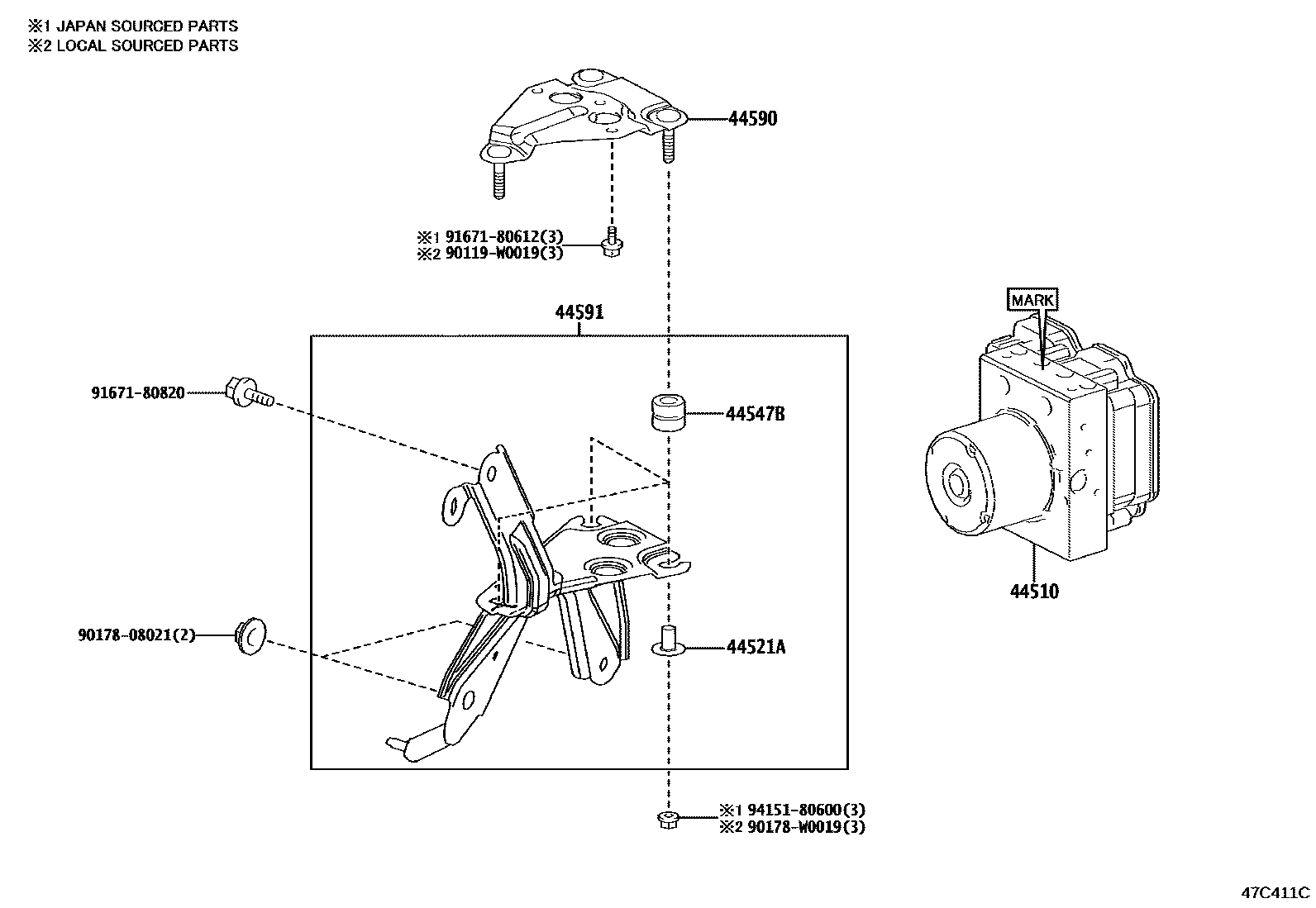

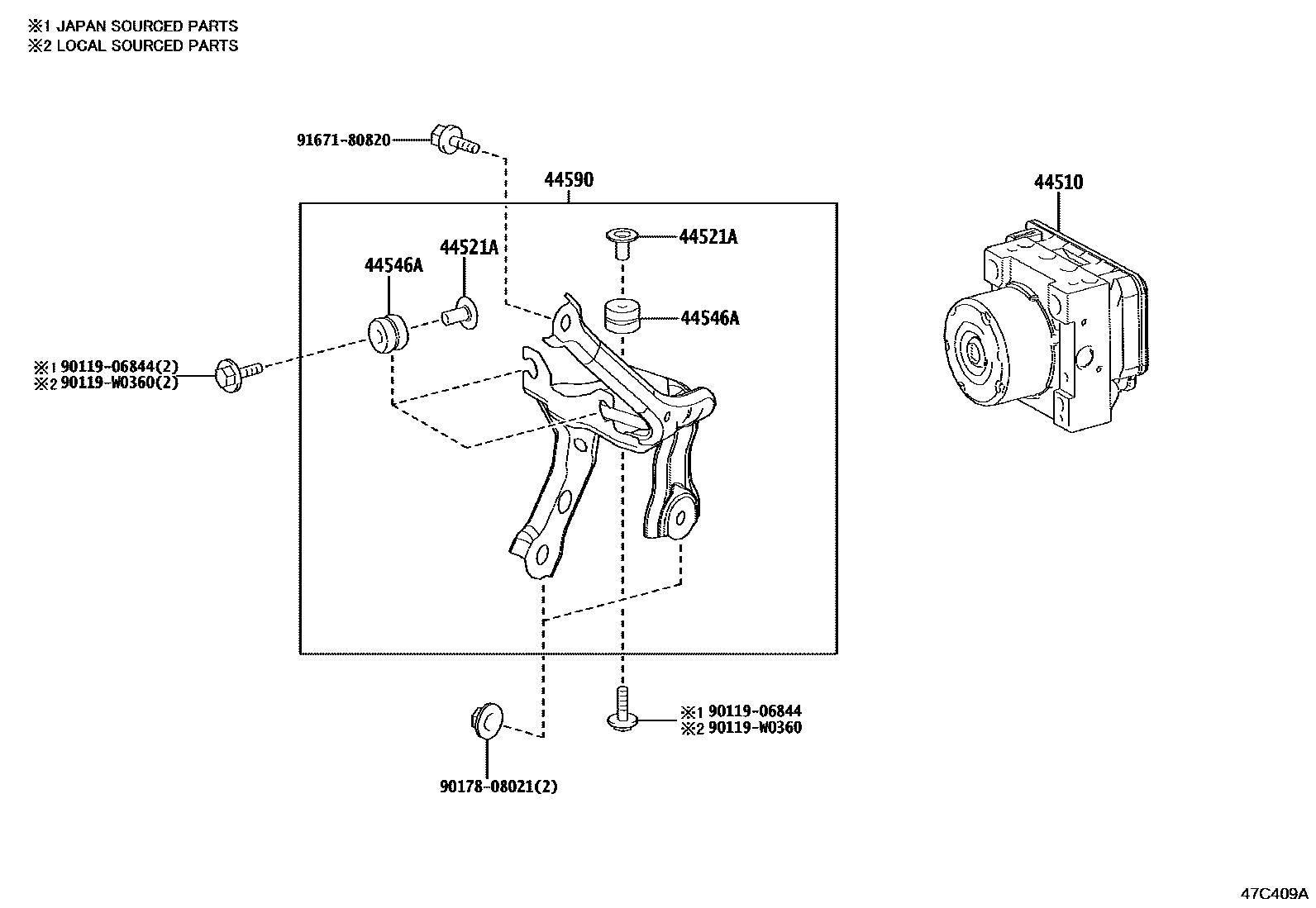

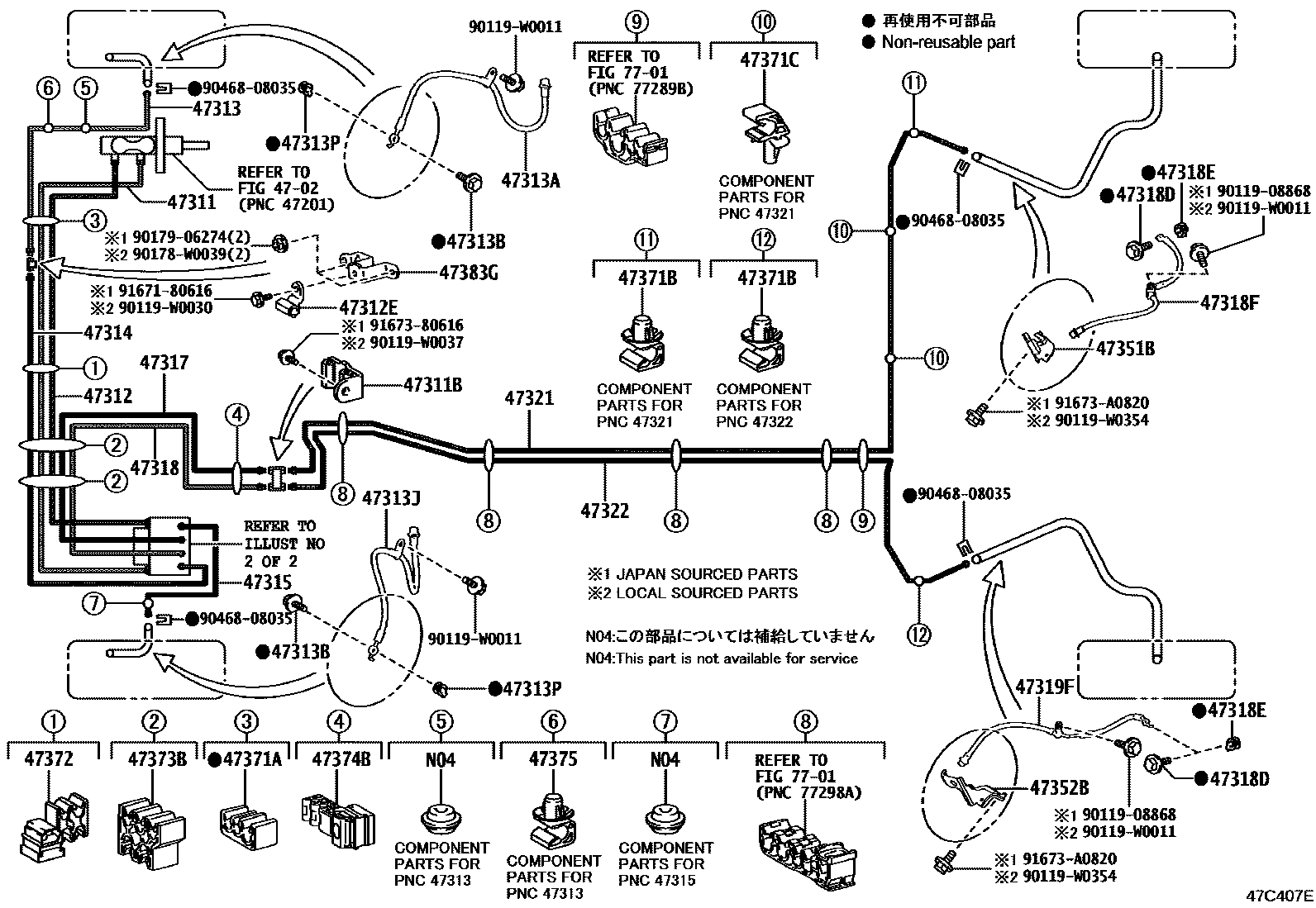

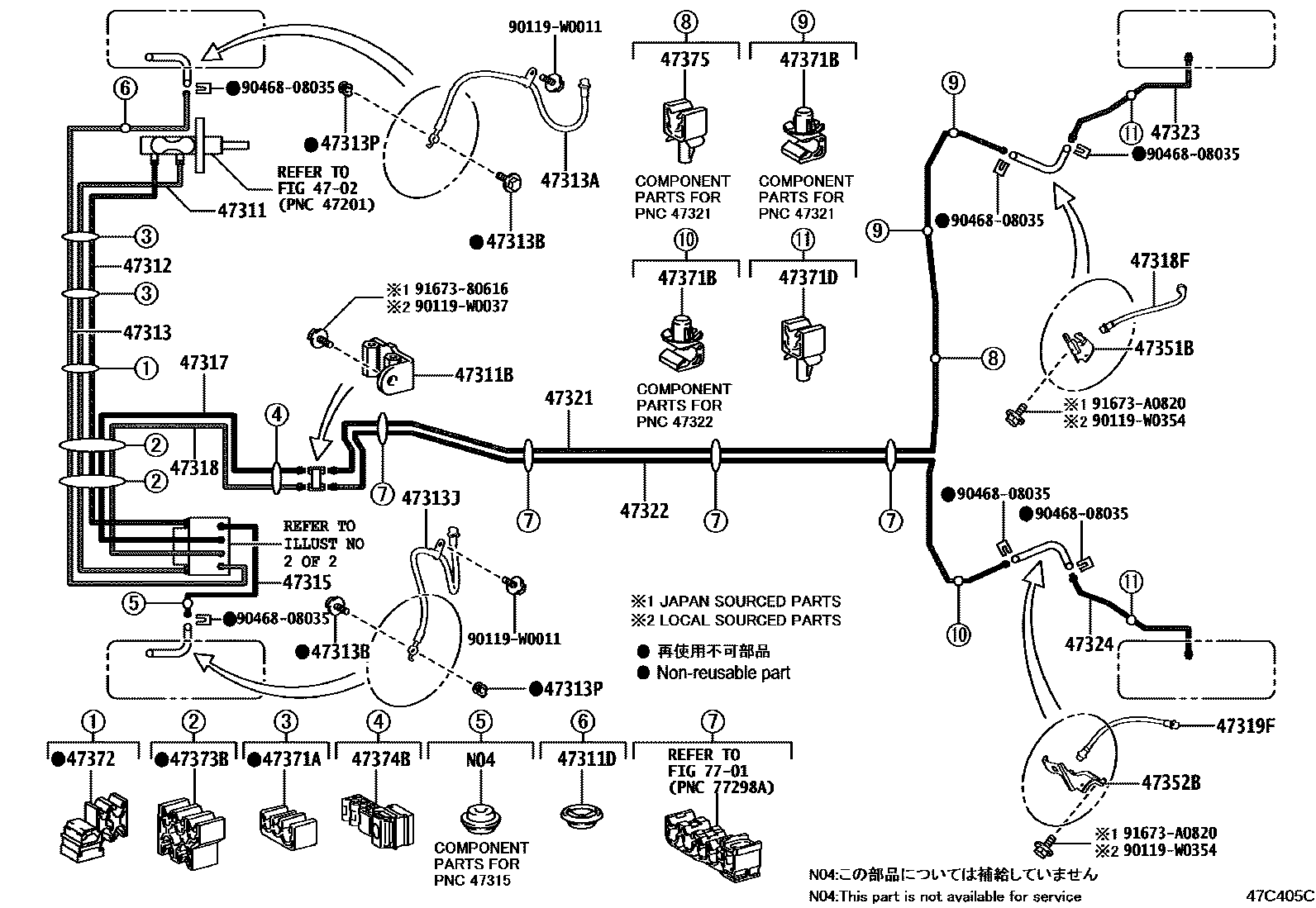

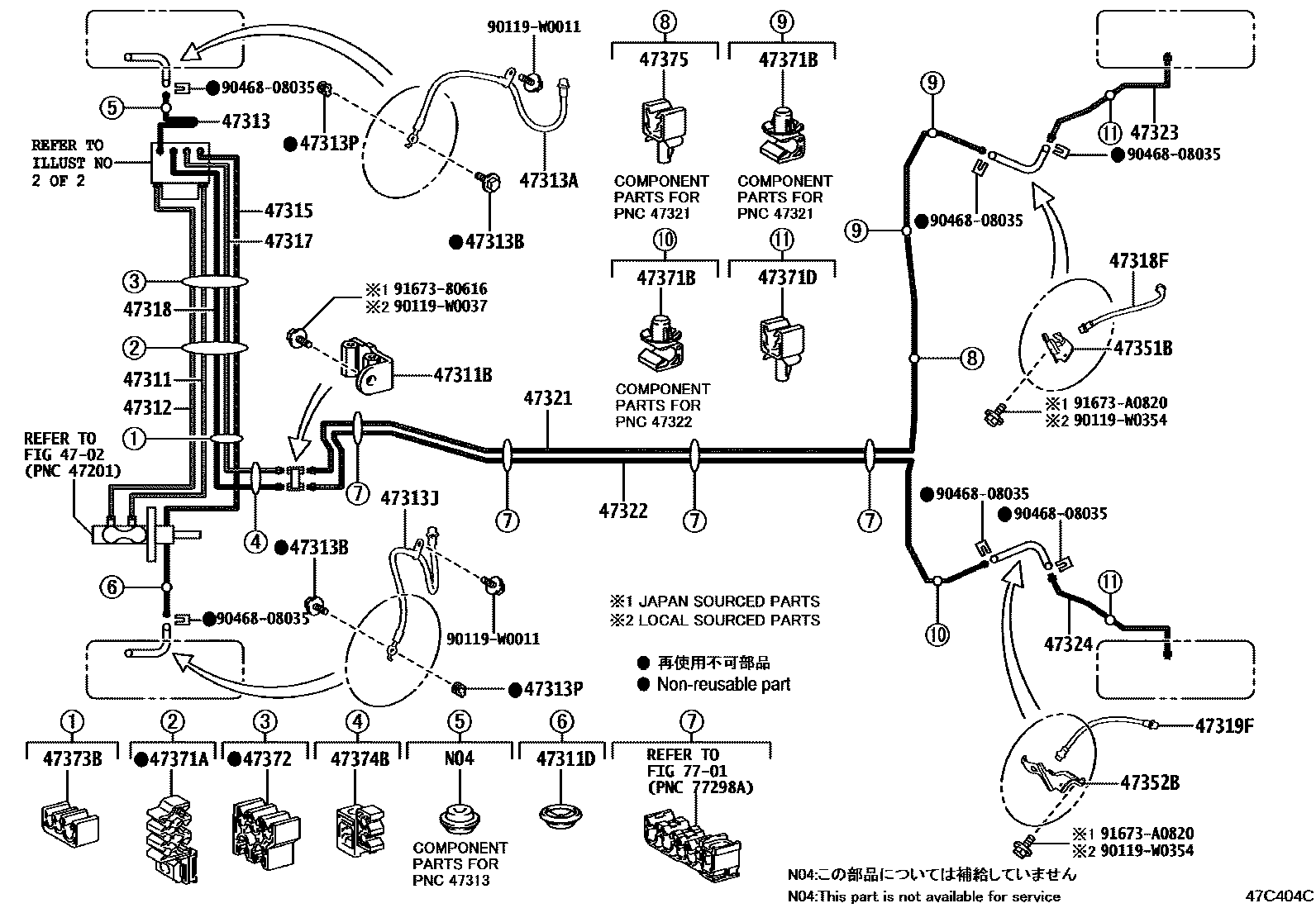

Toyota YARIS 制动配管和卡箍 — Figure 4708
Toyota YARIS EPC diagram 4708, 制动配管和卡箍, with 8 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-0DE60 · 44050-0DF50 · 44050-0DF60 · 44050-0DF70 · 44050-0DF80 · 44050-0DF90 · 44050-0DG10 · 44050-0DG30 · 44050-0DG32 · 44050-0DG40 · 44050-0DG41 · 44050-0DG42 · 44050-0DG50 · 44050-0DG52 · 44050-0DG60 · 44050-0DG61 · 44050-0DG62 · 44050-0DK20 · 44050-0DK30 · 44050-0DK40 · 44050-0DK50 · 44050-0DL40 · 44050-K0070 · 44050-K0071 · 44050-K0110 · 44050-K0111 · 44050-K0160 · 44050-K0161 · 44050-K0180 · 44050-K0181 · 44050-K0190 · 44050-K0191 · 44050-K0250 · 44050-K0251 |
| 44521A | COLLIER, BOITIER ACTIONNEUR FREIN, NO.1 | 44521-0D020 |
| 44546A | Brake actuator bolt cushion | 44546-12120 |
| 44547B | brake actuator bracket cushion | 44547-K0010 |
| 44590 | Brake actuator bracket assembly | 44590-K0040 · 44590-K0050 · 44590-K0060 · 44590-K0070 |
| 44591 | No. 1 brake actuator bracket | 44591-0D480 · 44591-K0030 · 44591-K0040 |
| 47311 | No. 1 front brake pipe | 47311-K0030 · 47311-K0050 · 47311-K0080 · 47311-K0100 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10317 |
| 47311D | Seal (for front brake pipe) | 90480-25037 |
| 47312 | No. 2 front brake pipe | 47312-K0030 · 47312-K0050 · 47312-K0080 · 47312-K0100 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90412-10272 |
| 47313 | No. 3 front brake pipe | 47313-0DA30 · 47313-K0010 · 47313-K0030 · 47313-K0070 · 47313-K0080 |
| 47313A | No. 1 front flexible hose | 90947-W2055 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-W2056 |
| 47313P | Gasket (for front flex hose) | 47389-50021 |
| 47314 | No. 4 front brake pipe | 47314-K0010 · 47314-K0020 |
| 47315 | No. 5 front brake pipe | 47315-0DA30 · 47315-K0010 · 47315-K0030 · 47315-K0070 · 47315-K0080 |
| 47317 | No. 7 front brake pipe | 47317-K0010 · 47317-K0030 · 47317-K0070 · 47317-K0080 |
| 47318 | No. 8 front brake pipe | 47318-K0010 · 47318-K0030 · 47318-K0070 · 47318-K0080 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50021 |
| 47318F | Right rear flexible hose | 90947-W2057 · 90947-W2059 |
| 47319F | Left rear flexible hose | 90947-W2058 · 90947-W2059 |
| 47321 | No. 1 rear brake pipe | 47321-0D490 · 47321-0D520 |
| 47322 | No. 2 rear brake pipe | 47322-0D520 |
| 47323 | No. 3 rear brake pipe | 47323-0D390 · 47323-K0020 |
| 47324 | No. 4 rear brake pipe | 47324-0D390 · 47324-K0020 |
| 47351B | No. 1 Flexible Hose Bracket | 47351-K0030 |
| 47352B | No. 2 Flexible Hose Bracket | 47352-K0030 |
| 47371A | No. 1 brake pipe clamp | 90949-01E31 · 90949-01E43 · 90949-01E44 |
| 47371B | No. 6 brake pipe clamp | 90949-01D17 |
| 47371C | No. 7 brake pipe clamp | 90949-01E10 |
| 47371D | No. 8 brake pipe clamp | 90949-01E01 |
| 47371E | No. 9 brake pipe clamp | 90949-01E33 |
| 47372 | No. 2 brake pipe clamp | 90949-01E30 · 90949-01E31 · 90949-01E40 |
| 47373B | No. 3 brake pipe clamp | 90949-01D92 · 90949-01E40 |
| 47374B | No. 4 brake pipe clamp | 90464-00957 · 90949-01E62 · 90949-01E75 |
| 47375 | No. 5 brake pipe clamp | 90949-01D17 · 90949-01D92 · 90949-01E01 |
| 47383G | SUPPORT, VOIE TUYAU FREIN | 47383-K0010 · 47383-K0020 |
