Toyota YARIS 制动助力器和真空管 — Figure 4703

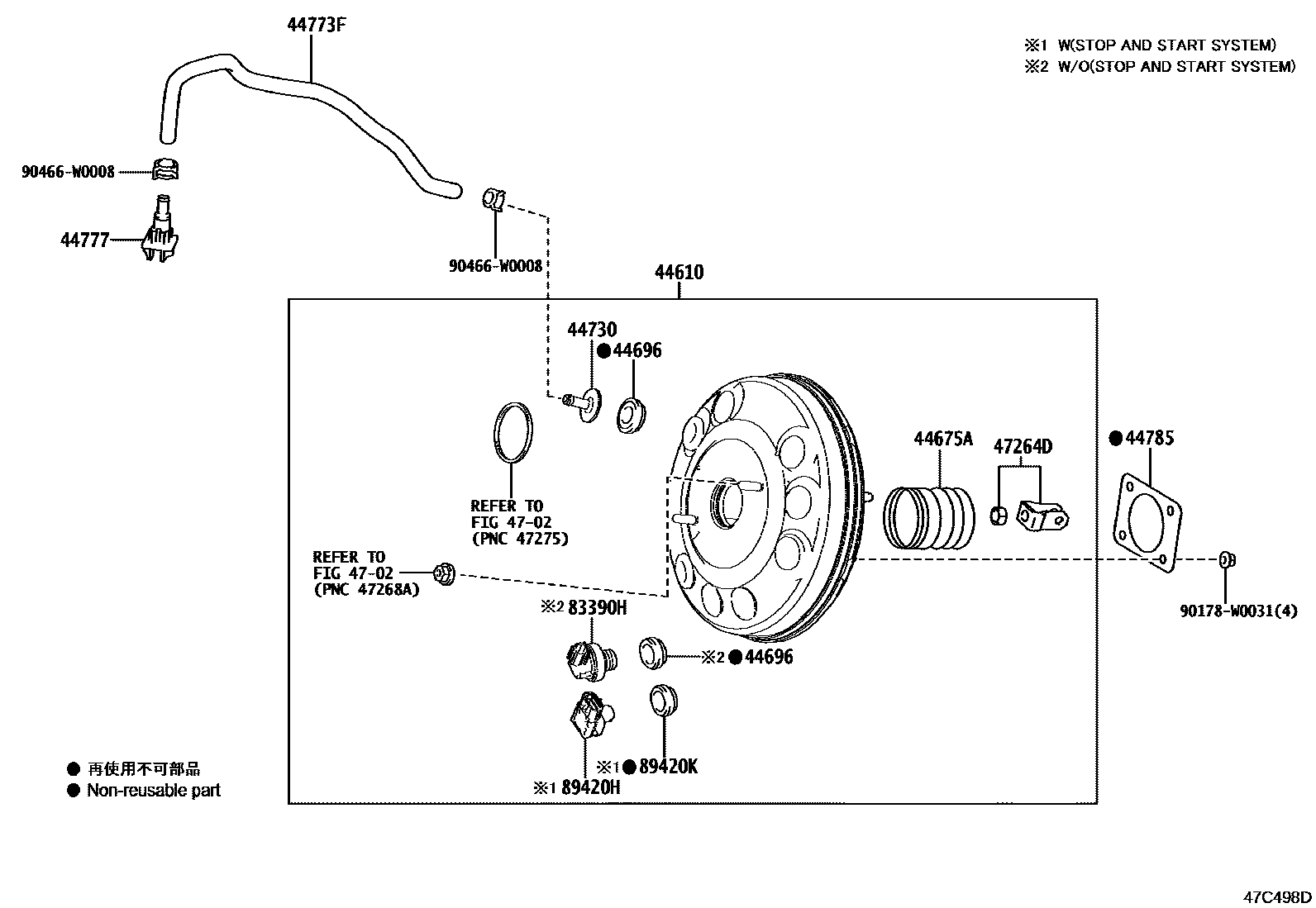

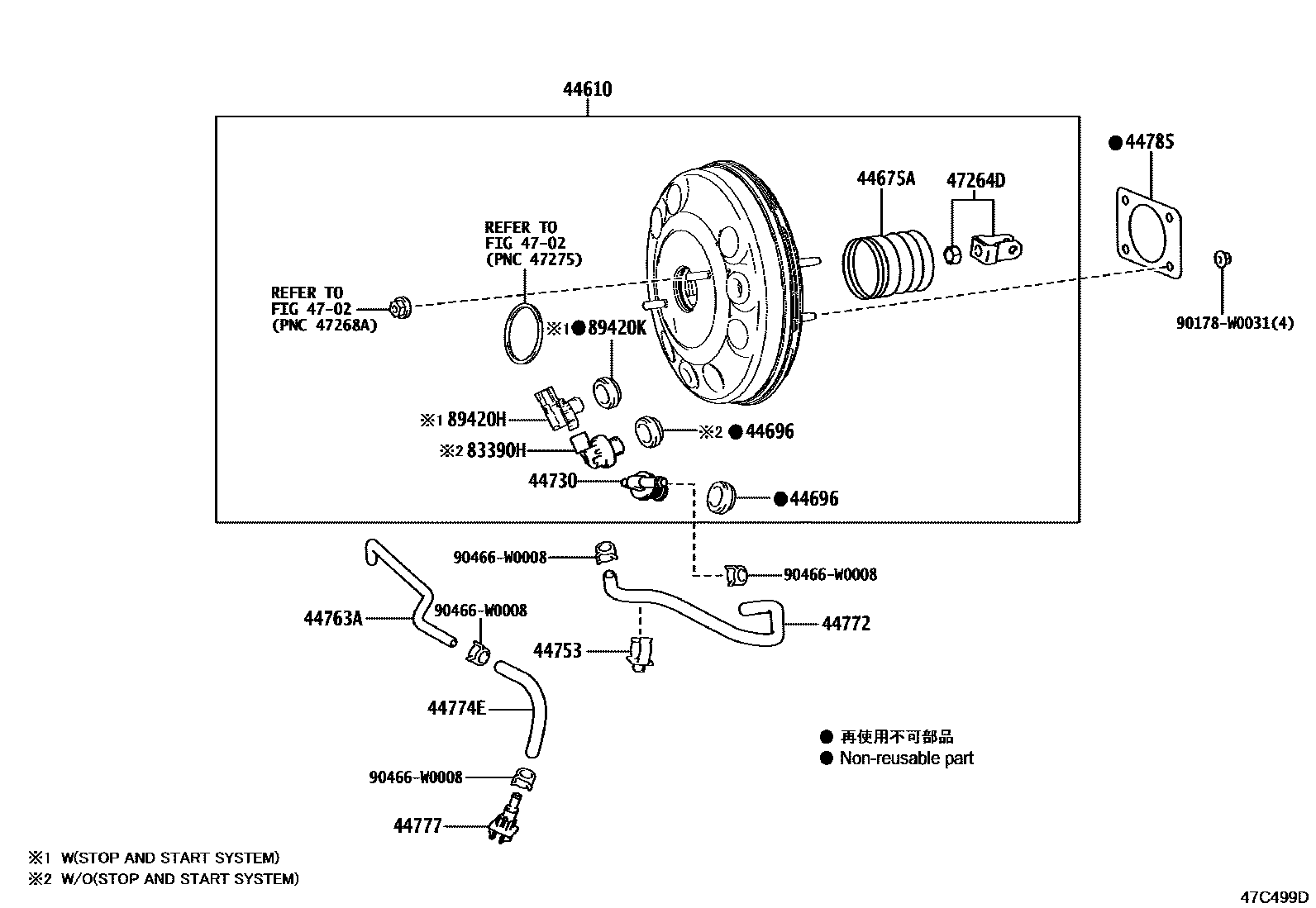

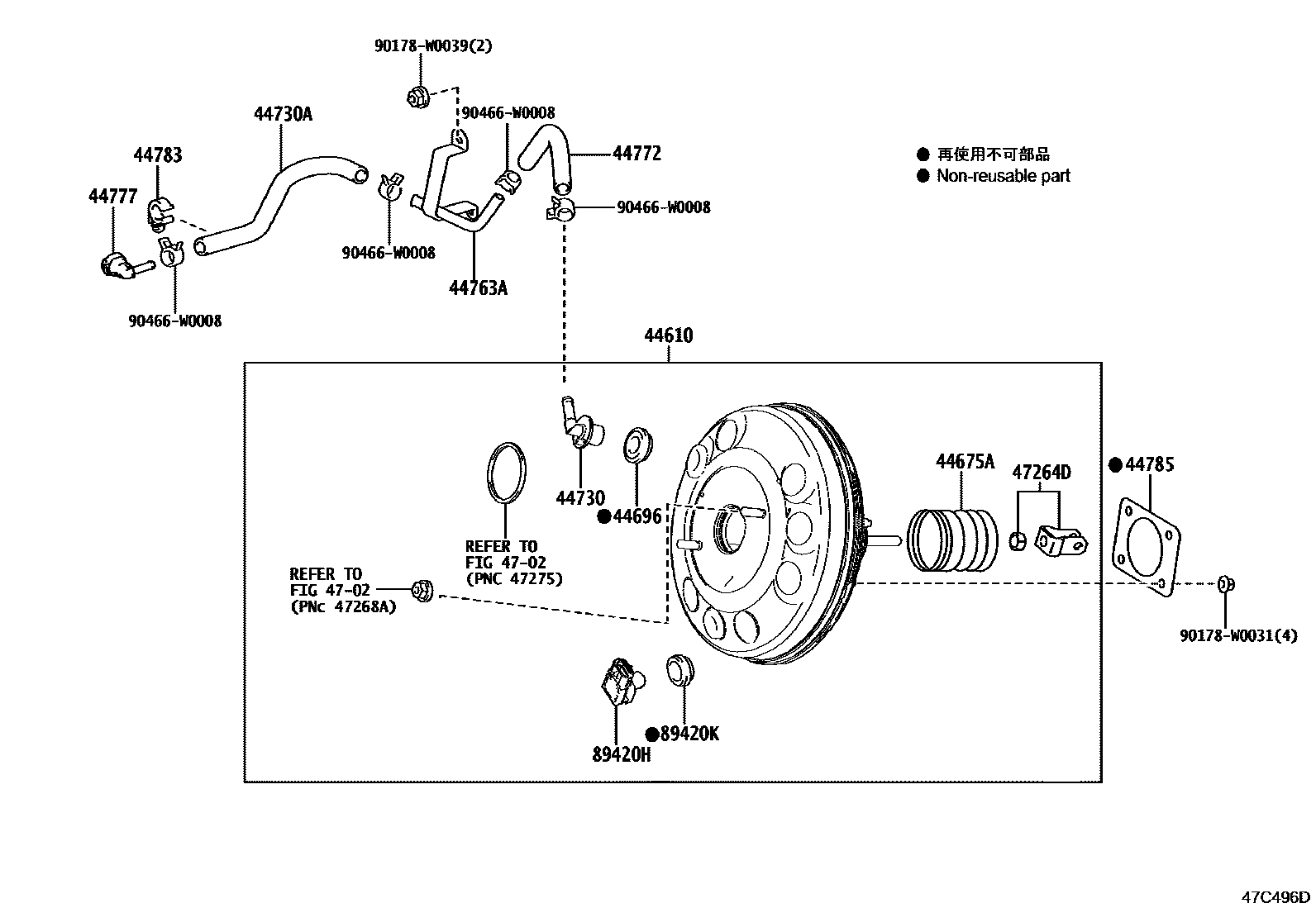

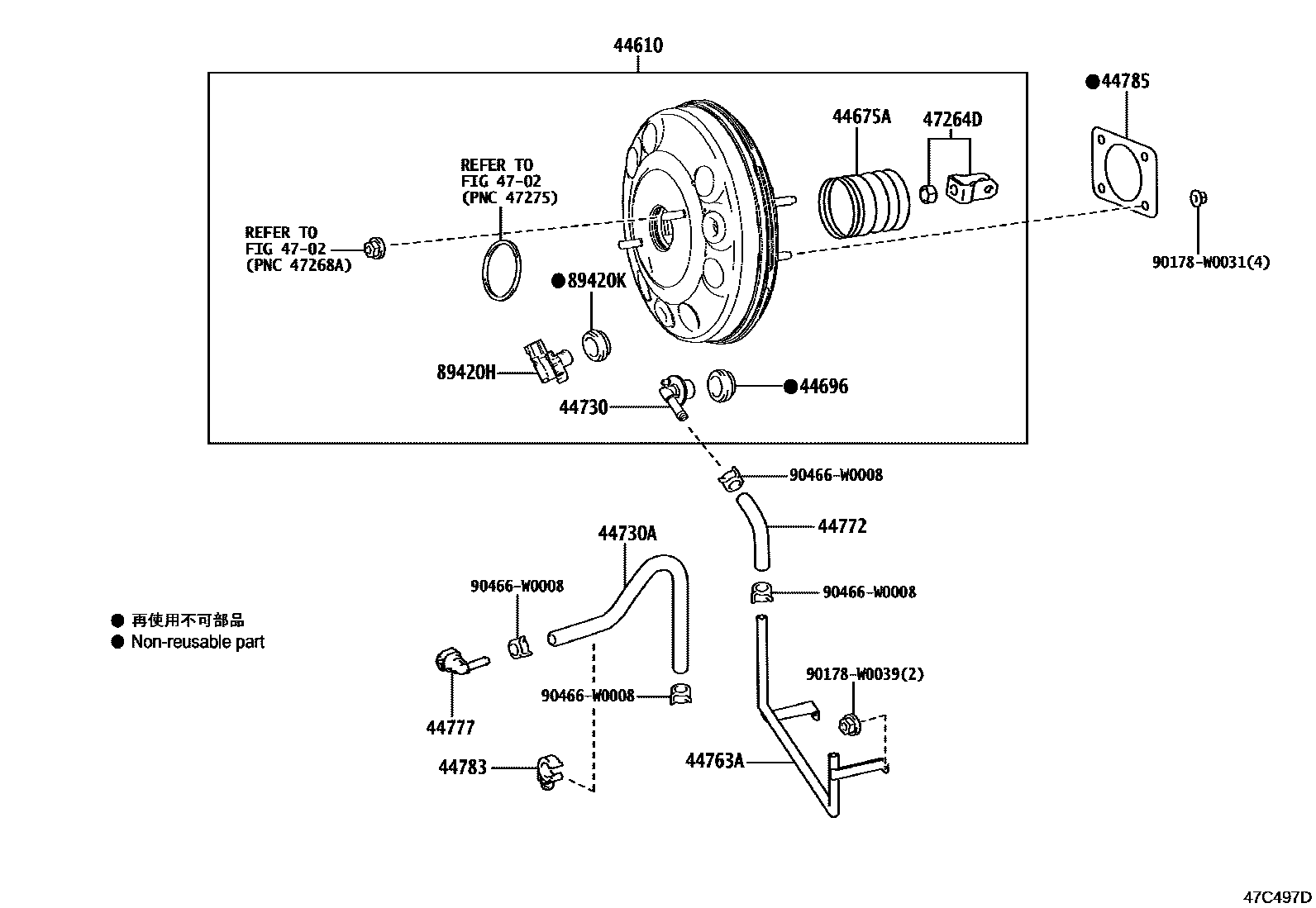

Toyota YARIS EPC diagram 4703, 制动助力器和真空管, with 4 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-K9005 · 44610-K9006 · 44610-K9015 · 44610-K9016 · 44610-K9025 · 44610-K9035 · 44610-K9036 · 44610-K9045 · 44610-K9055 · 44610-K9056 · 44610-K9065 · 44610-K9066 · 44610-K9075 · 44610-K9085 · 44610-K9086 · 44610-K9095 |
| 44675A | Brake booster dust boot | 44675-05030 |
| 44696 | One-way valve seal | 90480-24439 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-30060 · 44730-52010 |
| 44730A | No. 1 vacuum hose | 44774-K0010 · 44774-K0020 |
| 44753 | No. 2 vacuum reservoir clip | 44753-30320 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-K0010 · 44763-K0020 · 44763-K0060 |
| 44772 | Hoses (check valve to connector tube) | 44772-52350 · 44772-K0010 · 44772-K0020 |
| 44773F | Hoses (connector to check valve) | 44773-52330 |
| 44774E | Hoses (joints to connector tubes) | 44771-K0030 |
| 44777 | No. 1 Vacuum Hose Connector | 44777-K0010 · 44777-K0020 |
| 44783 | Vacuum hose clamp | 44783-K0040 |
| 44785 | brake booster pad | 44785-K0010 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47262-09010 |
| 83390H | Vacuum warning switch assembly | 83390-28120 |
| 89420H | Vacuum sensor assembly | 89421-0D010 · 89421-0D011 |
| 89420K | OEILLET, CAPTEUR DE DEPRESSION | 44692-0D020 |
