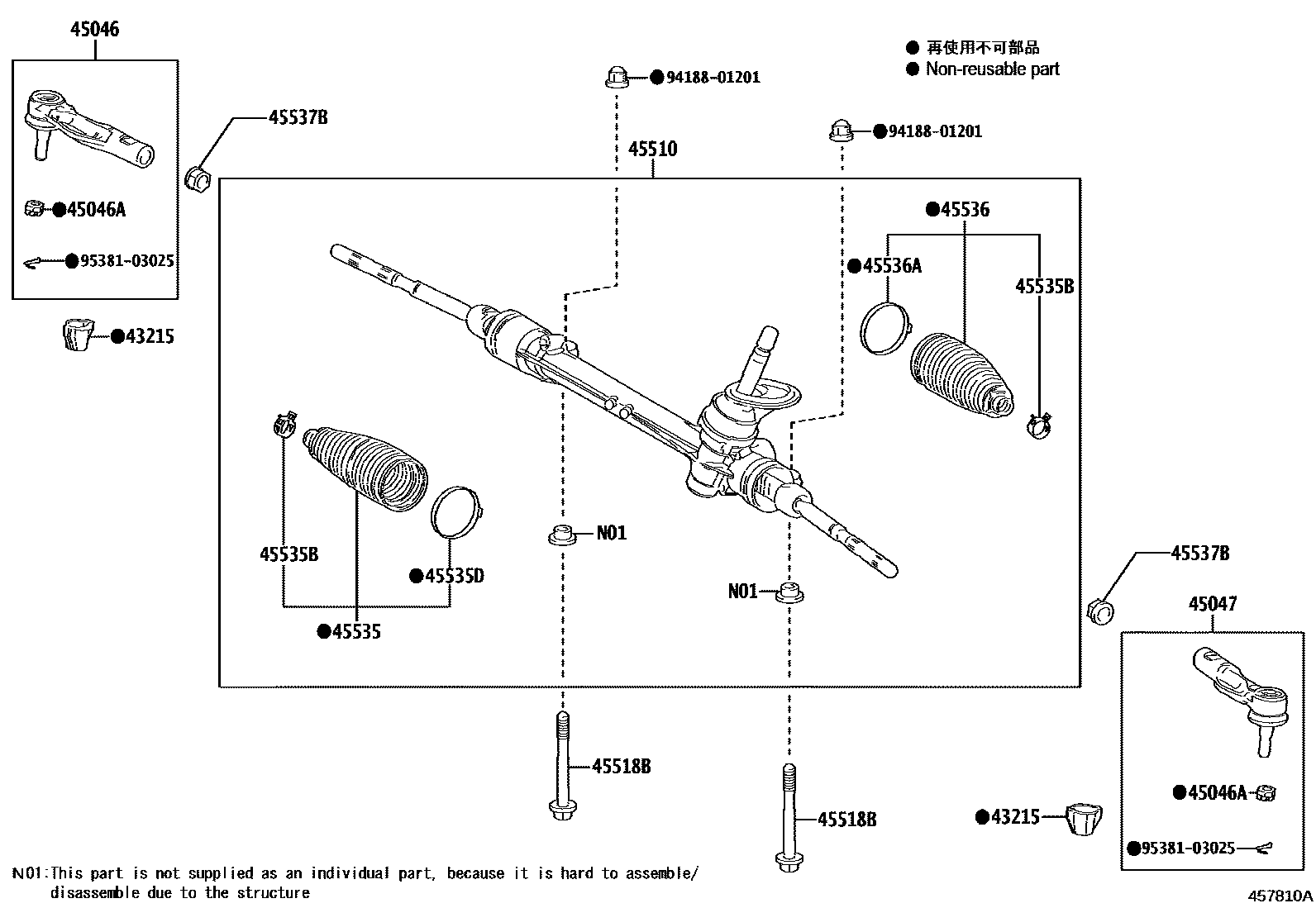

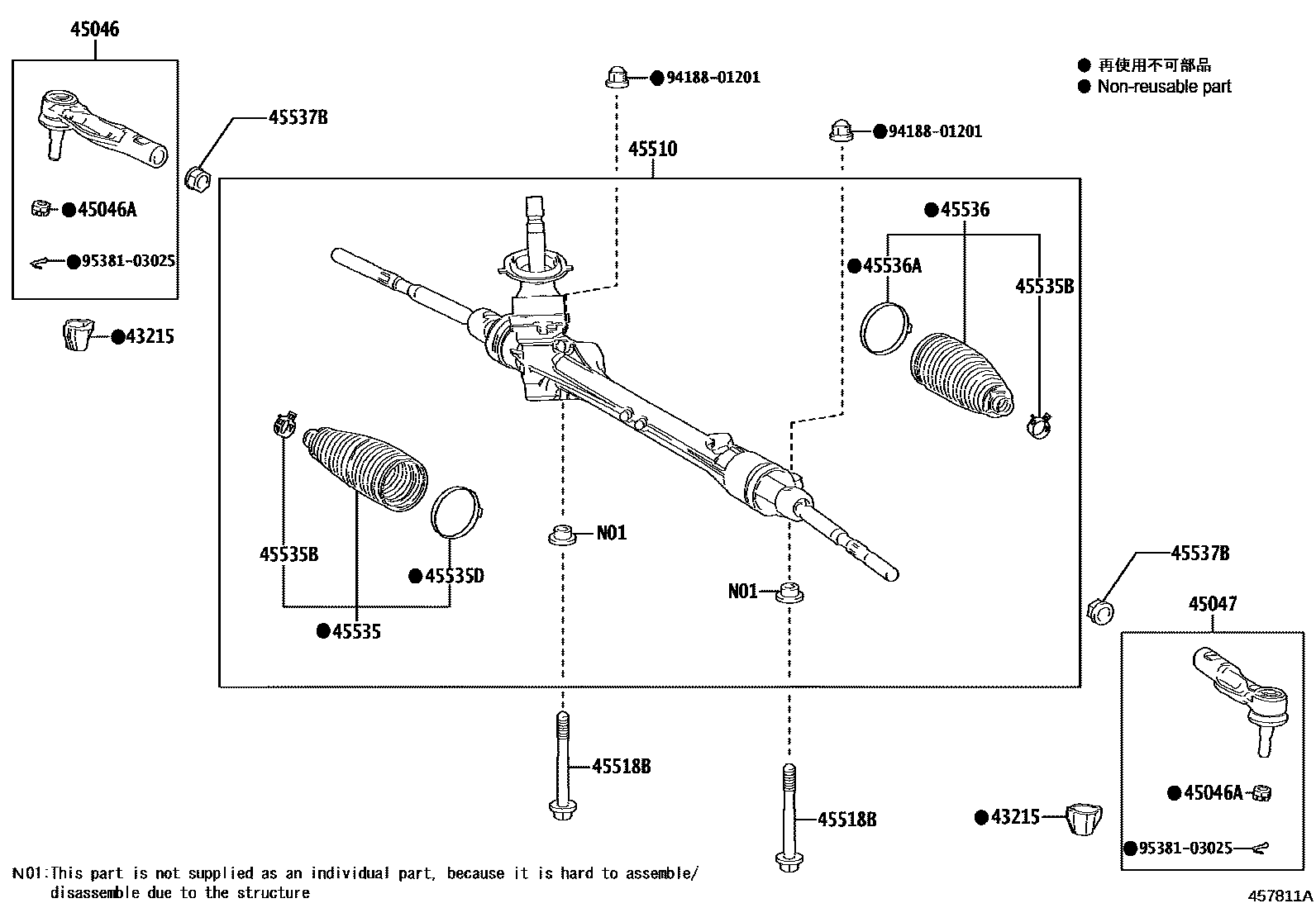

Toyota YARIS 前转向齿轮和连杆 — Figure 4505
Toyota YARIS EPC diagram 4505, 前转向齿轮和连杆, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43215 | JOINT, FUSEE DIRECTION | 43215-12010 |
| 45046 | Right tie rod end sub-assembly | 45046-09A20 · 45046-F9010 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 |
| 45047 | Left tie rod end sub-assembly | 45047-09450 · 45047-F9010 |
| 45510 | Steering gear assembly | 45510-0D640 · 45510-0D670 · 45510-0H100 · 45510-0H110 · 45510-K0040 · 45510-K0050 · 45510-K0060 · 45510-K0070 |
| 45518B | Steering rack housing bolts | 90119-12458 · 90119-W0367 |
| 45535 | No. 1 steering rack dust cover | 45535-F9010 · 45535-F9011 |
| 45535B | Clamp (for steering rack dust boot) | 45537-02010 |
| 45535D | Clamp (for No. 1 steering rack dust boot) | 45538-F4010 · 45538-F4011 |
| 45536 | No. 2 steering rack dust cover | 45535-F9010 · 45535-F9011 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 45538-F4010 · 45538-F4011 |
| 45537B | Rack end lock nut | 90178-16001 |
