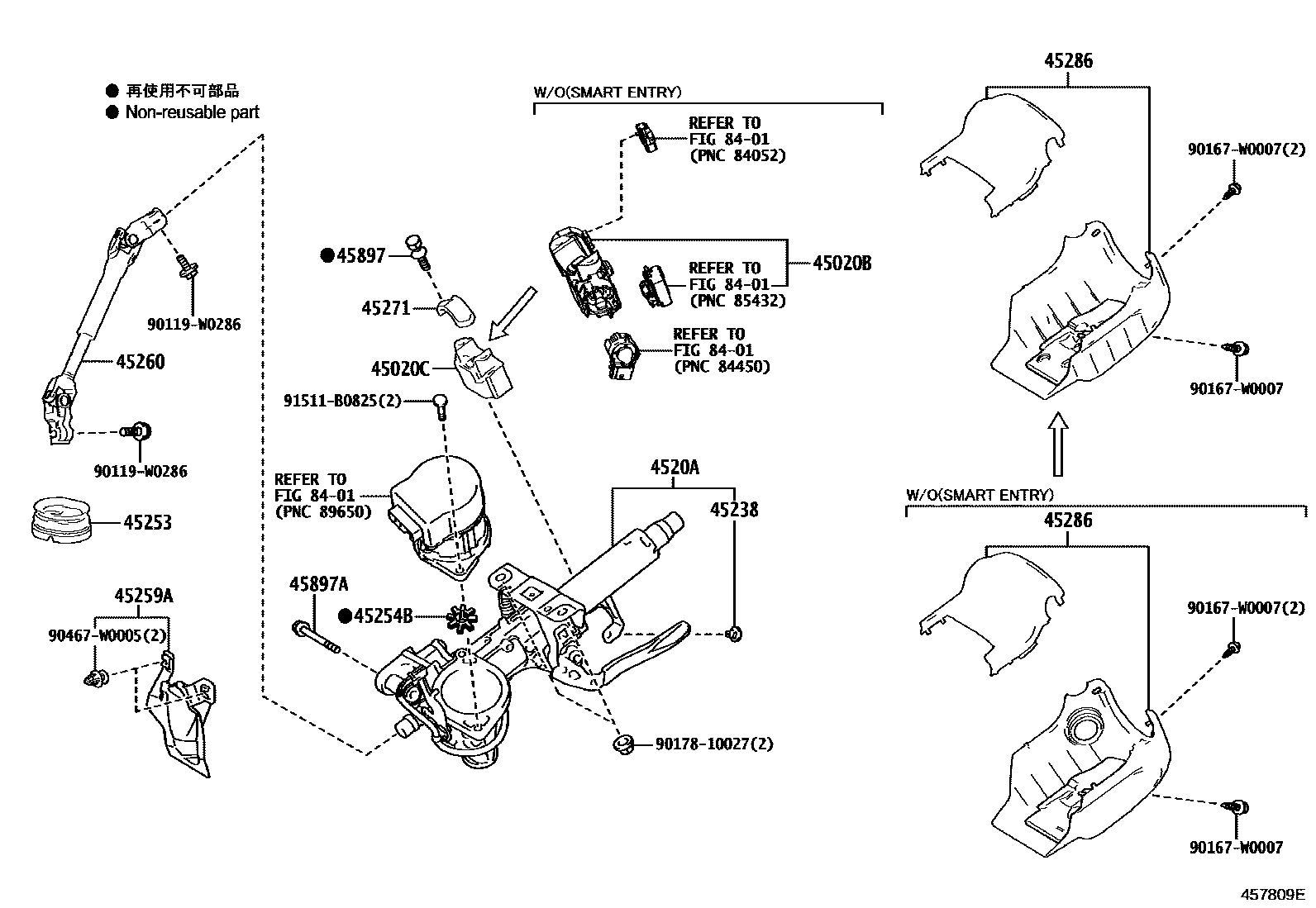

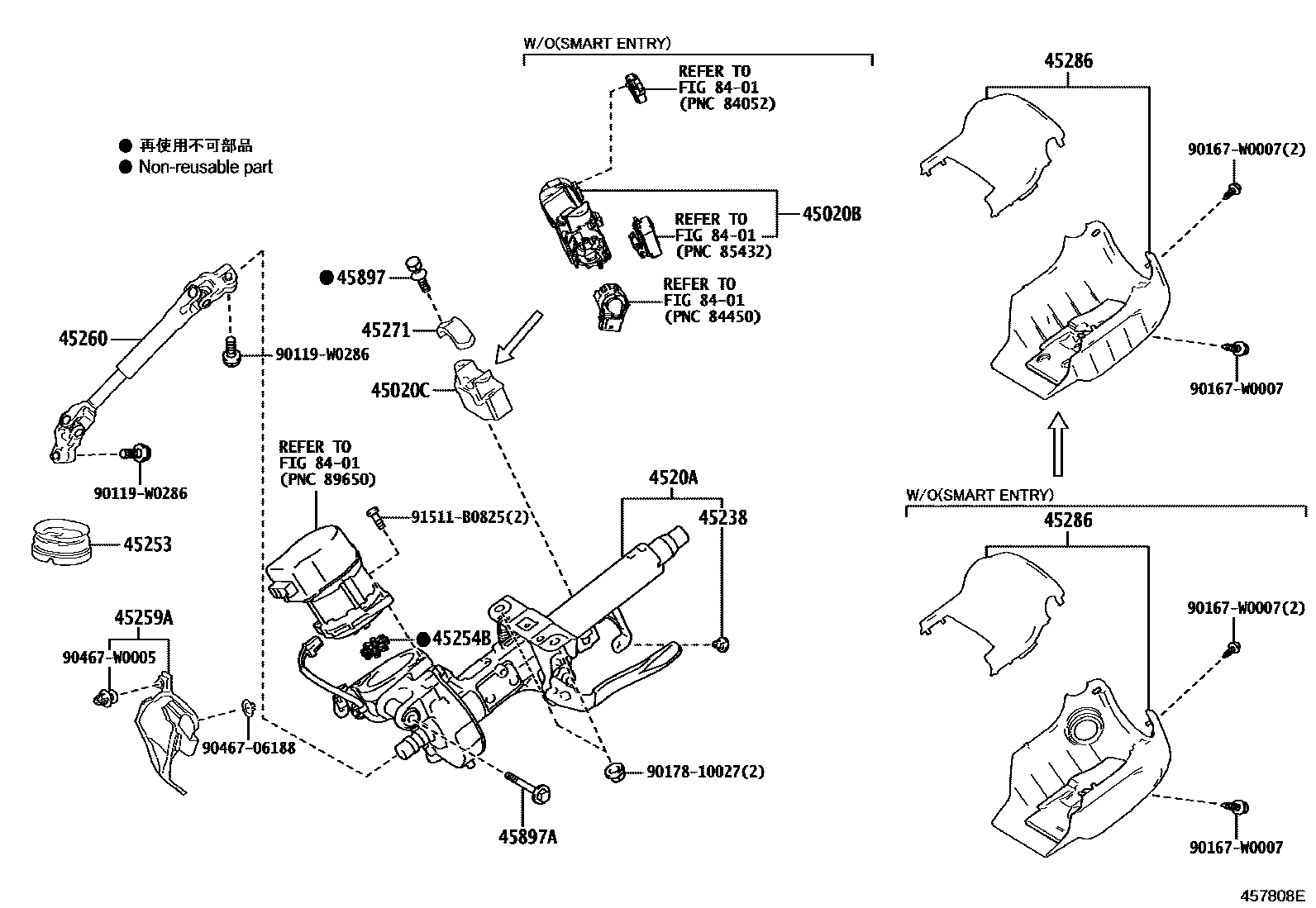

Toyota YARIS Steering Column & Shaft — Figure 4501
Toyota YARIS EPC diagram 4501, Steering Column & Shaft, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020B | ACTIONNEUR OU ENSEMBLE SUPPORT SUPERIEUR, ANTIVOL DIRECTION | 45280-02420 · 45280-02430 · 45280-02540 · 45280-02550 |
| 45020C | ENS. ACTIONNEUR, ANTIVOL DIRECTION(AV/ECU) | 45020-K0020 · 45020-K0030 |
| 4520A | Electric steering column sub-assembly | 4520A-0D560 · 4520A-0D570 · 4520A-0D580 · 4520A-0D590 · 4520A-0D760 · 4520A-0D770 · 4520A-0D790 · 4520A-0D800 |
| 45238 | Bolt clamp (for steering flex coupling) | 45238-52010 |
| 45253 | Steering column hole cover | 45253-K0020 |
| 45254B | Electric steering motor shaft shock absorber | 45254-28040 |
| 45259A | Steering column hole cover silencer plate | 45259-K0020 · 45259-K0030 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-K0020 · 45260-K0030 |
| 45271 | Clamp on steering column | 45271-52030 |
| 45286 | steering column cover | 45286-K0902 |
| 45897 | Steering lock fixing bolt | 45897-12020 · 45897-12050 |
| 45897A | Tilt-adjustable steering pawl retaining bolt | 90119-W0215 |
