Toyota YARIS Front Drive Shaft — Figure 4302

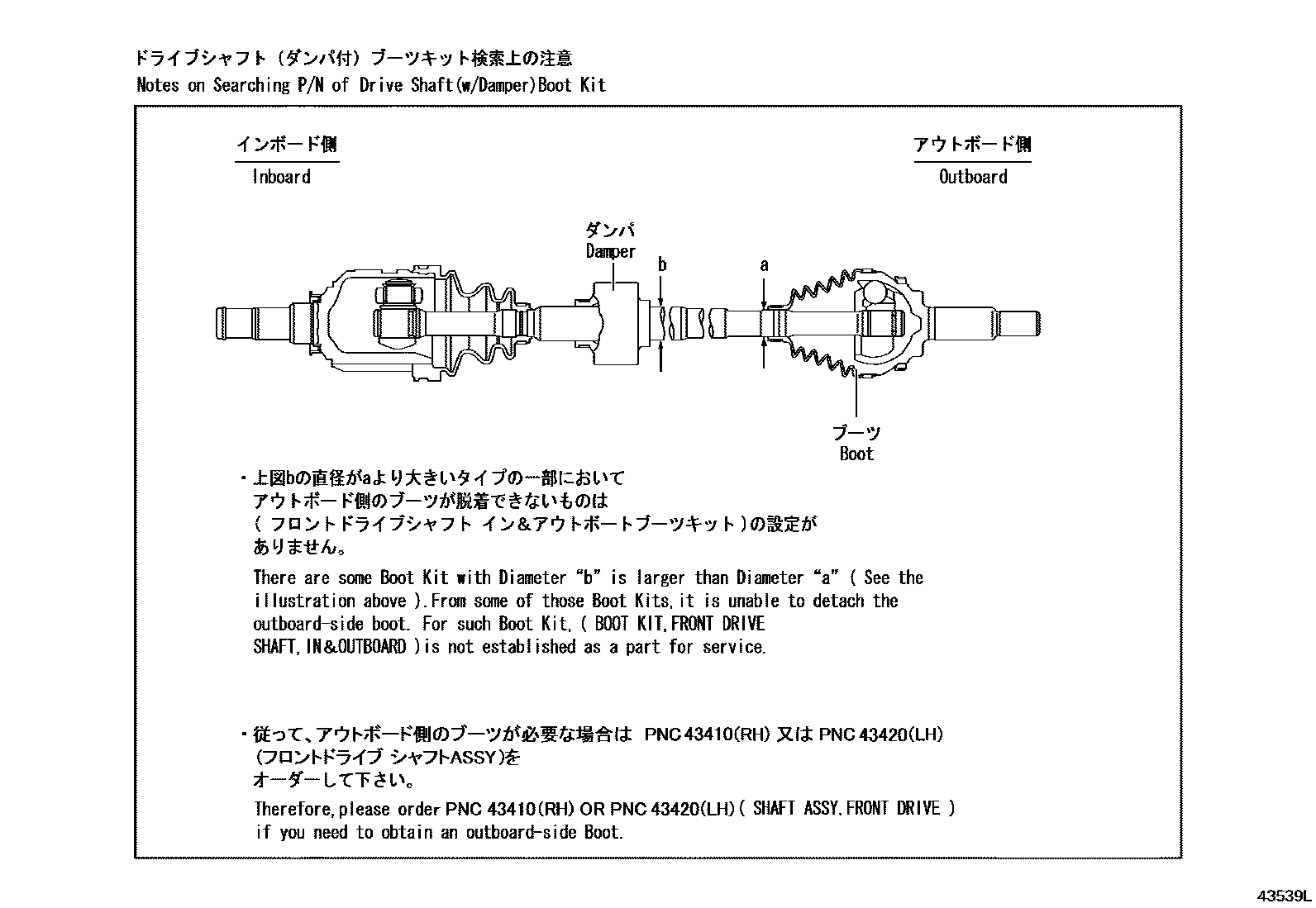

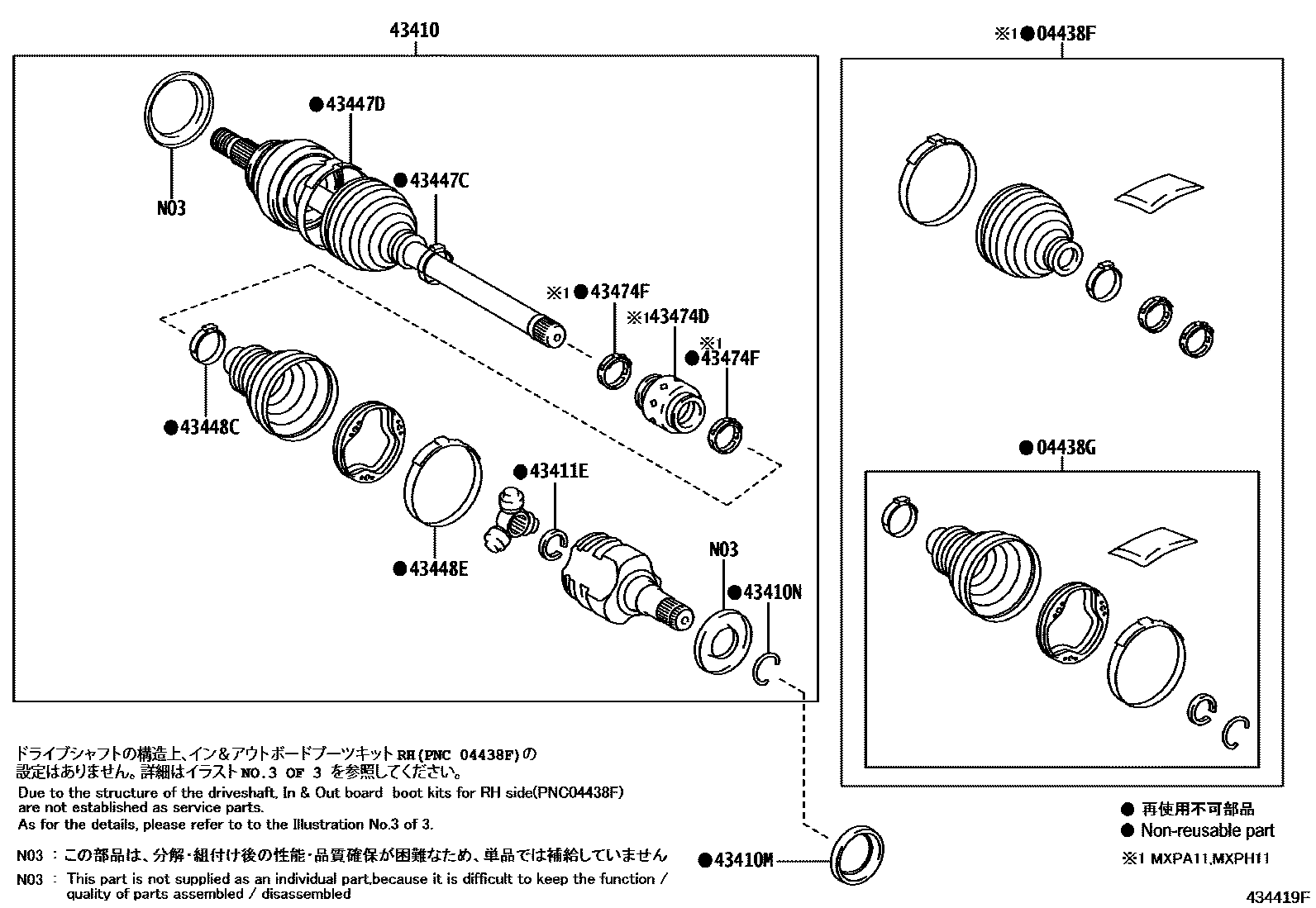

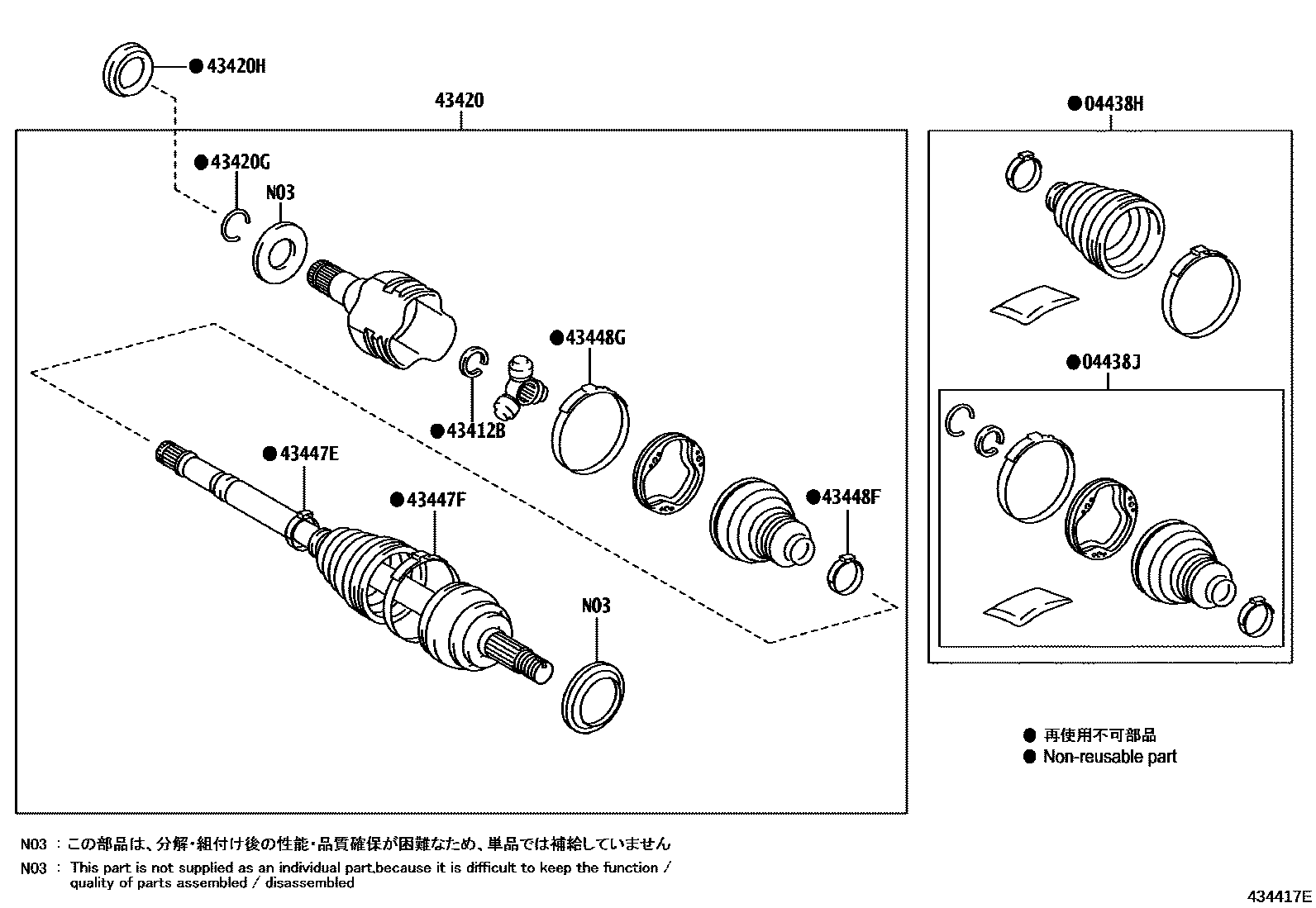

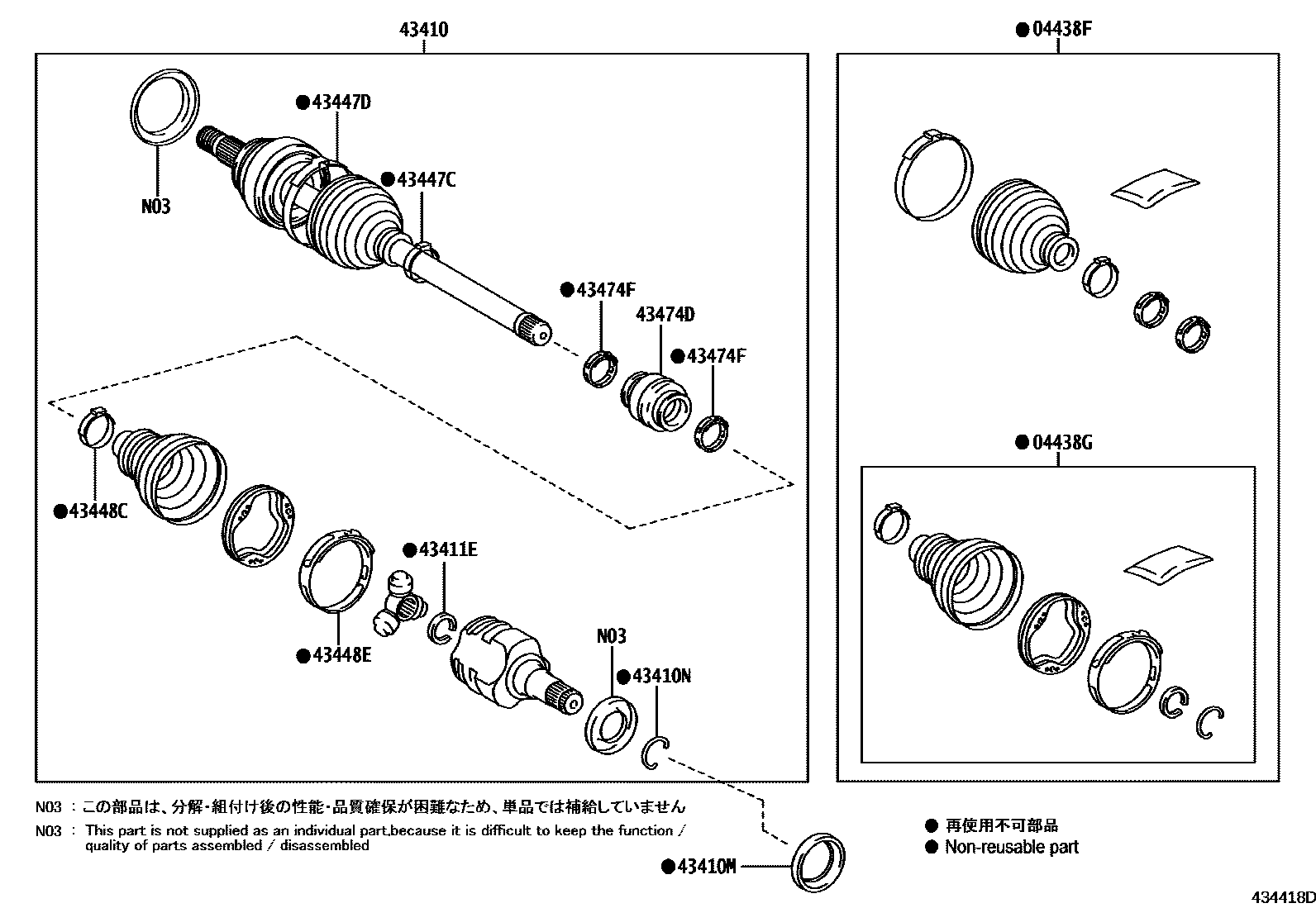

Toyota YARIS EPC diagram 4302, Front Drive Shaft, with 5 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-K0000 · 04427-K0010 · 04427-K0020 · 04427-K0030 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-K0000 · 04437-K0040 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04428-K0000 · 04428-K0010 · 04428-K0020 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-K0040 · 04438-K0000 |
| 43410 | Right front driveshaft assembly | 43410-0D690 · 43410-0D830 · 43410-K0040 · 43410-K0050 · 43410-K0060 · 43410-K0070 |
| 43410M | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MD | 90311-35081 · 90311-35083 · 90311-40051 · 90311-W0025 |
| 43410N | Hole snap ring (for right front driveshaft) | 43425-02260 · 90080-52056 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-0D090 · 43425-0D330 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-0D090 · 43425-0D330 |
| 43420 | Left front drive shaft assembly | 43420-0D760 · 43420-0D780 · 43420-K0030 · 43420-K0040 · 43420-K0050 · 43420-K0060 |
| 43420G | Hole snap ring (for left front driveshaft) | 43425-02260 · 90080-52056 |
| 43420H | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MG | 90311-35082 · 90311-50062 · 90311-W0023 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-0D440 · 42345-0D630 · 42345-K0030 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-0D430 · 42345-0D620 · 42345-K0100 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-0D440 · 42345-0D630 · 42345-K0030 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-0D430 · 42345-0D620 · 42345-K0100 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-0D630 · 42345-F4070 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-0DB20 · 42345-K0010 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-0D630 · 42345-F4070 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-0DB20 · 42345-K0010 |
| 43474D | Right front driveshaft shock absorber | 43474-K0010 · 43474-K0020 · 43474-K0030 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-0D720 · 42345-0D830 · 42345-K0020 |
