Toyota YARIS 前桥壳和差速器 — Figure 4301

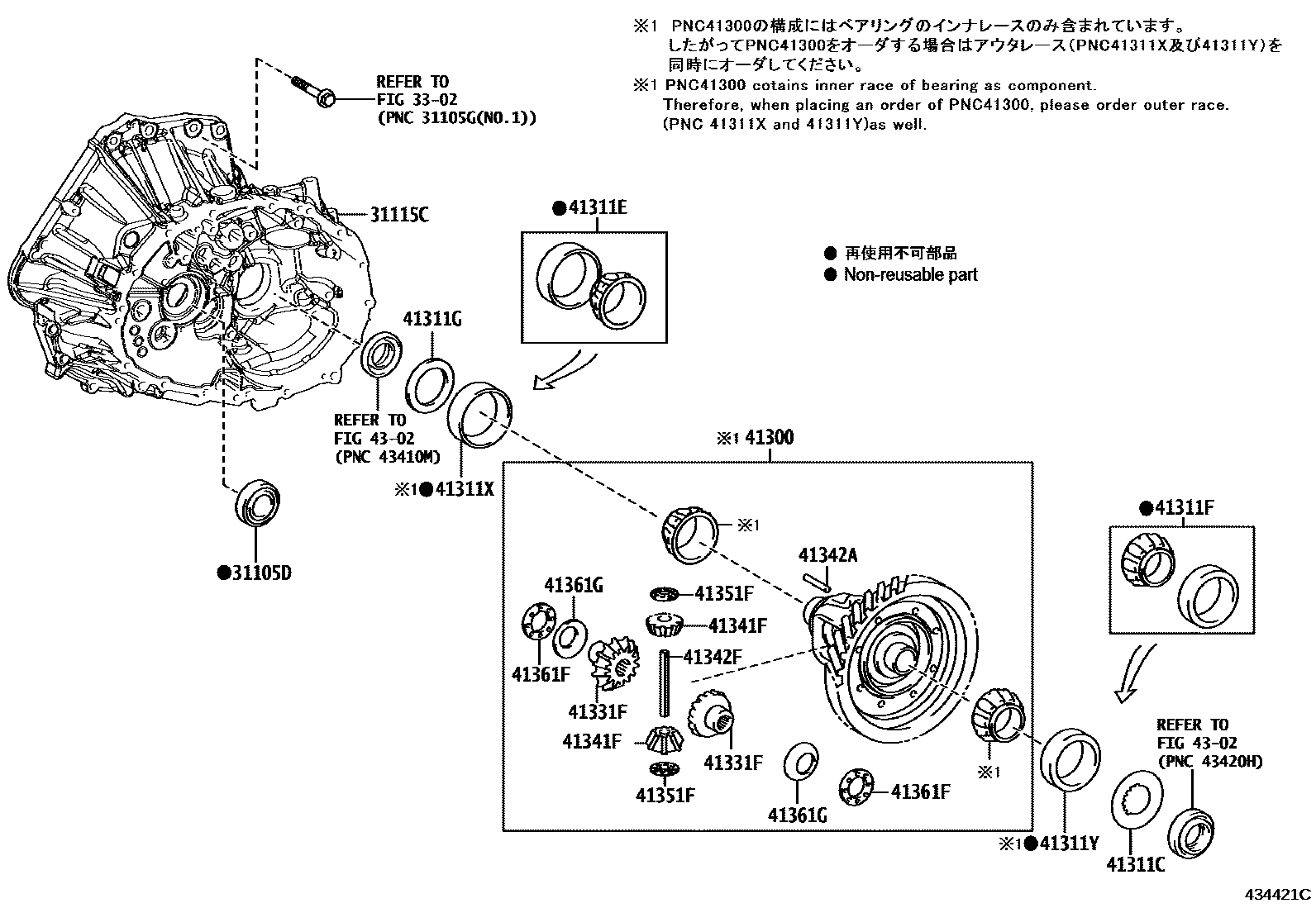

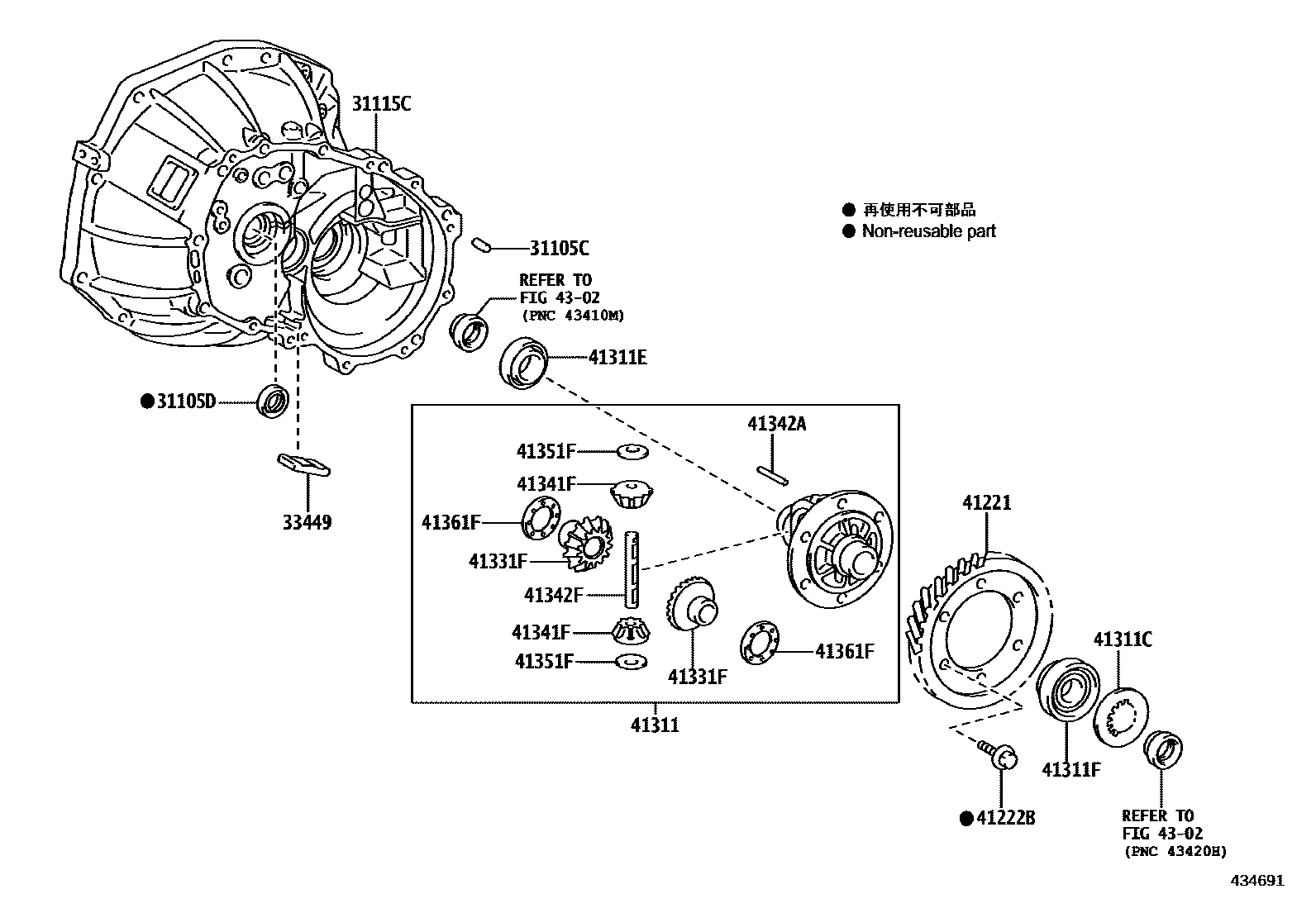

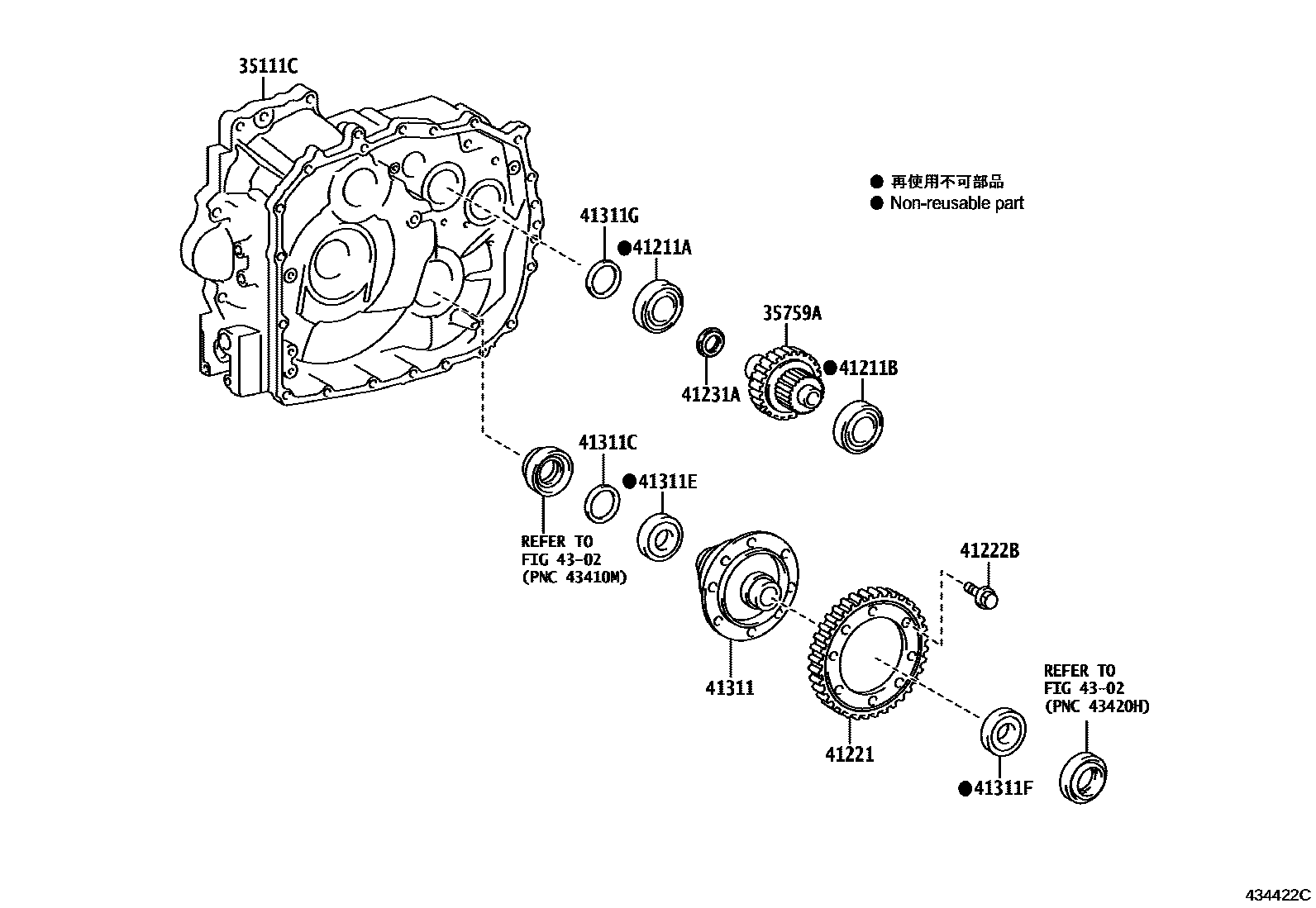

Toyota YARIS EPC diagram 4301, 前桥壳和差速器, with 3 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105C | Direct sales (for transmission axle housing) | 90250-08054 |
| 31105D | No. 1 oil seal (for front transmission axle housing) | 90311-25030 · 90311-W0001 |
| 31115C | Front transmission axle housing (MTM) | 31115-0D141 · 31115-K0010 |
| 33449 | derailleur magnet | 33449-60010 |
| 35111C | Transmission axle housing | 35105-K0020 |
| 35759A | PIGNON, MENANT DEMULTIPLICATEUR | 35705-K0020 |
| 41211A | Front roller tapered bearing (for front driving pinion) | 90366-25030 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90366-29016 |
| 41221 | Front differential ring gear | 41221-0D141 · 41221-K0030 |
| 41222B | Bolt (for front differential ring gear assembly) | 90105-12379 · 90105-12410 |
| 41231A | Drive pinion lock nut | 90179-32006 |
| 41300 | Front differential case assembly with ring gear | 41300-02070 · 41300-02080 |
| 41311 | front differential case | 41301-K0020 · 41311-0H901 |
| 41311C | Rear gasket (for front differential case) | 90564-41065 · 90564-41066 · 90564-41067 · 90564-41068 · 90564-41069 · 90564-41070 · 90564-41071 · 90564-41072 · 90564-41073 · 90564-41074 · 90564-41075 · 90564-41076 · 90564-41077 · 90564-41078 · 90564-41079 · 90564-41080 · 90564-41081 · 90564-41082 · 90564-41083 · 90564-44039 · 90564-44040 · 90564-44041 · 90564-44042 · 90564-44043 · 90564-44044 · 90564-44045 · 90564-44046 · 90564-44047 · 90564-44048 · 90564-44049 · 90564-44050 · 90564-44051 · 90564-44052 · 90564-44053 · 90564-44054 · 90564-44055 · 90564-44056 · 90564-44057 · 90564-44058 · 90564-44059 · 90564-44060 · 90564-44061 · 90564-44062 · 90564-44063 · 90564-44064 · 90564-44065 · 90564-44066 · 90564-44067 · 90564-44068 · 90564-44069 · 90564-58002 · 90564-58003 · 90564-58004 · 90564-58005 · 90564-58006 · 90564-58007 · 90564-58008 · 90564-58009 · 90564-58010 · 90564-58011 · 90564-58012 · 90564-58013 · 90564-58014 · 90564-58015 · 90564-58016 · 90564-58017 · 90564-58018 · 90564-58019 · 90564-58020 · 90564-58021 |
| 41311E | Front roller tapered bearing (for front differential housing) | 90080-36143 · 90366-40149 · 90366-W0007 |
| 41311F | Rear tapered bearing (for front differential housing) | 90080-36166 · 90366-44010 · 90366-W0013 |
| 41311G | Front flat washer (for front differential case) | 90560-41003 · 90564-44074 · 90564-44075 · 90564-44076 · 90564-44077 · 90564-44078 · 90564-44079 · 90564-44080 · 90564-44081 · 90564-44082 · 90564-44083 · 90564-44084 · 90564-44085 · 90564-44086 · 90564-44087 · 90564-44088 · 90564-44089 · 90564-44090 · 90564-44091 · 90564-44092 · 90564-44093 · 90564-44094 · 90564-44095 · 90564-44096 |
| 41311X | Roller cone bearing outer race (for front differential) | 90080-36144 |
| 41311Y | Roller cone bearing outer race (for rear differential) | 90366-W0014 |
| 41331F | Front differential side gear | 41331-0D060 · 41331-0D070 |
| 41341F | Front differential planetary gear | 41341-0D060 · 41341-0D070 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-06058 · 90250-W0005 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-10041 · 41342-52060 |
| 41351F | Front differential planetary gear thrust washer | 41351-10030 · 41351-32010 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-22020 · 41361-22030 · 41361-22040 · 41361-22140 · 41361-22150 · 41361-22160 · 41361-48010 · 41361-70010 · 41361-70020 · 41361-70030 · 41361-70040 · 41361-70050 · 41361-70060 · 41361-70070 · 41361-70080 · 41361-70090 · 41361-70100 |
| 41361G | Conical spring washer (for center differential side gears) | 90208-35001 |
