Toyota YARIS 车轮和车轮盖 — Figure 4103

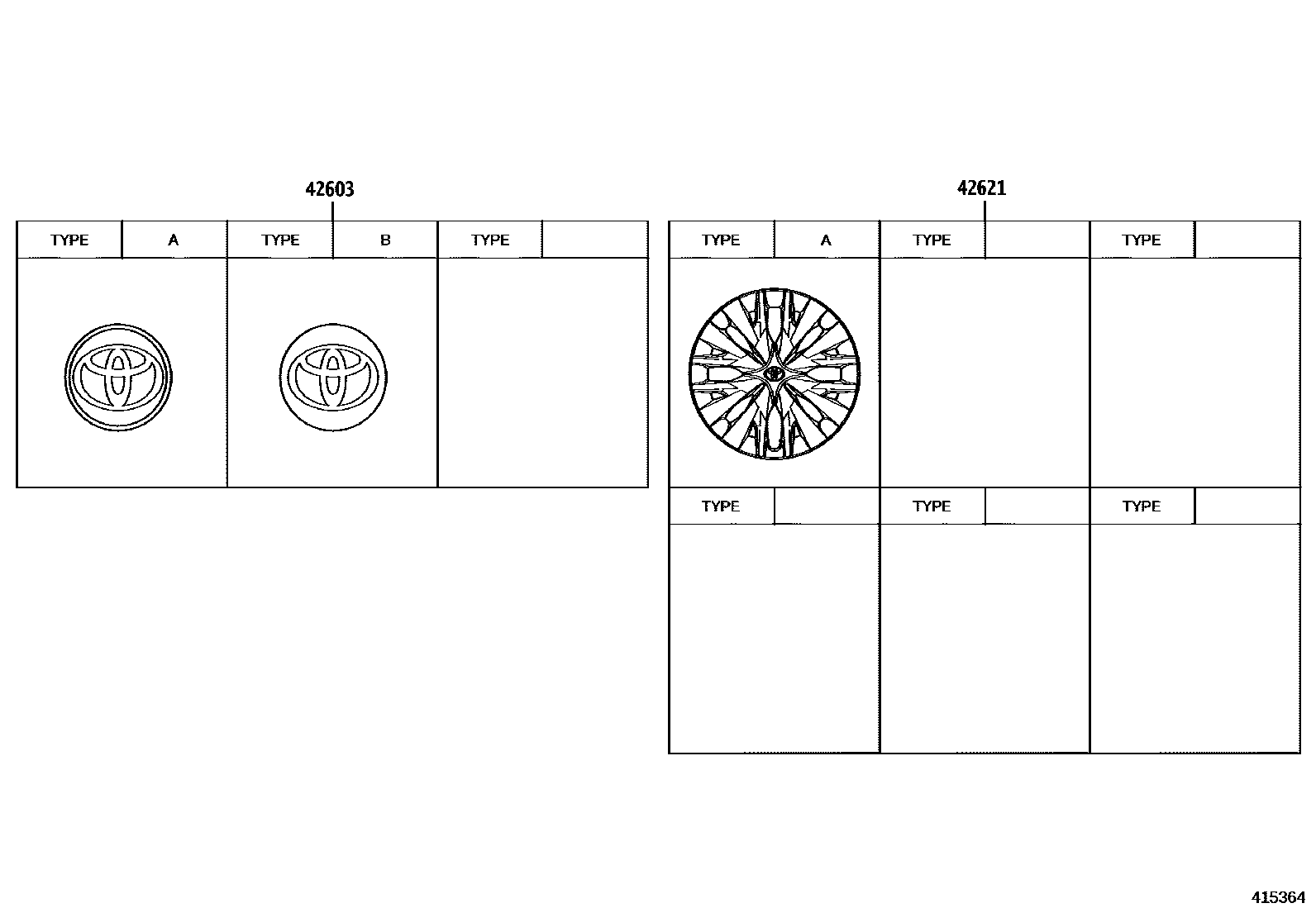

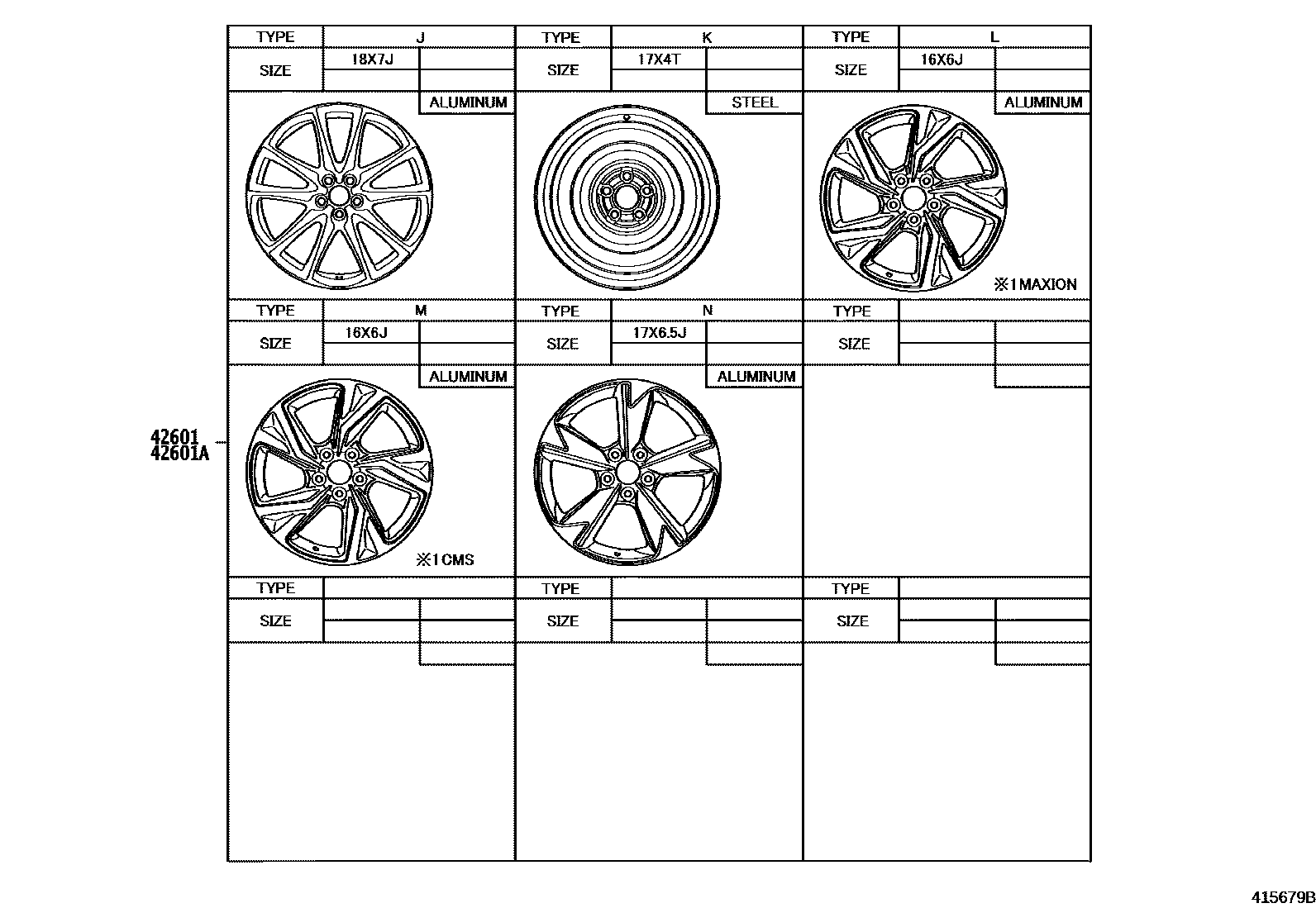

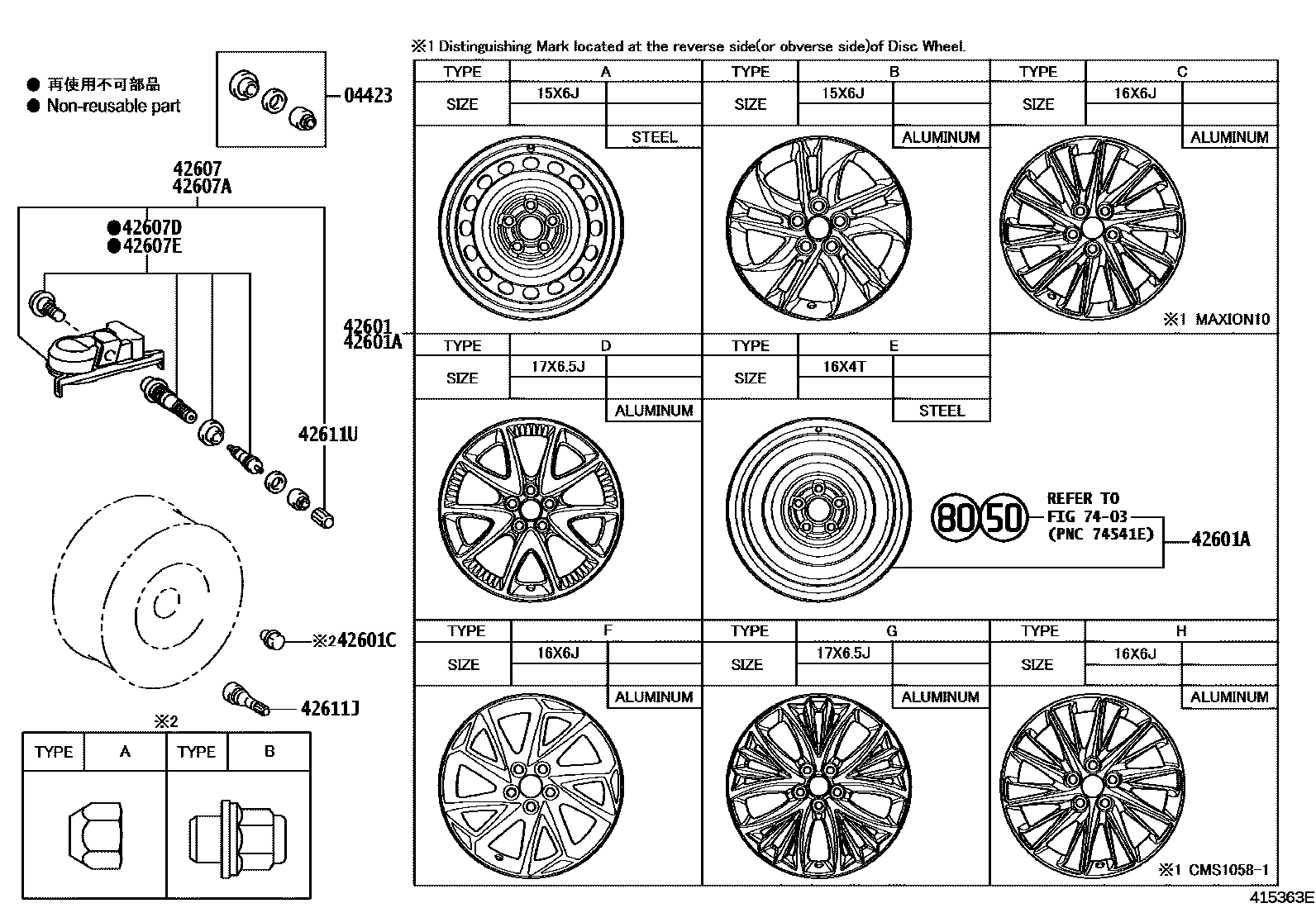

Toyota YARIS EPC diagram 4103, 车轮和车轮盖, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-02010 |
| 42601 | spoke wheel | 42611-0DJ60 · 42611-0DK40 · 42611-0DL20 · 42611-0DM90 · 42611-0DN60 · 42611-K0030 · 42611-K0040 · 42611-K0050 · 42611-K0170 · 42611-K0180 · 42611-YP500 · 42611-YP510 · 42611-YYA60 · 42611-YYA70 · 42611-YYD40 |
| 42601A | Spoke wheel (for spare tire) | 42611-K0170 · 4261B-0D020 · 4261B-K0010 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01033 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-0H010 · 42603-52170 · 42603-YY190 · 42603-YY370 · 42603-YY450 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-02070 |
| 42607A | Tire pressure monitoring valve sub-assembly (for spare tire) | 42607-02070 |
| 42607D | SOUPAPE, CONTROLE PRESSION PNEU | 90942-W5003 |
| 42607E | SOUPAPE, CONTROLE PRESSION PNEU (ROUE SECOURS) | 90942-W5003 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42611U | tire valve cover | 90942-W5001 |
| 42621 | wheel cover | 42602-K0030 |
