Toyota YARIS 变矩器、前油泵(CVT) — Figure 3402

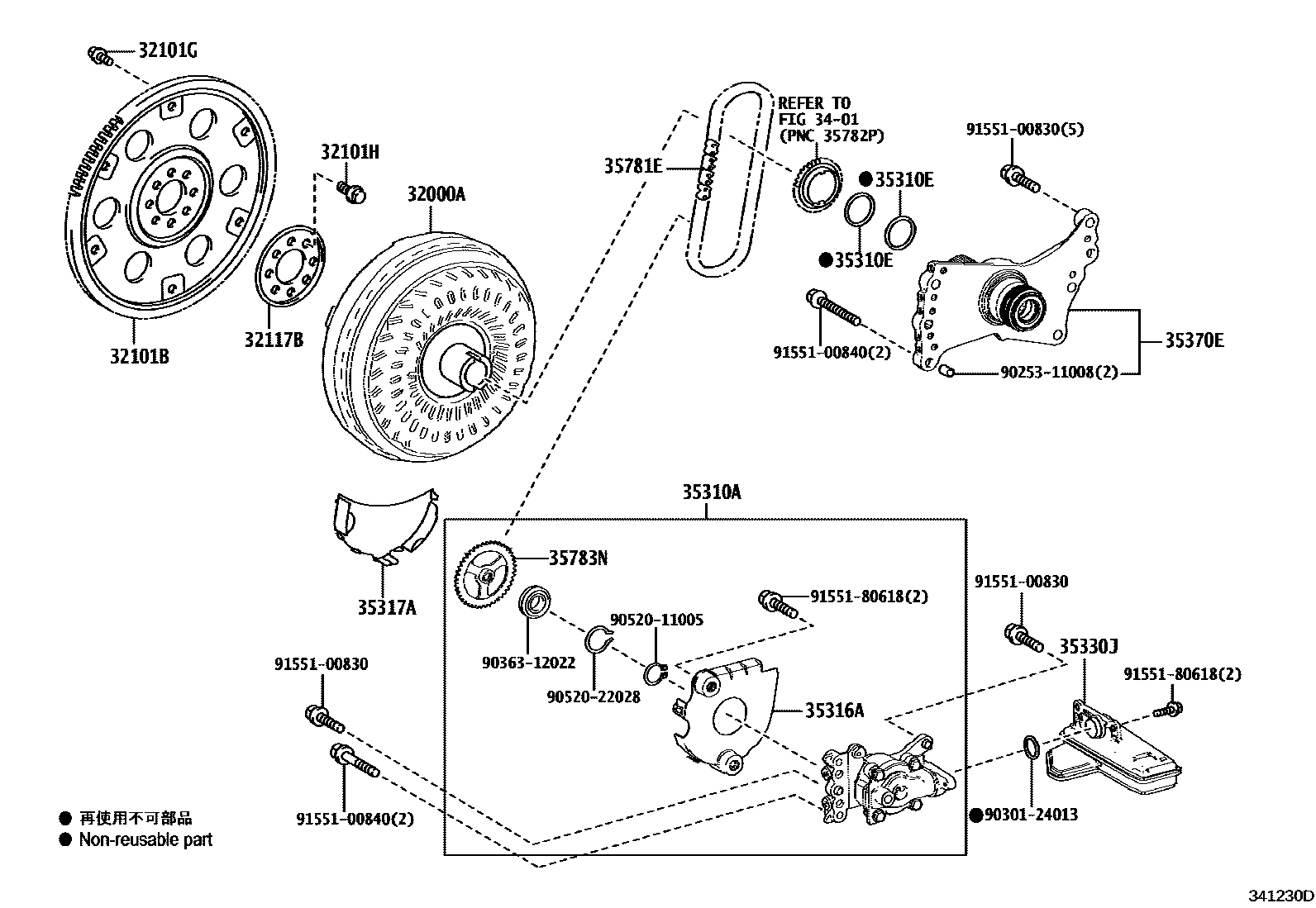

Toyota YARIS EPC diagram 3402, 变矩器、前油泵(CVT), with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32000A | Torque converter assembly | 32000-52260 · 32000-K0010 |
| 32101B | Transmission plate and ring gear sub-assembly | 32101-52100 |
| 32101G | Bolts (for securing transmission plate and torque converter) | 90109-08113 · 90119-08498 |
| 32101H | Hexagonal bolts (used to fix the transmission plate) | 90105-12404 |
| 32117B | Rear transmission plate spacer | 32117-33010 |
| 35310A | Front oil pump assembly | 35300-12020 · 35300-52050 |
| 35310E | T-type oil seal (for front oil pump) | 35617-12080 · 35617-K0010 |
| 35316A | PLAQUE, SEPARATEUR POMPE HUILE TRANSMISSION, NO.1 | 35316-12020 |
| 35317A | PLAQUE, SEPARATEUR POMPE HUILE TRANSMISSION, NO.2 | 35317-12020 |
| 35330J | ENS. CREPINE, HUILE | 35330-12070 · 35330-K0020 |
| 35370E | ENS. ARBRE, STATOR (CVT) | 35370-K0010 · 35370-K0011 |
| 35781E | CHAINE, ENTRAIN TRANSMISSION | 35781-12010 |
| 35783N | PIGNON, ENTRAINE | 35783-12060 |
