Toyota YARIS 离合器壳和变速器壳(MTM) — Figure 3302

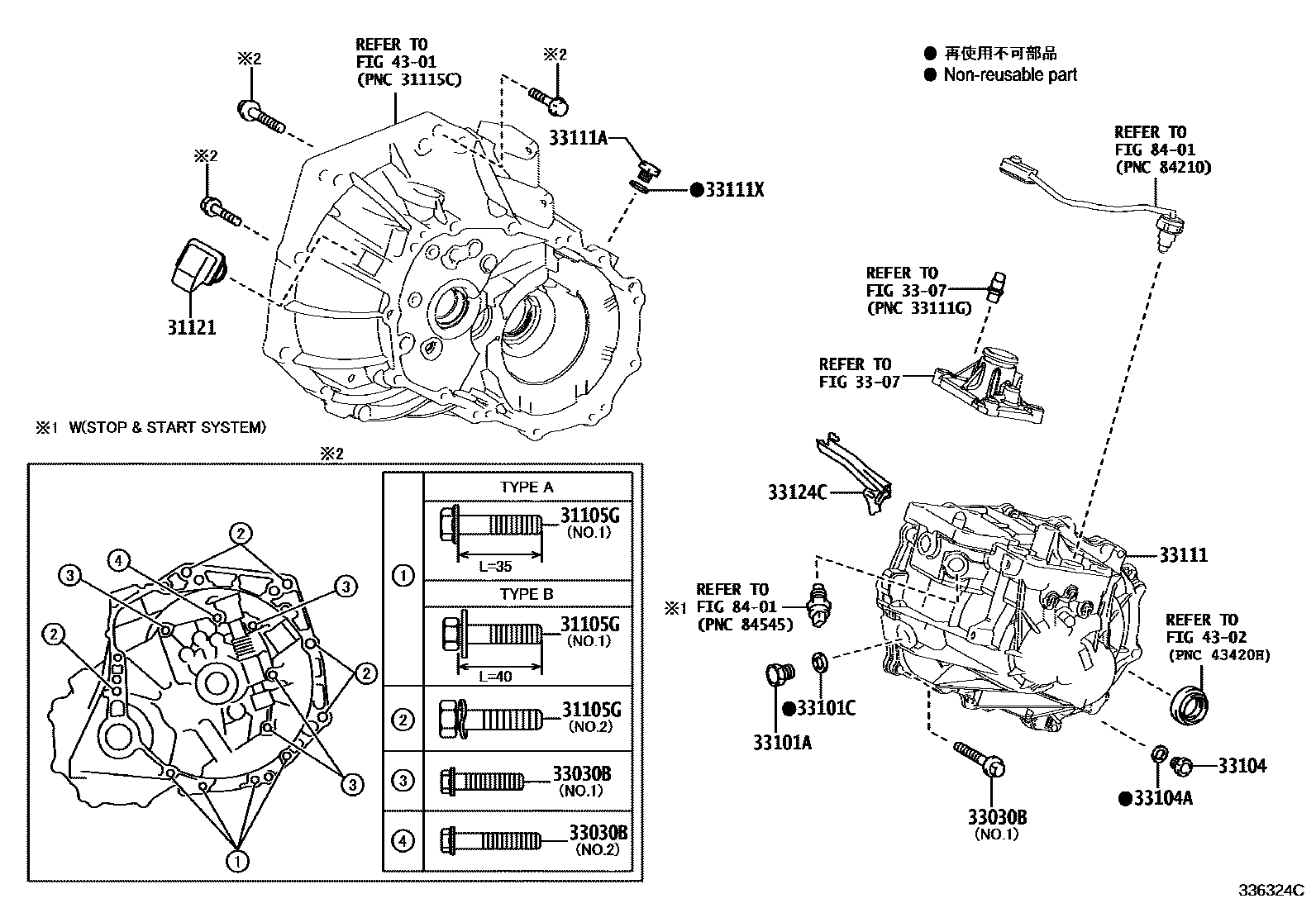

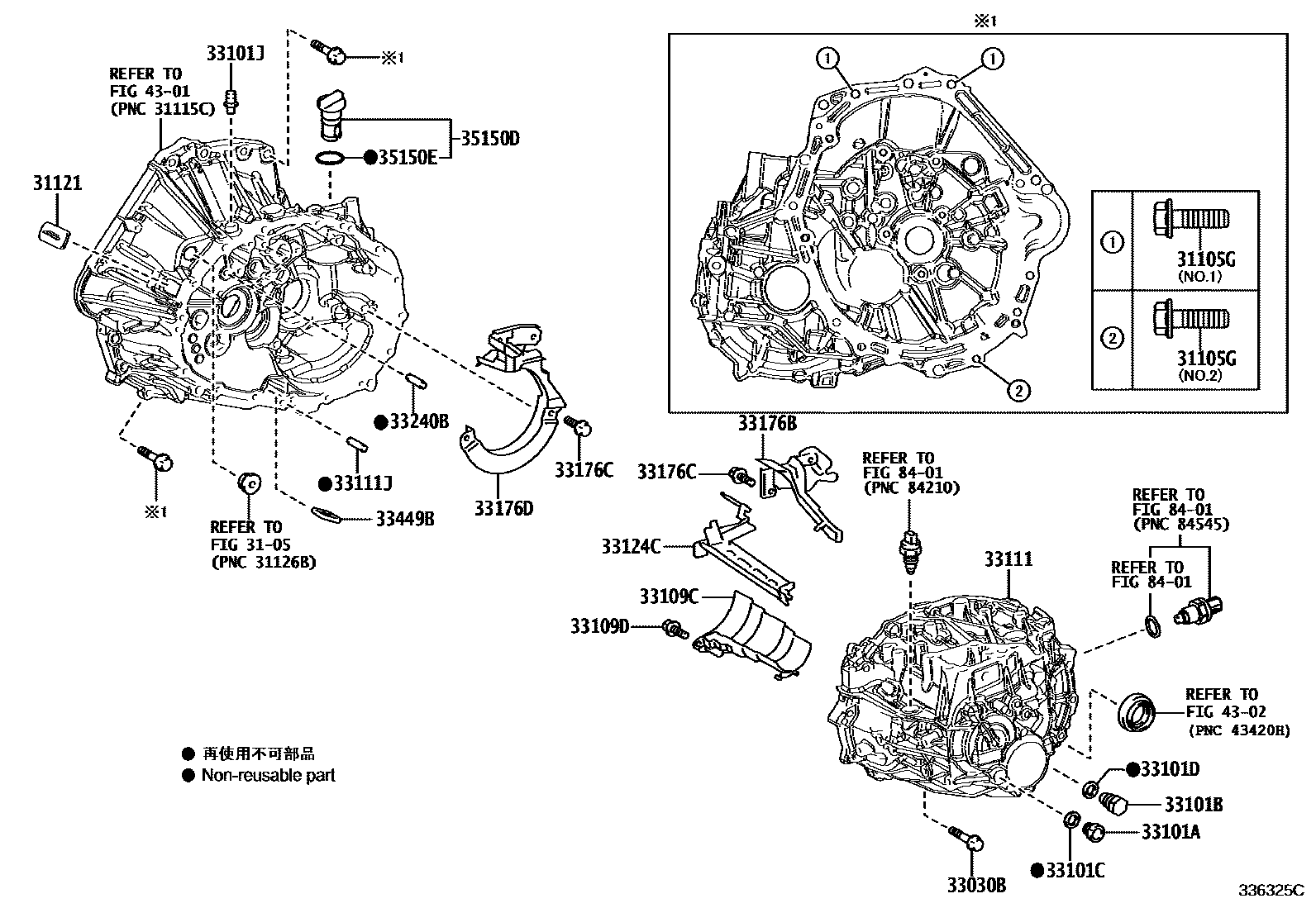

Toyota YARIS EPC diagram 3302, 离合器壳和变速器壳(MTM), with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105G | Bolts (for securing transaxle housing and engine) | 90105-10591 · 90105-W0092 · 90105-W0142 · 90119-W0097 · 90119-W0158 |
| 31121 | No. 1 clutch housing cover | 31121-05010 · 31121-0H011 |
| 33030B | Bolts (for securing transaxle housing and gearbox) | 90105-08261 · 90105-W0209 · 90105-W0225 · 90105-W0226 · 91551-10840 |
| 33101A | Screw plug (for manual transmission oil filler port) | 90341-18033 |
| 33101B | Screw plug (for manual transmission drain port) | 90341-18085 |
| 33101C | Gasket (for manual transmission filler plug) | 12157-10010 · 90430-A0003 · 90430-W0001 |
| 33101D | Gasket (for manual transmission drain plug) | 12157-10010 |
| 33101J | vent plug | 90930-03133 |
| 33104 | Drain plug sub-assembly (MTM) | 90341-18006 |
| 33104A | Drain plug gasket (MTM) | 90430-A0003 · 90430-W0001 |
| 33109C | Manual transmission oil separator sub-assembly | 33109-K0010 |
| 33109D | Bolt (for manual transmission oil separator) | 90105-W0035 · 91551-80816 |
| 33111 | Manual transmission housing | 33111-0D030 · 33111-0D070 · 33111-0D140 · 33111-K0010 · 33111-K0020 |
| 33111A | Manual transmission plug | 90341-18006 |
| 33111J | Direct sales (for manual transmission) | 90250-08054 |
| 33111X | Gearbox plug gasket | 90430-A0003 · 90430-W0001 |
| 33124C | No. 1 oil collecting pipe (MTM) | 33124-0H010 · 33124-K0010 |
| 33176B | Transmission oil separator (MTM) | 33176-0D020 |
| 33176C | Bolt (for transmission oil separator) | 90105-W0035 · 91551-80816 |
| 33176D | SEPARATEUR, HUILE TRANSMISSION, NO.2(MTM) | 33176-0D030 |
| 33240B | Direct sale (for reverse shift arm bracket) | 90250-08054 |
| 33449B | derailleur magnet | 33449-20010 |
| 35150D | ENS. BOUCHON, CARTER TRANSMISSION | 35150-44010 |
| 35150E | JOINT, TORIQUE (POUR CARTER TRANSMISSION) | 90301-09173 |
