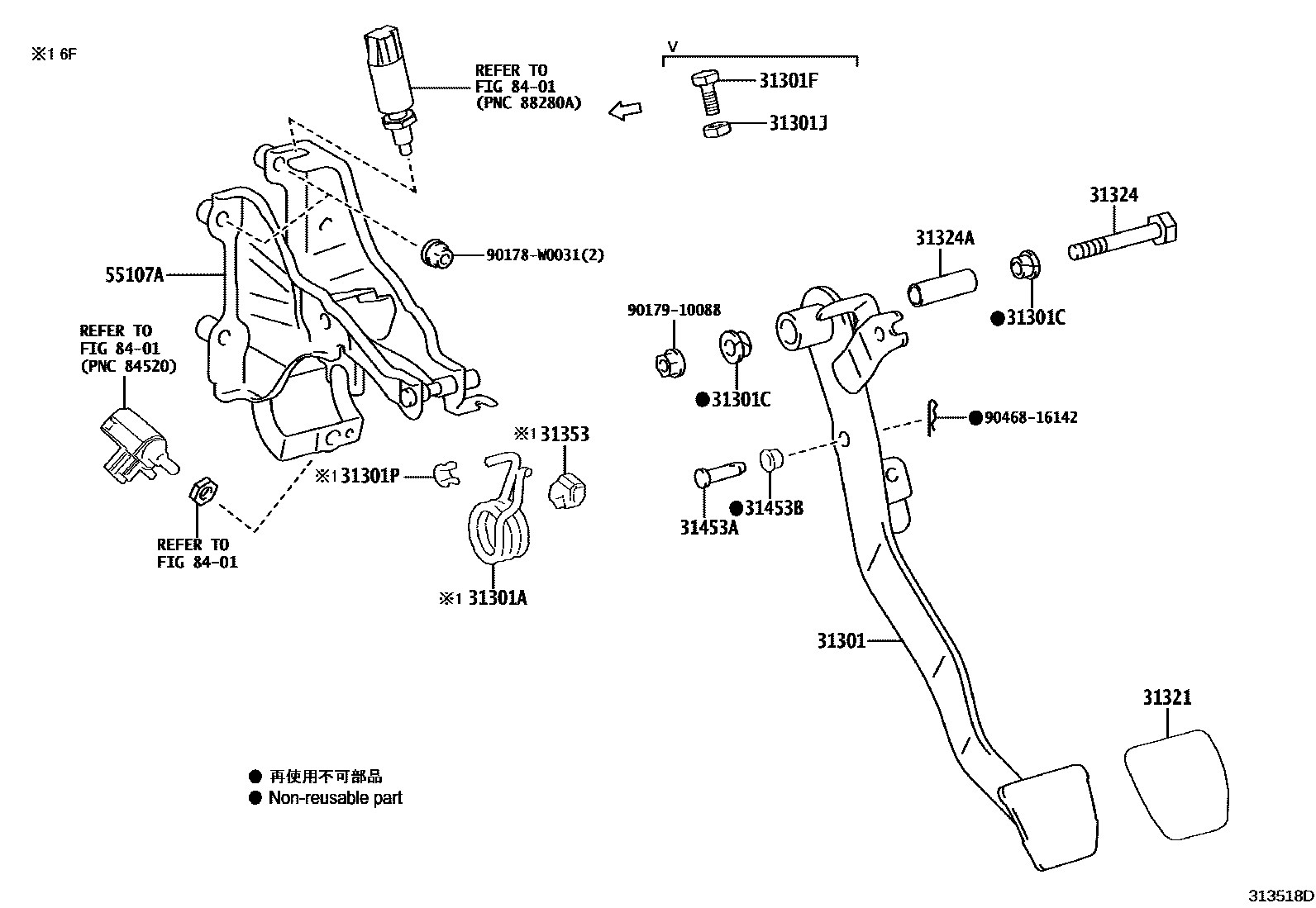

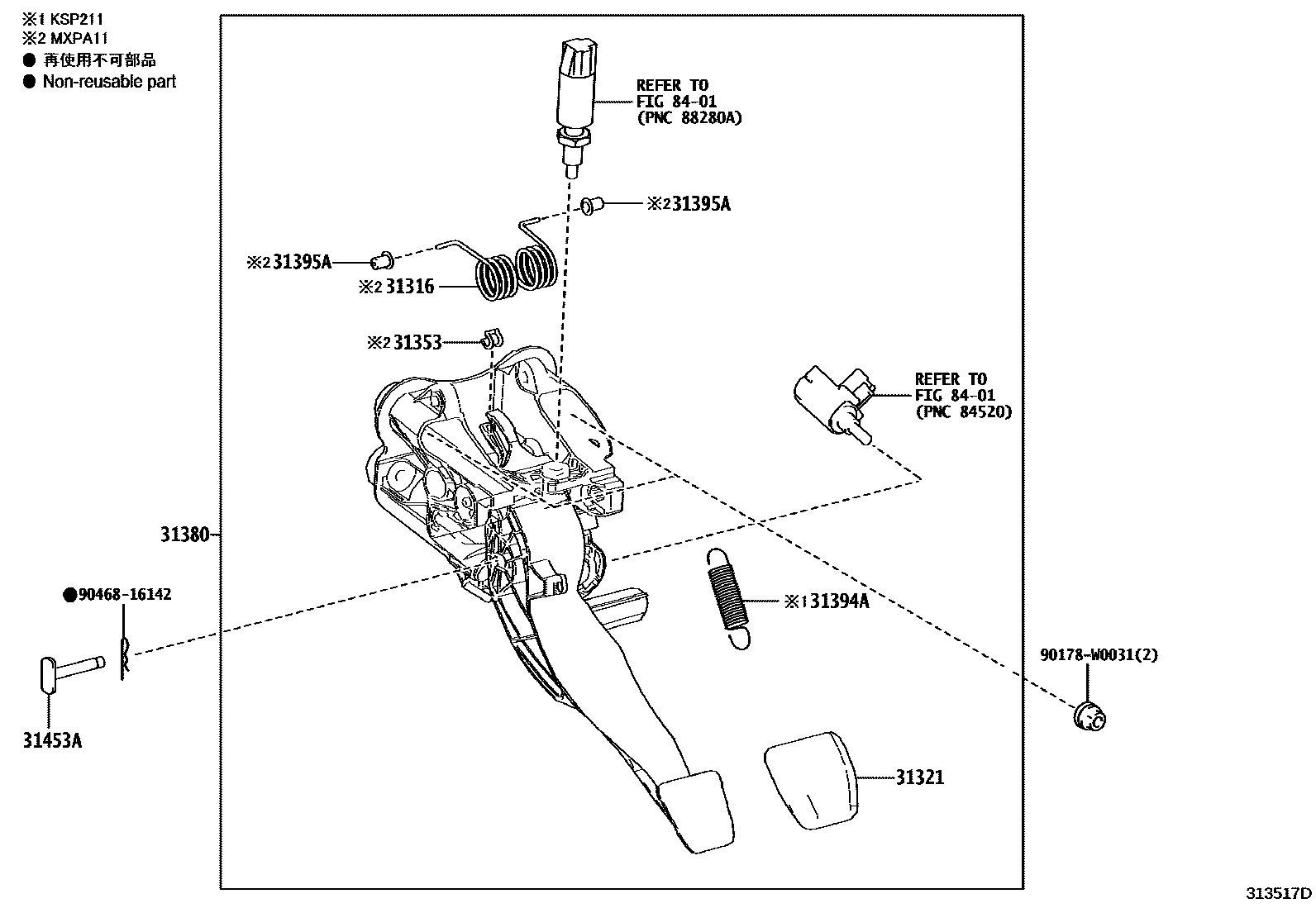

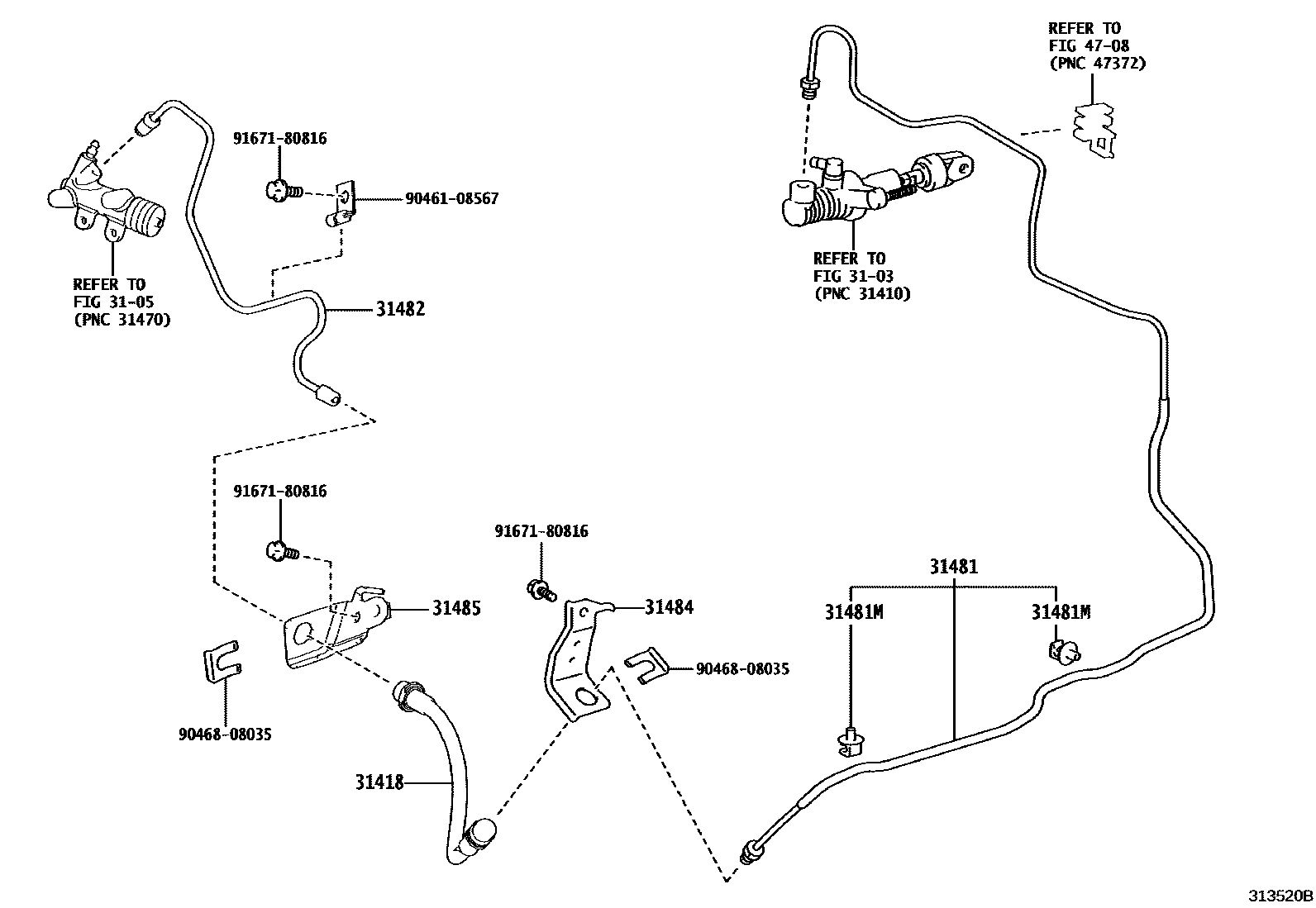

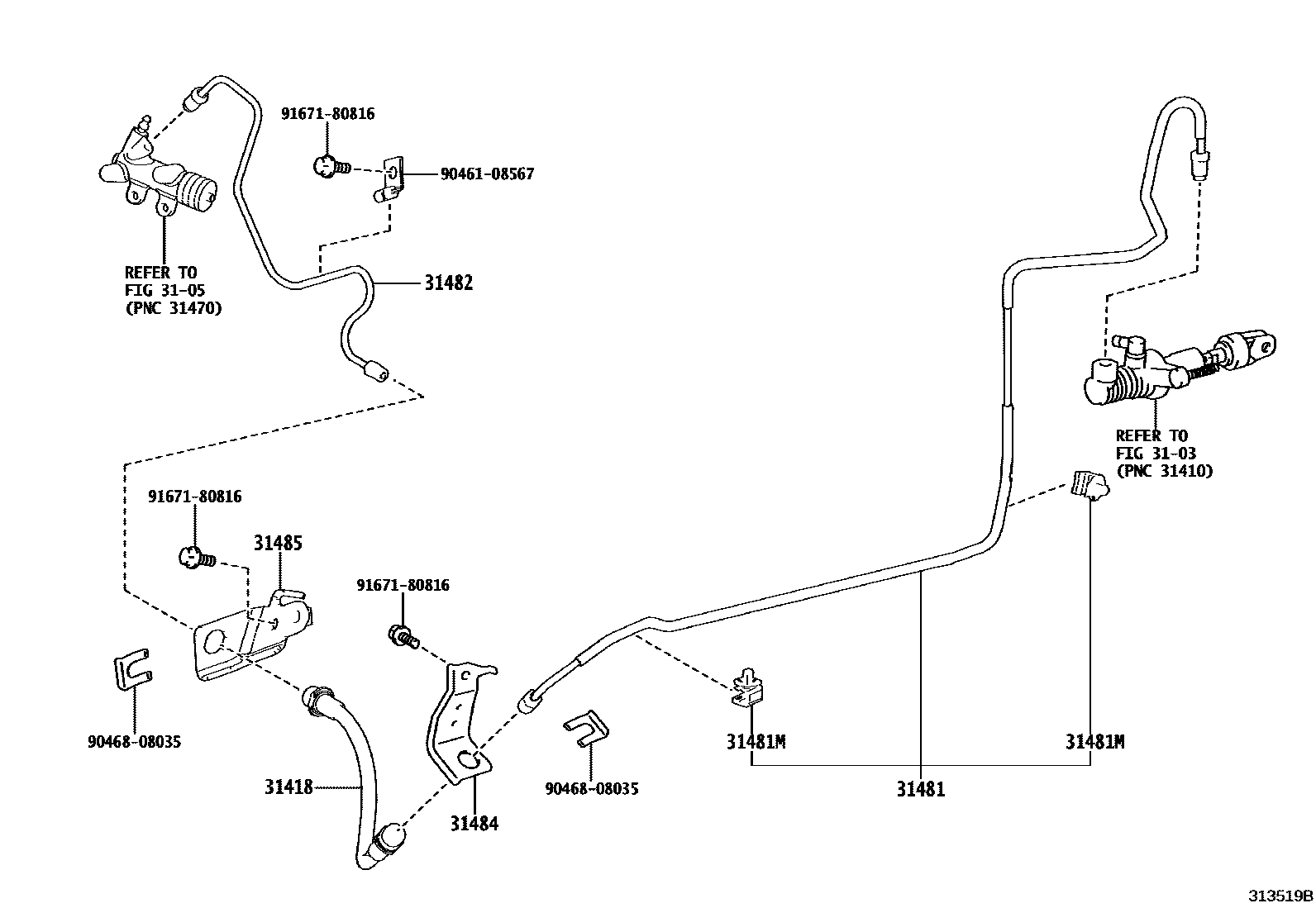

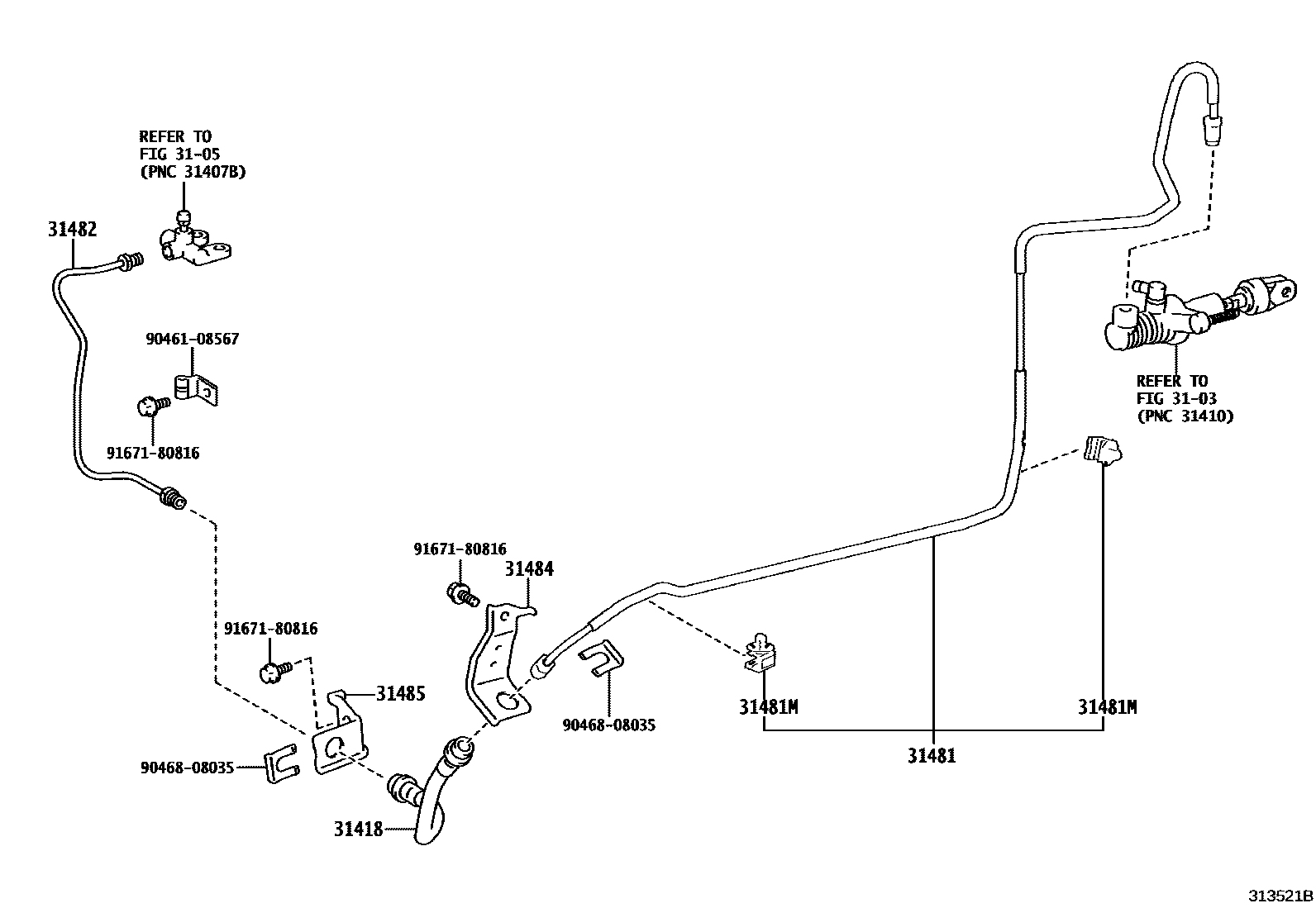

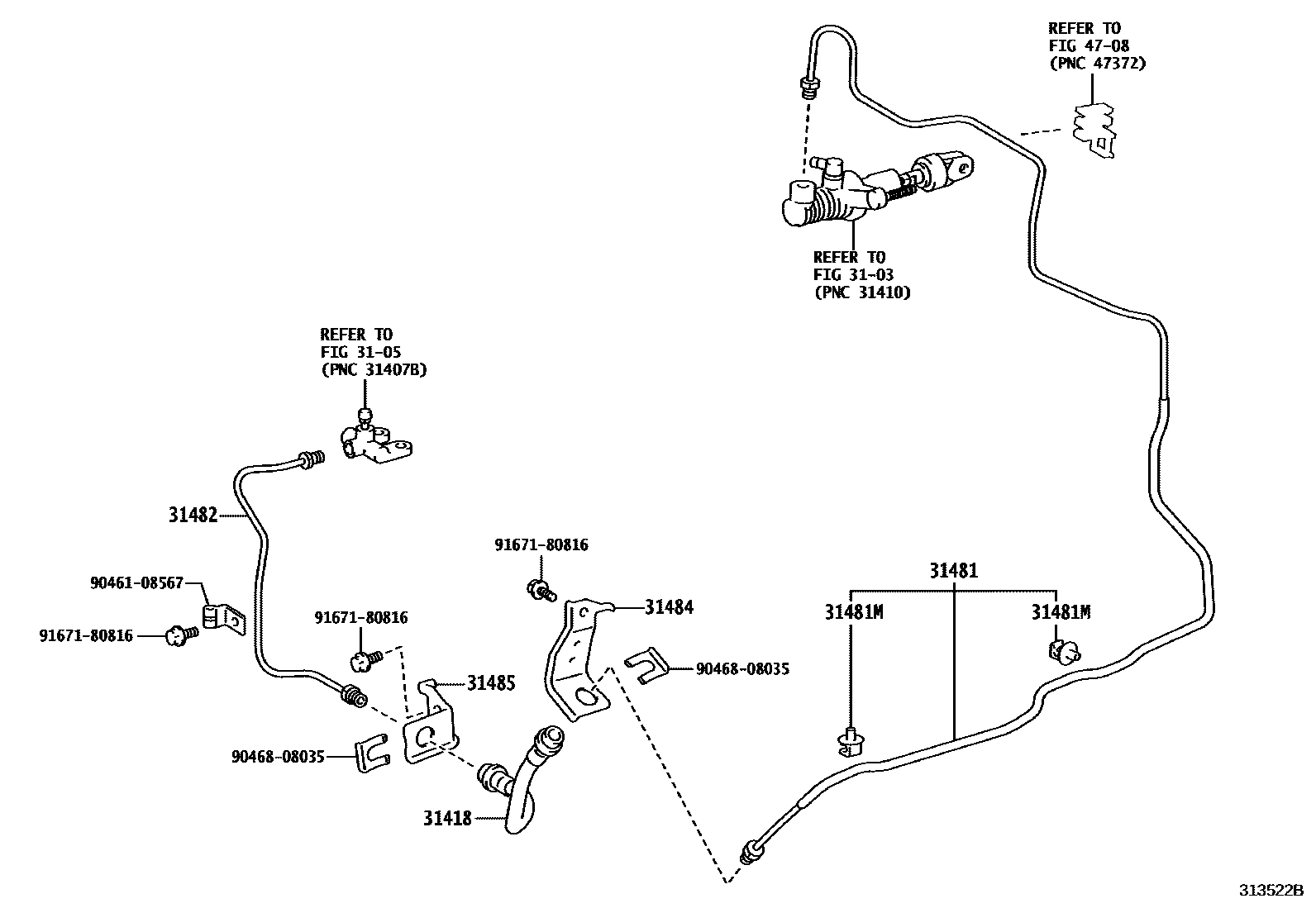

Toyota YARIS 离合器踏板和挠性软管 — Figure 3102
Toyota YARIS EPC diagram 3102, 离合器踏板和挠性软管, with 6 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31301 | Clutch pedal sub-assembly | 31301-0D410 · 31301-K0010 · 31301-K0020 |
| 31301A | Spring (for clutch pedal) | 31394-02010 · 90506-15010 · 90949-03068 |
| 31301C | Bushing (for clutch pedal) | 90386-13015 |
| 31301F | Bolt (for clutch pedal stop) | 90101-10369 |
| 31301J | Nut (for clutch pedal stop) | 94120-41000 |
| 31301P | Bushing (for clutch pedal flip-up device) | 90389-06055 |
| 31316 | Clutch pedal flip spring | 31316-0D010 |
| 31321 | clutch pedal pad | 31321-10050 · 31321-42010 |
| 31324 | clutch pedal shaft | 90101-10039 |
| 31324A | clutch pedal collar | 90387-10003 |
| 31353 | Clutch pedal spring retainer | 31353-0D010 · 31353-26010 |
| 31380 | Pedal bracket assembly | 31380-0D670 · 31380-K0010 · 31380-K0020 |
| 31394A | Pedal spring with hook | 31394-0D050 |
| 31395A | Pedal spring hook No. 1 | 31395-0D010 |
| 31418 | clutch hose | 90947-W2071 · 90947-W2072 |
| 31453A | Pin with hole (for clutch master cylinder push rod U-shaped clamp) | 31455-K0010 · 90249-08051 |
| 31453B | Bushing (for clutch master cylinder push rod U-shaped clamp) | 90386-08033 |
| 31481 | Clutch master cylinder to flexible hose pipe | 31481-K0010 · 31481-K0020 |
| 31481M | Clamp (for clutch master cylinder tube) | 90949-01D17 |
| 31482 | Pipe from clutch release cylinder to flexible hose | 31482-K0020 · 31482-K0030 |
| 31484 | Flexible hose bracket (for clutch) | 31484-K0010 |
| 31485 | No. 2 flexible hose bracket (for clutch) | 31484-0D210 · 31484-K0020 |
| 55107A | Clutch pedal bracket sub-assembly | 55107-0D460 · 55107-K0010 |
