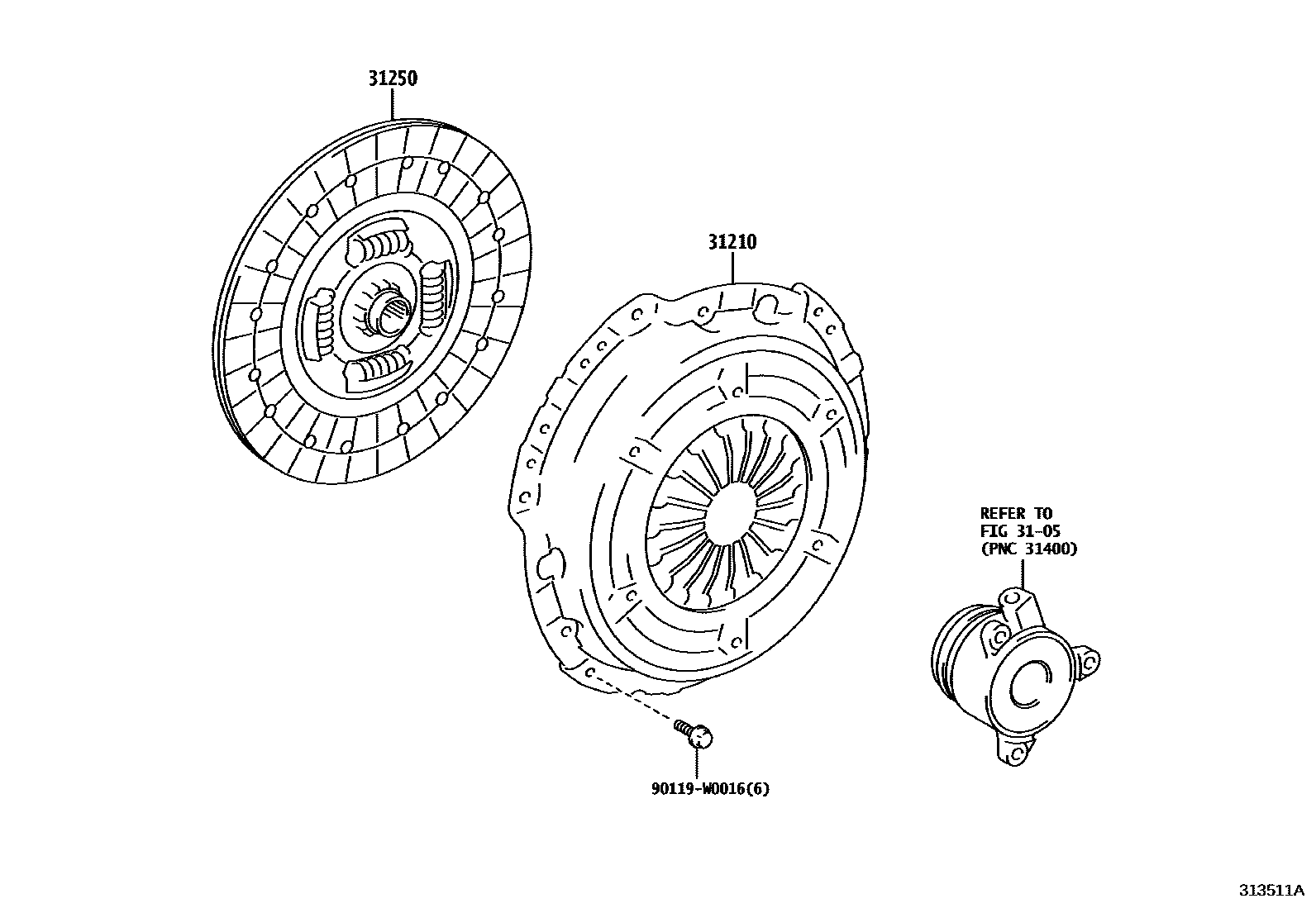

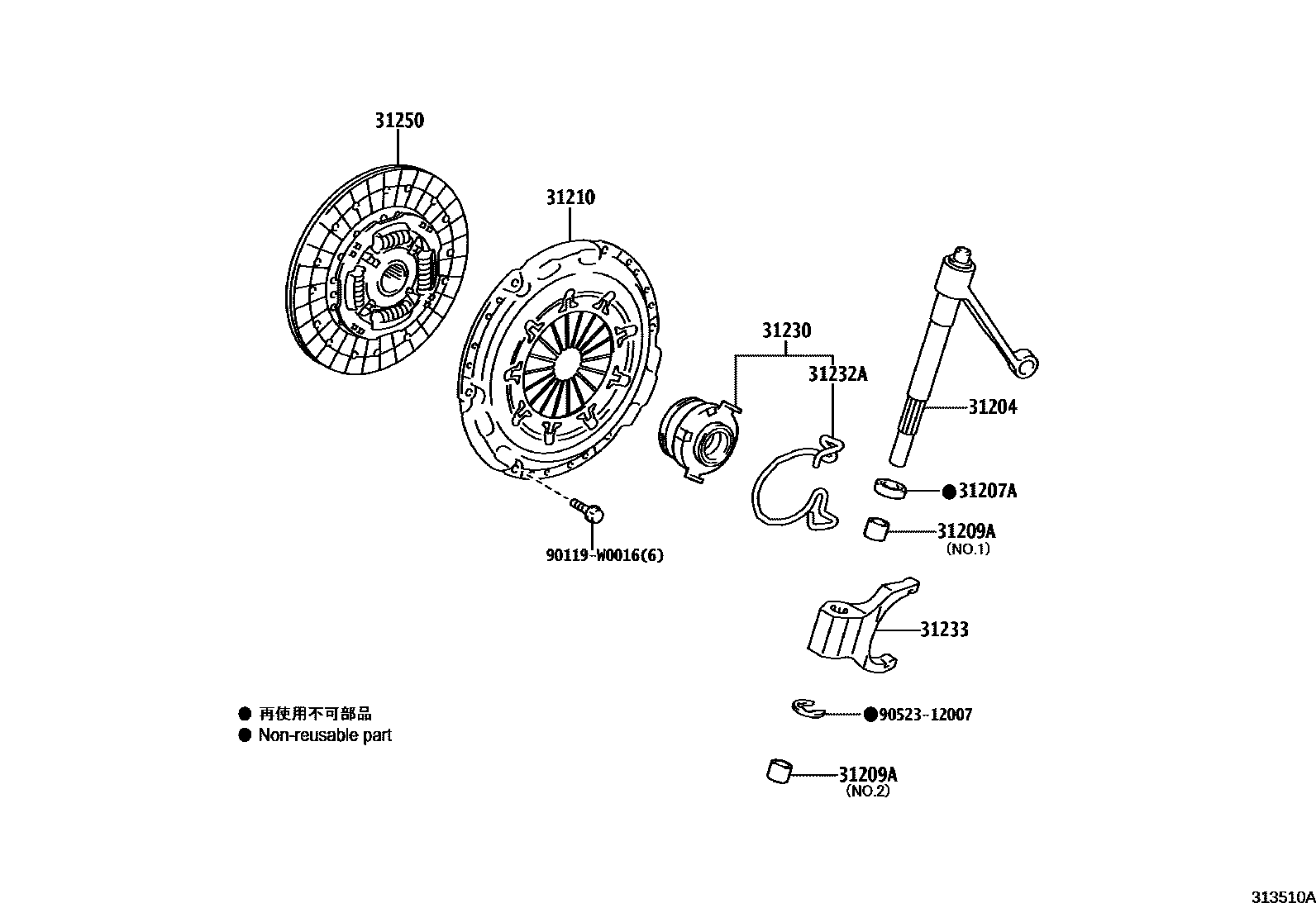

Toyota YARIS 离合器和分离叉 — Figure 3101
Toyota YARIS EPC diagram 3101, 离合器和分离叉, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31204 | Clutch release fork assembly | 31204-52060 |
| 31207A | Oil seal (for clutch release fork lever) | 90310-W0002 |
| 31209A | Bimetallic bushing (for clutch release lever bracket) | 90384-W0004 · 90384-W0005 |
| 31210 | Clutch cover assembly | 31210-K0010 · 31210-K0011 · 31210-K0020 |
| 31230 | Clutch release bearing assembly | 31230-52041 |
| 31232A | Release bearing hub clip | 31232-52041 · 31232-52042 |
| 31233 | clutch release fork | 31233-0D012 |
| 31250 | Clutch disc assembly | 31250-K0010 · 31250-K0020 |
