Toyota YARIS 废气再循环系统 — Figure 2501

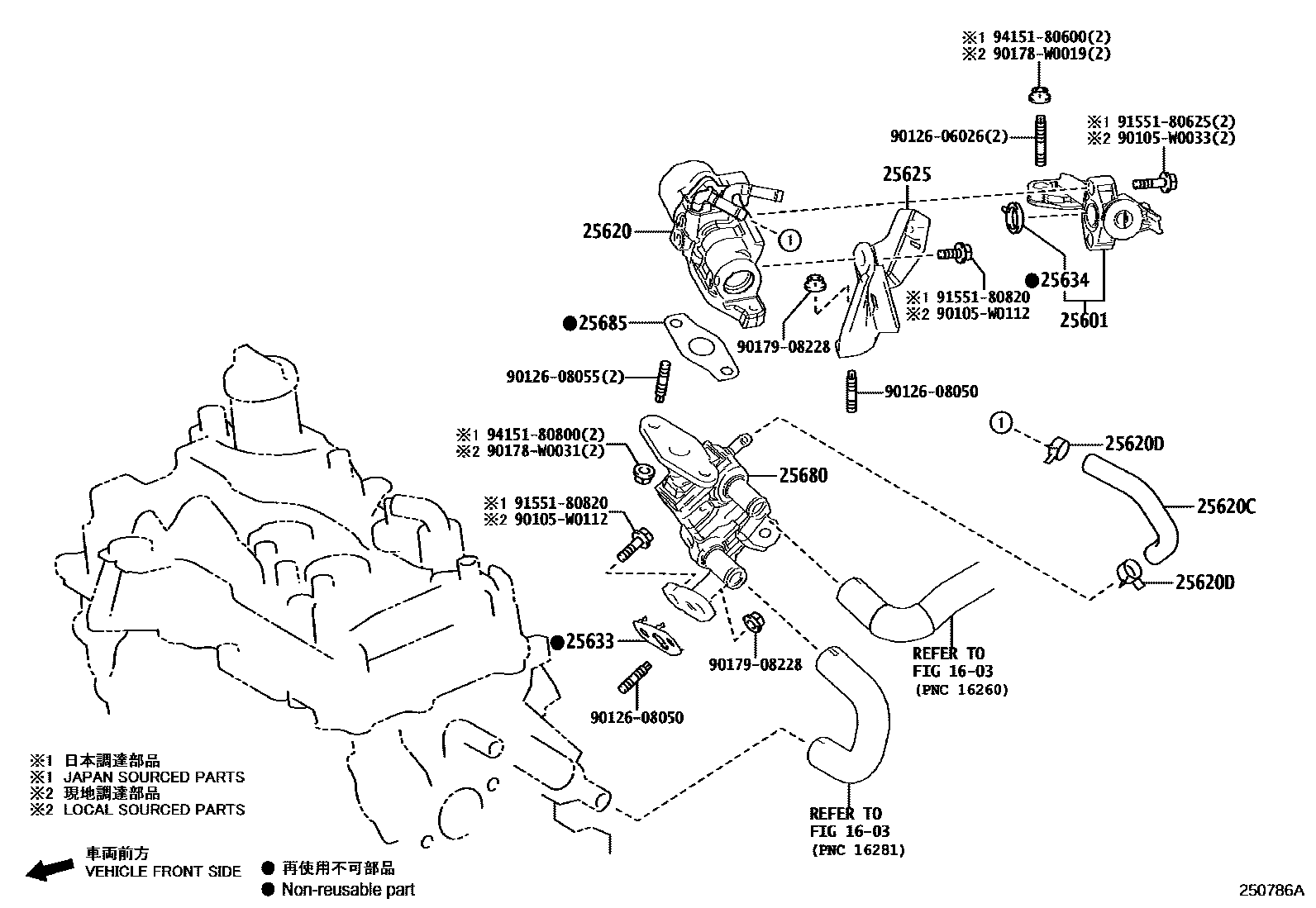

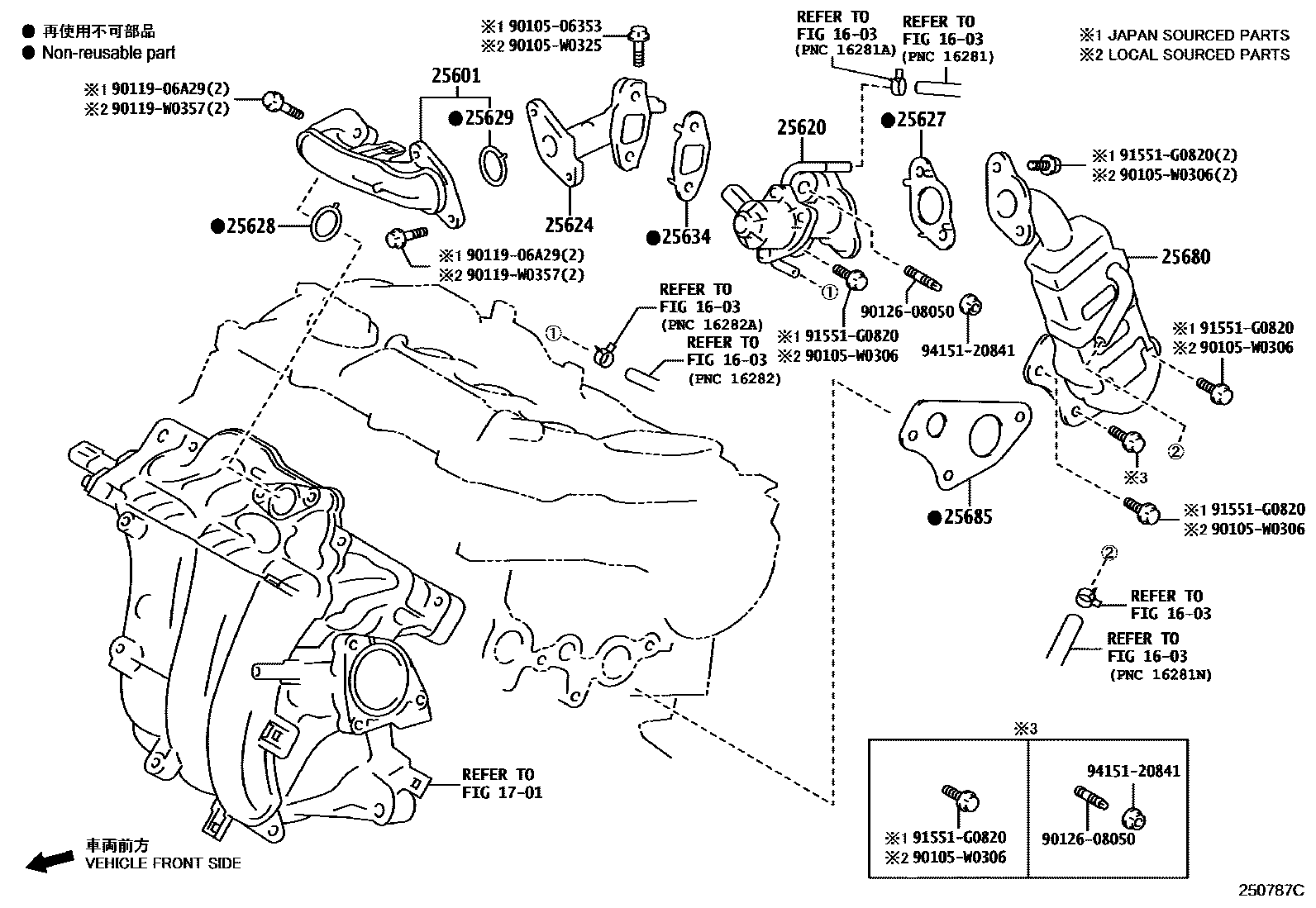

Toyota YARIS EPC diagram 2501, 废气再循环系统, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25601 | No. 1 EGR pipe assembly | 25601-0Q010 · 25601-15050 · 25601-F3010 |
| 25620 | EGR valve assembly | 25620-15360 · 25620-40040 · 25620-40060 |
| 25620C | HOSE, WATER BY-PASS, NO.1 | 16267-0Q010 |
| 25620D | CLIP, WATER BY-PASS HOSE NO.1 | 96137-41501 · 96138-41501 |
| 25624 | EGR valve adapter | 25624-15010 · 25624-F3020 |
| 25625 | EGR valve bracket | 25625-0Q010 |
| 25627 | EGR valve gasket | 25627-15010 · 25627-F3010 |
| 25628 | EGR air intake gasket | 25628-25010 · 25628-F2040 |
| 25629 | EGR valve adapter gasket | 25628-25010 · 25628-F2040 |
| 25633 | EGR valve gasket | 25633-0Q030 |
| 25634 | EGR tube gasket | 25634-15010 · 25634-40010 · 25634-F3010 |
| 25680 | EGR cooler assembly | 25680-0Q010 · 25680-15020 · 25680-15030 · 25680-40020 |
| 25685 | No. 1 EGR Cooler Gasket | 25685-0Q010 · 25685-15010 |
