Toyota YARIS Alternator — Figure 1903

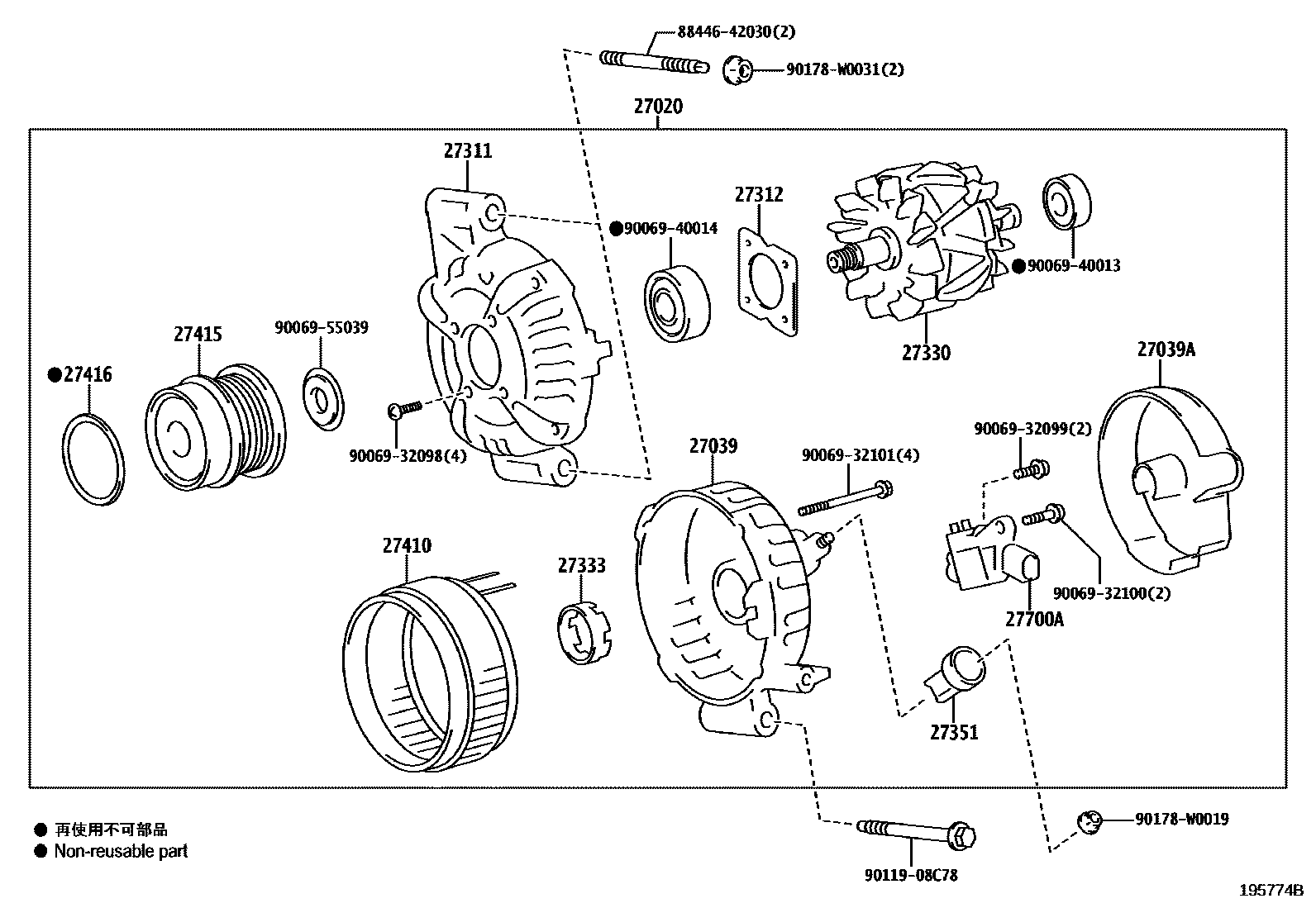

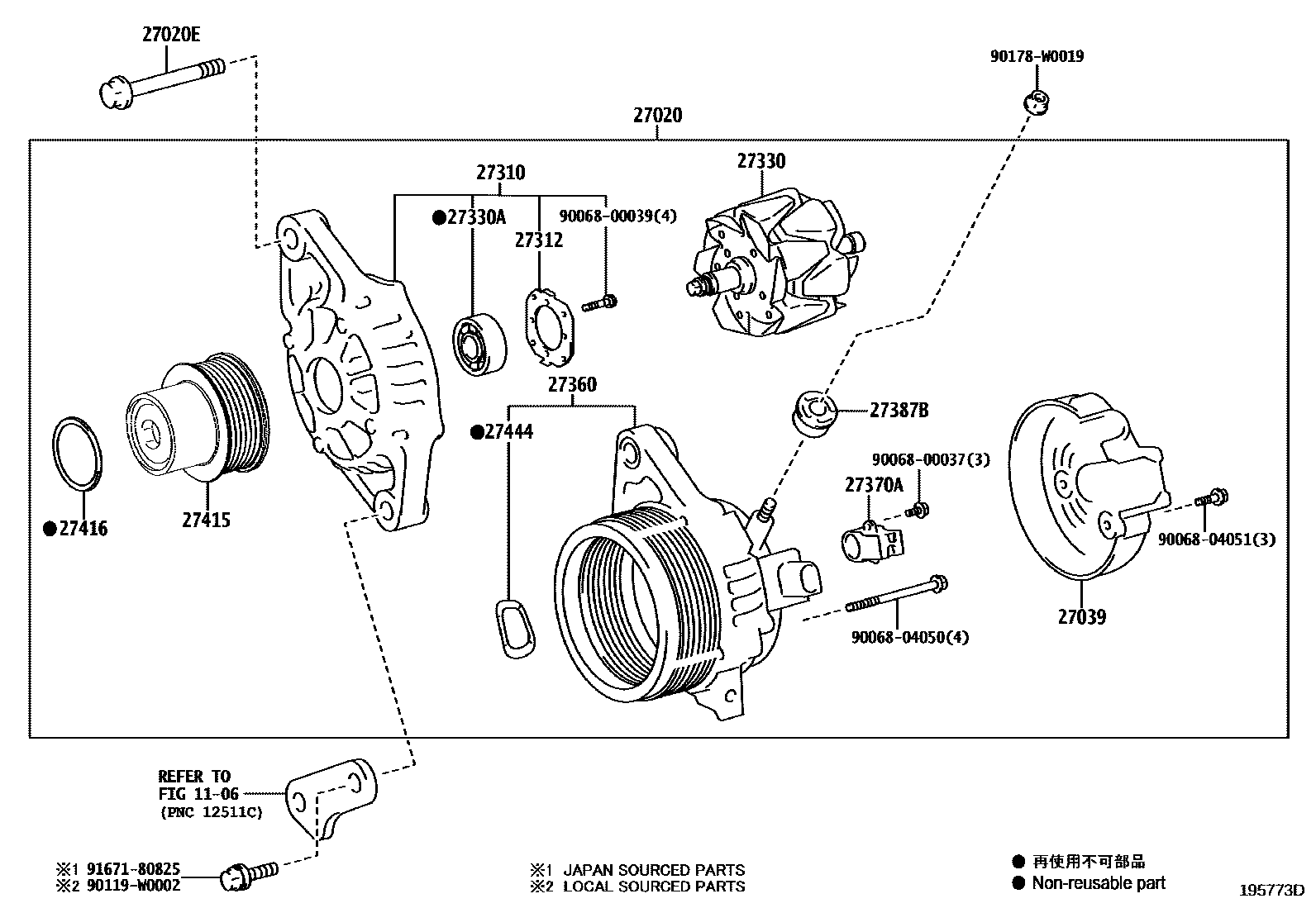

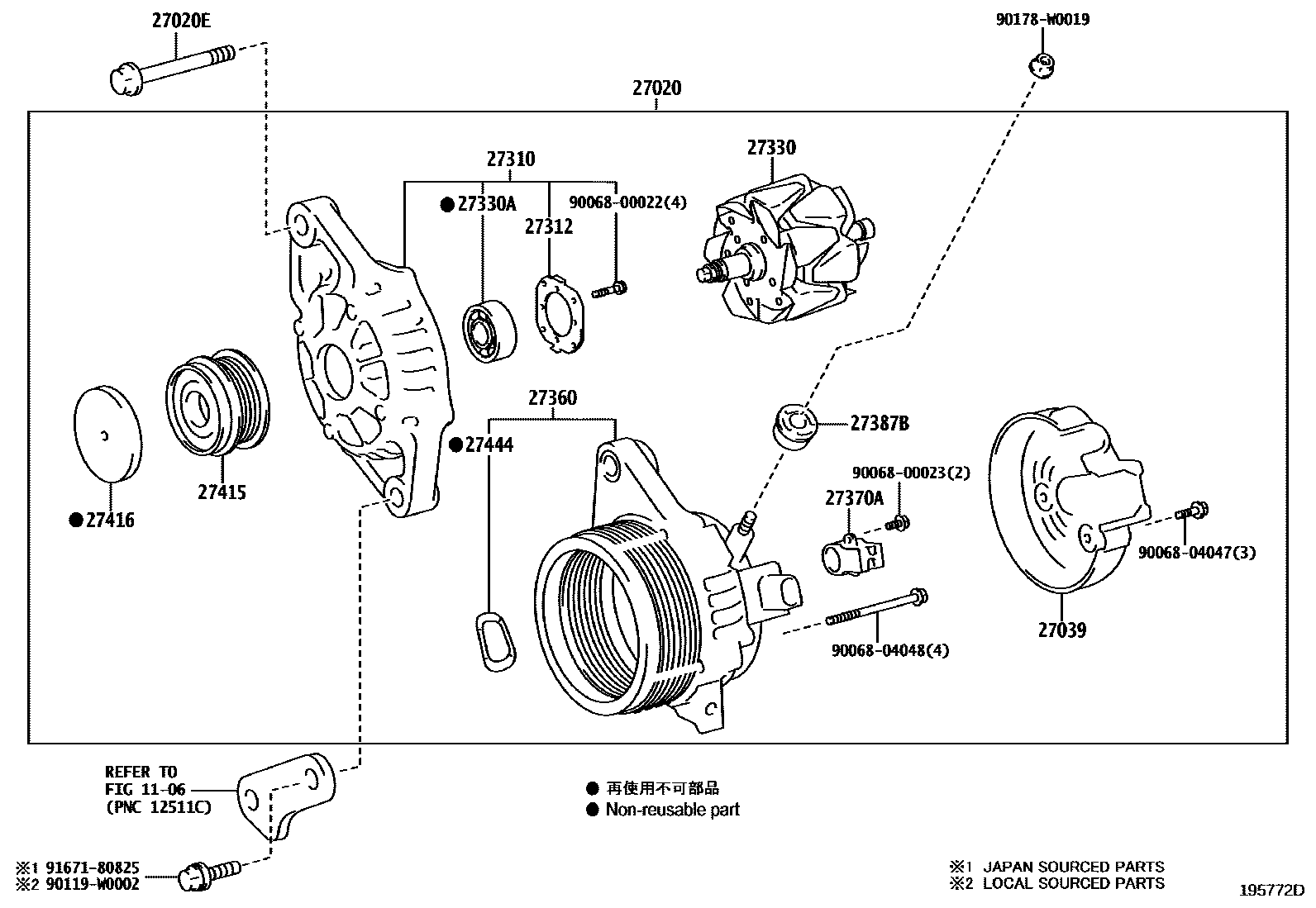

Toyota YARIS EPC diagram 1903, Alternator, with 3 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-0Q160 · 27060-0Q170 · 27060-K0030 |
| 27020E | Bolts (for generator) | 90105-W0113 · 91552-81075 |
| 27039 | Alternator Rear End Cover | 27039-0M100 · 27039-0Y150 · 27039-K0030 |
| 27039A | No. 2 generator rear end cover | 27041-K0030 |
| 27310 | Alternator Drive End Frame Assembly | 27310-0Q131 · 27310-0Q160 |
| 27311 | Generator drive end cover | 27311-K0030 |
| 27312 | Retainer Plate | 27312-0C020 · 27312-0T300 · 27312-K0030 |
| 27330 | Alternator Rotor Assembly | 27330-0M100 · 27330-0Y150 · 27330-K0030 |
| 27330A | Bearings (for generator rotor) | 90068-10033 · 90068-10040 |
| 27333 | Isolation collar (for generator rotor) | 27333-K0030 |
| 27351 | Bushing (for generator rectifier end frame) | 90069-41003 |
| 27360 | Alternator Stator Coil Assembly | 27360-0Q140 · 27360-0Q150 |
| 27370A | Alternator Brush Holder Assembly | 27370-0M040 · 27370-0Y150 |
| 27387B | Generator terminal insulation pad | 27387-0C020 · 27387-0Y150 |
| 27410 | Generator stator assembly | 27410-K0030 |
| 27415 | PULLEY, ALTERNATOR W/CLUTCH | 27415-0Q010 · 27415-0W220 · 27415-F3010 |
| 27416 | Generator pulley cover | 27416-0Q010 · 27416-0W020 · 27416-0W050 |
| 27444 | Generator bearing cap seals | 27444-0T300 · 27444-0Y180 |
| 27700A | Generator voltage regulator assembly | 27700-K0020 |
